Installing Set Additional Head Light replacement parts for 2008-2012 BMW R1200GS 10+ (K25)

OEM Parts Bmw 2008-2012 Bmw R1200GS 10+ (K25) Installing Set Additional Head Light

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	ADDITIONAL HEADLIGHT Part #: 63127709430 Required per assembly: 2 Note: NOT SUITABLE FOR Currently Not Available
02	SUPPORTING RING Part #: 63127653586 Required per assembly: 2 Currently Not Available
03	LONGLIFE BULB - H11 55W Part #: 63217160784 Required per assembly: 2 Currently Not Available
04	BRACKET, ADDITIONAL HEADLIGHT LEFT Part #: 71607715831 Required per assembly: 1 Currently Not Available
04	BRACKET FOR AUX. DRIVING LIGHT, RIGHT Part #: 71607715832 Required per assembly: 1 Currently Not Available
05	SET: SET MOUNTING PARTS ADDITIONAL HEADLIGHT Part #: 63177709686 Required per assembly: 1 Currently Not Available
06	WIRING HARNESS, AUXILIARY DRIVING LIGHT Part #: 61127714229 Required per assembly: 1 Currently Not Available
07	MINIRELAY, MAKE CONTACT, YELLOW Part #: 61366902041 Required per assembly: 1 Currently Not Available
07	MINIRELAY, MAKE CONTACT, YELLOW Part #: 61366902041 Required per assembly: 1 Currently Not Available
08	FUSE MINI, BROWN - 7,5A Part #: 61136917402 Required per assembly: 2 Note: ONLY APPLIES TO Currently Not Available
09	LOWER SECTION OF SWITCH HOUSING, LEFT Part #: 61317702067 Required per assembly: 1 Currently Not Available
10	UPPER SECTION OF SWITCH HOUSING, LEFT Part #: 61317702063 Required per assembly: 1 Currently Not Available

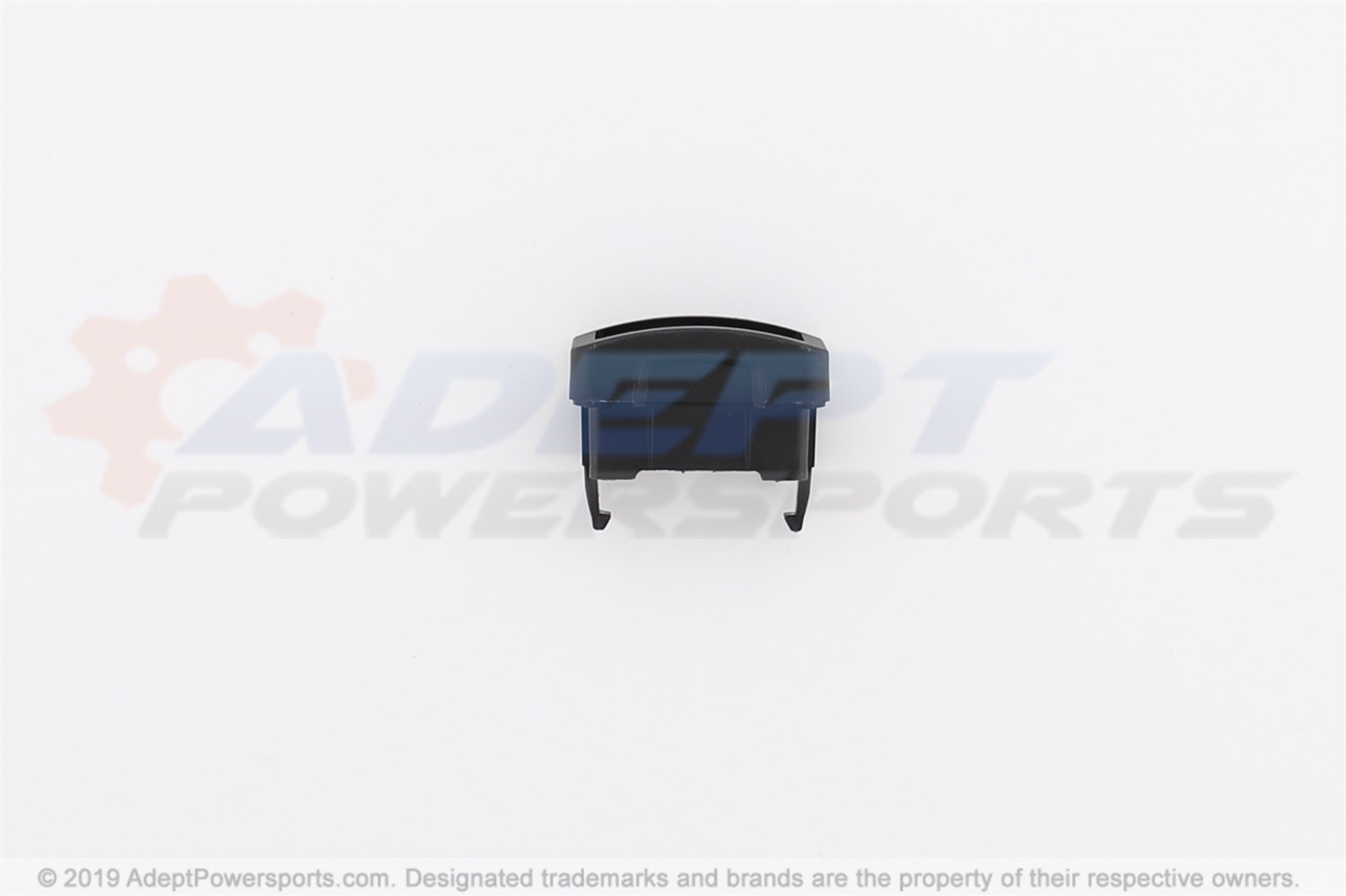

11	FOG LAMP SWITCH Part #: 61317694815 Required per assembly: 1 Note: FOR VEHICLES WITH CONTROL HMI CONCEPT (CODE: X135A) AND ADDITIONAL HEADLIGHT (CODE: X562A) Currently Not Available
12	CABLE STRAP WITH BRACKET - L=200MM Part #: 61136918644 Required per assembly: 2 Currently Not Available
13	CABLE STRAP - L=200MM/B=3,6MM Part #: 61131367599 Required per assembly: 1 Note: NOT FOR VEHICLES WITH AUTHORITIES DENMARK 35 KW (CODE: V005A) AND OFFICIAL VEHICLE, DENMARK (CODE: X101A) AND AUTHORITIES FRANCE R65GS (CODE: X105A) Currently Not Available

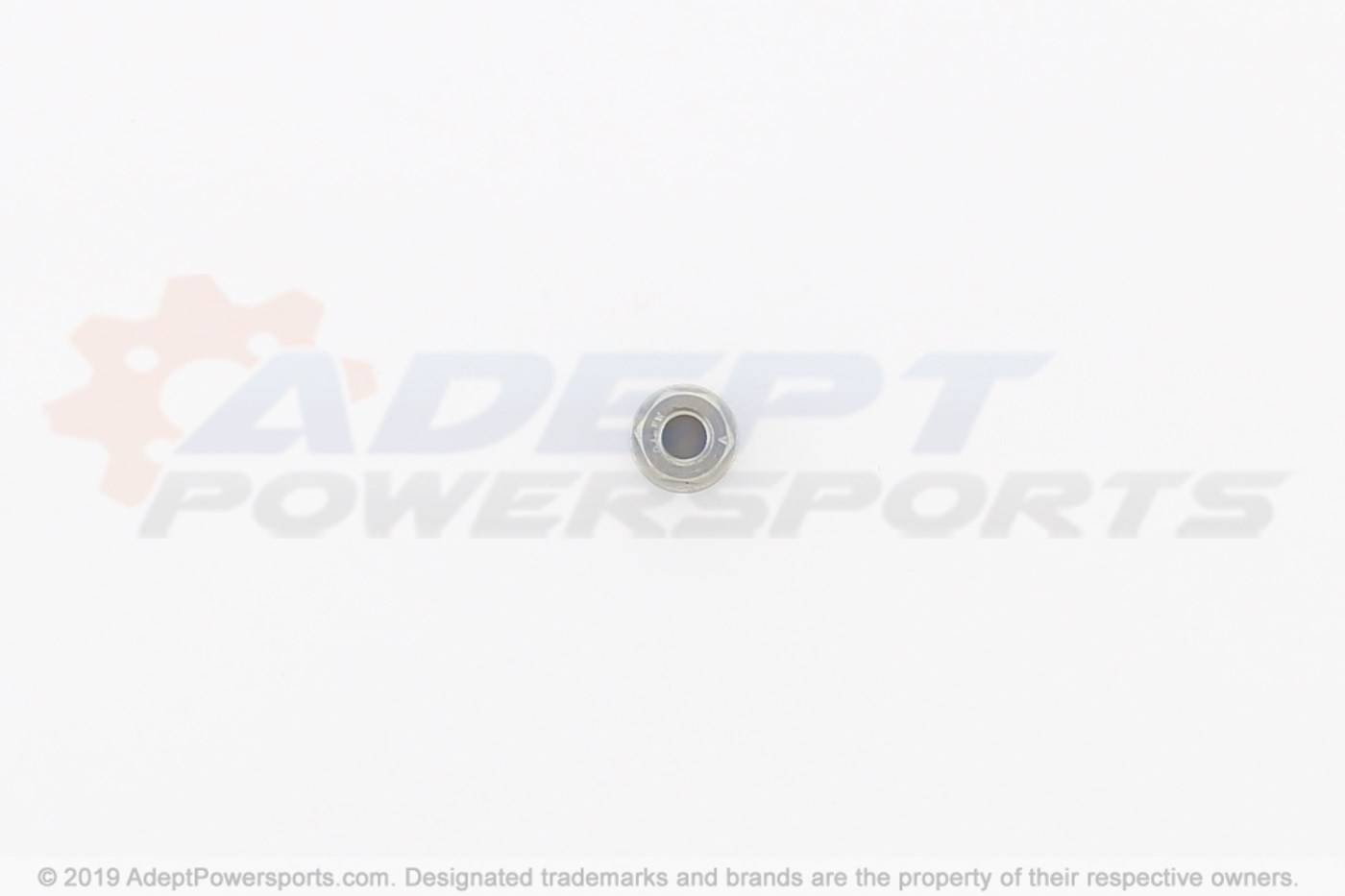

14	NUT - M6 Part #: 63127694805 Required per assembly: 2 Currently Not Available
15	HEX NUT - M6 Part #: 07129905826 Required per assembly: 2 Currently Not Available
16	FILLISTER HEAD SCREW - M6X40 Part #: 63127699141 Required per assembly: 2 Currently Not Available
17	OVAL HEAD SCREW - M5X25 Part #: 63137655661 Required per assembly: 2 Currently Not Available
