Horn replacement parts for 2008-2012 BMW R1200RT 10+ (K26)

OEM Parts Bmw 2008-2012 Bmw R1200RT 10+ (K26) Horn

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

NOT FOR VEHICLES WITH SIREN, ELECTRONIC (CODE: X486A) AND TO NE SEQUENCE SIGNAL SYSTEM, ELECTRONIC (CODE: X493A)
01	HORN Part #: 61332346554 Required per assembly: 1 Currently Not Available
02	FILLISTER HEAD SCREW - M8X20 Part #: 46517654248 Required per assembly: 1 Currently Not Available
03	PLUG-IN NUT - M8-ZNS Part #: 61332346555 Required per assembly: 1 Currently Not Available
04	CABLE STRAP - L=200MM/B=3,6MM Part #: 61131367599 Required per assembly: 1 Note: NOT FOR VEHICLES WITH AUTHORITIES DENMARK 35 KW (CODE: V005A) AND OFFICIAL VEHICLE, DENMARK (CODE: X101A) AND AUTHORITIES FRANCE R65GS (CODE: X105A) Currently Not Available

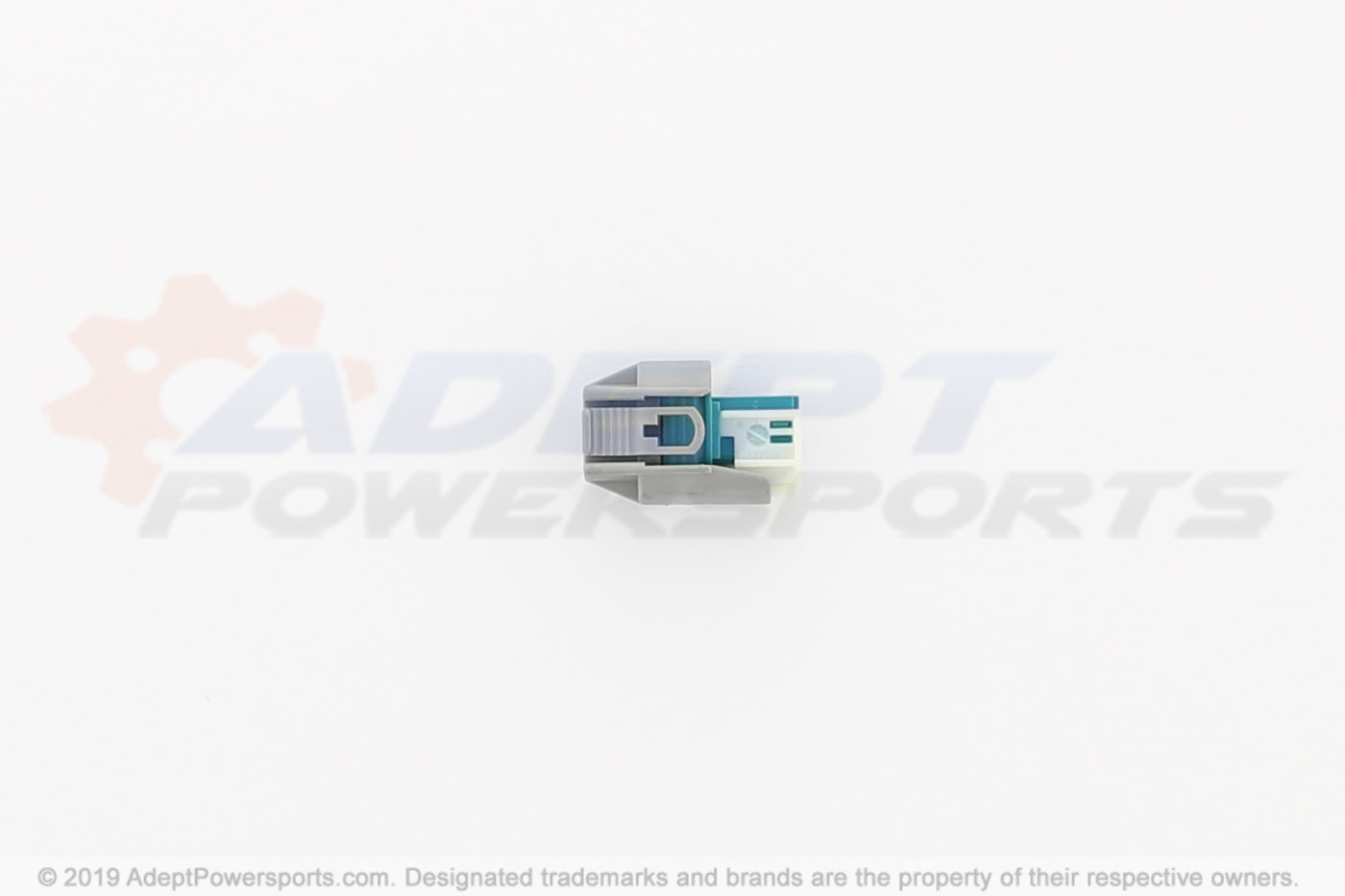

05	UNIVERSAL SOCKET HOUSING UNCODED - 2 POL. Part #: 61138365340 Required per assembly: 1 Currently Not Available

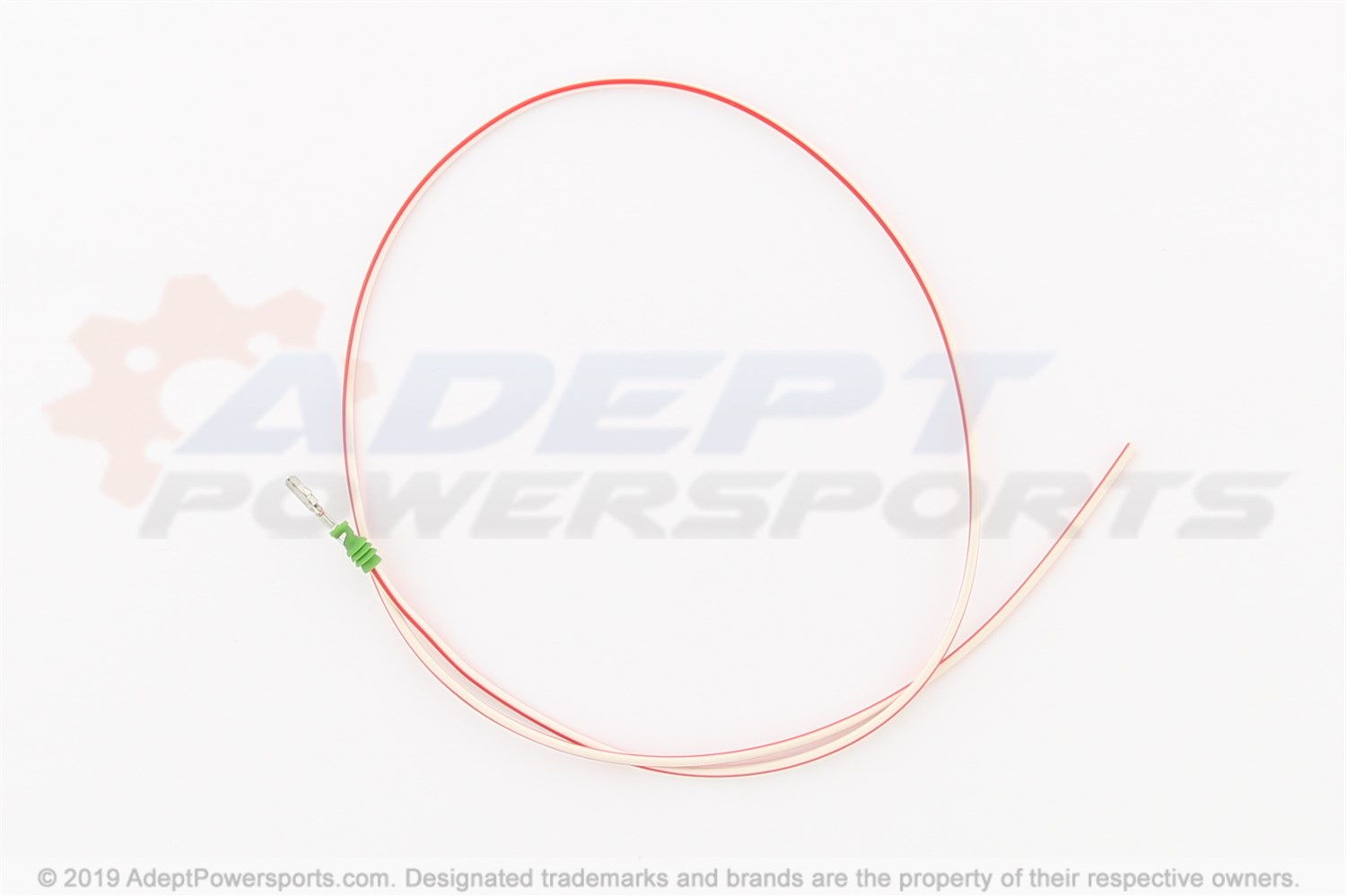

--	BUSHING CONTACT - 0, 2- 0, 5MM² Part #: 61130005199 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH $3.18 $2.66 - + Add to cart

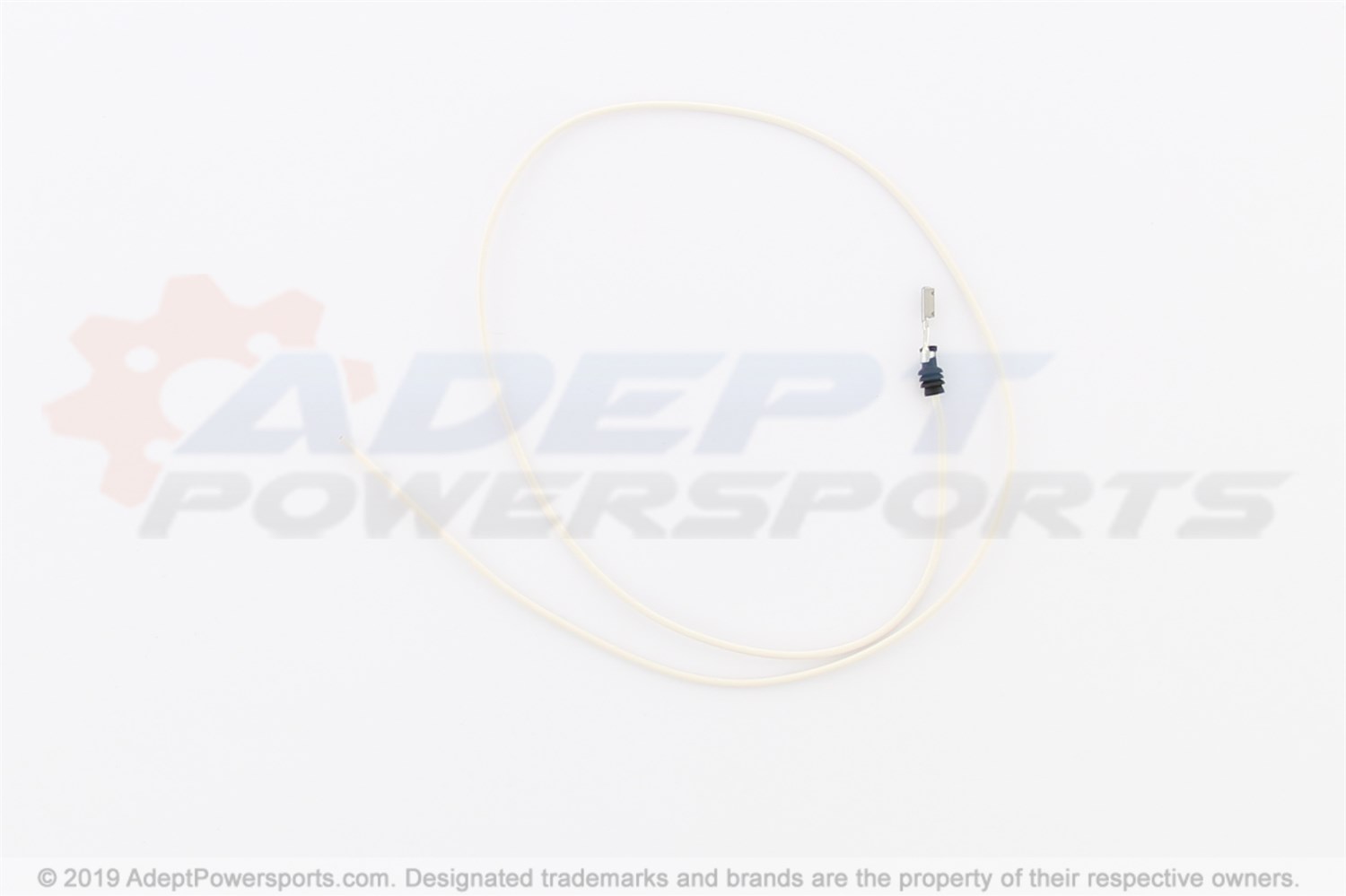

--	BUSHING CONTACT - 0, 75MM² Part #: 61130006665 Required per assembly: 2 $3.27 $2.73 - + Add to cart
