OEM Parts Polaris 2009 Polaris Sportsman XP 850 (A09ZN85/8X ALL OPTIONS) Body, Headlight Pod - A09zn85/8X All Options

2009 Polaris Sportsman XP 850 (A09ZN85/8X ALL OPTIONS) - Body, Headlight Pod - A09zn85/8X All Options

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

POD, HEADLIGHT, UPPER, NBU, CAMO, [AT]

Part #: 5437943-455 Required per assembly: 1 Note: Pod, Headlight, Upper, NBU [AT]
Currently Not Available
1

POD, HEADLIGHT, UPPER, SAGE, BRUSH, GREEN, [AX]

Part #: 5437745-498 Required per assembly: 1
Currently Not Available
1
Polaris 5437745-520 Pod, Headlight, Upper, Sunset, Red, [Al]

POD, HEADLIGHT, UPPER, SUNSET, RED, [AL]

Part #: 5437745-520 Required per assembly: 1
Currently Not Available
1

POD, HEADLIGHT, UPPER, NBU, CAMO, [AQ]

Part #: 5437817-455 Required per assembly: 1
Currently Not Available
1
Polaris 5437745-464 Pod, Headlight, Upper, Stealth, Black, [As]

POD, HEADLIGHT, UPPER, STEALTH, BLACK, [AS]

Part #: 5437745-464 Required per assembly: 1
Currently Not Available
2

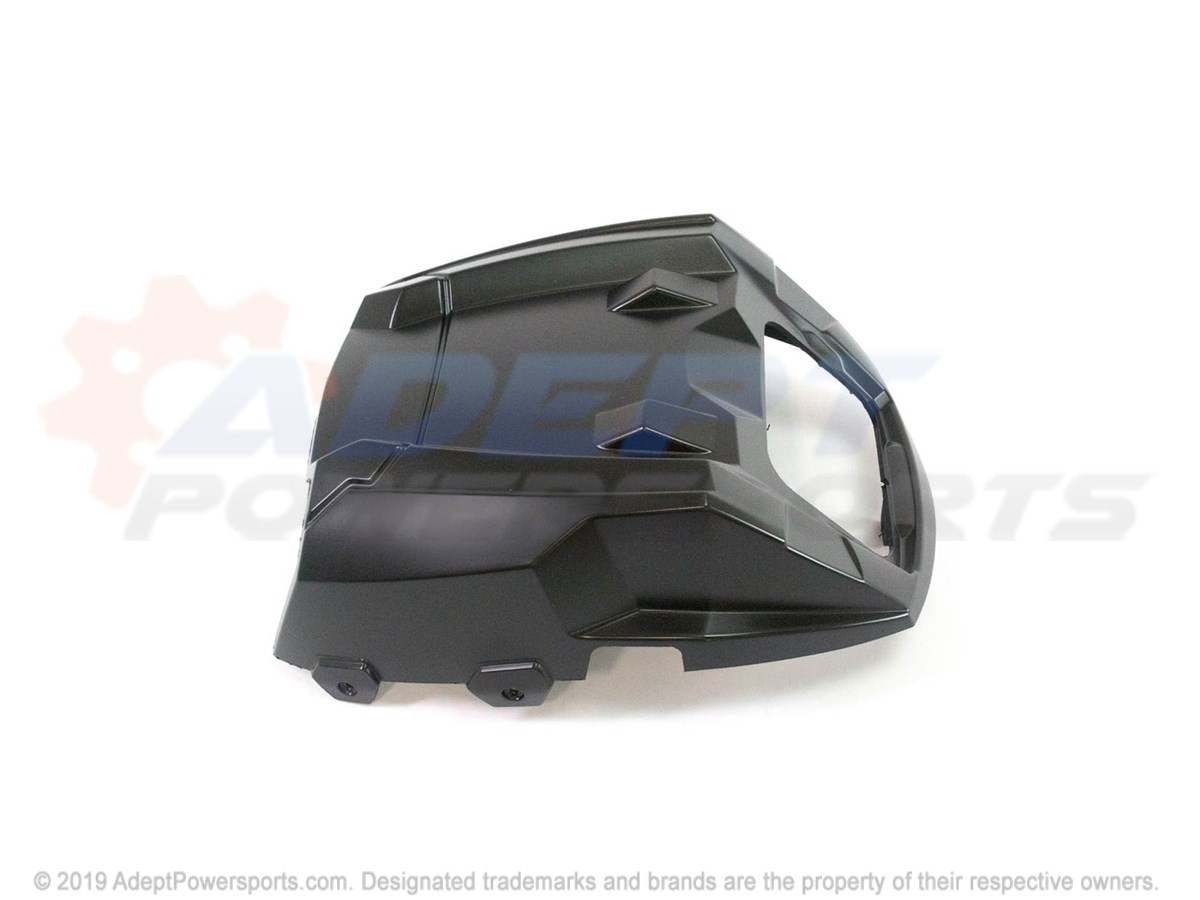

Polaris 5435812-070 Pod, Headlight, Lower, Black

POD, HEADLIGHT, LOWER, BLACK

Part #: 5435812-070 Required per assembly: 1 Note: Pod, Headlight, Lower, Black
Currently Not Available
3
Polaris 7512026 Screw

SCREW

Part #: 7512026 Required per assembly: 5 Note: Screw
Currently Not Available
4

CLIP-SCREW, #8/10, .03-.10, PANEL

Part #: 7670127 Required per assembly: 1
Currently Not Available
5
Polaris 7517441 Screw

SCREW

Part #: 7517441 Required per assembly: 2
Currently Not Available
