2009 Polaris Sportsman XP 850 (A09ZN85/8X ALL OPTIONS) - Suspension, Rear - A09zn85/8X All Options

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7518467 Screw, Flange

SCREW, FLANGE

Part #: 7518467 Required per assembly: 2
Currently Not Available
2
Polaris 7547313 Nut, Flange

NUT, FLANGE

Part #: 7547313 Required per assembly: 12
$2.79
$1.73
-
+
Add to cart
3
Polaris 5436798 Bushing, Control, Arm

BUSHING, CONTROL, ARM

Part #: 5436798 Required per assembly: 20
Currently Not Available
4

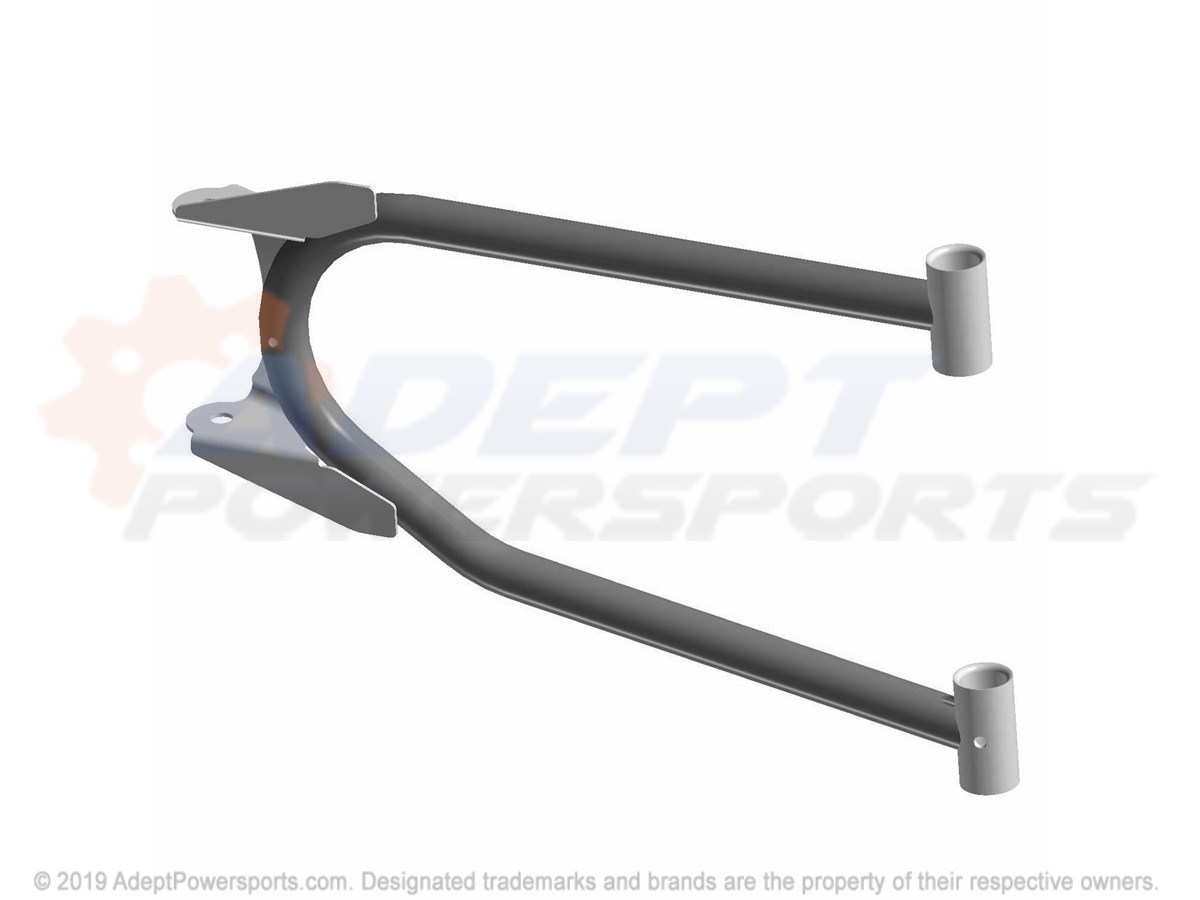

Polaris 1017259-067 Arm, Control, Upper, Rear, Rh, Black

ARM, CONTROL, UPPER, REAR, RH, BLACK

Part #: 1017259-067 Required per assembly: 1 Note: Arm, Control, Upper, Rear, RH, Black
Currently Not Available
4
Polaris 1017259-067 Arm, Control, Upper, Rear, Rh, Black

ARM, CONTROL, UPPER, REAR, RH, BLACK

Part #: 1017259-067 Required per assembly: 1 Note: Arm, Control, Upper, Rear, RH, Black
Currently Not Available
4

ARM, CONTROL, UPPER, REAR, LH, BLACK

Part #: 1017258-067 Required per assembly: 1 Note: Arm, Control, Upper, Rear, LH, Black
Currently Not Available
4

ARM, CONTROL, UPPER, REAR, LH, BLACK

Part #: 1017258-067 Required per assembly: 1 Note: Arm, Control, Upper, Rear, LH, Black
Currently Not Available
5

ZERK, FITTING, THREADED

Part #: 7080433 Required per assembly: 8
$2.99
$1.73
-
+
Add to cart
6
Polaris 5135270 Shaft, A-Arm

SHAFT, A-ARM

Part #: 5135270 Required per assembly: 8
Currently Not Available
7

SCREW

Part #: 7518466 Required per assembly: 8 Note: Bolt
Currently Not Available
8

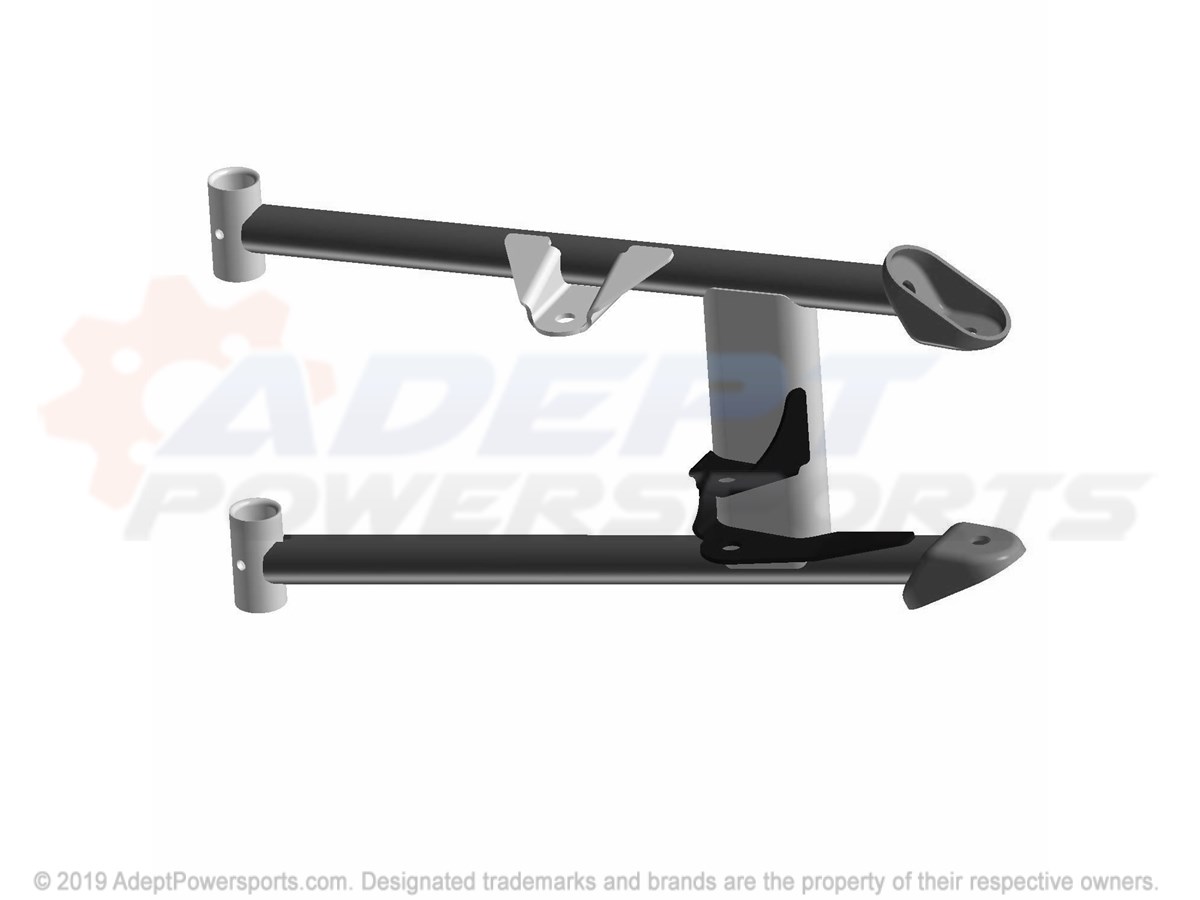

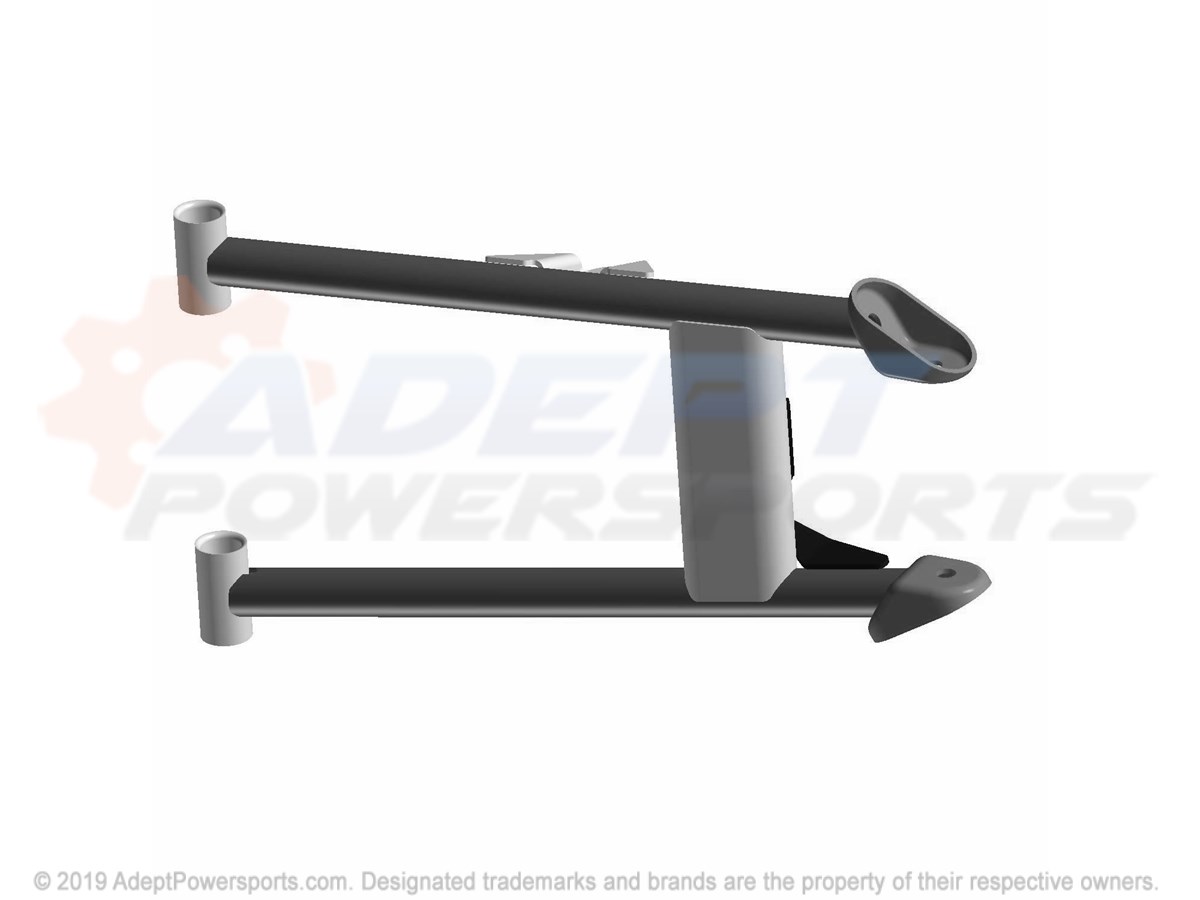

Polaris 1017256-067 Arm, Control, Lower, Rear, Lh, Black

ARM, CONTROL, LOWER, REAR, LH, BLACK

Part #: 1017256-067 Required per assembly: 1 Note: Arm, Control, Lower, Rear, LH, Black
Currently Not Available
8
Polaris 1017257-067 Arm, Control, Lower, Rear, Rh, Black

ARM, CONTROL, LOWER, REAR, RH, BLACK

Part #: 1017257-067 Required per assembly: 1 Note: Arm, Control, Lower, Rear, RH, Black
Currently Not Available
9
Polaris 7518675 Bolt, Flange

BOLT, FLANGE

Part #: 7518675 Required per assembly: 2
Currently Not Available
10
Polaris 5137590 Shaft-Pivot 104.9Mm Zinc Yel

SHAFT-PIVOT 104.9MM ZINC YEL

Part #: 5137590 Required per assembly: 2
Currently Not Available
11

SHAFT-A-ARM, LCA, 0.75", OD

Part #: 5145086 Required per assembly: 2
Currently Not Available
12
Polaris 5437651 Bushing, Lower, Control, Arm

BUSHING, LOWER, CONTROL, ARM

Part #: 5437651 Required per assembly: 4
Currently Not Available
