OEM Parts Polaris 2009 Polaris Sportsman XP 850 (A09ZN85/8X ALL OPTIONS) Drive Train, Secondary Clutch - A09zn85/8X All Options

2009 Polaris Sportsman XP 850 (A09ZN85/8X ALL OPTIONS) - Drive Train, Secondary Clutch - A09zn85/8X All Options

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

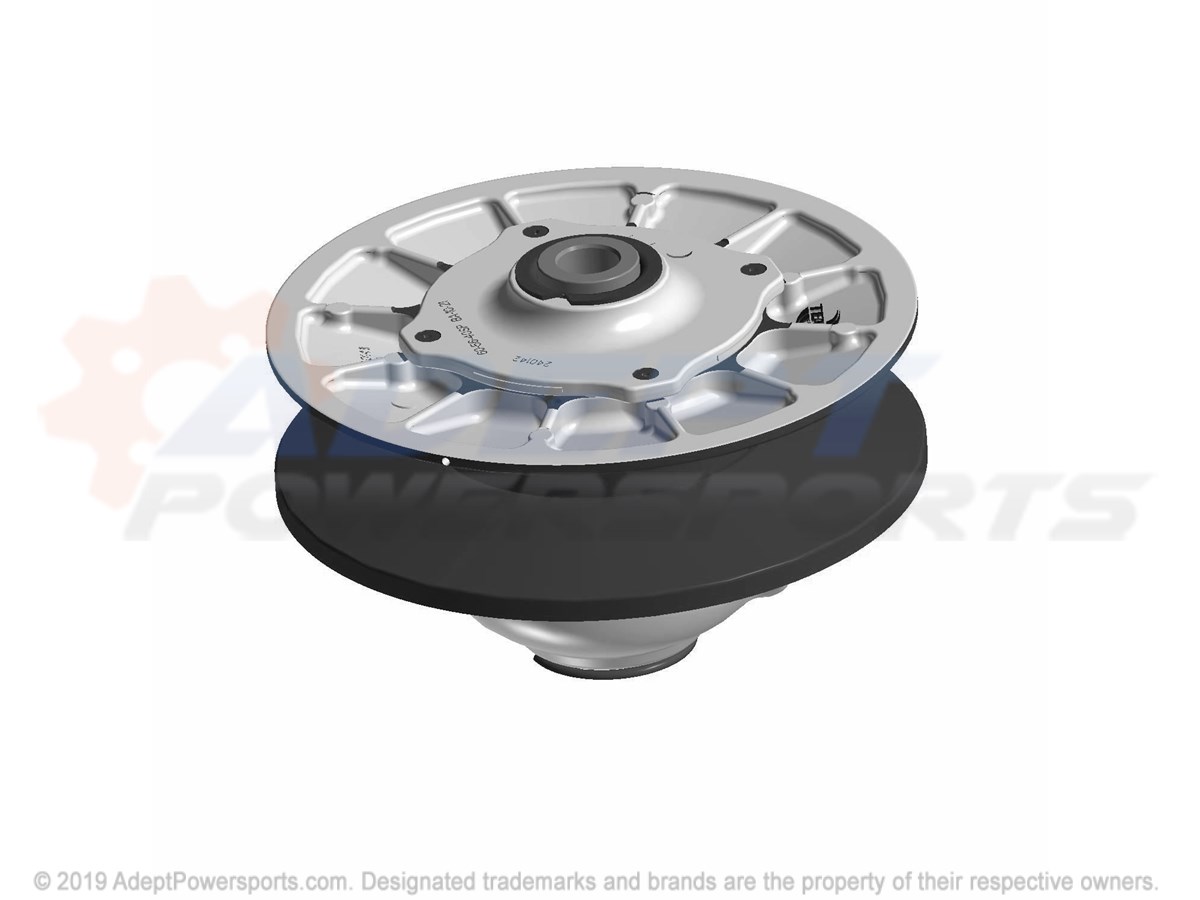

Polaris 1322777 Assembly, Driven, Clutch

ASSEMBLY, DRIVEN, CLUTCH

Part #: 1322777 Required per assembly: 1 Note: Asm., Driven Clutch [Incl. 1-14]
Currently Not Available
2

ASSEMBLY, CAM

Part #: 3234620 Required per assembly: 1
Currently Not Available
3

RING, RETAINING, EXT, 1.500

Part #: 7710522 Required per assembly: 1
Currently Not Available
4

E-RING, RETAINING, (1322551)

Part #: 7710523 Required per assembly: 2 Note: E-Ring, Retaining
Currently Not Available
5

WASHER, THRUST, (1322551)

Part #: 7556226 Required per assembly: 2 Note: Washer, Thrust
Currently Not Available
6

ROLLER, CLUTCH

Part #: 3234207 Required per assembly: 2
$44.99
$23.74
-
+
Add to cart
7

BEARING, BALL

Part #: 3234203 Required per assembly: 1
Currently Not Available
8

K-CLUTCH, PTD, SPIDER, DAMPER

Part #: 2206554 Required per assembly: 1
Currently Not Available
9

RING, RETAINING, [1322419]

Part #: 3234205 Required per assembly: 1 Note: Ring, Retaining
Currently Not Available
10

SPRING, COMPRESSION

Part #: 3234621 Required per assembly: 1
Currently Not Available
11

SCREW

Part #: 3234192 Required per assembly: 4 Note: Screw, Cap
Currently Not Available
12

PIN, ROLLER

Part #: 3234201 Required per assembly: 2
Currently Not Available
13

ROLLER, CLUTCH, [1322419]

Part #: 3234197 Required per assembly: 2 Note: Roller, Clutch
Currently Not Available
14

PIN, SPRING, SLOTTED

Part #: 3234202 Required per assembly: 2
Currently Not Available
15
Polaris 3211160 Belt, Drive

BELT, DRIVE

Part #: 3211160 Required per assembly: 1
Currently Not Available
16
Polaris 5250562 Washer, Domed

WASHER, DOMED

Part #: 5250562 Required per assembly: 1
Currently Not Available
17
Polaris 7552901 Lock Washer

LOCK WASHER

Part #: 7552901 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
18

BOLT

Part #: 7518935 Required per assembly: 1
Currently Not Available
