2011 Polaris Hawkeye 2X4 (A11LB27AA) - Electrical, Headlights

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

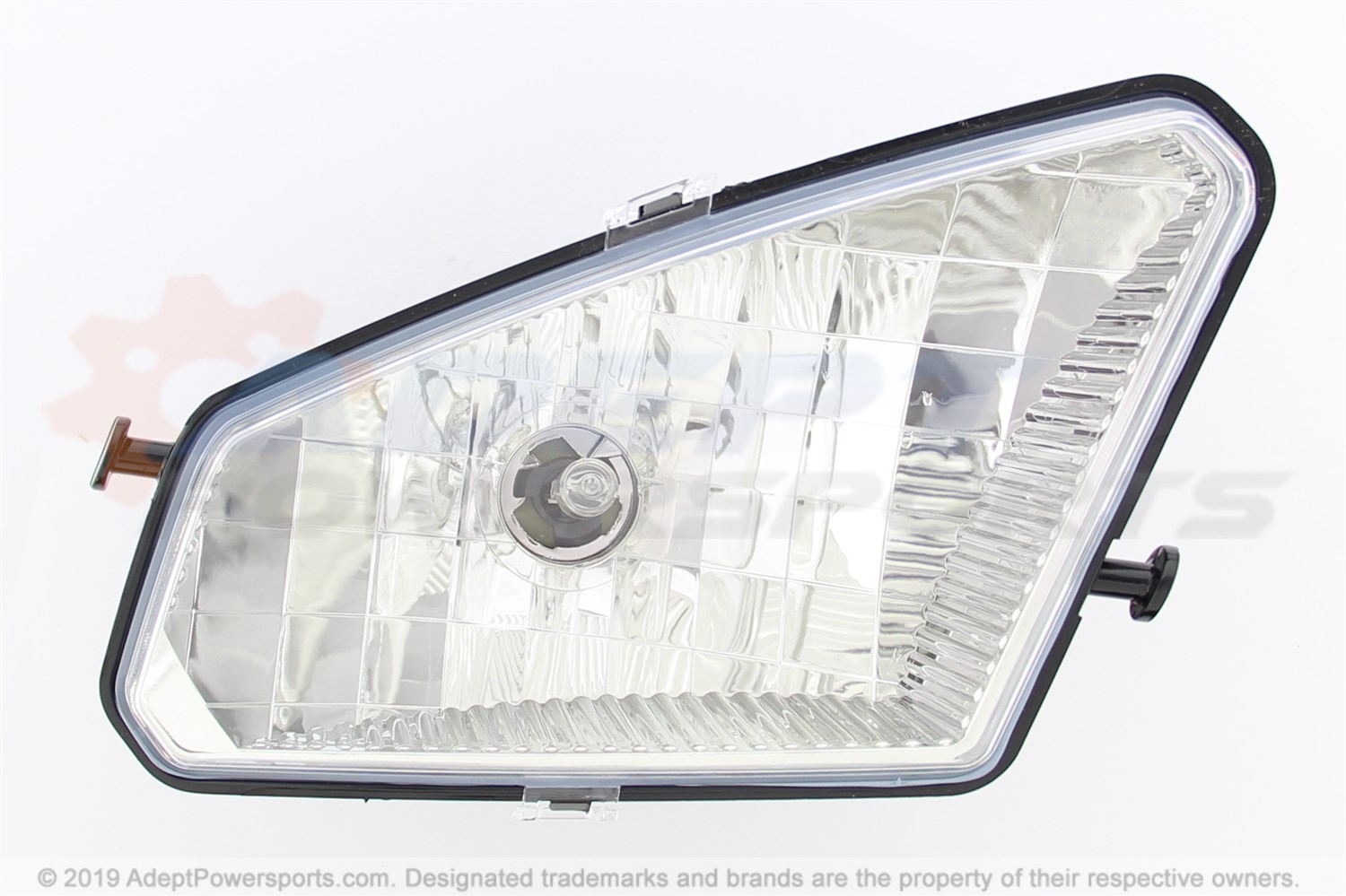

ASSEMBLY, HEADLIGHT, LH, (AT)

Part #: 2410735 Required per assembly: 1 Note: Asm., Headlight, LH [Incl. Bulb]
Currently Not Available
2

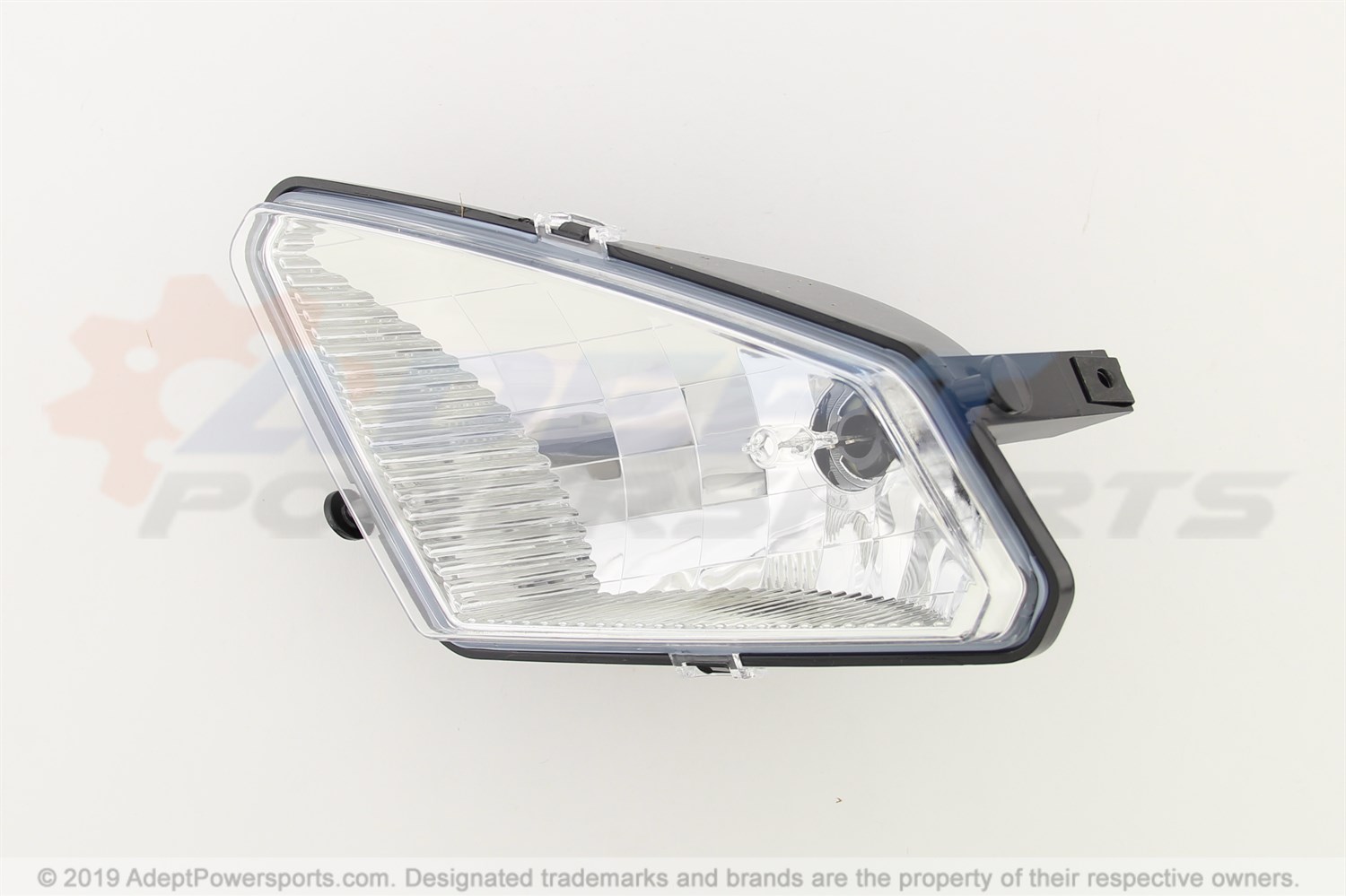

ASSEMBLY, HEADLIGHT, RH, (AT)

Part #: 2410736 Required per assembly: 1 Note: Asm., Headlight, RH [Incl. Bulb]
Currently Not Available
3

O-RING

Part #: 5410675 Required per assembly: 2
Currently Not Available
4

NUT, U-TYPE

Part #: 7670157 Required per assembly: 2
Currently Not Available
5

SCREW

Part #: 7517561 Required per assembly: 2
Currently Not Available
6

WASHER

Part #: 7556329 Required per assembly: 2
Currently Not Available
