2011 Polaris Hawkeye 2X4 (A11LB27AA) - Engine, Exhaust

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

BOLT

Part #: 7512666 Required per assembly: 1
Currently Not Available
2

SILENCER, BLACK

Part #: 1261709-489 Required per assembly: 1
Currently Not Available
3

WASHER, CLEAN, OUT

Part #: 7556230 Required per assembly: 1 Note: Washer
$1.99
$1.15
-
+
Add to cart
4

SEAL, EXHAUST

Part #: 5243518 Required per assembly: 1 Note: Seal, Exhaust
Currently Not Available
5

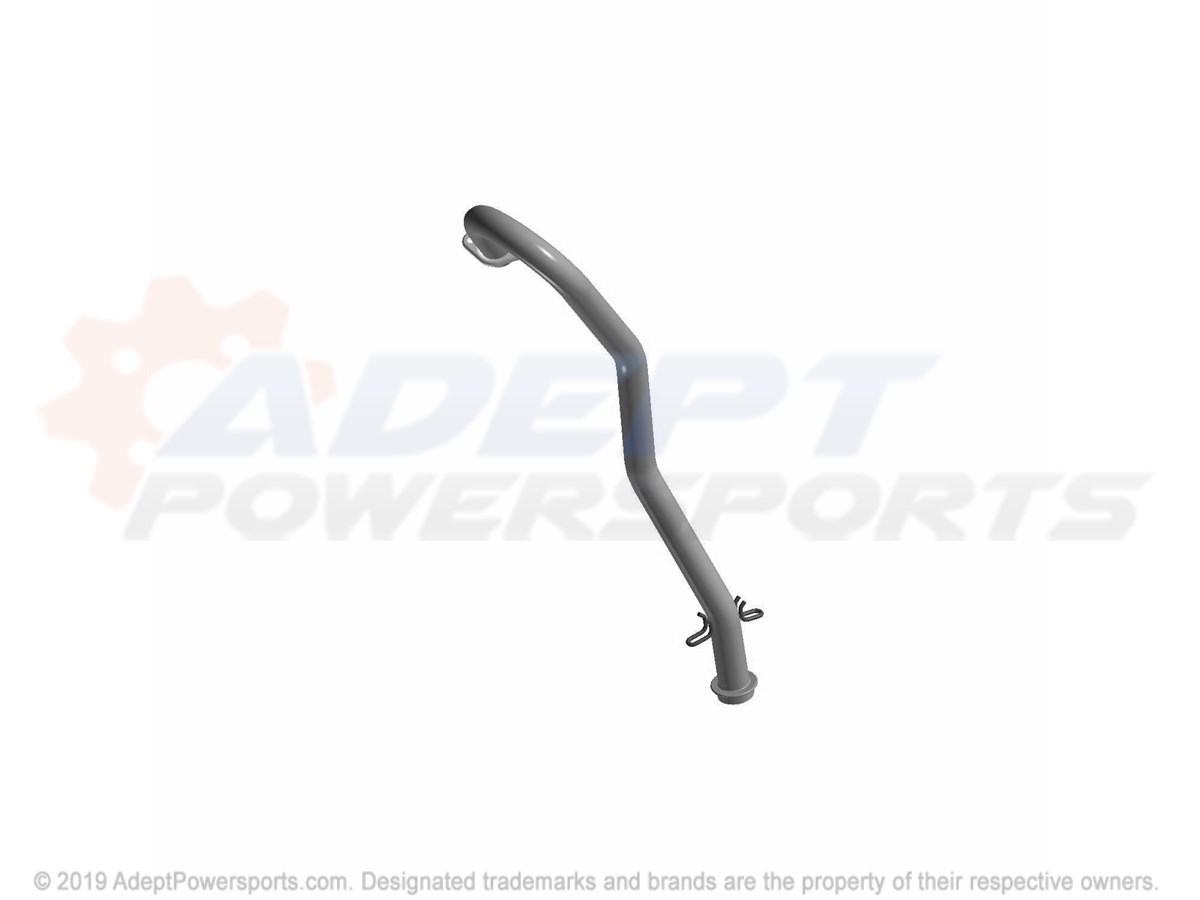

HEADPIPE, BLACK

Part #: 1261710-489 Required per assembly: 1
Currently Not Available
6

NUT

Part #: 3087199 Required per assembly: 2
Currently Not Available
7

WASHER LOCK

Part #: 3080530 Required per assembly: 2
$2.89
$1.73
-
+
Add to cart
8

GASKET

Part #: 3087957 Required per assembly: 1 Note: Asm., Gasket Exhaust
Currently Not Available
9

BOLT

Part #: 7515316 Required per assembly: 2
Currently Not Available
10

NUT LOCK

Part #: 7542321 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
11

SPRING-EXHAUST

Part #: 7041804 Required per assembly: 2 Note: Spring, Exhaust
Currently Not Available
