Electrical, Ignition System replacement parts for 2011 Polaris Hawkeye 2X4 (A11LB27AA)

OEM Parts Polaris 2011 Polaris Hawkeye 2X4 (A11LB27AA) Electrical, Ignition System

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

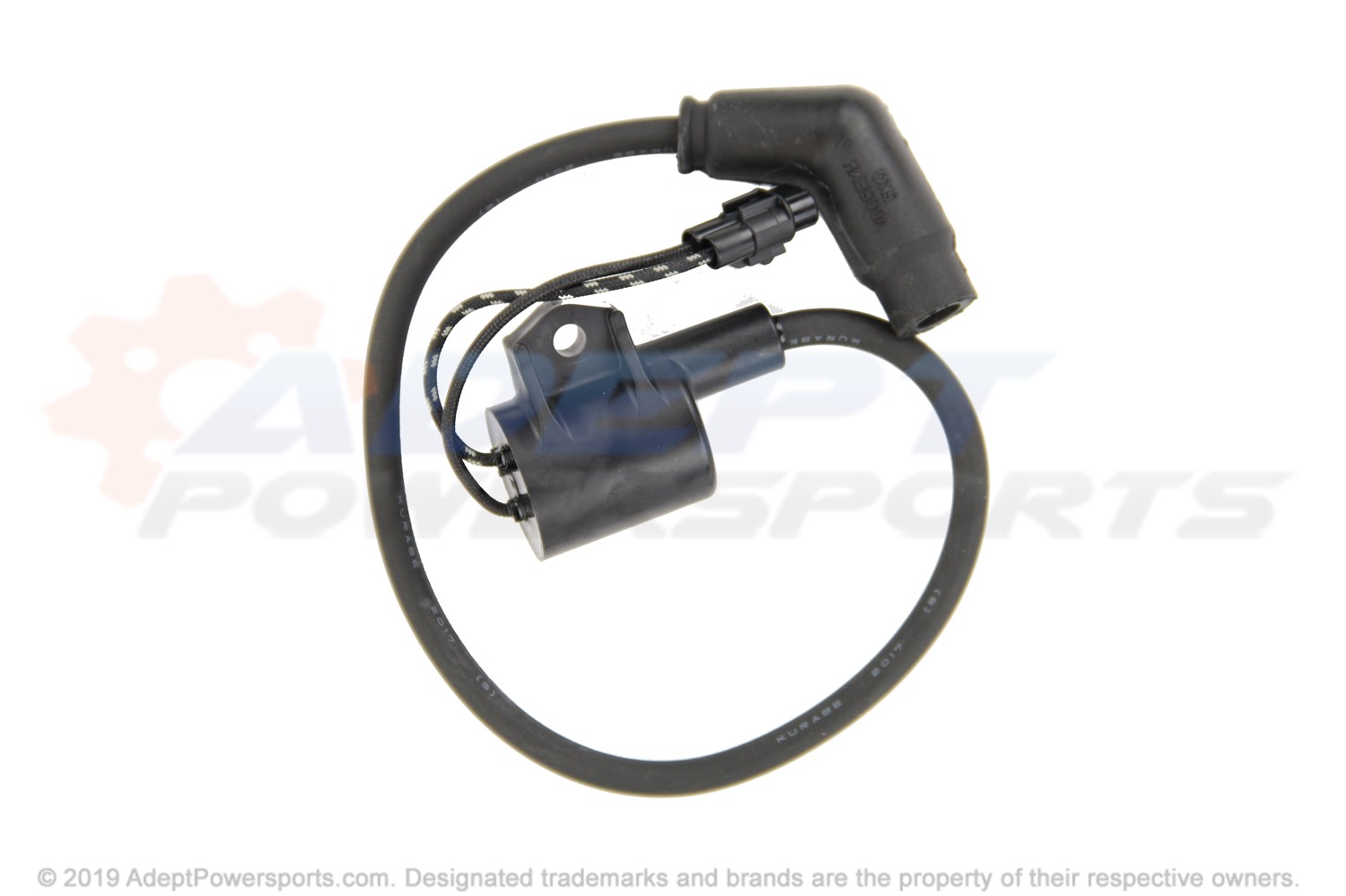

1	COIL, IGNITION Part #: 3089860 Required per assembly: 1 Note: Asm., Ignition Coil [Incl. 13] Currently Not Available
2	PLATE COMPLETE Part #: 3089854 Required per assembly: 1 Note: Plate Complete [Incl. 6-8,10,14] Currently Not Available
2	ASSEMBLY, PLATE Part #: 3089852 Required per assembly: 1 Note: Asm., Plate [Incl. 6-8,10,11,14] Currently Not Available

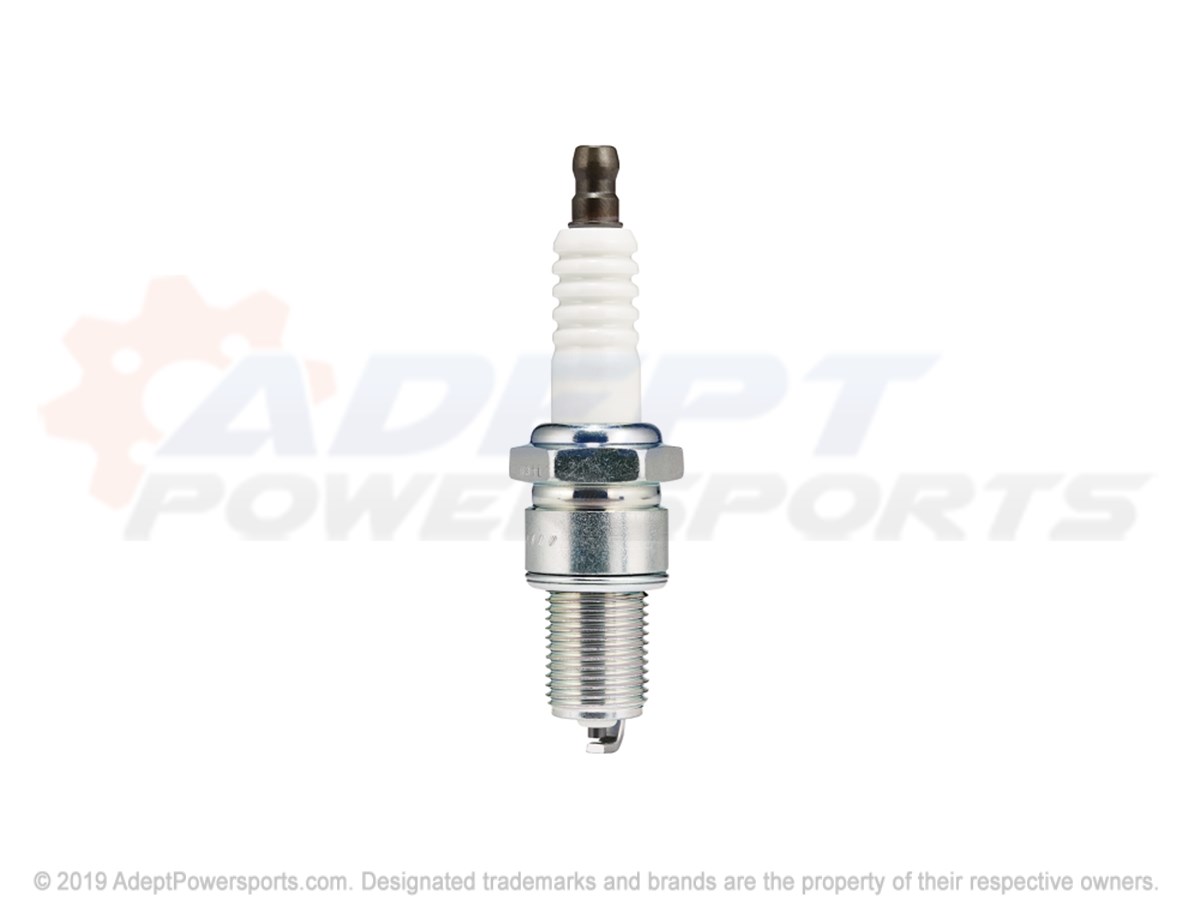

3	PLUG, SPARK, NGK, CR8EB Part #: 3021759 Required per assembly: 1 Currently Not Available

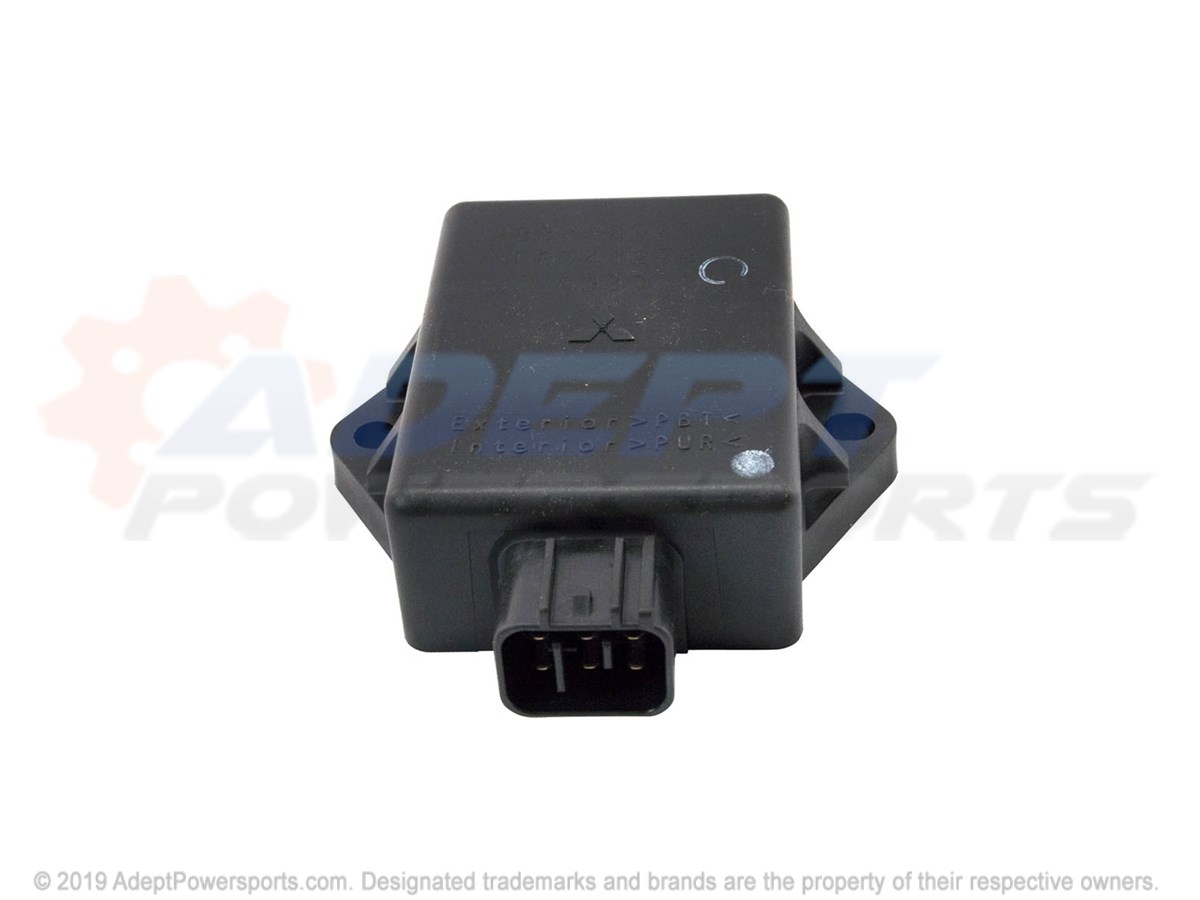

4	CDI Part #: 3089978 Required per assembly: 1 Note: CDI System Currently Not Available
5	BOLT, FLANGE Part #: 3084877 Required per assembly: 7 Note: Bolt, Flange Currently Not Available
6	BEARING, METAL Part #: 3089855 Required per assembly: 1 Currently Not Available
7	SEAL, OIL Part #: 3084973 Required per assembly: 1 Currently Not Available
8	SCREW & WASHER Part #: 3084205 Required per assembly: 2 $2.99 $1.73 - + Add to cart
9	FLYWHEEL W/RING GEAR Part #: 3089974 Required per assembly: 1 Currently Not Available
10	BOLT Part #: 3089989 Required per assembly: 3 Currently Not Available
11	STATOR Part #: 3089853 Required per assembly: 1 Currently Not Available
12	BOLT, FLANGE Part #: 3089801 Required per assembly: 1 Currently Not Available
13	CAP, SPARK, PLUG Part #: 3089861 Required per assembly: 1 Currently Not Available
14	PLUG Part #: 3089992 Required per assembly: 1 Currently Not Available
15	O-RING Part #: 3089858 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7512024 Required per assembly: 3 Currently Not Available
