Electrical, Ignition System replacement parts for 2012 Polaris Sportsman 800 FOREST (A12MH76FF)

OEM Parts Polaris 2012 Polaris Sportsman 800 FOREST (A12MH76FF) Electrical, Ignition System

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, ENGINE, COVER, MAGNETO Part #: 1203626 Required per assembly: 1 Note: Asm., Engine Cover Currently Not Available
2	ASSEMBLY, COVER, STATOR Part #: 1203334 Required per assembly: 1 Currently Not Available
2	N/A USE COMPONENTS Part #: 1204132 Required per assembly: 1 Currently Not Available
3	BUSHING, SHAFT Part #: 3514378 Required per assembly: 1 Note: Bushing Currently Not Available
4	K-CHARGING SYSTEM DT800 Part #: 2208144 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7517848 Required per assembly: 3 Currently Not Available
6	WASHER Part #: 7555907 Required per assembly: 1 Currently Not Available
7	O-RING Part #: 5412458 Required per assembly: 1 Note: O-Ring Currently Not Available
7	SEAL, STATOR, COVER Part #: 5413972 Required per assembly: 1 Currently Not Available
8	SEAL, OIL Part #: 5412455 Required per assembly: 1 Note: Seal, Oil 15 x 35 x 8 Currently Not Available

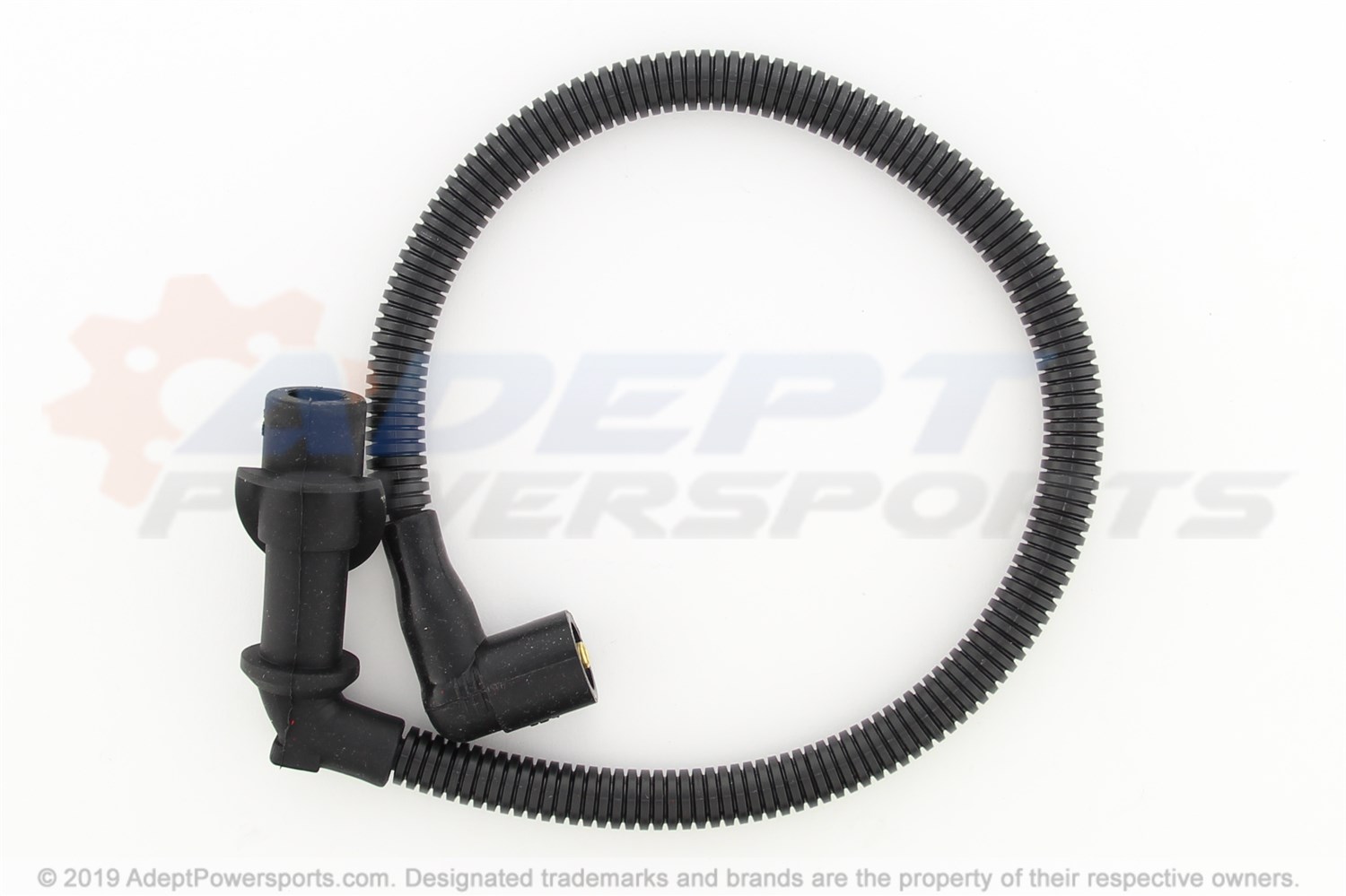

9	WIRE, SPARK, PLUG Part #: 4012438 Required per assembly: 1 Note: Wire, Spark Plug, 49.5 cm. Currently Not Available
10	BUSHING Part #: 3514553 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7517950 Required per assembly: 14 Currently Not Available
12	NUT Part #: 7547213 Required per assembly: 1 Note: Nut Currently Not Available
13	K-CHARGING SYSTEM DT800 Part #: 2208144 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7517950 Required per assembly: 2 Currently Not Available
15	HOLDDOWN, WIRE Part #: 5245364 Required per assembly: 1 Note: Bracket, Stator, Wire Holddown Currently Not Available
16	SEAL, FLANGED Part #: 5412881 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7515156 Required per assembly: 1 Currently Not Available
18	SPACER, COIL Part #: 5436577 Required per assembly: 1 Note: Spacer, Coil Mount Currently Not Available
19	KIT, IGNITION, COIL Part #: 2876049 Required per assembly: 1 Note: Coil Currently Not Available
20	NUT-LOCK Part #: 7542122 Required per assembly: 1 Currently Not Available
21	WIRE, SPARK, PLUG Part #: 4012439 Required per assembly: 1 Note: Wire, Spark Plug, 59.3 cm. Currently Not Available

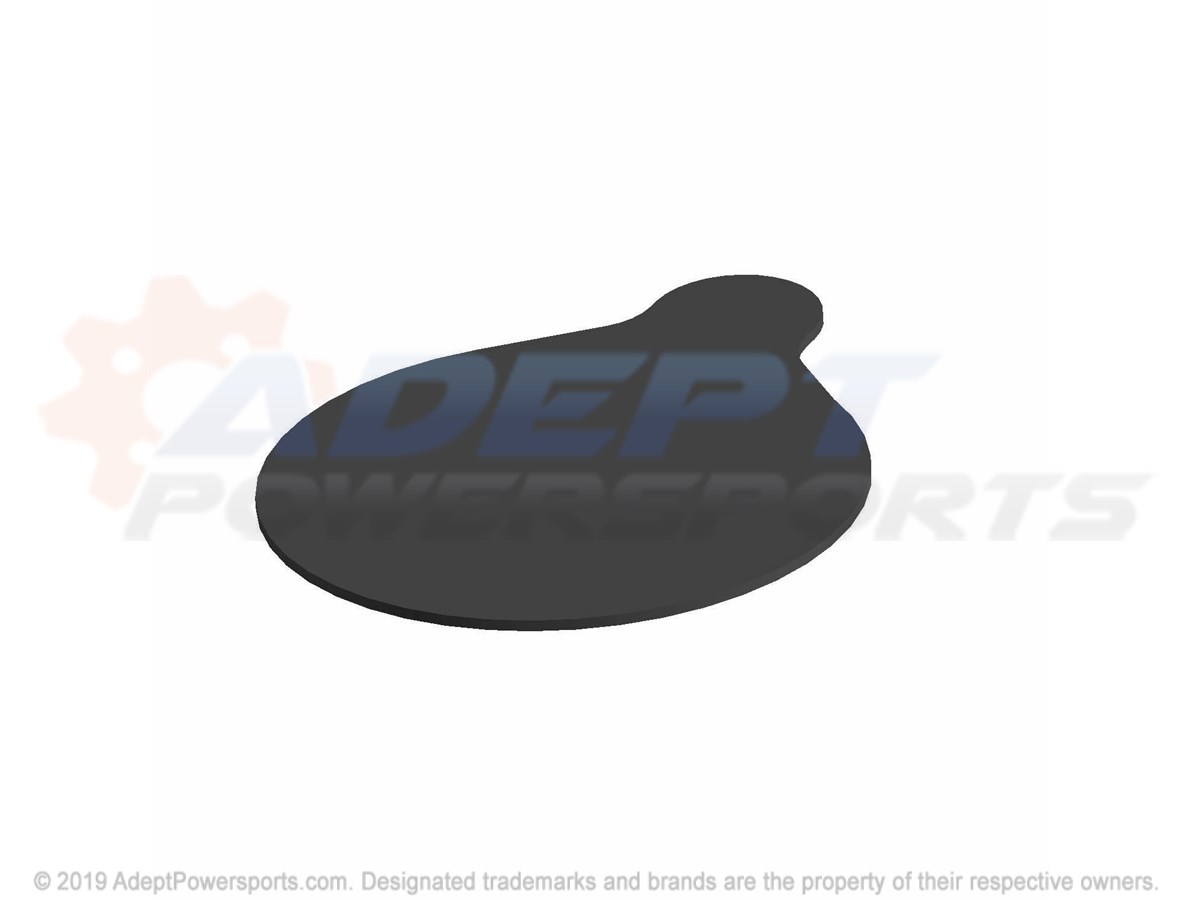

23	COVER, SOUND, DAMPENING Part #: 5813050 Required per assembly: 1 Currently Not Available

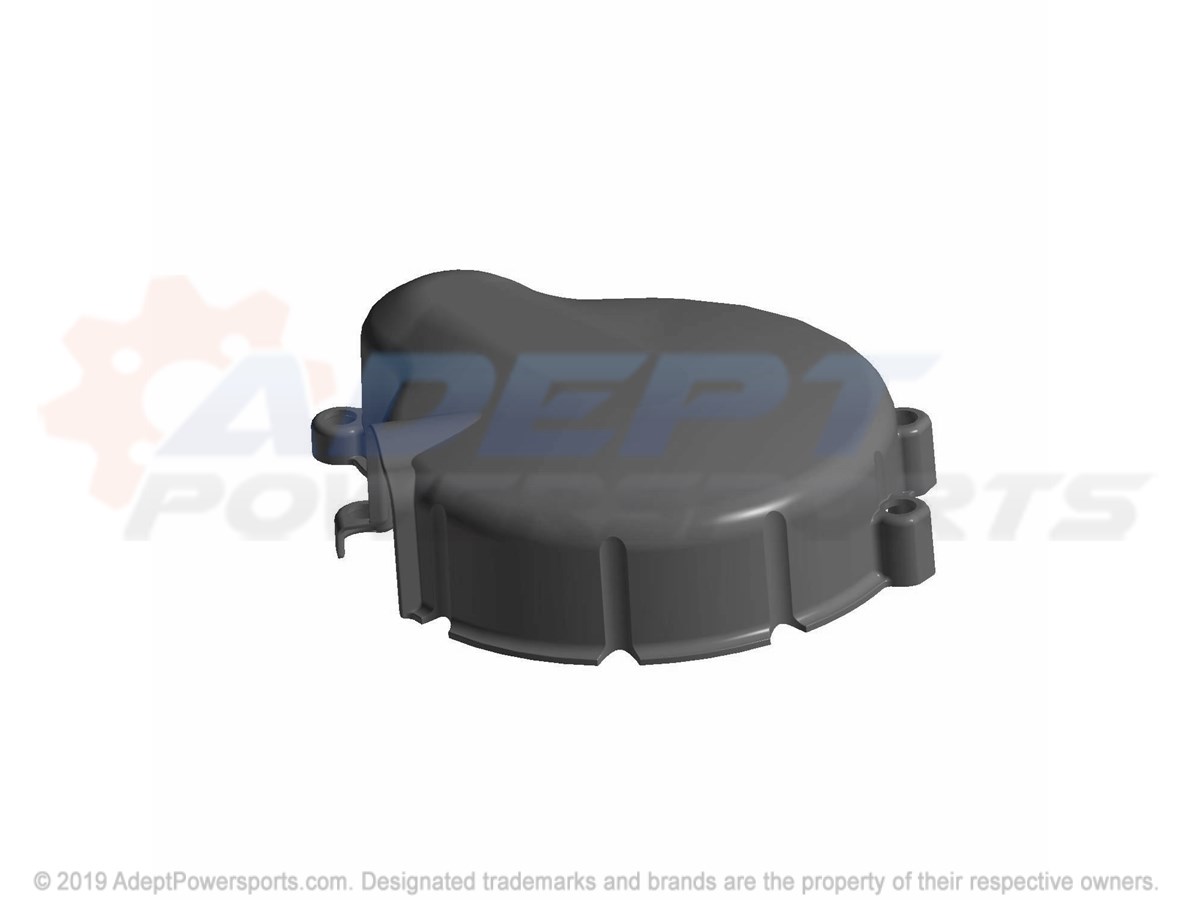

24	COVER, STATOR, OUTER Part #: 5436652 Required per assembly: 1 Currently Not Available
