Engine, Camshaft And Gears replacement parts for 2012 Polaris Sportsman 800 FOREST (A12MH76FF)

OEM Parts Polaris 2012 Polaris Sportsman 800 FOREST (A12MH76FF) Engine, Camshaft And Gears

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

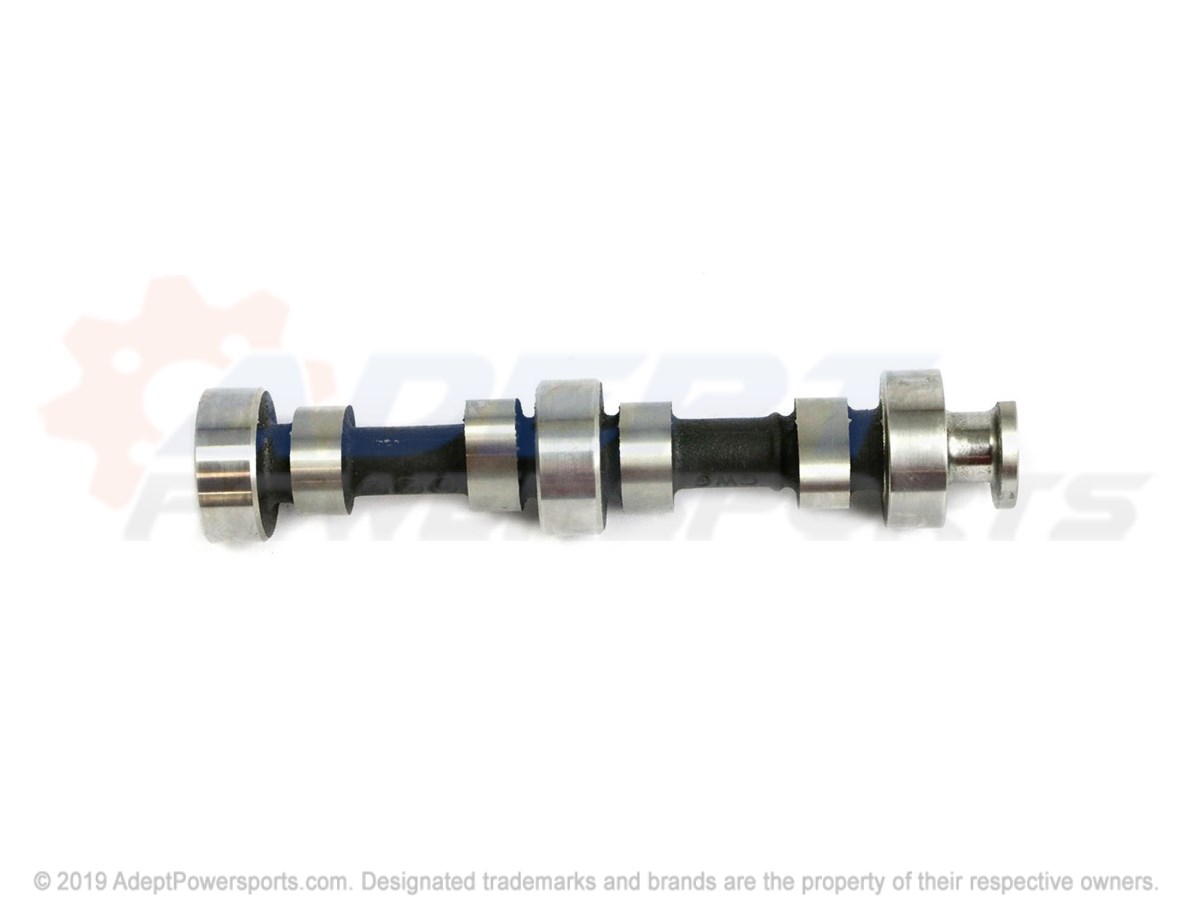

1	KIT-CAMSHAFT 3022231 Part #: 2204175 Required per assembly: 1 Currently Not Available
2	KIT, GEAR, SET Part #: 2203106 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7517865 Required per assembly: 2 Currently Not Available
4	WASHER Part #: 7555982 Required per assembly: 1 Currently Not Available
5	WASHER, SPRING Part #: 7556183 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7517598 Required per assembly: 3 Currently Not Available
7	PLATE, THRUST Part #: 5244286 Required per assembly: 1 Currently Not Available
