Engine, Cooling System replacement parts for 2012 Polaris Sportsman 800 FOREST (A12MH76FF)

OEM Parts Polaris 2012 Polaris Sportsman 800 FOREST (A12MH76FF) Engine, Cooling System

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, FAN Part #: 2410413 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 7516822 Required per assembly: 8 Currently Not Available
3	CAP, PRESSURE Part #: 1240508 Required per assembly: 1 Currently Not Available
4	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw $2.99 $1.73 - + Add to cart
5	FILLER, REMOTE, COOLANT Part #: 5438110 Required per assembly: 1 Note: Filler, Remote Currently Not Available
6	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 6 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
7	HOSE-FILLER NECK Part #: 5414229 Required per assembly: 1 Currently Not Available
8	CLAMP, HOSE Part #: 7081192 Required per assembly: 2 Currently Not Available
9	HOSE-RADIATOR LOWER Part #: 5414222 Required per assembly: 1 Currently Not Available
11	HOSE-ENGINE LOWER Part #: 5414220 Required per assembly: 1 Currently Not Available

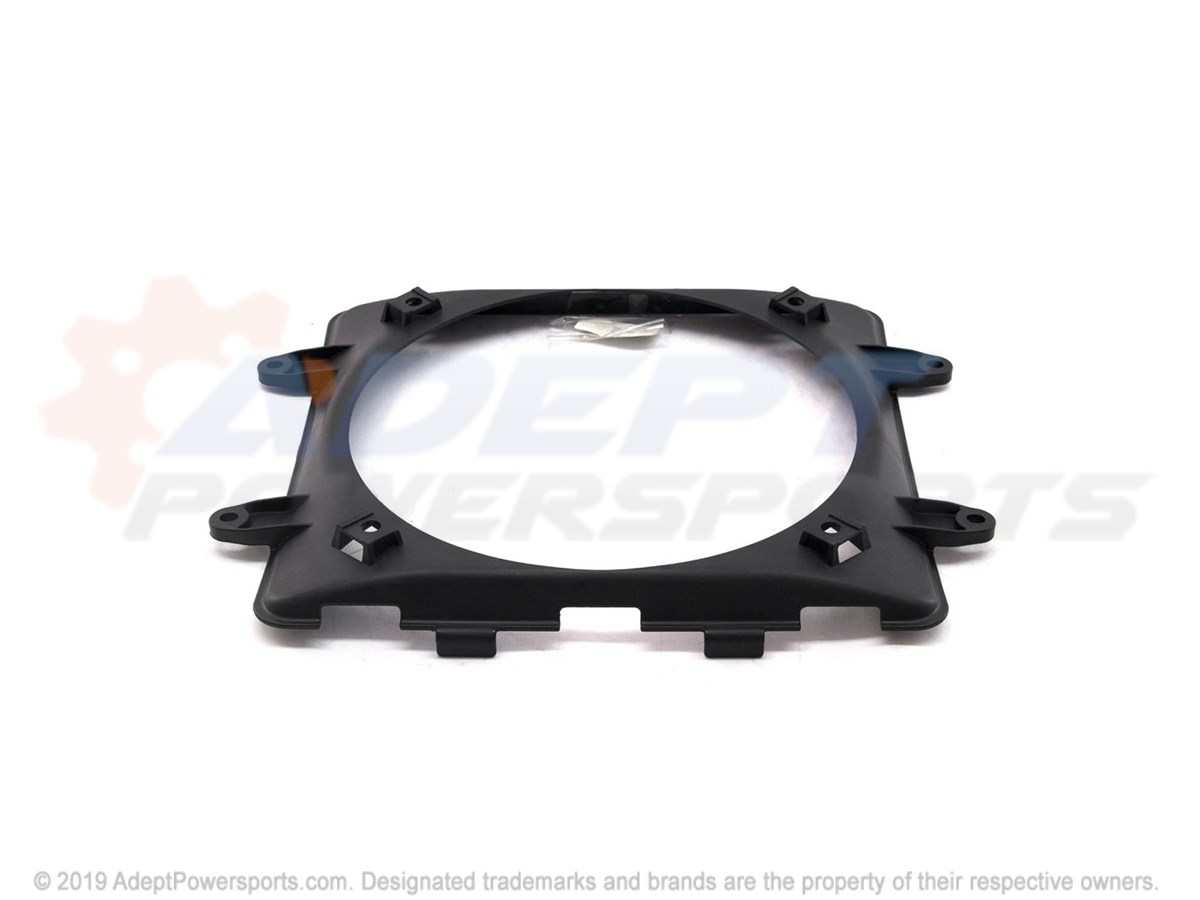

13	SHROUD, FAN Part #: 5437845 Required per assembly: 1 Currently Not Available
14	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 2 Currently Not Available
15	HOSE-RADIATOR UPPER Part #: 5414219 Required per assembly: 1 Currently Not Available
16	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7515179 Required per assembly: 2 Note: Screw $3.99 $2.30 - + Add to cart

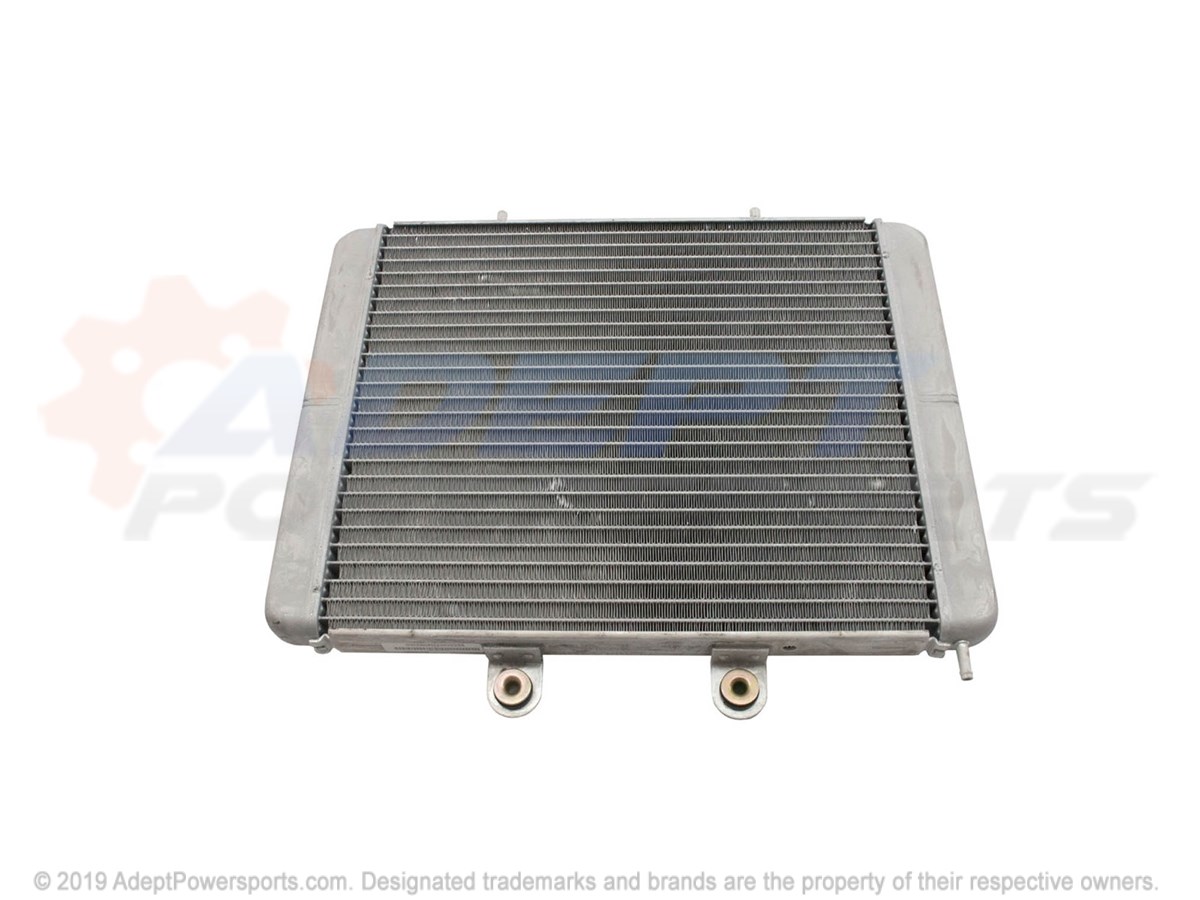

18	RADIATOR Part #: 1240521 Required per assembly: 1 Note: Radiator Currently Not Available
19	ASSEMBLY, GROMMET, AND, INSERT Part #: 5413155 Required per assembly: 2 Currently Not Available
20	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Required per assembly: 1 Currently Not Available
21	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE $11.99 $6.90 - + Add to cart
22	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
23	FUEL, LINE, 1/8, ID, 600, CM. Part #: 8360009-600 Currently Not Available
24	CAP, OVERFLOW, BOTTLE, W/FITTING Part #: 5437635 Required per assembly: 1 Currently Not Available
25	GASKET Part #: 5810279 Required per assembly: 1 $4.99 $2.92 - + Add to cart
26	T-CONNECTOR Part #: 7052373 Required per assembly: 1 Note: T-Connector Currently Not Available
27	U-CLIP Part #: 7547366 Required per assembly: 4 Note: Clip, U $5.39 $3.89 - + Add to cart
28	HOSE Part #: 8450120-600 Currently Not Available
29	CLAMP, HOSE Part #: 7080003 Required per assembly: 2 Note: Clamp, Hose, Red Currently Not Available
