Seat Slider replacement parts for 2013 Polaris RZR 4 XP JAGGED X

OEM Parts Polaris 2013 Polaris RZR 4 XP JAGGED X Seat Slider

SEAT SLIDER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SLIDER-SEAT, RZR Part #: 2685799 Required per assembly: 1 Currently Not Available
2	BUSHING, BOX, LATCH Part #: 5434226 Required per assembly: 4 Currently Not Available
3	SCREW Part #: 7515148 Required per assembly: 4 Currently Not Available
4	SCREW Part #: 7518356 Required per assembly: 2 Note: Screw Currently Not Available
5	SCREW Part #: 7518785 Required per assembly: 4 Currently Not Available
6	NUT-1/4-20 NYLOC FLANGED-B Part #: 7547494 Required per assembly: 4 Currently Not Available
7	WASHER Part #: 7555954 Required per assembly: 2 Note: Washer Currently Not Available
8	PLATE, SEAT, LATCH Part #: 5251162 Required per assembly: 1 Currently Not Available
9	GROMMET, SEAT, BASE Part #: 5413441 Required per assembly: 4 ~~$3.99~~ $2.30 - + Add to cart
10	BODY, SEAT, LATCH Part #: 5437119 Required per assembly: 1 Currently Not Available
11	CAP, SEAT, LATCH Part #: 5437120 Required per assembly: 1 ~~$9.99~~ $4.68 - + Add to cart
12	LEVER, SEAT, LATCH Part #: 5437121 Required per assembly: 1 Currently Not Available
13	SPRING, SEAT, LATCH Part #: 7081466 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7512126 Required per assembly: 2 ~~$3.99~~ $2.30 - + Add to cart
15	NUT-LOCK Part #: 7542122 Required per assembly: 2 Currently Not Available
16	WASHER Part #: 7558301 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
17	WELD-LATCHING, SEAT, ADJ Part #: 1019826 Required per assembly: 1 Currently Not Available
18	WELD-BOTTOM PLATE Part #: 1019827 Required per assembly: 1 Currently Not Available

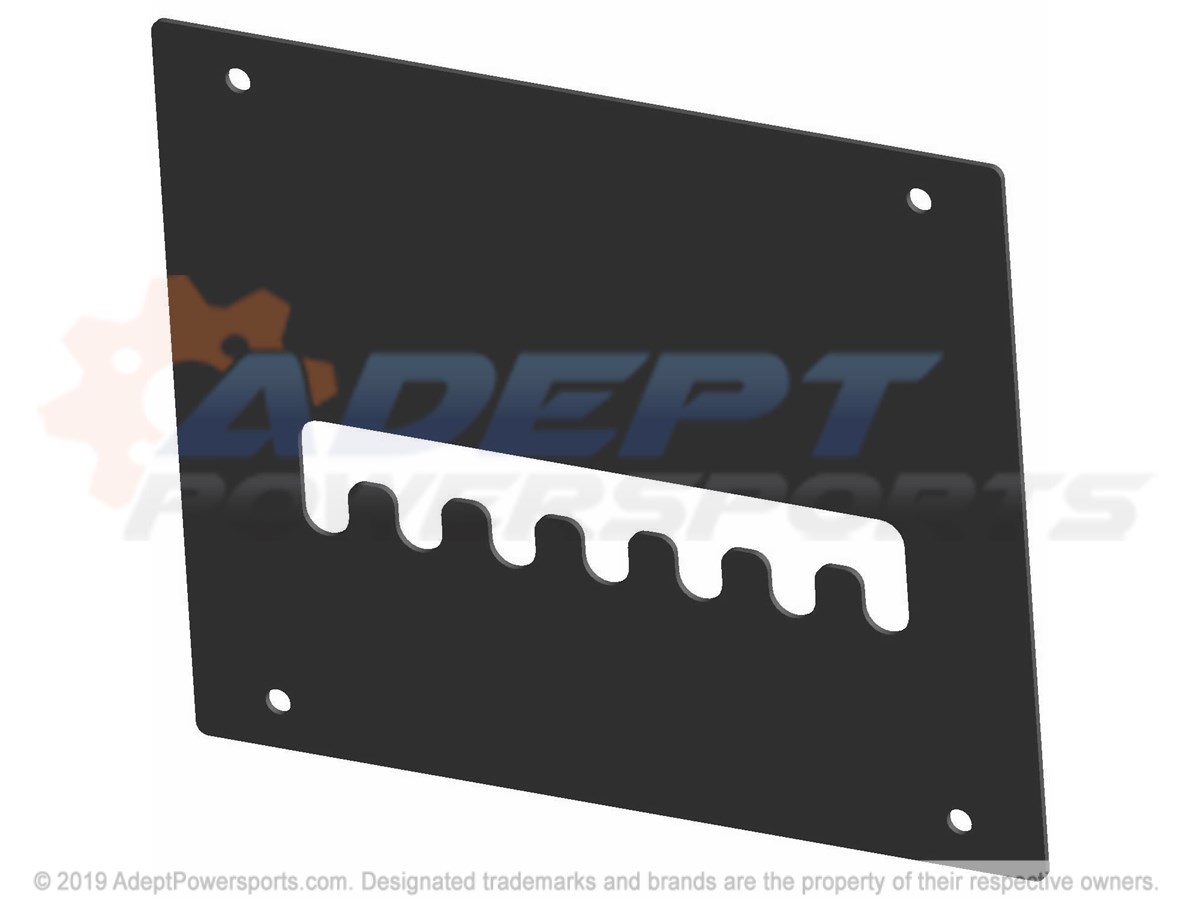

19	PLATE-SEAT, ADJ, TOP Part #: 5257916 Required per assembly: 1 Currently Not Available
