Secondary Clutch replacement parts for 2013 Polaris RZR 4 XP JAGGED X

OEM Parts Polaris 2013 Polaris RZR 4 XP JAGGED X Secondary Clutch

SECONDARY CLUTCH Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WASHER Part #: 7556454 Currently Not Available
2	ASM-CLUTCH, DRIVEN Part #: 1323071 Required per assembly: 1 Note: INCL. 4,7-19 Currently Not Available
3	WASHER FLAT Part #: 7555846 Required per assembly: 1 Currently Not Available
4	ROLLER Part #: 5434534 Required per assembly: 4 Currently Not Available

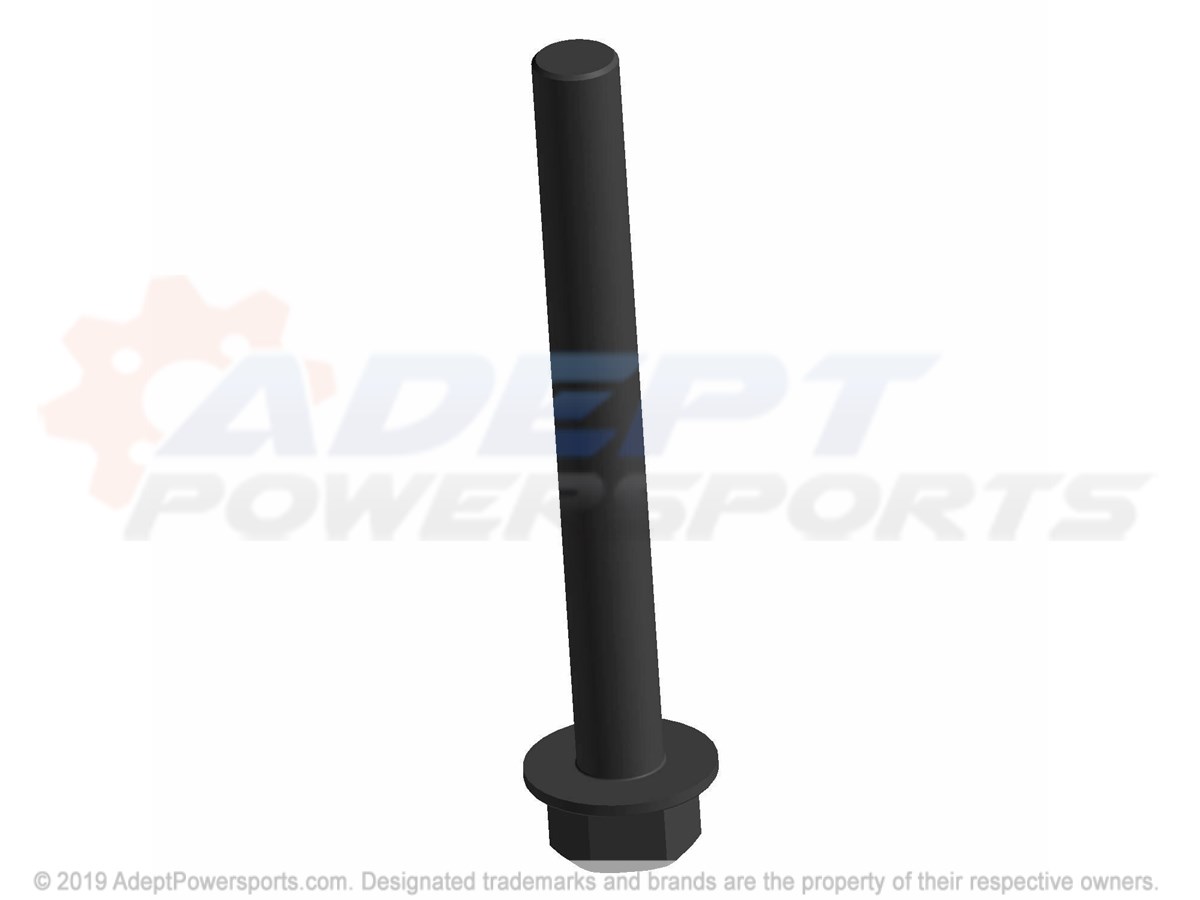

5	SCR-HXFL-M10X1.25X50 ZOD NYL Part #: 7519860 Required per assembly: 1 Currently Not Available
6	BELT-DRIVE 10.5 CD Part #: 3211148 Required per assembly: 1 Currently Not Available
7	SCREW-HELIX PATCH Part #: 3234754 Required per assembly: 4 Currently Not Available
8	PIN, SPRING, SLOTTED Part #: 3234202 Required per assembly: 2 Currently Not Available
9	RING, RETAINING, EXT, 1.500 Part #: 7710522 Required per assembly: 1 Currently Not Available
10	E-RING, RETAINING, (1322551) Part #: 7710523 Required per assembly: 2 Note: E-Ring, Retaining Currently Not Available
11	RING, RETAINING, [1322419] Part #: 3234205 Required per assembly: 1 Note: Ring, Retaining Currently Not Available
12	WASHER, THRUST, (1322551) Part #: 7556226 Required per assembly: 2 Note: Washer, Thrust Currently Not Available
13	BEARING, BALL Part #: 3234203 Required per assembly: 1 Currently Not Available
14	SPRING, COMPRESSION, YELLOW Part #: 3234452 Required per assembly: 1 Currently Not Available
15	PIN, ROLLER Part #: 3234201 Required per assembly: 2 Currently Not Available
16	ASM. CAM EBS Part #: 3235326 Required per assembly: 1 Currently Not Available
17	K-CLUTCH, PTD, SPIDER, DAMPER Part #: 2206554 Required per assembly: 1 Currently Not Available
18	SPIDER-DRIVEN, TIED, DAMPED Part #: 5139593 Required per assembly: 1 Currently Not Available
19	INSERT-SPIDER, DAMPENER, FORGED Part #: 5139594 Required per assembly: 1 Currently Not Available
