Seat And Base - R13th76/7E All Options replacement parts for 2013 Polaris RANGER 800 EFI

OEM Parts Polaris 2013 Polaris RANGER 800 EFI R13TH76/7E Seat And Base - R13th76/7E All Options

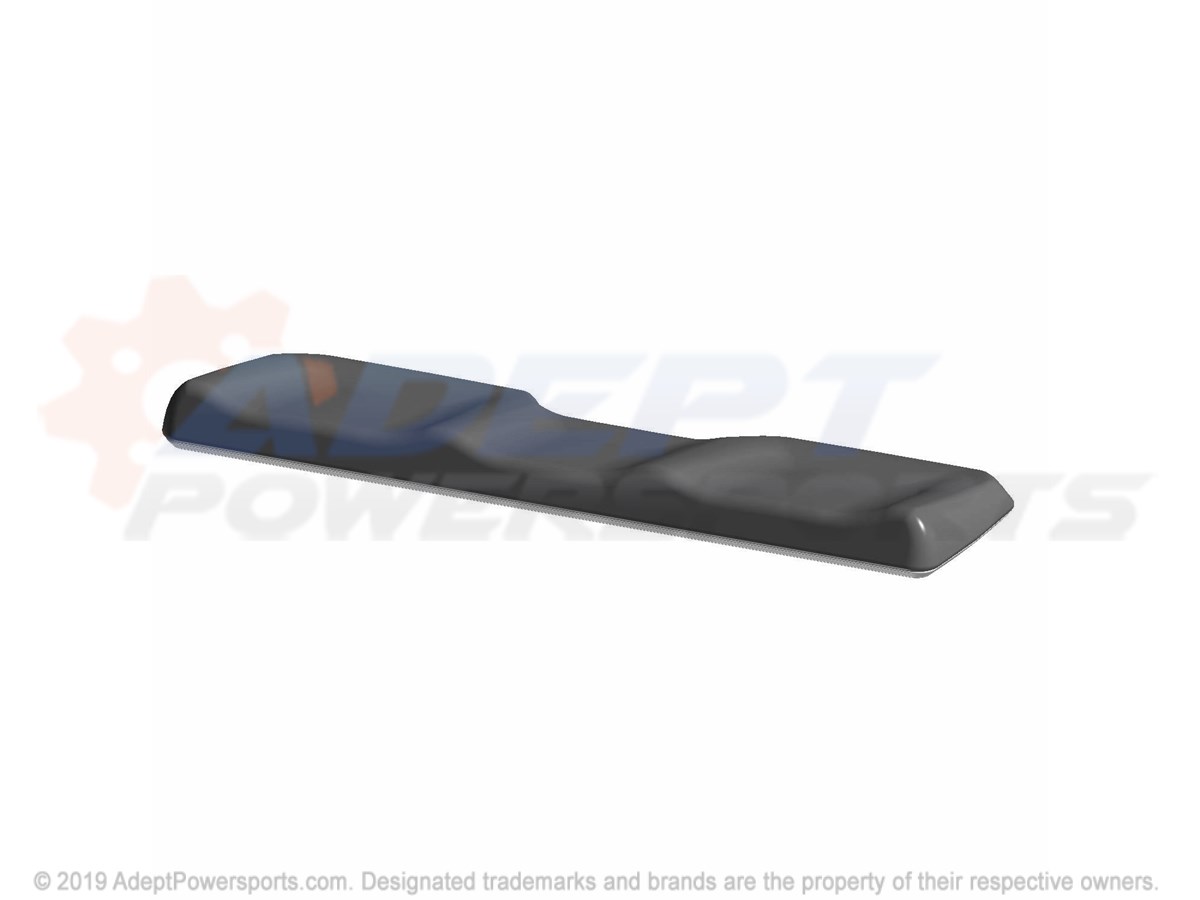

Seat and Base - R13TH76/7E All Options Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCR-TXPH-#14X3/4 HI/LO RIE Part #: 7519274 Required per assembly: 8 Currently Not Available
2	ASSEMBLY, SEAT, BACK, BLACK/CAR/WHITE, [EAK][EAKC][6AKC] Part #: 2685166 Required per assembly: 1 Note: 6AK Currently Not Available
2	ASM-SEAT RNGR BACK BLK/S.RED Part #: 2684934 Required per assembly: 1 Note: EAZ Currently Not Available
2	ASM-SEAT, RNGR, BACK, S.SKIN, BLK Part #: 2685944-070 Required per assembly: 1 Note: 6AG Currently Not Available
3	ASSEMBLY, SEAT, BOTTOM, BLACK/S., RED, [EAZ][EAZC][6AZ][6AZC] Part #: 2685380 Required per assembly: 1 Note: Incl. 20-22 Currently Not Available
3	ASSEMBLY, SEAT, BOTTOM, BLACK/CAR/WHITE, [6AK][EAK][EAKC][6AKC] Part #: 2685388 Required per assembly: 1 Note: Incl. 20-23 Currently Not Available
3	ASSEMBLY, SEAT, BOTTOM, BLACK Part #: 2685943-070 Required per assembly: 1 Note: Incl. 20 Currently Not Available
4	BRKT-SEAT SUPPORT CENTER BLK Part #: 5255263-329 Required per assembly: 1 Currently Not Available
5	WELD-CAB/SEAT BASE BLK Part #: 1017809-067 Required per assembly: 1 Currently Not Available
6	GROMMET Part #: 5412507 Required per assembly: 2 Currently Not Available
7	ASSEMBLY, SEAT, BELT, 3, POINT Part #: 2634887 Required per assembly: 4 Note: Incl. 12 Currently Not Available
8	BOLT Part #: 7512520 Required per assembly: 2 Currently Not Available
9	NUT-7/16-20, NYLOK, Y Part #: 7547066 Required per assembly: 4 Note: Nut, Nylon ~~$3.99~~ $2.30 - + Add to cart
10	ASM-SEAT BELT CENTER Part #: 2634093 Required per assembly: 1 Currently Not Available
11	SHIELD-SEAT BASE Part #: 5813738 Required per assembly: 4 Currently Not Available
12	BOLT-SHOULDER 7/16 X 20 X 0.89 Part #: 7519255 Required per assembly: 2 Currently Not Available
13	SCR-TXPH-#14X3/4 HI/LO CLR Part #: 7519290 Required per assembly: 4 Currently Not Available
14	WASHER, FLAT Part #: 7555859 Required per assembly: 4 Note: Washer, Flat ~~$2.99~~ $1.73 - + Add to cart
15	COVER-SEAT BACK BLK Part #: 5437641-070 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7518280 Required per assembly: 1 Currently Not Available
17	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
18	WASHER-SEATBELT RUBBER Part #: 5813829 Required per assembly: 2 Currently Not Available
19	FOIL Part #: 5810128 Required per assembly: 1 Note: Tape, Foil Currently Not Available
20	PIN-SEAT LATCH Part #: 5632536 Required per assembly: 2 Currently Not Available
21	TAB, SEAT, MOUNT Part #: 5437903 Required per assembly: 2 Currently Not Available
22	RIVET Part #: 7621479 Required per assembly: 4 Note: Rivet Sold in multiples of 50 only Currently Not Available
