Rear - R13th76/7E All Options replacement parts for 2013 Polaris RANGER 800 EFI

OEM Parts Polaris 2013 Polaris RANGER 800 EFI R13TH76/7E Rear - R13th76/7E All Options

Rear - R13TH76/7E All Options Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7519043 Required per assembly: 8 Note: Bolt Currently Not Available
2	NUT, FLANGE Part #: 7547333 Required per assembly: 16 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
3	SHAFT-PIVOT 73.96MM ZINC OLIVE Part #: 5137591 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
4	BUSHING A-ARM SHORT BLACK Part #: 5439270 Required per assembly: 24 Currently Not Available
5	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
6	BOLT, FLANGE Part #: 7518563 Required per assembly: 2 Currently Not Available
7	ARM, CONTROL, LOWER, REAR, MATTE, BLACK, RH Part #: 1018185-458 Required per assembly: 2 Currently Not Available
8	SHOCK, REAR Part #: 7043491 Required per assembly: 2 Currently Not Available

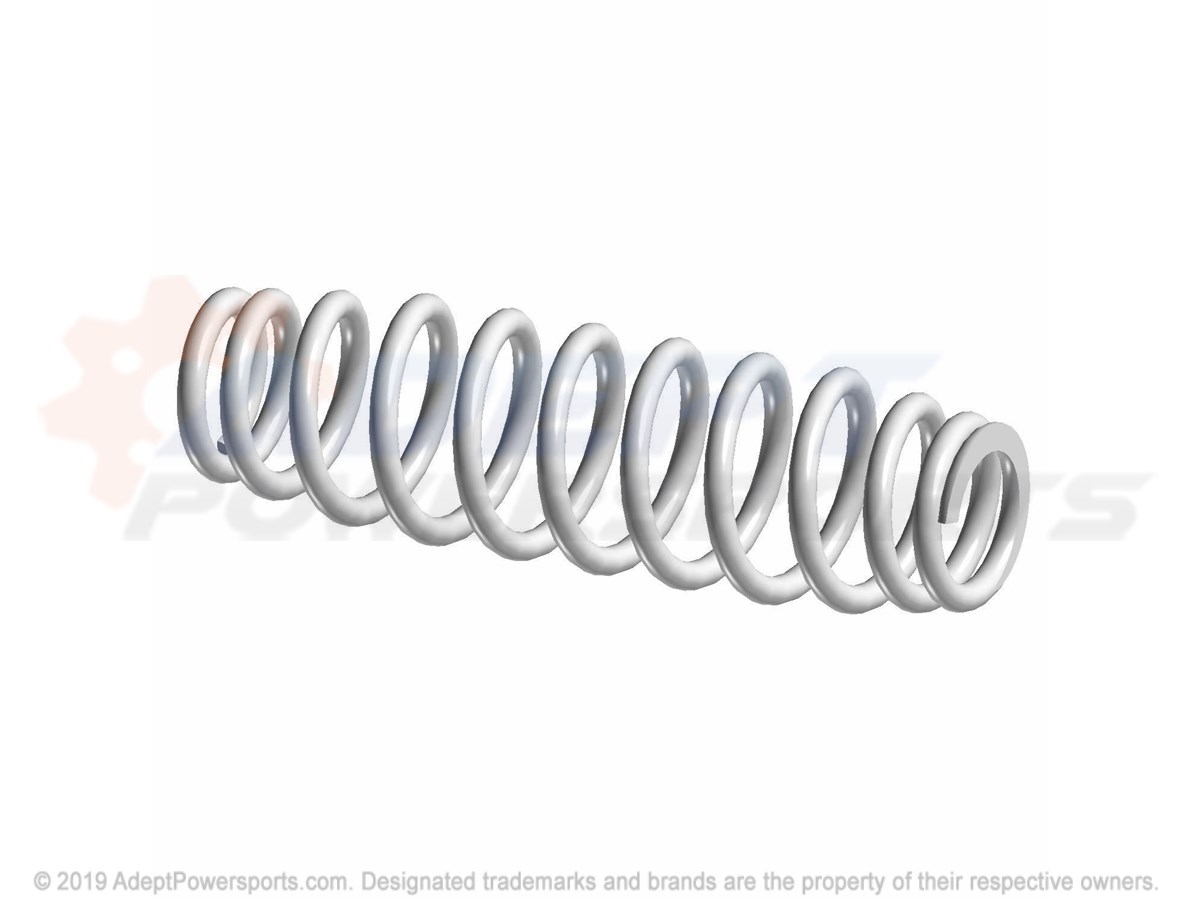

9	SPRING-240#/IN 12.75 LG C.SLVR Part #: 7043692-385 Required per assembly: 2 Note: EAZ Currently Not Available
9	SPRING-180#/IN CA C.SLVR Part #: 7043695-385 Required per assembly: 2 Note: EAZC Currently Not Available
9	SPRING-240#/IN 12.75 LG I.RED Part #: 7043692-293 Required per assembly: 2 Note: 6AK Currently Not Available
9	SPRING, MATTE, BLACK Part #: 7043692-458 Required per assembly: 2 Note: 6AG Currently Not Available
9	SPRING, CA, MATTE, BLACK, [6ARC] Part #: 7043695-458 Required per assembly: 2 Note: 6AGC Currently Not Available
10	CAM-ADJUSTING SPRING STEEL Part #: 5253768 Required per assembly: 2 Currently Not Available
11	ARM, CONTROL, UPPER, REAR, MATTE, BLACK Part #: 1018184-458 Required per assembly: 2 Currently Not Available
12	SHAFT-PIVOT 89.71MM ZINC YEL Part #: 5137592 Required per assembly: 2 Currently Not Available
13	SCREW Part #: 7518558 Required per assembly: 4 Note: Rear Caliper Attach Currently Not Available
14	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
15	SHIELD-CV REAR BLK Part #: 5438639-070 Required per assembly: 2 Currently Not Available
16	CARRIER-BEARING, WHEEL, LH, (MACH) Part #: 5136544 Required per assembly: 1 Currently Not Available
16	CARRIER-BEARING, WHEEL, RH, (MACH) Part #: 5136543 Required per assembly: 1 Currently Not Available
17	BEARING, CARRIER, WHEEL Part #: 3514635 Required per assembly: 2 Note: Bearing, Carrier, Wheel Currently Not Available
18	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
19	BOLT Part #: 7518566 Required per assembly: 4 Currently Not Available
20	SHAFT-PIVOT 115.11MM ZINC YEL Part #: 5137593 Required per assembly: 2 Currently Not Available
21	BOLT, FLANGE Part #: 7518562 Required per assembly: 2 Currently Not Available
