OEM Parts Polaris 2013 Polaris RANGER 800 EFI R13TH76/7E Front Shock - R13th76/7E All Options

2013 Polaris RANGER 800 EFI - R13TH76/7E - Front Shock - R13th76/7E All Options

Front Shock - R13TH76/7E All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
2
Polaris 5251753 Retainer, Spring

RETAINER, SPRING

Part #: 5251753 Required per assembly: 2
Currently Not Available
3
Polaris 7518563 Bolt, Flange

BOLT, FLANGE

Part #: 7518563 Required per assembly: 4
Currently Not Available
4

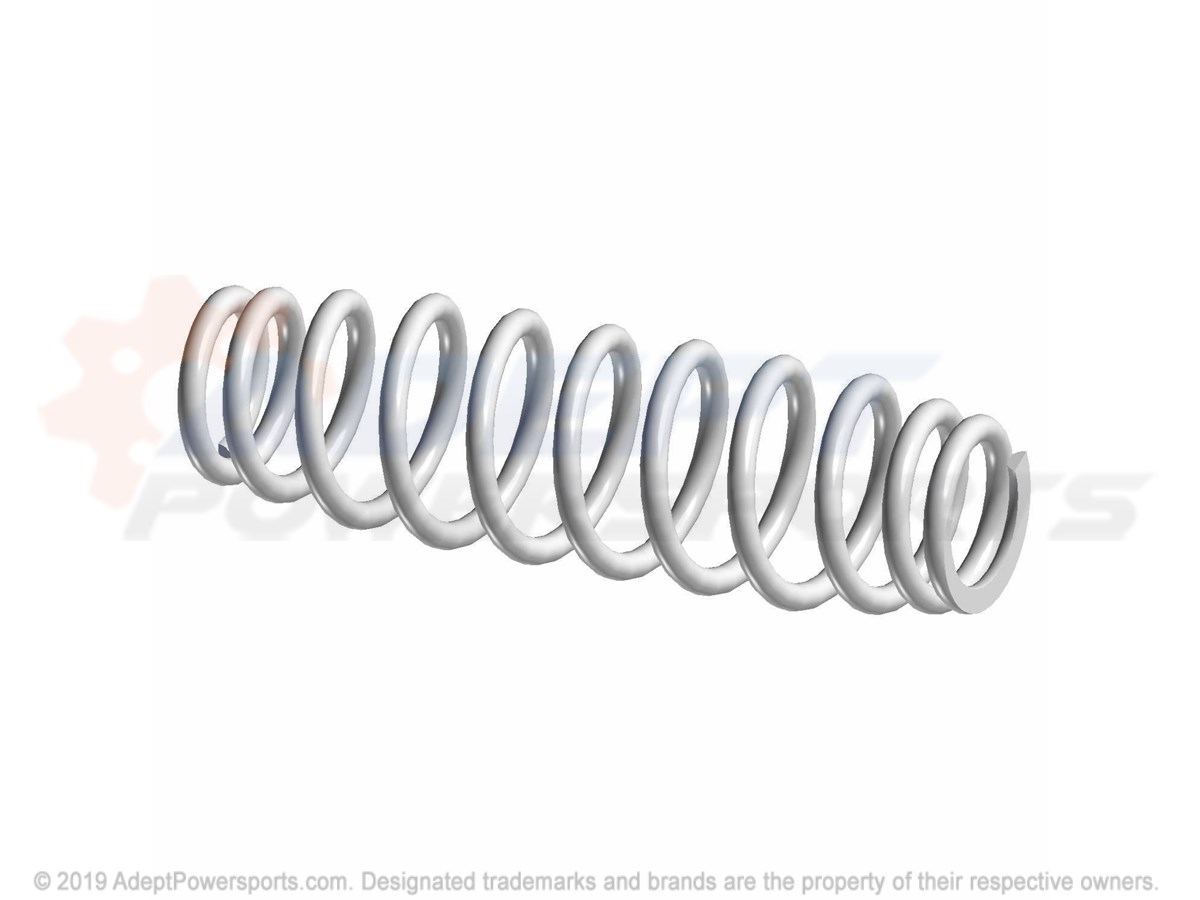

Polaris 7043690-293 Spring, Compression, Front, Indy, Red, [Eak][Eakc][6Akc]

SPRING, COMPRESSION, FRONT, INDY, RED, [EAK][EAKC][6AKC]

Part #: 7043690-293 Required per assembly: 2 Note: 6AK
Currently Not Available
4
Polaris 7043690-458 Spring, Compression, Front, Matte, Black

SPRING, COMPRESSION, FRONT, MATTE, BLACK

Part #: 7043690-458 Required per assembly: 2 Note: 6AG
Currently Not Available
4
Polaris 7043690-385 Spring, Compression, Front, Silver, [Eazc][6Az][6Azc]

SPRING, COMPRESSION, FRONT, SILVER, [EAZC][6AZ][6AZC]

Part #: 7043690-385 Required per assembly: 2 Note: EAZ
Currently Not Available
5
Polaris 5253768 Cam-Adjusting Spring Steel

CAM-ADJUSTING SPRING STEEL

Part #: 5253768 Required per assembly: 2
Currently Not Available
6
Polaris 7043394 Shock, Front

SHOCK, FRONT

Part #: 7043394 Required per assembly: 2
Currently Not Available
