DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS - R13TH90DG Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-GEARCASE MAIN DSL Part #: 1332980 Required per assembly: 1 Note: Incl. All Currently Not Available
2	NUT, FLEXLOC Part #: 3233961 Required per assembly: 1 Currently Not Available

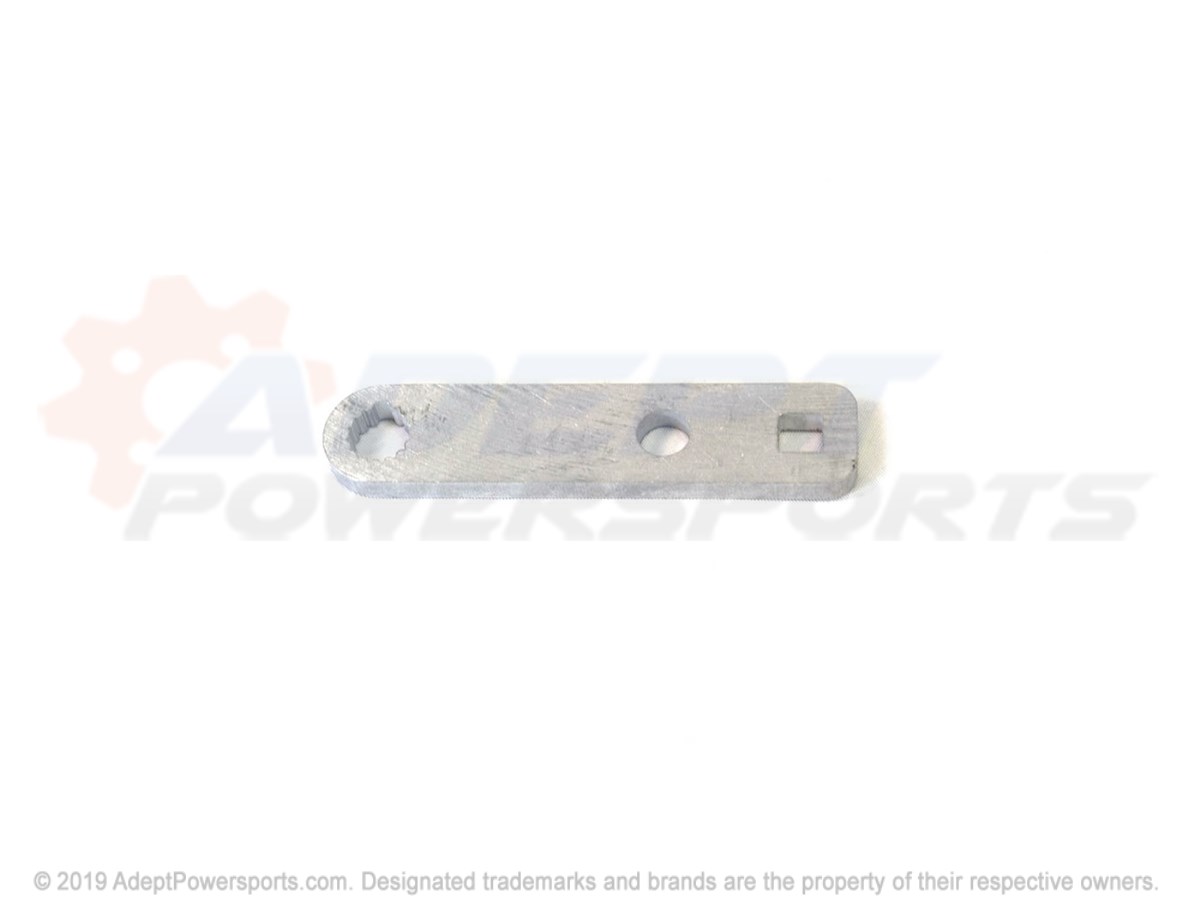

3	BELLCRANK Part #: 3235303 Required per assembly: 1 Currently Not Available
4	WASHER, THRUST Part #: 3234637 Required per assembly: 1 Currently Not Available
5	O-RING Part #: 3233869 Required per assembly: 1 Currently Not Available
6	GEAR, 38T Part #: 3234694 Required per assembly: 1 Currently Not Available
7	SHAFT, SHIFT Part #: 3234712 Required per assembly: 1 Currently Not Available
8	RING, RETAINING Part #: 3233834 Required per assembly: 1 Currently Not Available
9	WASHER THRUST .446X.88X.025 Part #: 3234642 Required per assembly: 1 Currently Not Available
10	SWITCH Part #: 3236115 Required per assembly: 1 Currently Not Available
11	RING, RETAINING, EXTERNAL Part #: 3234639 Required per assembly: 1 Currently Not Available
12	WASHER THRUST Part #: 3234636 Required per assembly: 1 Currently Not Available
13	O-RING Part #: 3234730 Required per assembly: 1 Currently Not Available
14	SUBASSEMBLY-SWITCH SHAFT Part #: 3235244 Required per assembly: 1 Currently Not Available
15	FORK, SHIFT Part #: 3234766 Required per assembly: 1 Currently Not Available
16	RAIL SHIFT SHAFT Part #: 3234714 Required per assembly: 1 Currently Not Available
17	FORK-SHIFT Part #: 3235342 Required per assembly: 1 Currently Not Available
18	SPRING, COMPRESSION Part #: 3234687 Required per assembly: 1 Currently Not Available
