Oil System And Dipstick - R13th90dg replacement parts for 2013 Polaris RANGER 900 DIESEL - R13TH90DG

OEM Parts Polaris 2013 Polaris RANGER 900 DIESEL R13TH90DG Oil System And Dipstick - R13th90dg

Oil System and Dipstick - R13TH90DG Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PUMP ASSEMBLY LUB.OIL Part #: 3070118 Required per assembly: 1 Currently Not Available
2	BOLT M6X14 PLATED Part #: 3070119 Required per assembly: 3 Currently Not Available
3	DIPSTICK LUB.OIL Part #: 3070120 Required per assembly: 1 Note: Built 8/01/10 and Before Currently Not Available
4	O-RING SERVICE Part #: 3070121 Required per assembly: 2 Currently Not Available
5	GUIDE DIPSTICK Part #: 3070122 Required per assembly: 1 Note: Built 8/01/10 and Before Currently Not Available
6	STUD Part #: 3070123 Required per assembly: 1 Currently Not Available
7	O-RING Part #: 3070124 Required per assembly: 1 Currently Not Available
8	PIPE ASSEMBLY LUB.OIL Part #: 3070125 Required per assembly: 1 Currently Not Available
9	BOLT 6X10 PLATED Part #: 3070126 Required per assembly: 4 Currently Not Available
10	COVER (LO) Part #: 3070127 Required per assembly: 1 Currently Not Available
11	PK(LO-T) Part #: 3070128 Required per assembly: 1 Currently Not Available
12	SWITCH OIL PRESSURE Part #: 3070130 Required per assembly: 1 Currently Not Available

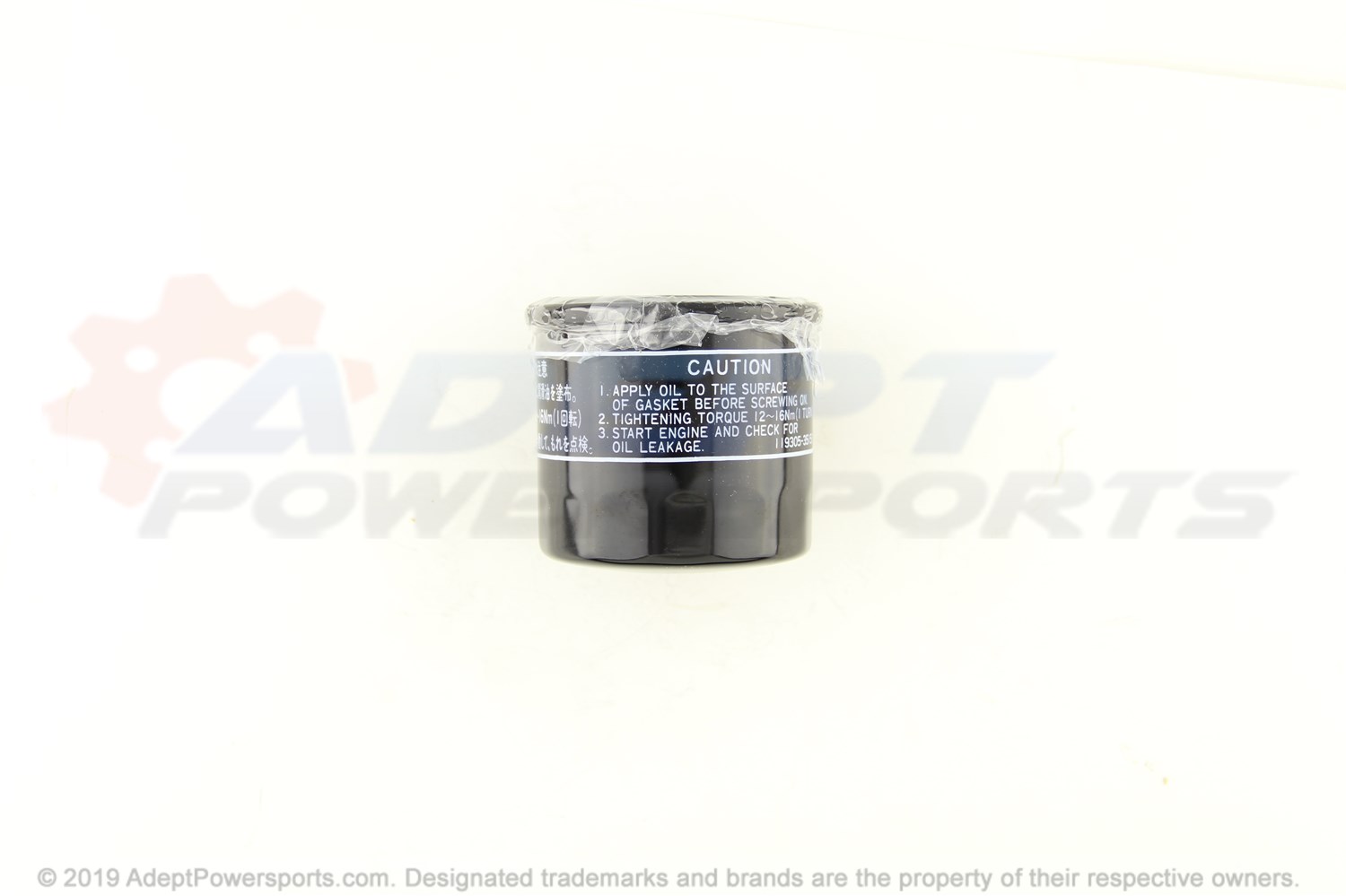

13	FILTER ASSEMBLY LUB.OIL Part #: 3070131 Required per assembly: 1 Currently Not Available

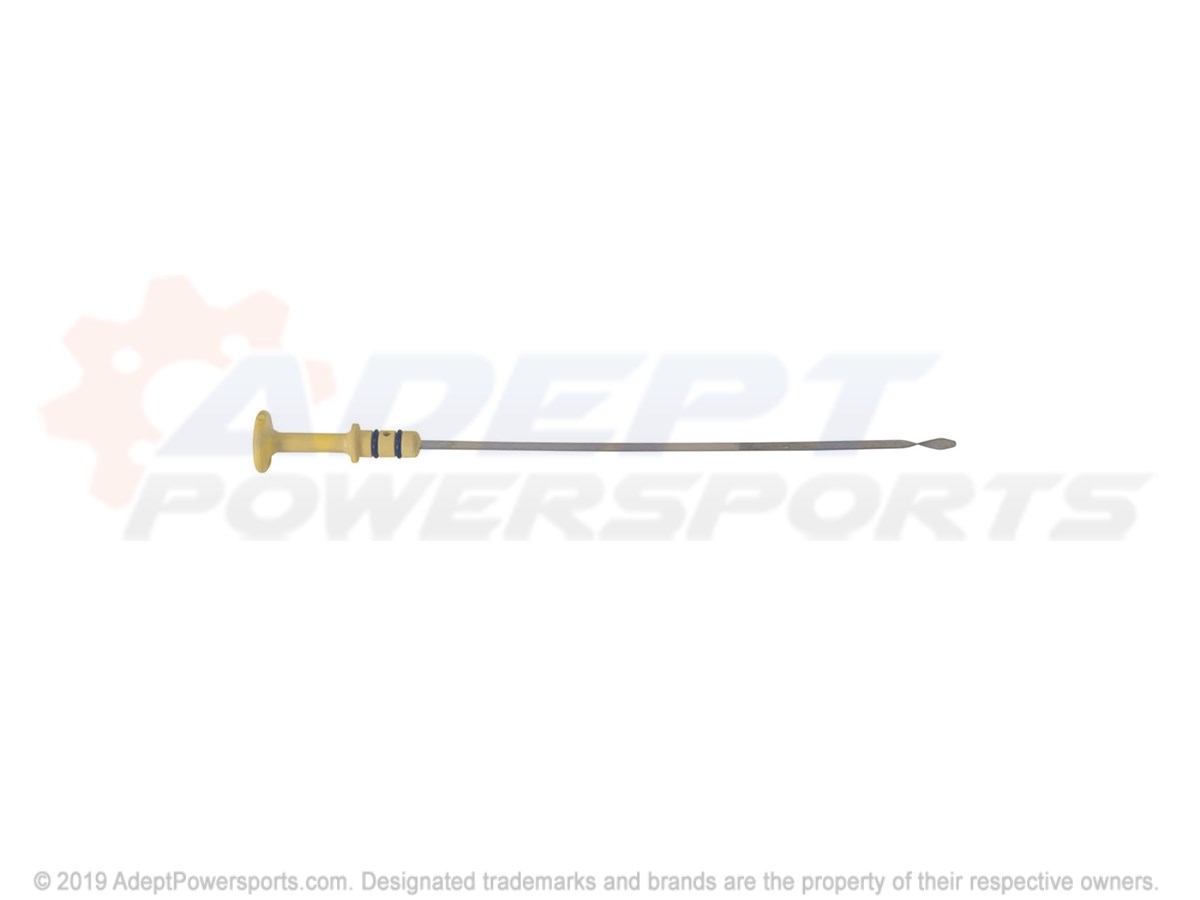

14	DIPSTICK ASSEMBLY TALL Part #: 3070377 Required per assembly: 1 Note: Built 8/02/10 and After Currently Not Available
15	GUIDE DIPSTICK TALL Part #: 3070378 Required per assembly: 1 Note: Built 8/02/10 and After Currently Not Available
16	O-RING 4D P9 Part #: 3070379 Required per assembly: 1 Currently Not Available
17	BOLT 6X10 PLATED Part #: 3070126 Required per assembly: 2 Currently Not Available
18	BOLT M8X12 PLATED Part #: 3070138 Required per assembly: 1 Currently Not Available
