Crankshaft And Piston - R13th90dg replacement parts for 2013 Polaris RANGER 900 DIESEL

OEM Parts Polaris 2013 Polaris RANGER 900 DIESEL R13TH90DG Crankshaft And Piston - R13th90dg

Crankshaft and Piston - R13TH90DG Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANKSHAFT ASSEMBLY Part #: 3070098 Required per assembly: 1 Note: Incl. 2-4 Currently Not Available
2	PARALLEL PIN M8X16 Part #: 3070037 Required per assembly: 1 Currently Not Available
3	GEAR CRANKSHAFT Part #: 3070100 Required per assembly: 1 Currently Not Available
4	KEY 4X12 Part #: 3070101 Required per assembly: 1 Currently Not Available
5	BOLT FLYWHEEL Part #: 3070102 Required per assembly: 5 Currently Not Available
6	ASSEMBLY, FLYWHEEL Part #: 3070376 Required per assembly: 1 Note: Incl. 7 Currently Not Available
7	GEAR RING Part #: 3070103 Required per assembly: 1 Currently Not Available
8	V-PULLEY Part #: 3070374 Required per assembly: 1 Currently Not Available
9	BOLT M12X1.24 FLANGE Part #: 3070104 Required per assembly: 1 Currently Not Available
10	WASHER 12 Part #: 3070105 Required per assembly: 1 Currently Not Available
11	PIN, SPRING Part #: 3070375 Required per assembly: 1 Currently Not Available
12	RING SET OS 0.25 Part #: 3070117 Required per assembly: 3 Currently Not Available

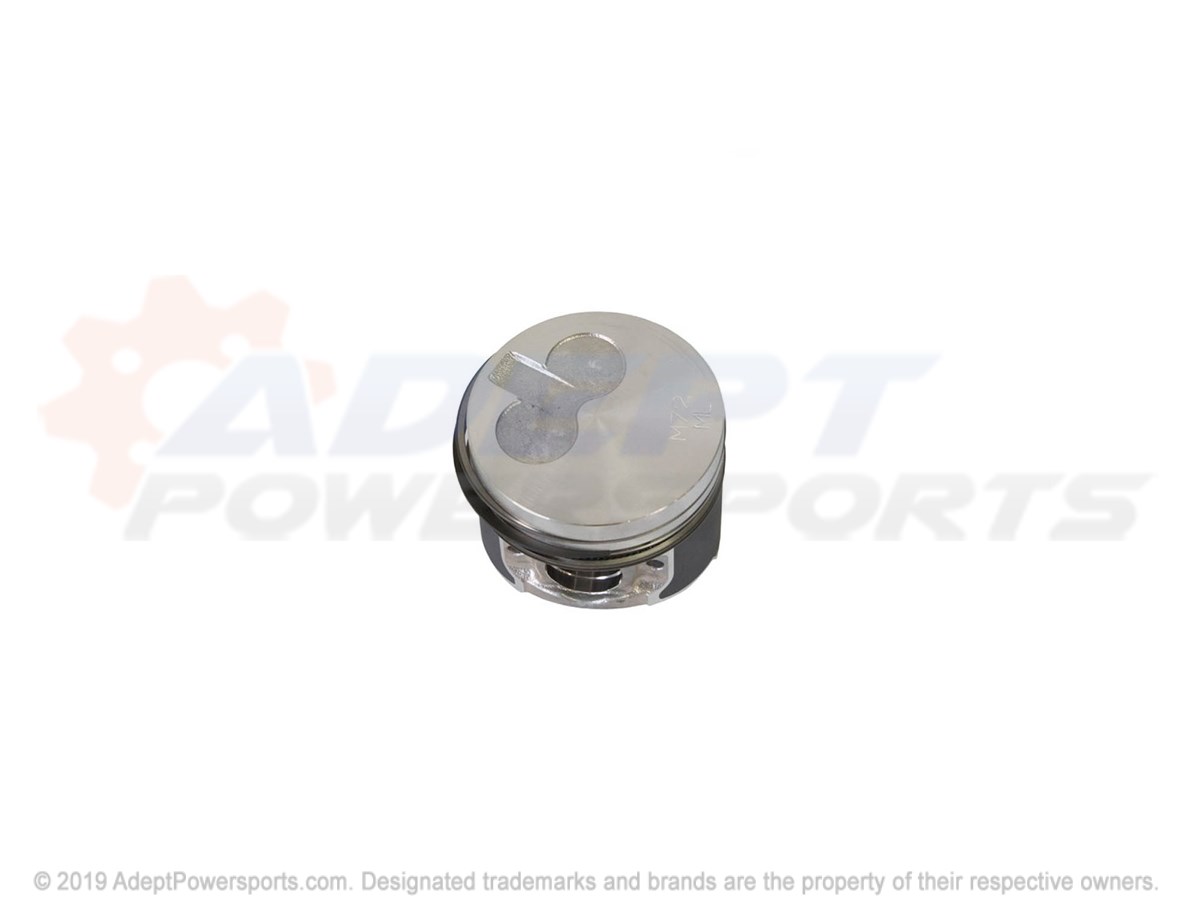

13	PISTON ASSEMBLY Part #: 3070107 Required per assembly: 3 Note: Incl. 14 Currently Not Available
14	RING SET PISTON Part #: 3070108 Required per assembly: 3 Currently Not Available
15	PIN PISTON Part #: 3070109 Required per assembly: 3 Currently Not Available
16	CIRCLIP 22 Part #: 3070110 Required per assembly: 6 Currently Not Available

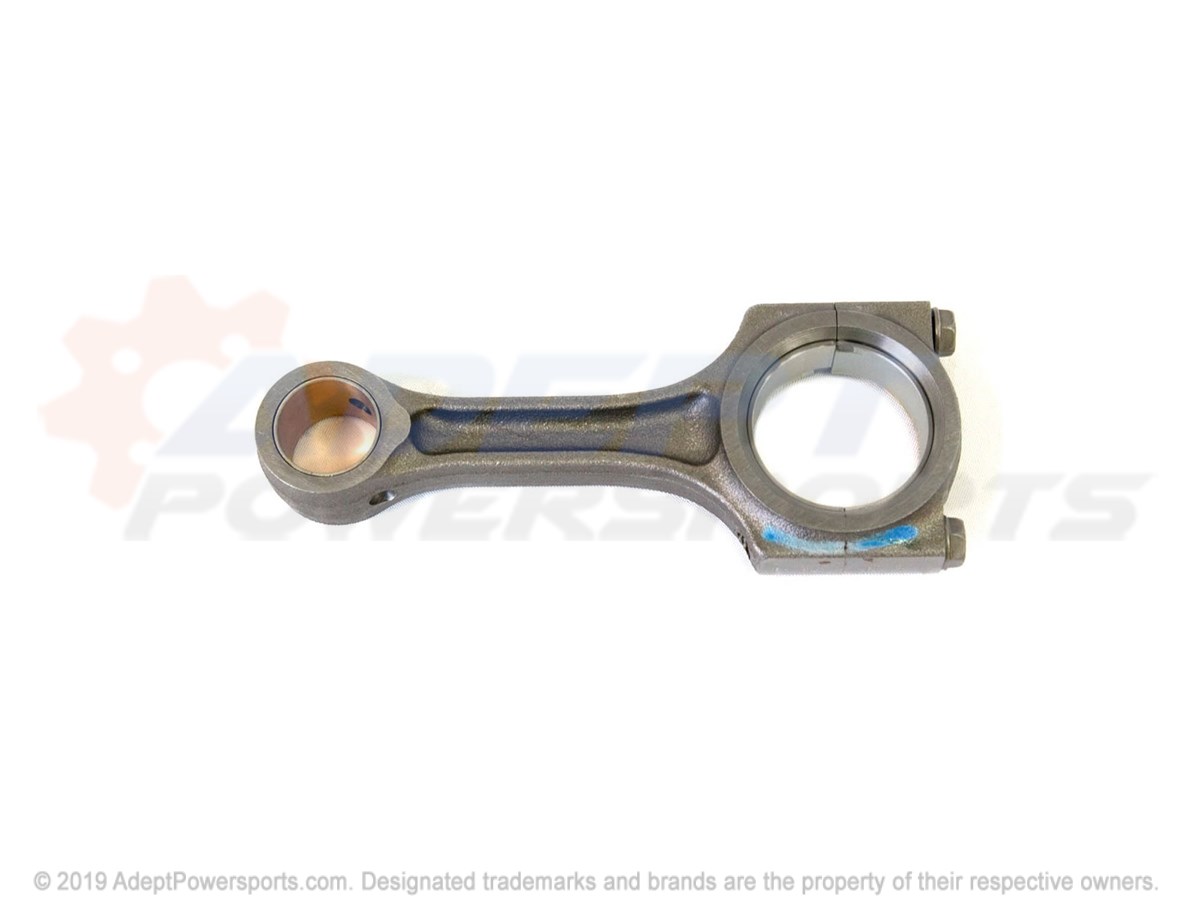

17	ROD ASSEMBLY CONNECTING Part #: 3070111 Required per assembly: 3 Note: Incl. 18,19 Currently Not Available
18	BOLT CONNECTING ROD Part #: 3070112 Required per assembly: 6 Currently Not Available

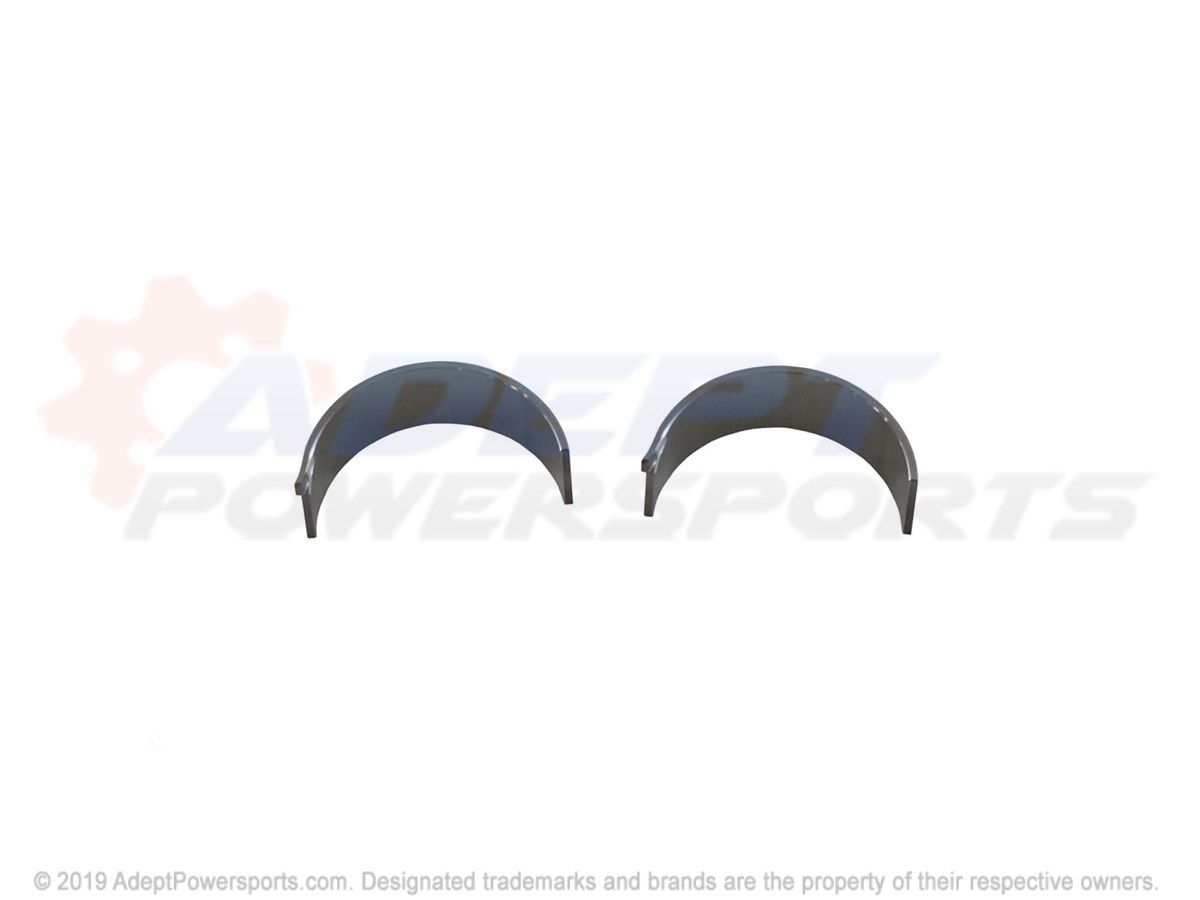

19	METAL ASSEMBLY CRANKPIN Part #: 3070113 Required per assembly: 3 Currently Not Available
20	METAL PISTON PIN Part #: 3070114 Required per assembly: 3 Currently Not Available
21	METAL CRANKPIN 0.25 Part #: 3070115 Required per assembly: 3 Currently Not Available
22	PISTON ASSEMBLY OS 0.25 Part #: 3070116 Required per assembly: 3 Note: Incl. 12 Currently Not Available
