OEM Parts Polaris 2014 Polaris Scrambler 850 XP HO/EPS Front Rack Support - A14gh85ad/Eai

2014 Polaris Scrambler 850 XP HO/EPS A14GH85AD/EAI - Front Rack Support - A14gh85ad/Eai

Front Rack Support - A14GH85AD/EAI Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SCREW

Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
2

SUPPORT-RACK, CAST

Part #: 5639282 Required per assembly: 1
Currently Not Available
3

BULKHEAD

Part #: 5632354 Required per assembly: 1
Currently Not Available
4

NUT, FLANGE

Part #: 7547317 Required per assembly: 4
Currently Not Available
5

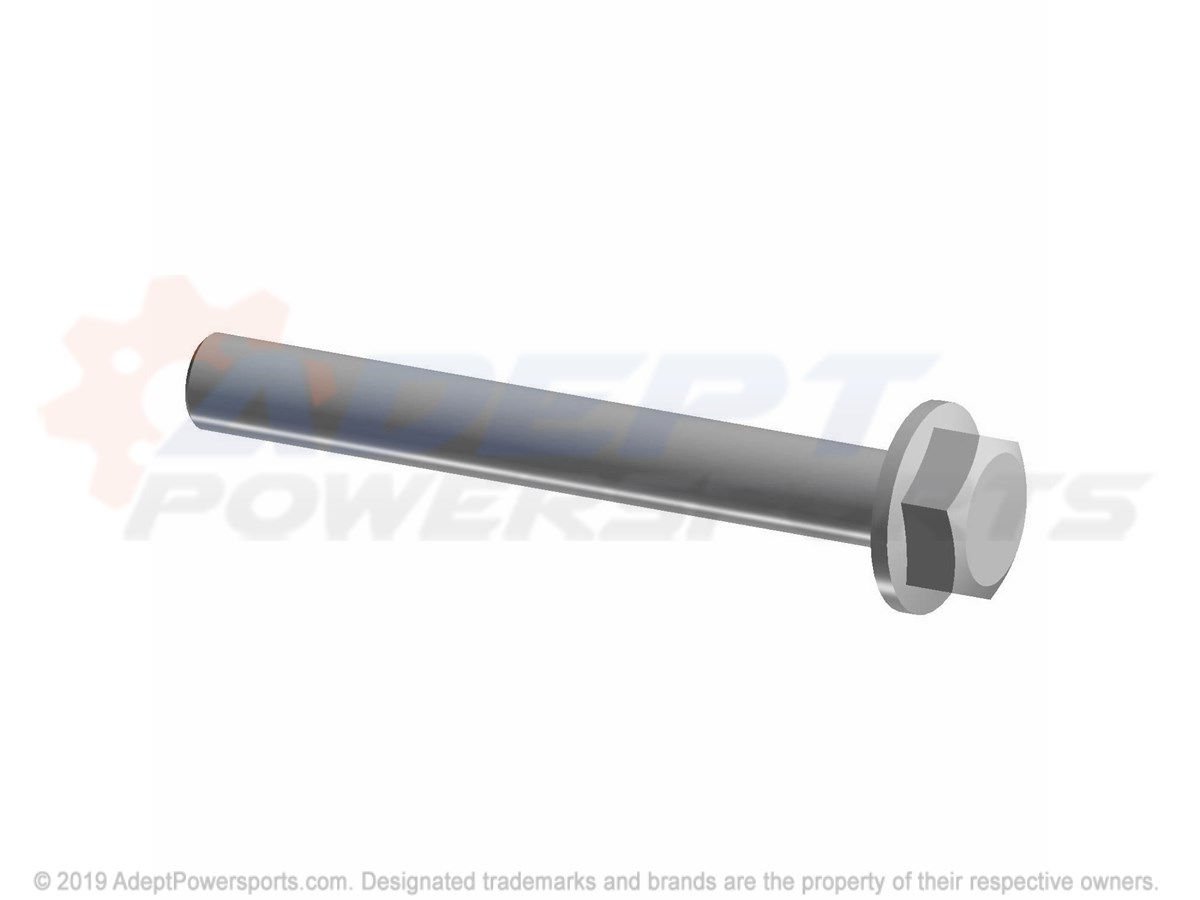

BOLT, FLANGE

Part #: 7518816 Required per assembly: 2 Note: Bolt
Currently Not Available
6

SCREW, FLANGE

Part #: 7518450 Required per assembly: 2
Currently Not Available
7

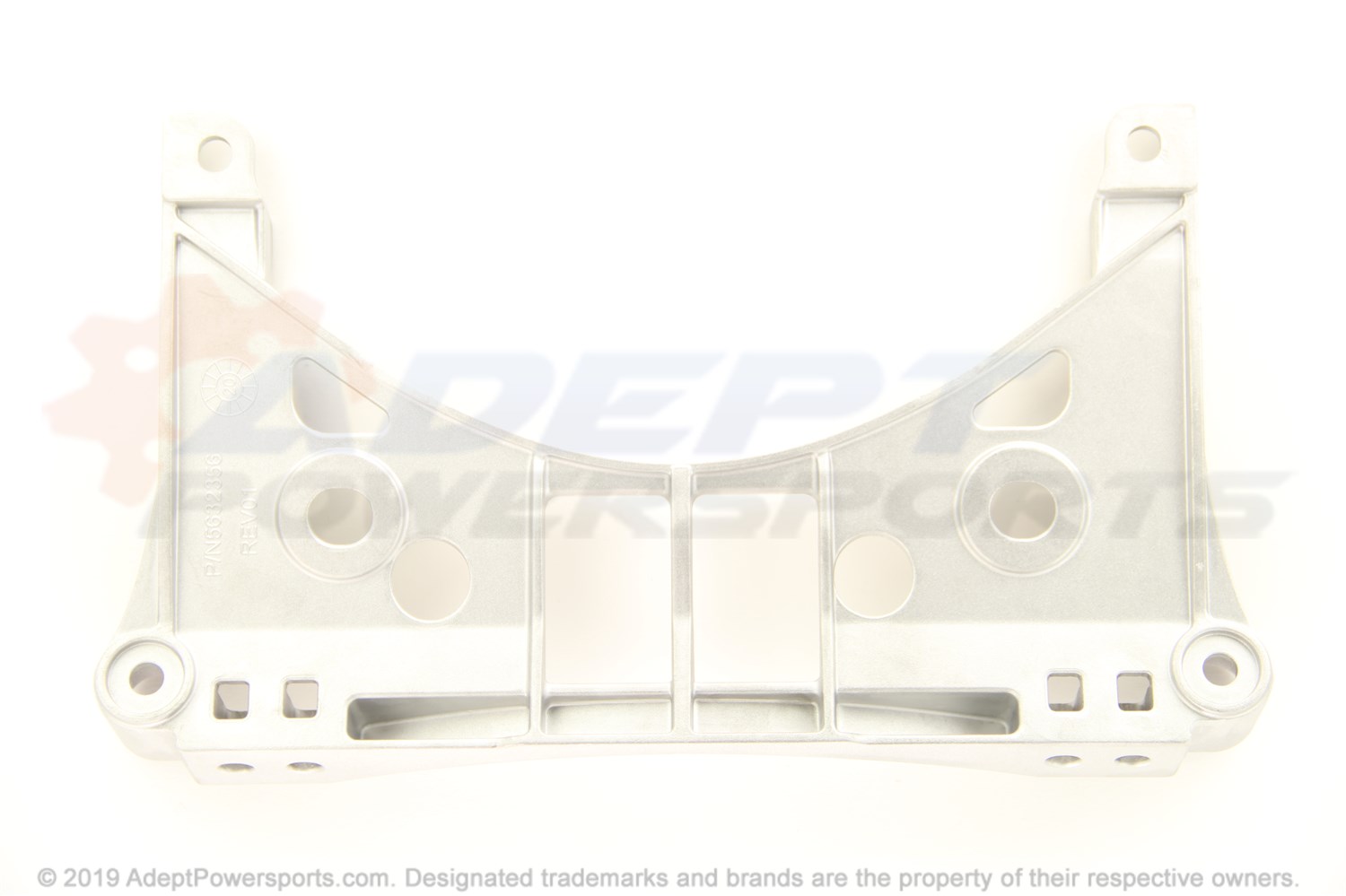

SUPPORT, RADIATOR

Part #: 5632356 Required per assembly: 1
Currently Not Available
8

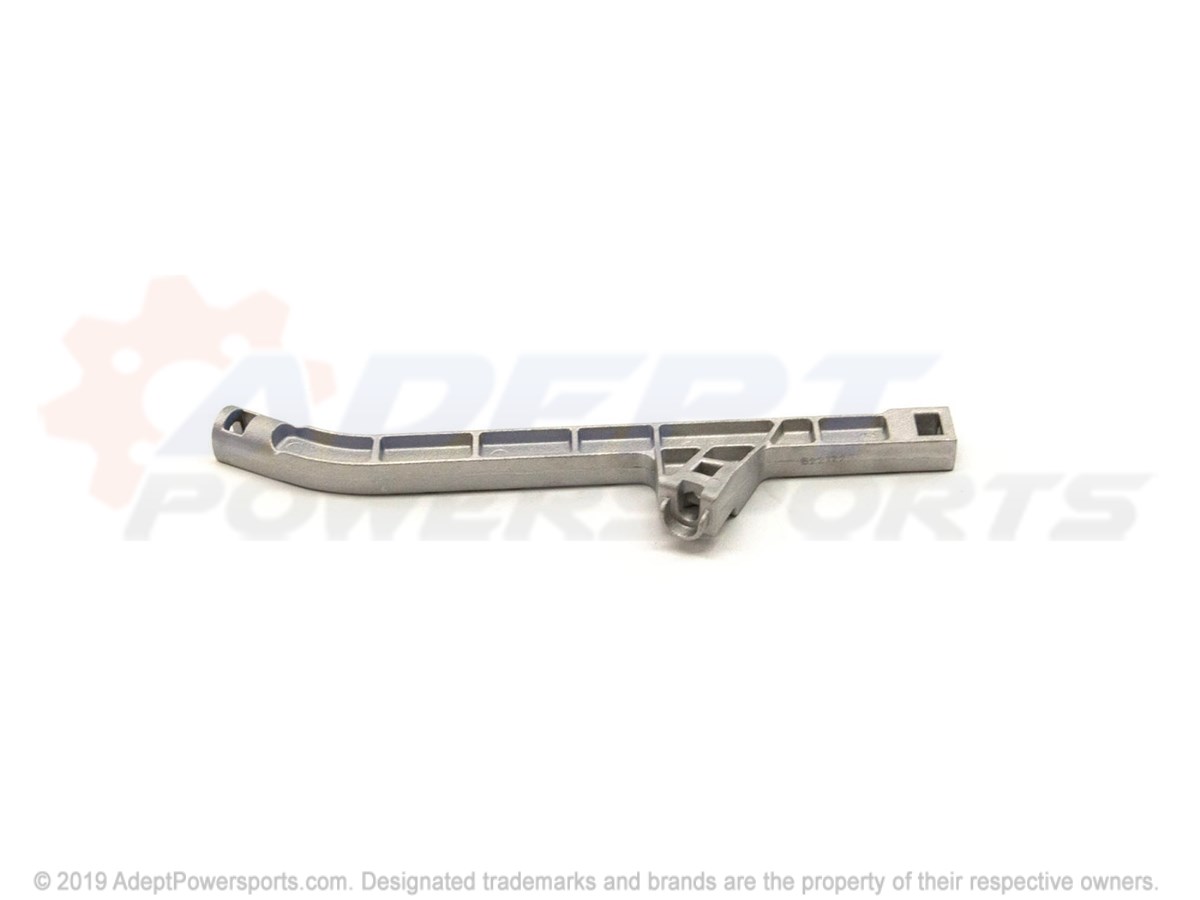

SUPPORT, RACK, FRONT, LH

Part #: 5632713 Required per assembly: 1
Currently Not Available
9

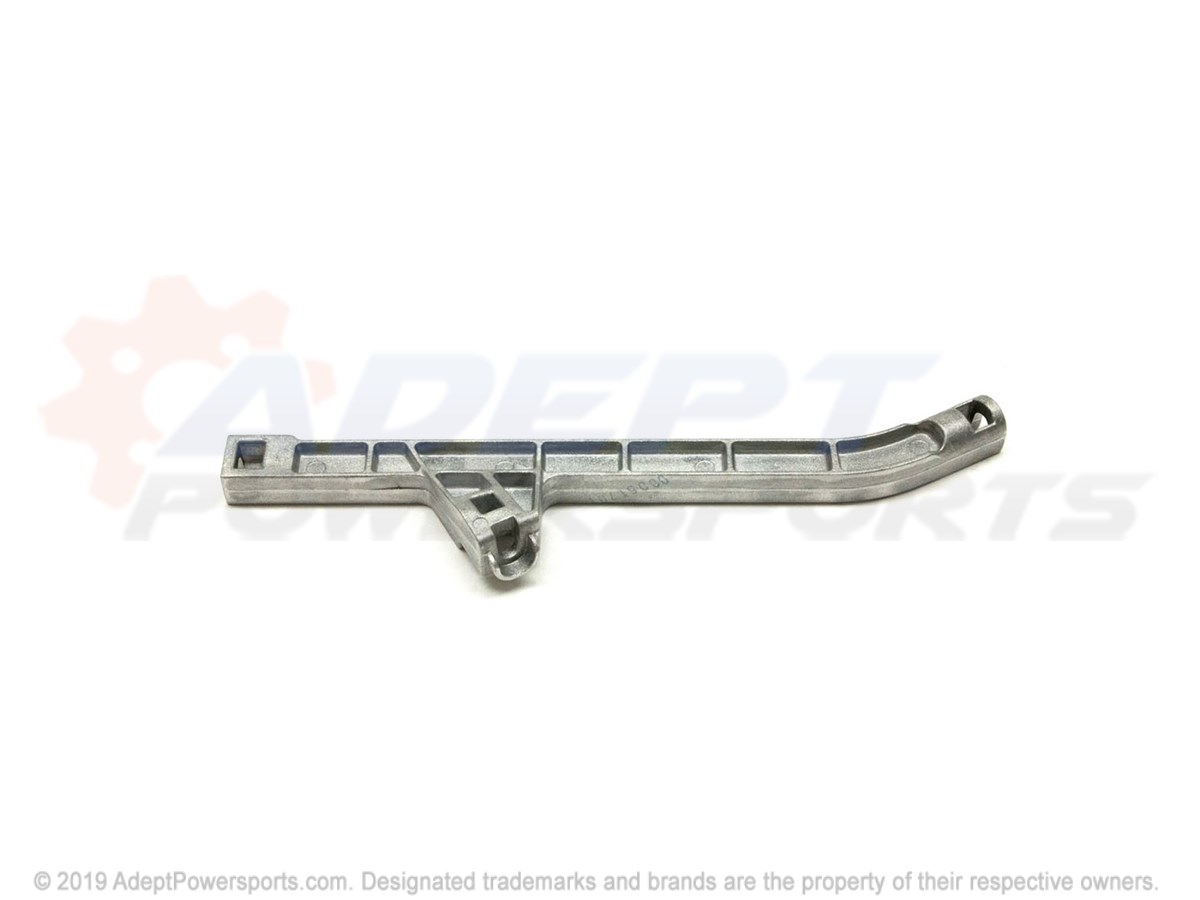

SUPPORT, RACK, FRONT, LH

Part #: 5632714 Required per assembly: 1
Currently Not Available
10

SCREW

Part #: 7518514 Required per assembly: 4 Note: Bolt
Currently Not Available
10

SCREW

Part #: 7518514 Required per assembly: 4 Note: Bolt
Currently Not Available
11

NUT, NYLOK

Part #: 7547144 Required per assembly: 4
$1.99
$1.15
-
+
Add to cart
11

NUT, NYLOK

Part #: 7547144 Required per assembly: 4
$1.99
$1.15
-
+
Add to cart
