OEM Parts Polaris 2014 Polaris Scrambler 850 XP HO/EPS Main Frame - A14gh85ad/Eai

2014 Polaris Scrambler 850 XP HO/EPS A14GH85AD/EAI - Main Frame - A14gh85ad/Eai

Main Frame - A14GH85AD/EAI Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

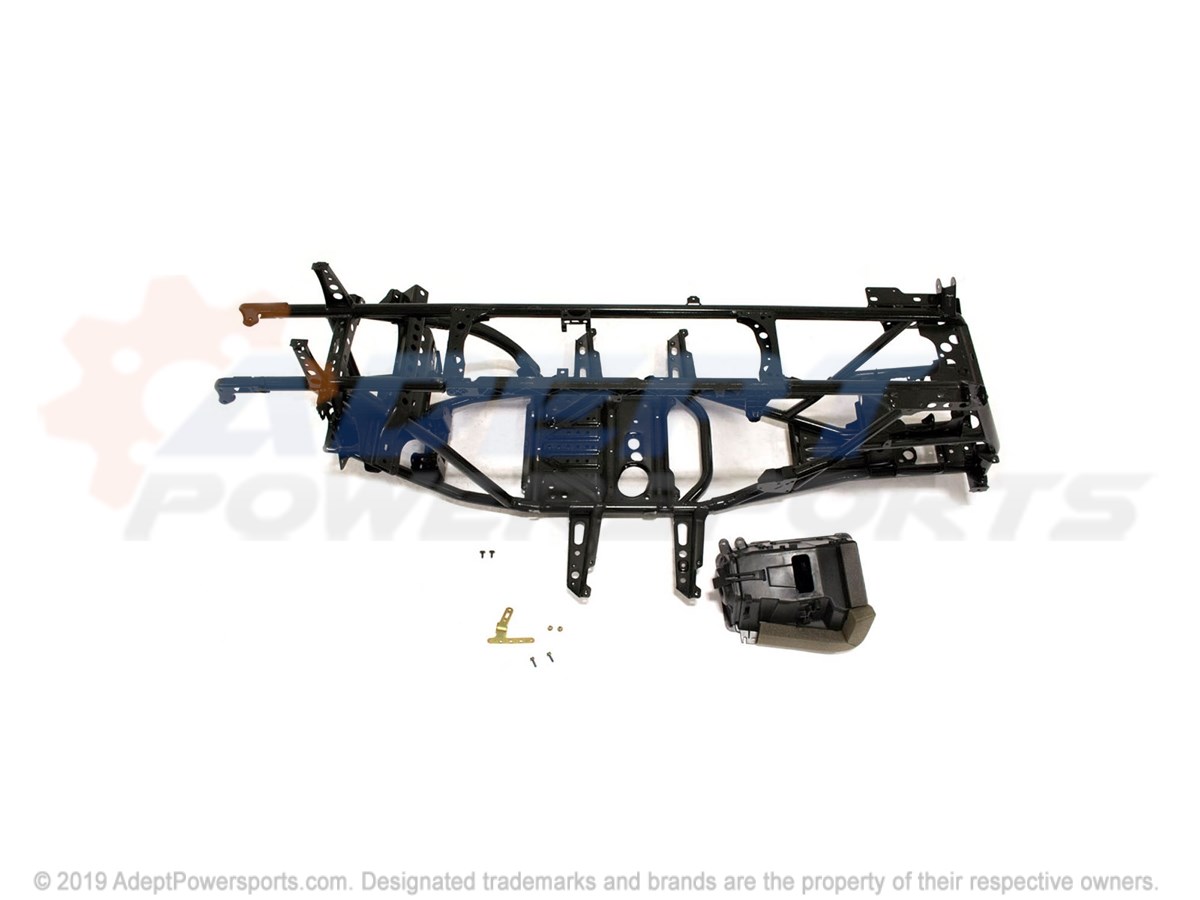

WELD-MAIN FRAME BLK

Part #: 1019770-067 Required per assembly: 1 Note: INCL. 2-5
Currently Not Available
2

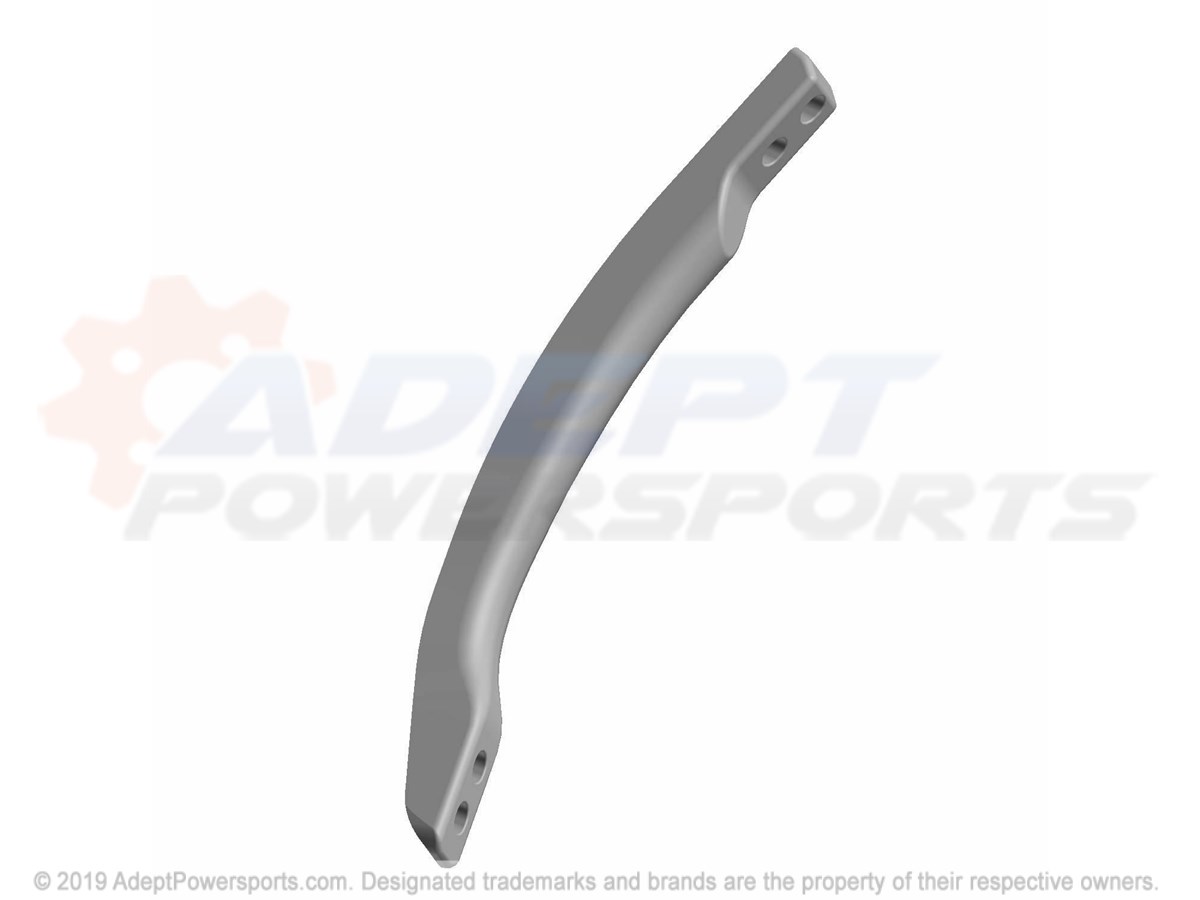

SUPPORT-FRAME UPPER RH MACH

Part #: 5135762-067 Required per assembly: 1
Currently Not Available
3

SUPPORT-FRAME LOWER

Part #: 5632013-067 Required per assembly: 1
Currently Not Available
4

SCREW

Part #: 7517358 Required per assembly: 4
Currently Not Available
5

BOLT, FLANGE, [2X4]

Part #: 7518700 Required per assembly: 4 Note: Bolt
Currently Not Available
