OEM Parts Polaris 2014 Polaris Scrambler 850 XP HO/EPS Ignition System - A14gh85ad/Eai

2014 Polaris Scrambler 850 XP HO/EPS A14GH85AD/EAI - Ignition System - A14gh85ad/Eai

Ignition System - A14GH85AD/EAI Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

TUBING-NYLON 5MMX100MM BLK

Part #: 8360209 Required per assembly: 1
Currently Not Available
2

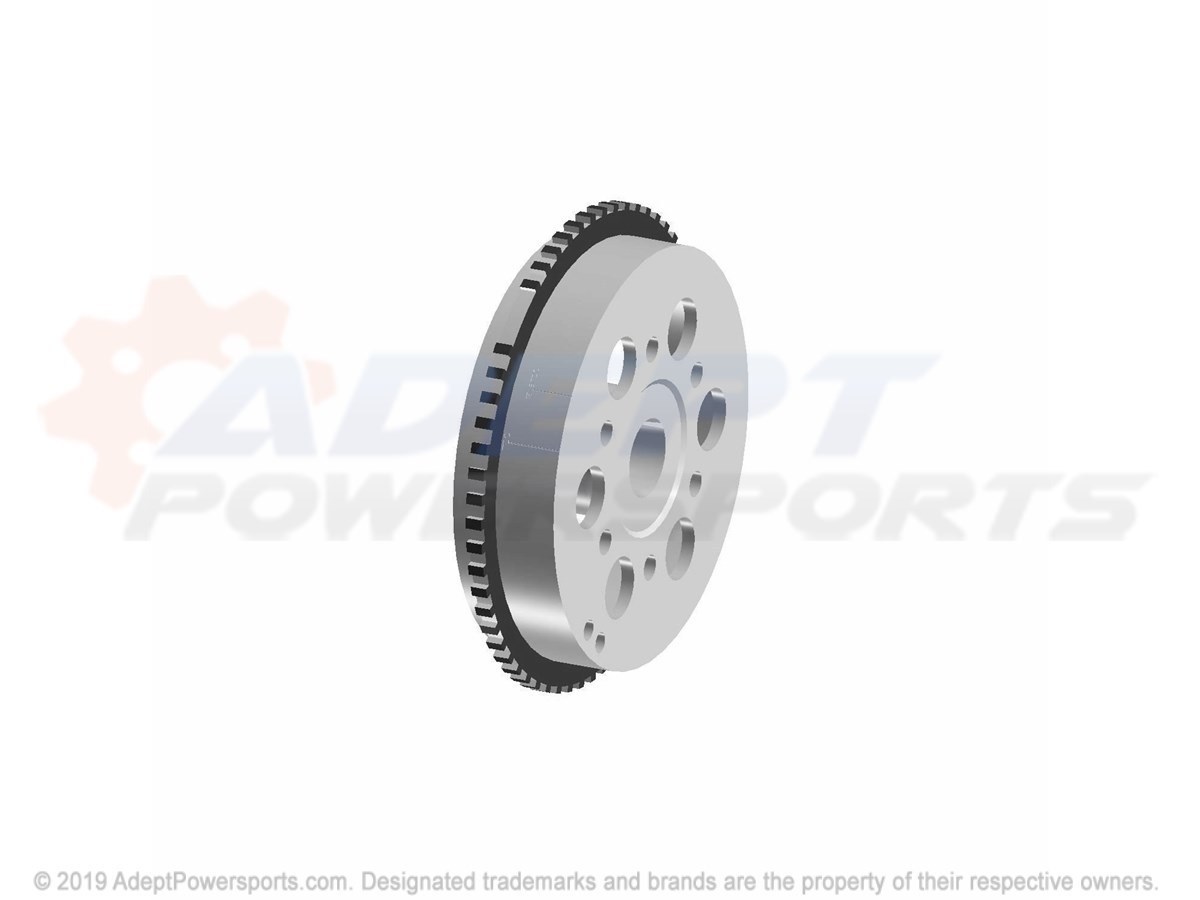

FLYWHEEL

Part #: 4014005 Required per assembly: 1
Currently Not Available
3

SCREW 1.50

Part #: 7517566 Required per assembly: 1
Currently Not Available
4

BOLT-WATERPUMP DRIVE LH

Part #: 5137241 Required per assembly: 1
Currently Not Available
5

SCREW

Part #: 7518544 Required per assembly: 3
$4.99
$2.92
-
+
Add to cart
6

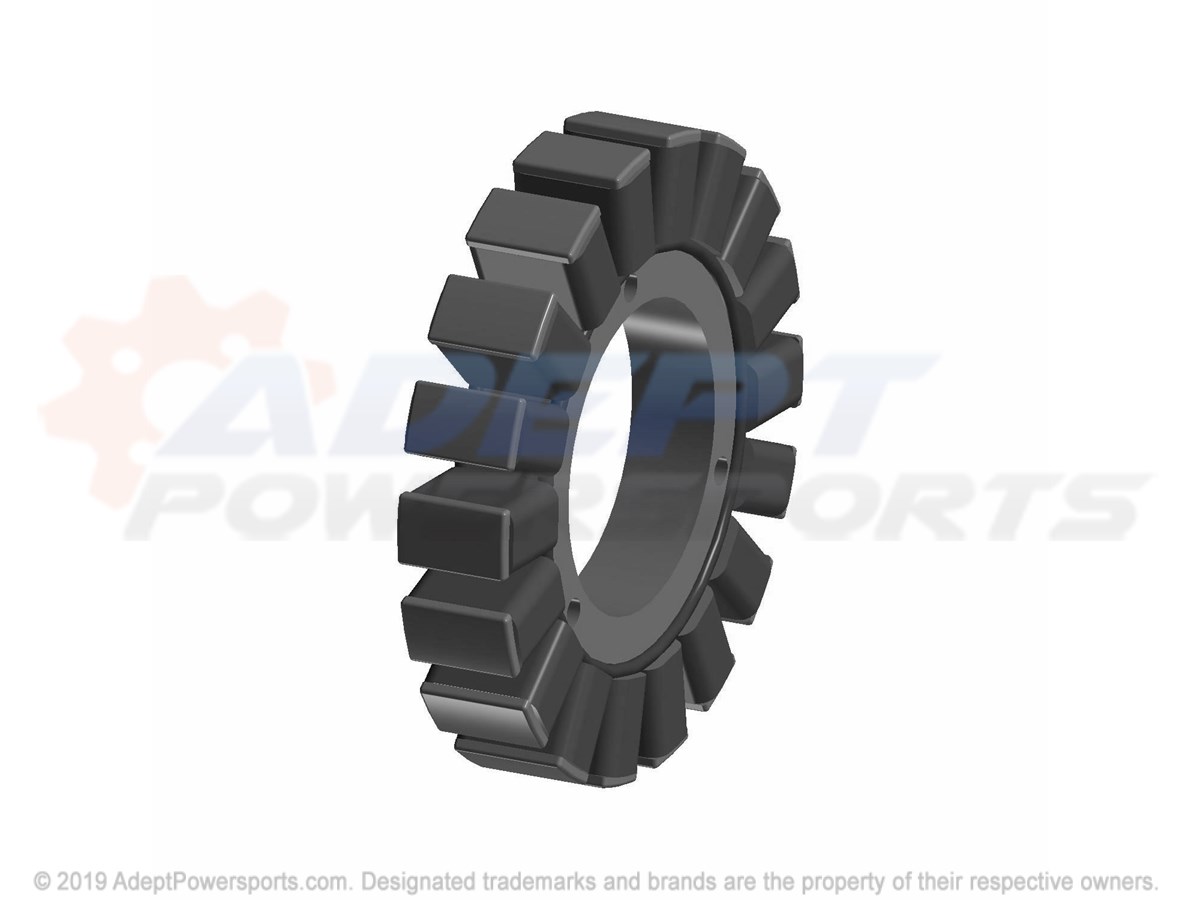

STATOR W/GROMMET

Part #: 4014006 Required per assembly: 1
Currently Not Available
7

SCREW

Part #: 7518765 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
8

RETAINER, STATOR, WIRE

Part #: 5250018 Required per assembly: 1
Currently Not Available
9

GASKET-STATOR COVER

Part #: 5813680 Required per assembly: 1
Currently Not Available
10

FITTING

Part #: 7052463 Required per assembly: 1
Currently Not Available
11

SPARKPLUG-12MM REA6MCX

Part #: 3022438 Required per assembly: 2
Currently Not Available
12

SCREW

Part #: 7518576 Required per assembly: 8
Currently Not Available
13

WIRE, SPARK, PLUG, MAG

Part #: 4014007 Required per assembly: 1
Currently Not Available
14

WIRE-SPARKPLUG PTO

Part #: 4013328 Required per assembly: 1
Currently Not Available
15

KIT, IGNITION, COIL

Part #: 2876049 Required per assembly: 1 Note: Coil
Currently Not Available
