Battery - A15set57ca/S57cj/Ca (49Atvbattery15trctr) replacement parts for 2015 Polaris 570 EFI/EPS Forest Tractor

OEM Parts Polaris 2015 Polaris 570 EFI/EPS Forest Tractor Battery - A15set57ca/S57cj/Ca (49Atvbattery15trctr)

Battery - A15SET57CA/S57CJ/CA (49ATVBATTERY15TRCTR) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BLOCK, TERMINAL Part #: 4011892 Required per assembly: 1 Note: Block, Terminal Currently Not Available
2	NUTS-10-32 KEPS Part #: 7547341 Required per assembly: 4 Currently Not Available
3	CABLE-BATT, 6GA, RD, BATT/SOL/TB Part #: 4014935 Required per assembly: 1 Currently Not Available
4	CABLE, BATTERY, 6, GAUGE, FLAT Part #: 4014424-705 Required per assembly: 1 Currently Not Available
4	INSUL.CABLE SOL. Part #: 5410346 Required per assembly: 2 Note: USE W/4014424-705 Currently Not Available
5	SOLENOID, STARTER, C1100, W/WASHER Part #: 4014471 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7512084 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
7	KIT, BATTERY, BOLT Part #: 2202213 Required per assembly: 1 Currently Not Available

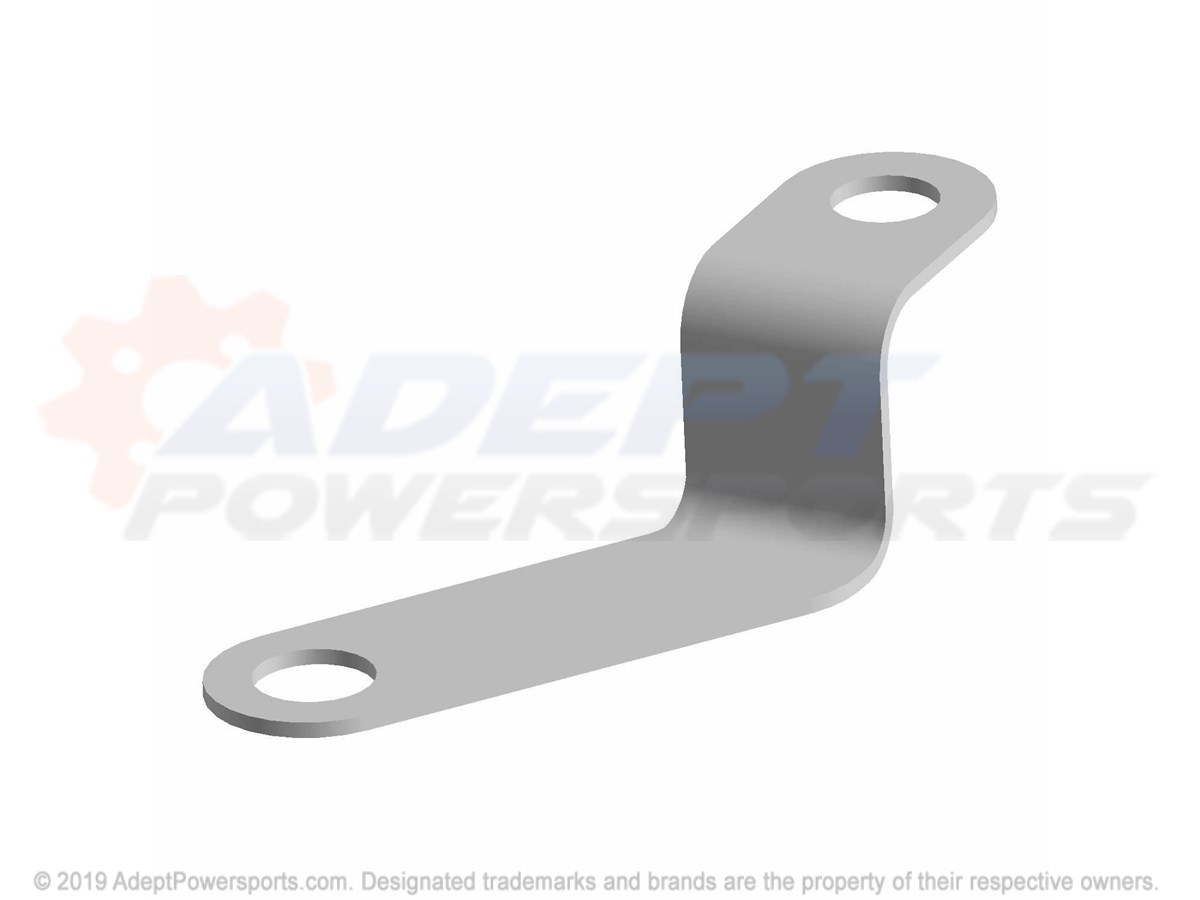

8	STRAP-GROUND Part #: 5260167 Required per assembly: 1 Currently Not Available
9	CABLE-BATT, 6GA, BK, BAT/START/TB Part #: 4014936 Required per assembly: 1 Currently Not Available
10	BATTERY Part #: 4140006 Required per assembly: 1 Note: Sold in multiples of 2 only Currently Not Available
10	BOOT-BATTERY, RED Part #: 4011723 Required per assembly: 1 Currently Not Available
11	STRAP-BATTERY HOLD DOWN Part #: 5418182 Required per assembly: 1 Currently Not Available
12	TUBE, BATTERY, VENT Part #: 5432077 Required per assembly: 1 Currently Not Available
13	FOAM, COVER Part #: 5813265 Required per assembly: 2 Currently Not Available
14	SCREW Part #: 7517386 Required per assembly: 6 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
15	STRAP PANDUIT Part #: 7080138 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
16	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 3 Currently Not Available
17	NUT, METRIC Part #: 7546703 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart

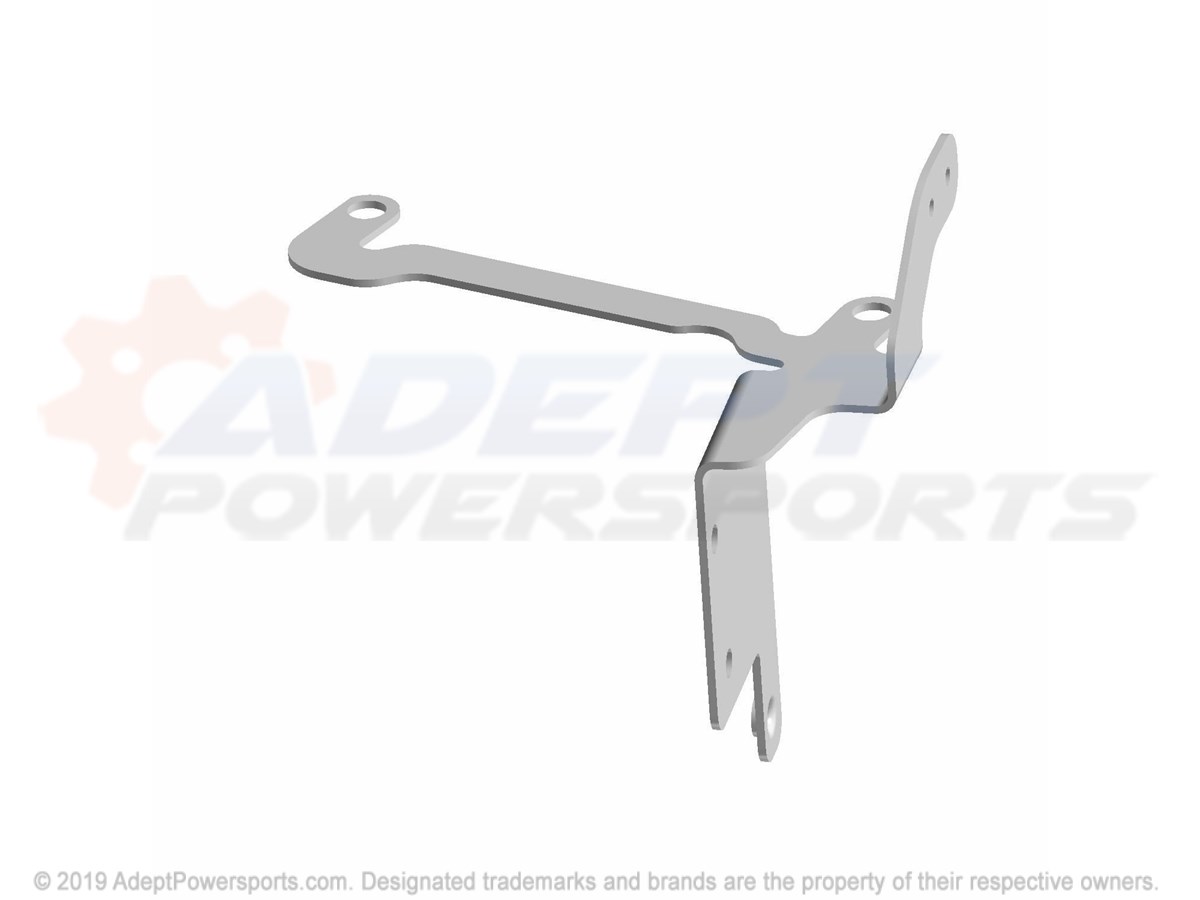

18	BRKT-FUSE BLOCK Part #: 5259734 Required per assembly: 1 Currently Not Available
19	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart

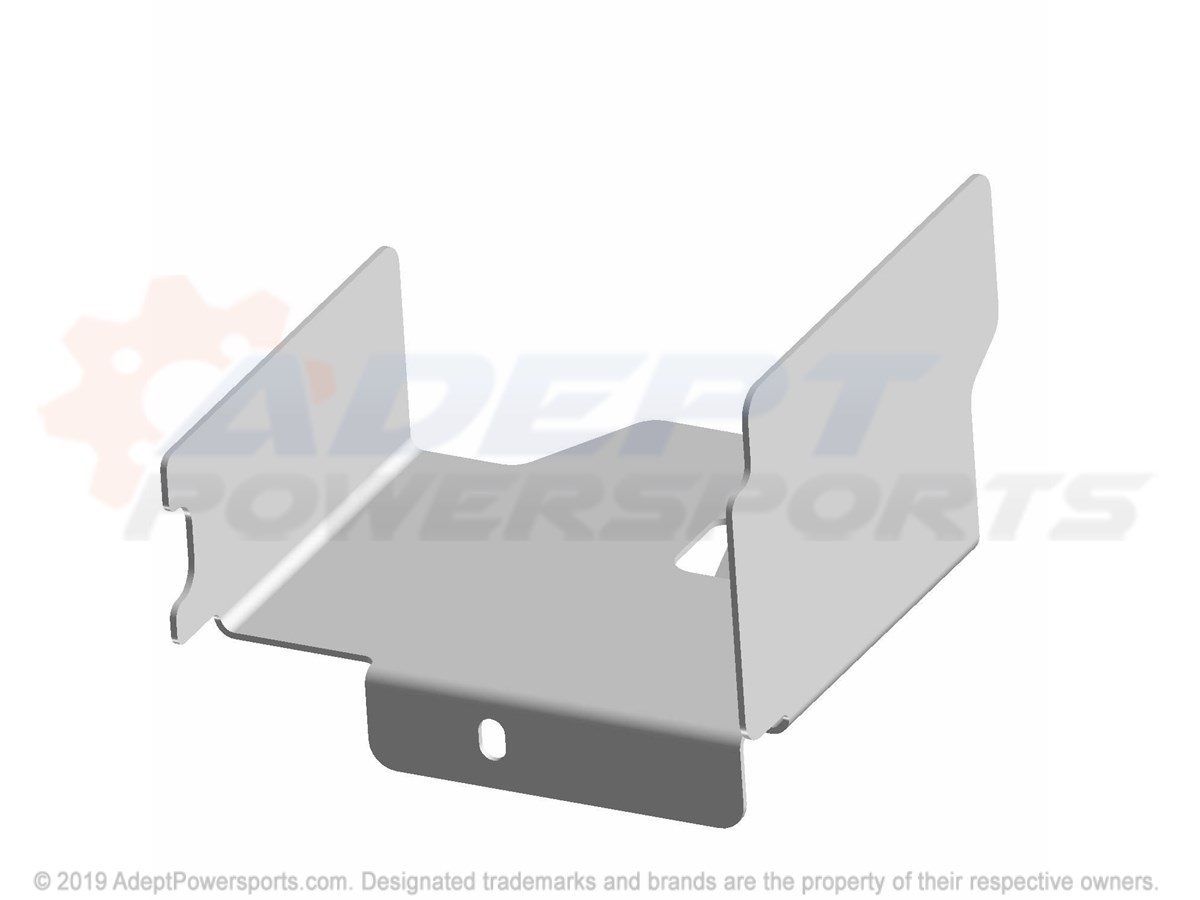

20	BRKT-BATTERY, GUARD Part #: 5259571 Required per assembly: 1 Currently Not Available
21	COVER, BATTERY Part #: 5431769 Required per assembly: 1 Currently Not Available
22	HOOK-BATT.H/D Part #: 7010032 Required per assembly: 2 ~~$1.99~~ $1.34 - + Add to cart
