OEM Parts Polaris 2015 Polaris 570 EFI/EPS Forest Tractor Front Bumper And Mounting - A15set57ca/S57cj/Ca (49Atvbumper15trctr)

2015 Polaris 570 EFI/EPS Forest Tractor A15SET57CA/S57CJ/CA - Front Bumper And Mounting - A15set57ca/S57cj/Ca (49Atvbumper15trctr)

Front Bumper and Mounting - A15SET57CA/S57CJ/CA (49ATVBUMPER15TRCTR) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

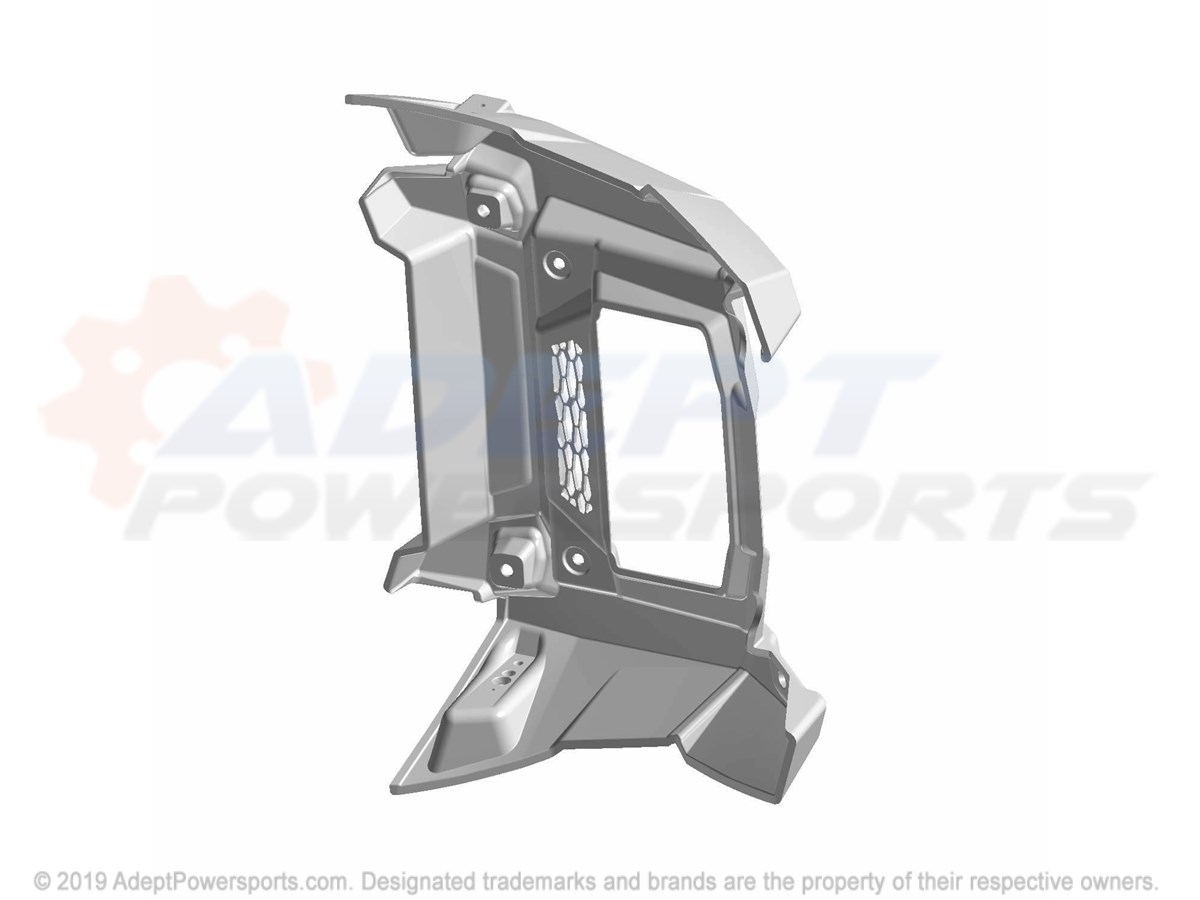

Polaris 5438559-070 Bumper-Front Fascia Blk

BUMPER-FRONT FASCIA BLK

Part #: 5438559-070 Required per assembly: 1
Currently Not Available
3
Polaris 7518341 Bolt, Flange

BOLT, FLANGE

Part #: 7518341 Required per assembly: 4
Currently Not Available
4

NUT, NYLOCK

Part #: 7542343 Required per assembly: 2 Note: Nut, Flange
Currently Not Available
5

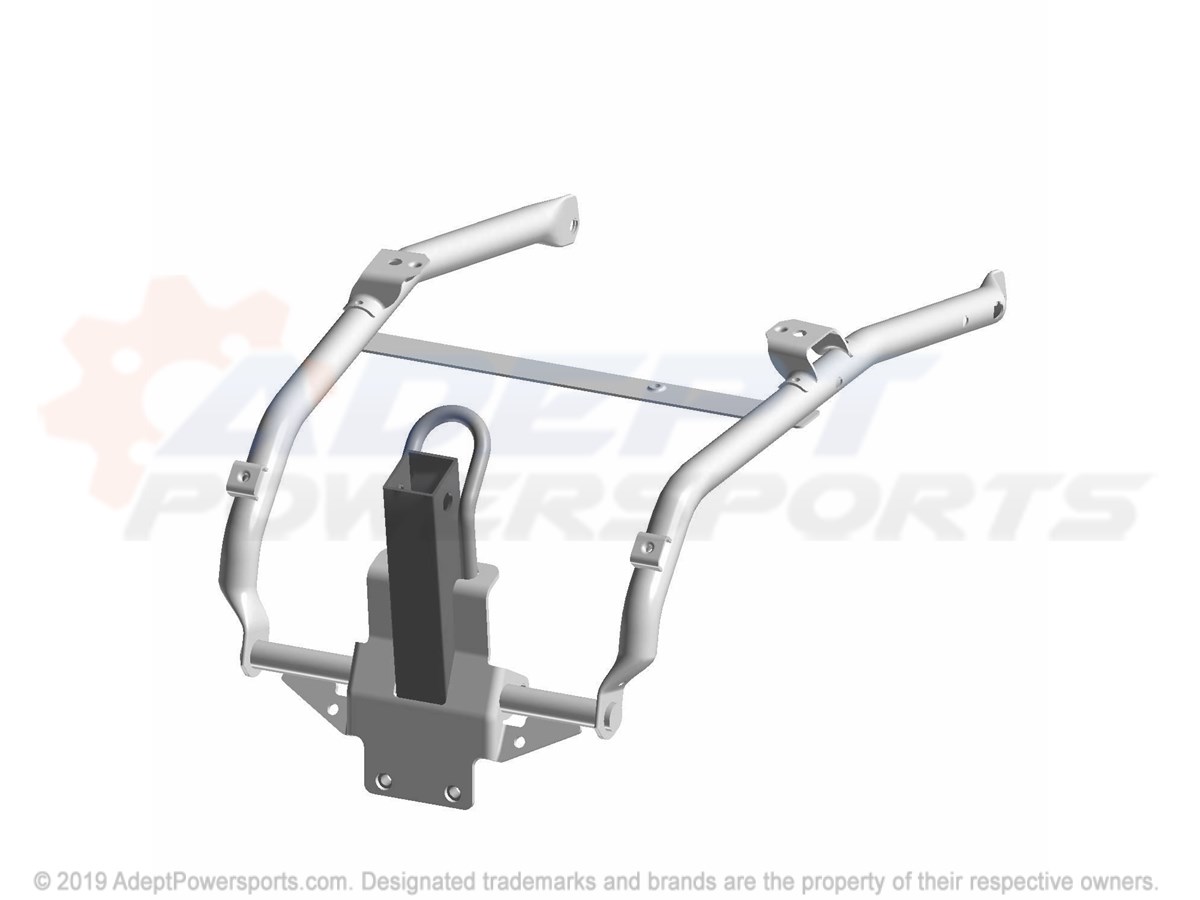

Polaris 1020902-067 Weld-Hitch, Front, Tractor, Blk

WELD-HITCH, FRONT, TRACTOR, BLK

Part #: 1020902-067 Required per assembly: 1
Currently Not Available
6
Polaris 5438690 Shield-Radiator Side Rh

SHIELD-RADIATOR SIDE RH

Part #: 5438690 Required per assembly: 1
Currently Not Available
6
Polaris 5438689 Shield-Radiator Side Lh

SHIELD-RADIATOR SIDE LH

Part #: 5438689 Required per assembly: 1
Currently Not Available
7
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 4
$2.99
$1.73
-
+
Add to cart
8
Polaris 7518460 Screw

SCREW

Part #: 7518460 Required per assembly: 2 Note: Screw, Flange
Currently Not Available
9
Polaris 7517685 Screw

SCREW

Part #: 7517685 Required per assembly: 6 Note: Screw
Currently Not Available
10
Polaris 5451817-070 Cover-Front, Lower, Tractor, Blk

COVER-FRONT, LOWER, TRACTOR, BLK

Part #: 5451817-070 Required per assembly: 2
Currently Not Available
11
Polaris 7515399 Screw

SCREW

Part #: 7515399 Required per assembly: 2 Note: Screw
$2.99
$1.73
-
+
Add to cart
12
Polaris 7519092 Screw

SCREW

Part #: 7519092 Required per assembly: 2
Currently Not Available
