OEM Parts Polaris 2015 Polaris 570 EFI/EPS Forest Tractor Headlight Pod - A15set57ca/S57cj/Ca (49Atvheadlight11sp800)

2015 Polaris 570 EFI/EPS Forest Tractor A15SET57CA/S57CJ/CA - Headlight Pod - A15set57ca/S57cj/Ca (49Atvheadlight11sp800)

Headlight Pod - A15SET57CA/S57CJ/CA (49ATVHEADLIGHT11SP800) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

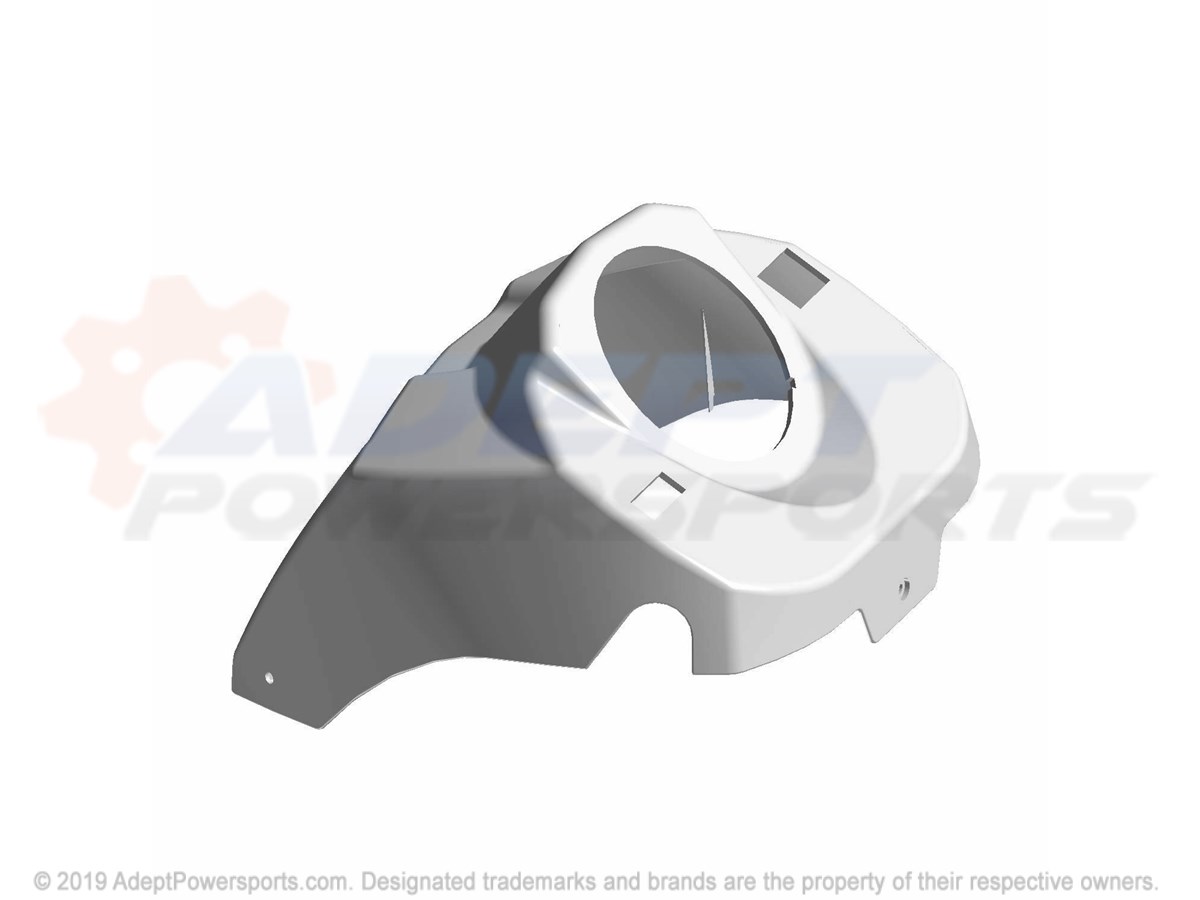

Polaris 5451773-133 Pod-Hdlt, Upper, Trctr, B.White

POD-HDLT, UPPER, TRCTR, B.WHITE

Part #: 5451773-133 Required per assembly: 1 Note: CJ
Currently Not Available
1
Polaris 5451773-498 Pod-Hdlt, Upper, Tractor, S.Grn

POD-HDLT, UPPER, TRACTOR, S.GRN

Part #: 5451773-498 Required per assembly: 1 Note: CA
$129.99
$75.79
-
+
Add to cart
2
Polaris 7511881 Screw

SCREW

Part #: 7511881 Required per assembly: 3
$2.99
$1.73
-
+
Add to cart
3
Polaris 5436747-070 Pod, Headlight, Lower, Snap, Black, [At]

POD, HEADLIGHT, LOWER, SNAP, BLACK, [AT]

Part #: 5436747-070 Required per assembly: 1 Note: Pod, Headlight, Lower, Snap, Black
Currently Not Available
4
Polaris 5410163 O Ring

O RING

Part #: 5410163 Required per assembly: 2
$4.99
$2.92
-
+
Add to cart
5

CLIP-SCREW, #8/10, .03-.10, PANEL

Part #: 7670127 Required per assembly: 1
Currently Not Available
6
Polaris 5413239 Grommet

GROMMET

Part #: 5413239 Required per assembly: 1
Currently Not Available
