OEM Parts Polaris 2015 Polaris Sportsman 1000 XP Front Bumper And Mounting - A15sxe95ac/Ak/Aw/L95am (100021)

2015 Polaris Sportsman 1000 XP A15SXE95AC/AK/AW/L95AM - Front Bumper And Mounting - A15sxe95ac/Ak/Aw/L95am (100021)

Front Bumper and Mounting - A15SXE95AC/AK/AW/L95AM (100021) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5435807-070 Bumper, Front, Black

BUMPER, FRONT, BLACK

Part #: 5435807-070 Required per assembly: 1
Currently Not Available
2
Polaris 5451745-070 Cover-Fang, Frt, Mod, Intplow, Blk

COVER-FANG, FRT, MOD, INTPLOW, BLK

Part #: 5451745-070 Required per assembly: 1 Note: AK
Currently Not Available
2

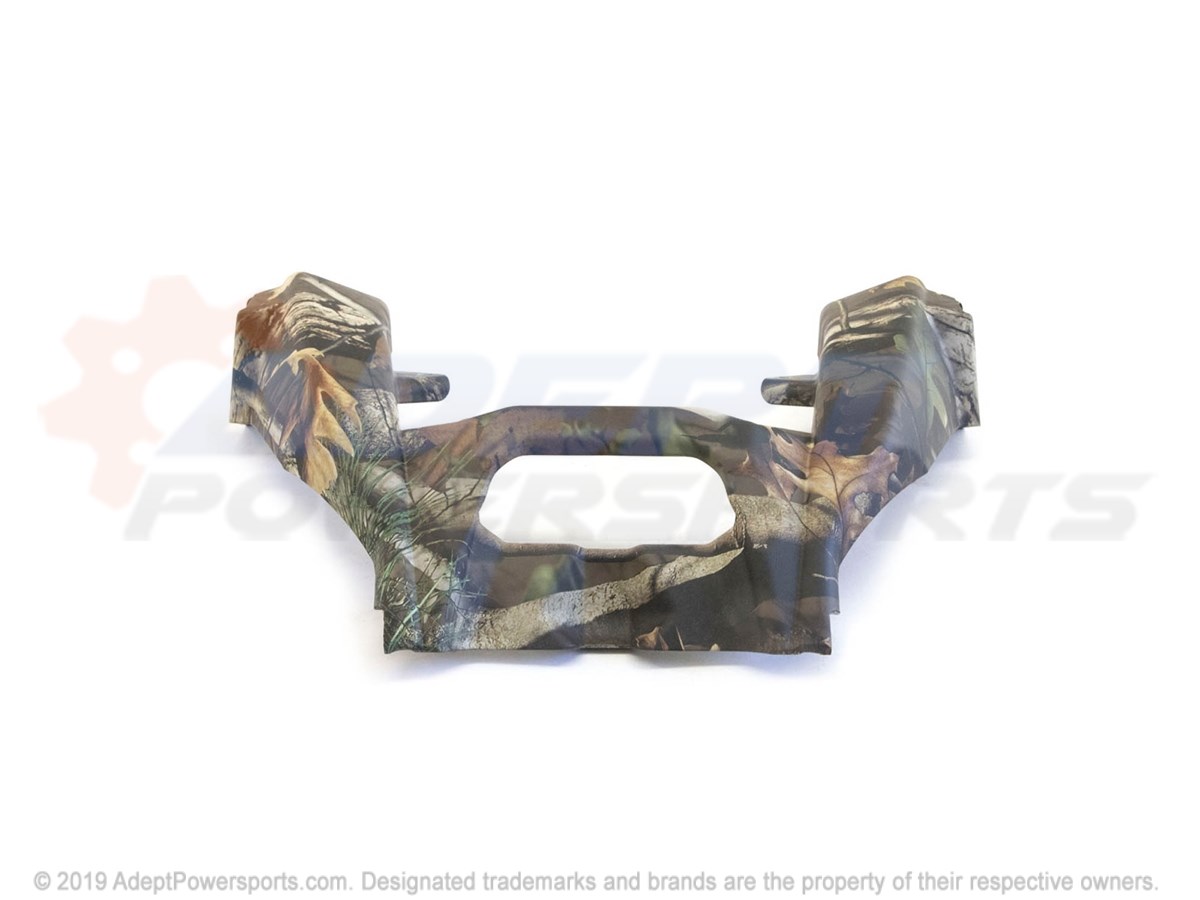

Polaris 5451771-587 Cover-Fang, Frt, Dip, Mod, Plw, Ppc

COVER-FANG, FRT, DIP, MOD, PLW, PPC

Part #: 5451771-587 Required per assembly: 1 Note: AC
Currently Not Available
3
Polaris 5437424-070 Screen, Radiator, Black

SCREEN, RADIATOR, BLACK

Part #: 5437424-070 Required per assembly: 1
Currently Not Available
4
Polaris 7547144 Nut, Nylok

NUT, NYLOK

Part #: 7547144 Required per assembly: 4
$1.99
$1.15
-
+
Add to cart
5
Polaris 7512026 Screw

SCREW

Part #: 7512026 Required per assembly: 6 Note: Screw
Currently Not Available
6

BOLT

Part #: 7518677 Required per assembly: 4
Currently Not Available
7
Polaris 7556216 Washer

WASHER

Part #: 7556216 Required per assembly: 4
Currently Not Available
8
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
