OEM Parts Polaris 2015 Polaris Sportsman 1000 XP Shock, Front, Mounting - A15sxl95am (49Atvshockmtg7043854)

2015 Polaris Sportsman 1000 XP A15SXE95AC/AK/AW/L95AM - Shock, Front, Mounting - A15sxl95am (49Atvshockmtg7043854)

Shock, Front, Mounting - A15SXL95AM (49ATVSHOCKMTG7043854) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5251753 Retainer, Spring

RETAINER, SPRING

Part #: 5251753 Required per assembly: 2
Currently Not Available
2

SHOCK, FRONT

Part #: 7044135 Required per assembly: 2
Currently Not Available
3

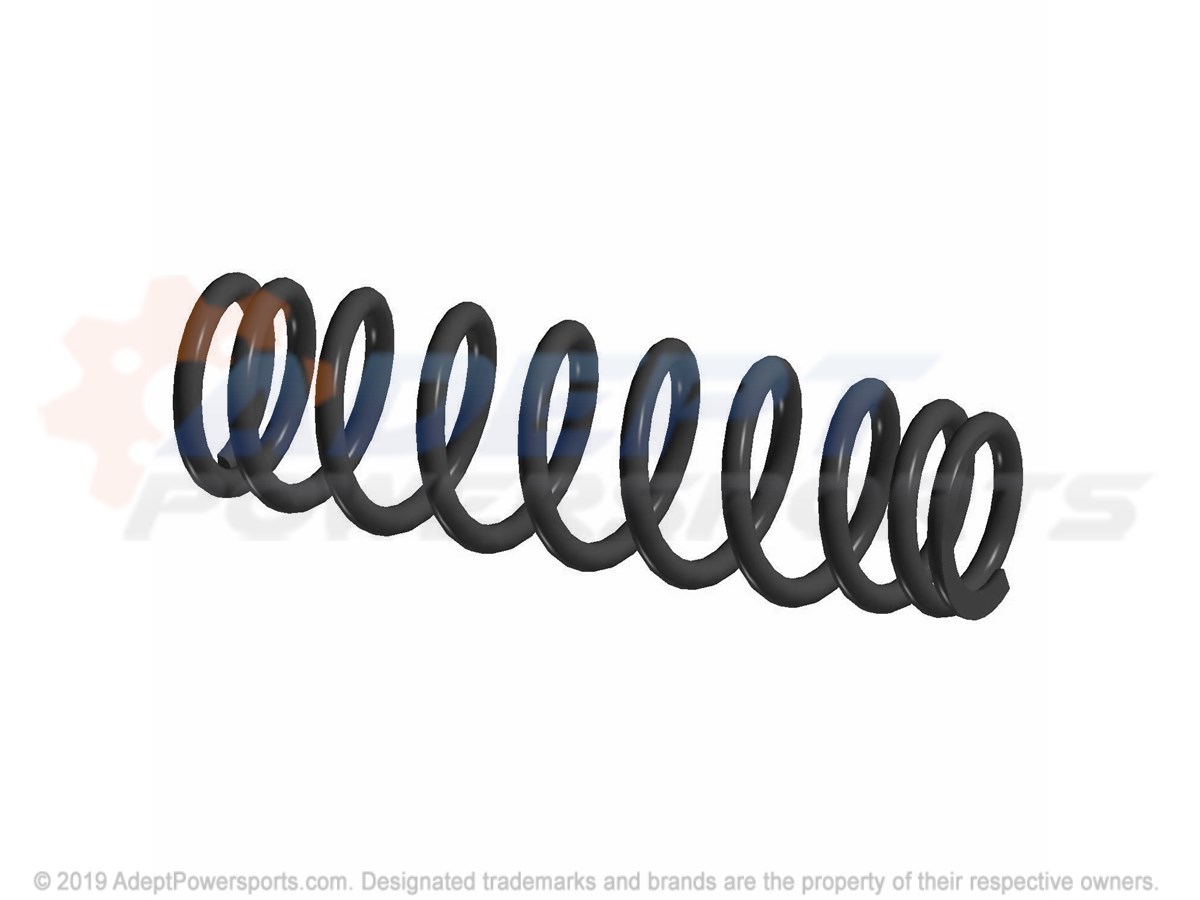

Polaris 7043855-619 Spring-Comp, 180#X10.75, In, Blue

SPRING-COMP, 180#X10.75, IN, BLUE

Part #: 7043855-619 Required per assembly: 2
Currently Not Available
4
Polaris 5334876 Sleeve, Shock

SLEEVE, SHOCK

Part #: 5334876 Required per assembly: 2 Note: Sleeve
Currently Not Available
5
Polaris 5337092 Sleeve, Shock

SLEEVE, SHOCK

Part #: 5337092 Required per assembly: 2
Currently Not Available
6
Polaris 7518826 Bolt, Flange

BOLT, FLANGE

Part #: 7518826 Required per assembly: 4
Currently Not Available
7
Polaris 7547313 Nut, Flange

NUT, FLANGE

Part #: 7547313 Required per assembly: 4
$2.79
$1.73
-
+
Add to cart
