OEM Parts Polaris 2015 Polaris Sportsman 1000 XP Headlight Pod - A15sxe95ac/Ak/Aw/L95am (49Atvheadlight15xp1)

2015 Polaris Sportsman 1000 XP A15SXE95AC/AK/AW/L95AM - Headlight Pod - A15sxe95ac/Ak/Aw/L95am (49Atvheadlight15xp1)

Headlight Pod - A15SXE95AC/AK/AW/L95AM (49ATVHEADLIGHT15XP1) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

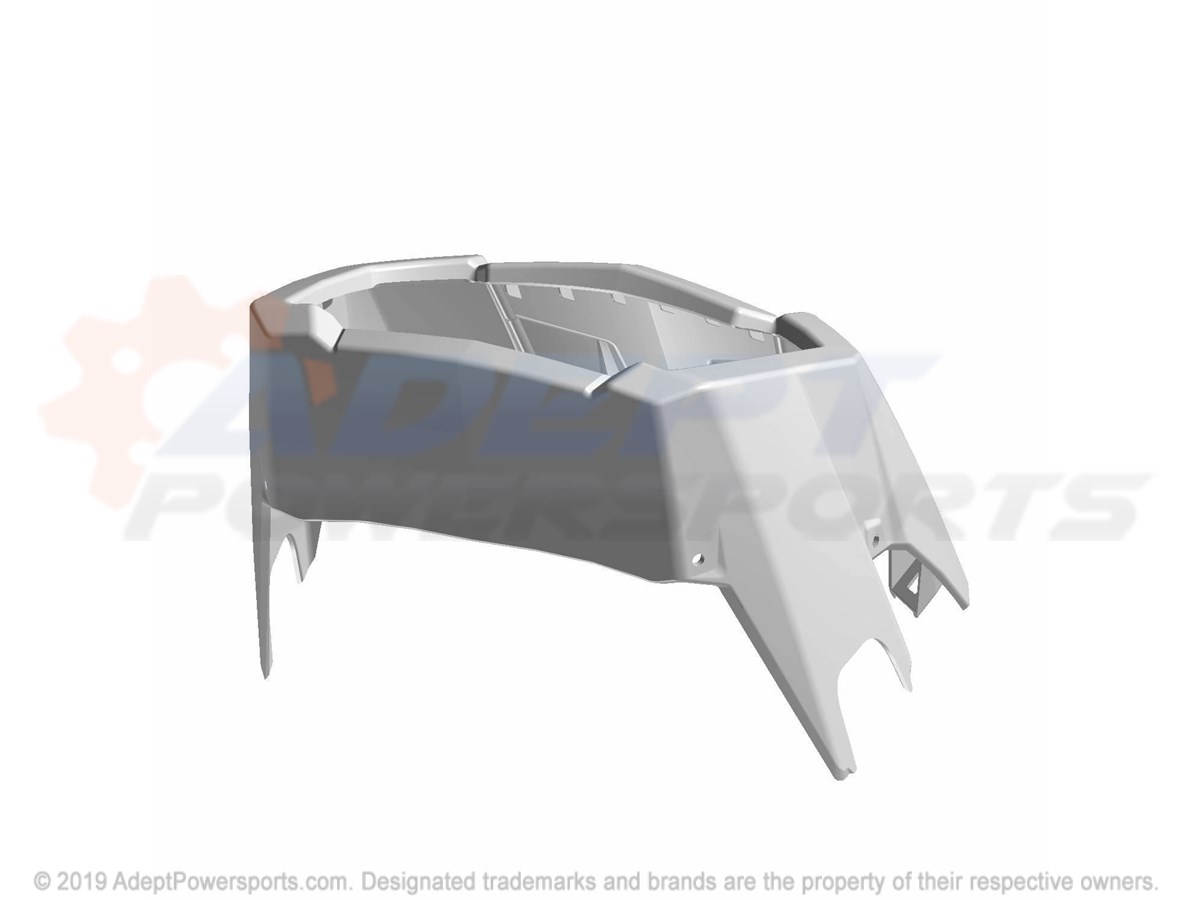

Polaris 5451739-587 Pod-Hdlt, Upr, Dip, Ppc

POD-HDLT, UPR, DIP, PPC

Part #: 5451739-587 Required per assembly: 1 Note: AC
Currently Not Available
1
Polaris 5451313-666 Pod-Hdlt, Front, Pntd, Blk, Pearl

POD-HDLT, FRONT, PNTD, BLK, PEARL

Part #: 5451313-666 Required per assembly: 1 Note: AK
Currently Not Available
1
Polaris 5451313-632 Pod-Hdlt, Front, Pntd, Matte, Tit

POD-HDLT, FRONT, PNTD, MATTE, TIT

Part #: 5451313-632 Required per assembly: 1 Note: AM
Currently Not Available
1
Polaris 5451313-662 Pod-Hdlt, Frnt, Pntd, Mt, Wht, Ltng

POD-HDLT, FRNT, PNTD, MT, WHT, LTNG

Part #: 5451313-662 Required per assembly: 1 Note: AW
Currently Not Available
2
Polaris 5451730-070 Pod-Hdlt, Rear, W/Rnd, Cutout, Blk

POD-HDLT, REAR, W/RND, CUTOUT, BLK

Part #: 5451730-070 Required per assembly: 1 Note: AC
Currently Not Available
2
Polaris 5452210-070 Pod-Hdlt, Rr, W/Kstn, Cutout2, Blk

POD-HDLT, RR, W/KSTN, CUTOUT2, BLK

Part #: 5452210-070 Required per assembly: 1 Note: AM
Currently Not Available
3
Polaris 7518238 Screw

SCREW

Part #: 7518238 Required per assembly: 5
$3.79
$1.73
-
+
Add to cart
4

CLIP-SCREW, #8/10, .03-.10, PANEL

Part #: 7670127 Required per assembly: 5
Currently Not Available
5
Polaris 7517441 Screw

SCREW

Part #: 7517441 Required per assembly: 2
Currently Not Available
6
Polaris 7512026 Screw

SCREW

Part #: 7512026 Required per assembly: 2 Note: Screw
Currently Not Available
