OEM Parts Polaris 2016 Polaris Ranger 570, FULL SIZE (R02) Cab Frame - R16rca57a1/A4/B1/B4 (700505)

2016 Polaris Ranger 570, FULL SIZE (R02) R16RCA57A1/A4/B1/B4 - Cab Frame - R16rca57a1/A4/B1/B4 (700505)

Cab Frame - R16RCA57A1/A4/B1/B4 (700505) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
2

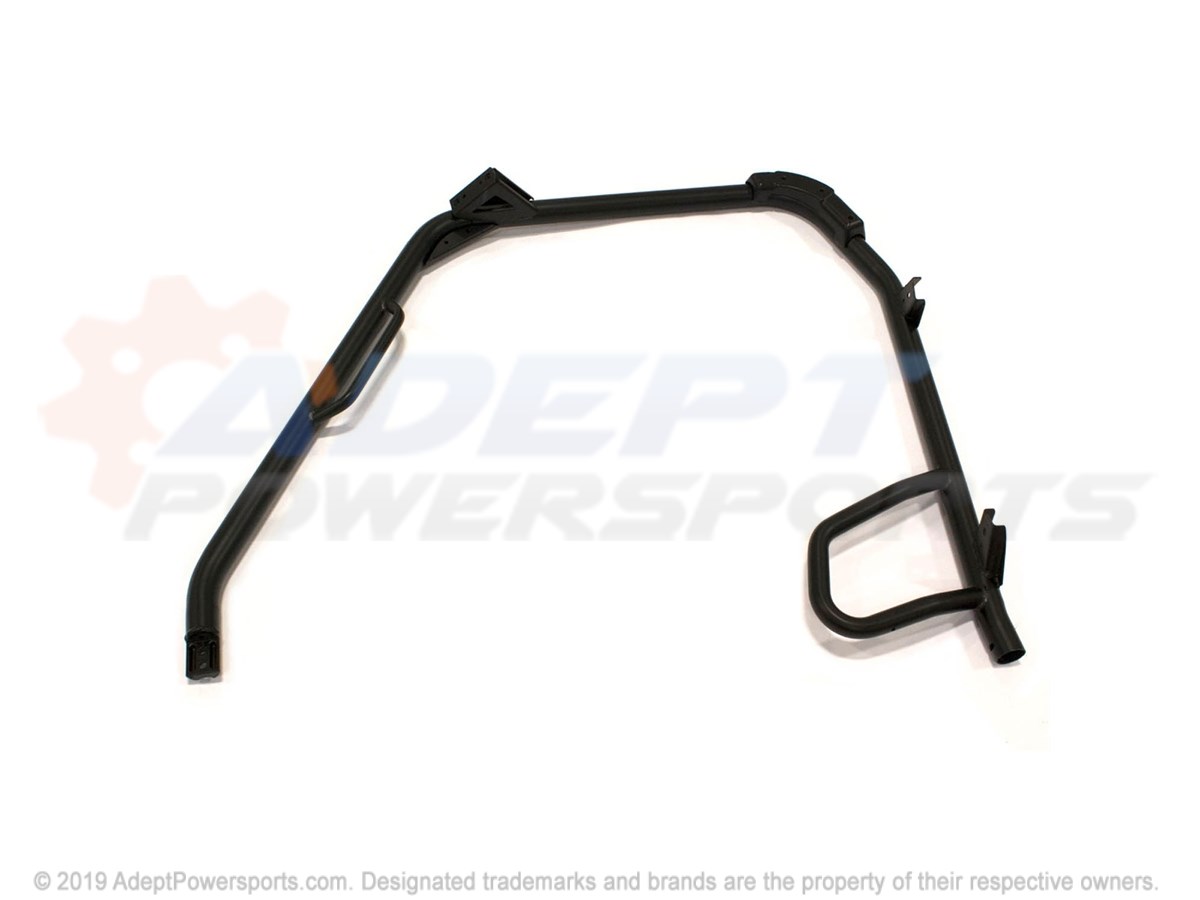

Polaris 1019982-458 Weld-Cab, Frame, Front, Rh, M.Blk

WELD-CAB, FRAME, FRONT, RH, M.BLK

Part #: 1019982-458 Required per assembly: 1
Currently Not Available
3
Polaris 7515339 Bolt

BOLT

Part #: 7515339 Required per assembly: 2
Currently Not Available
4

NUT, NYLOCK

Part #: 7542343 Required per assembly: 2 Note: Nut, Flange
Currently Not Available
5
Polaris 7542451 Nut, Nyloc

NUT, NYLOC

Part #: 7542451 Required per assembly: 4
$1.99
$1.15
-
+
Add to cart
6
Polaris 7517935 Screw

SCREW

Part #: 7517935 Required per assembly: 4
Currently Not Available
7
Polaris 1019940-458 Weld-Cab, Frame, Cross, M.Blk

WELD-CAB, FRAME, CROSS, M.BLK

Part #: 1019940-458 Required per assembly: 1
Currently Not Available
8
Polaris 5439110-070 Headrest-Blk

HEADREST-BLK

Part #: 5439110-070 Required per assembly: 2
Currently Not Available
9
Polaris 7621460 Rivet

RIVET

Part #: 7621460 Required per assembly: 4
$3.97
$3.16
-
+
Add to cart
10

WELD-CAB, FRAME, CNTR, TOP, M.BLK

Part #: 1017169-458 Required per assembly: 1
Currently Not Available
11

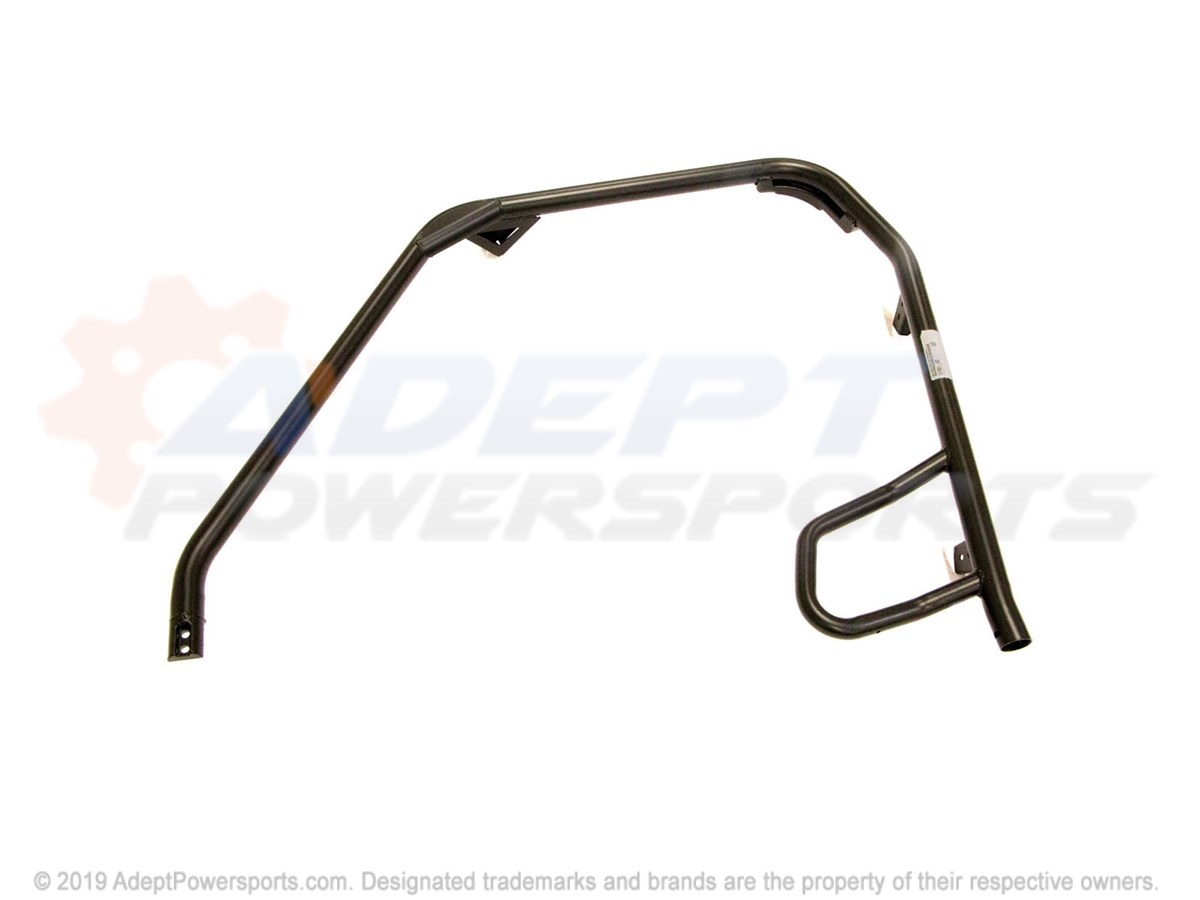

Polaris 1019981-458 Weld-Cab, Frame, Front, Lh, M, Blk

WELD-CAB, FRAME, FRONT, LH, M, BLK

Part #: 1019981-458 Required per assembly: 1
Currently Not Available
12
Polaris 7547317 Nut, Flange

NUT, FLANGE

Part #: 7547317 Required per assembly: 8
Currently Not Available
13
Polaris 7518702 Bolt, Flange, [2X4]

BOLT, FLANGE, [2X4]

Part #: 7518702 Required per assembly: 8 Note: Bolt, Flange
Currently Not Available
14
Polaris 7518460 Screw

SCREW

Part #: 7518460 Required per assembly: 8 Note: Screw, Flange
Currently Not Available
