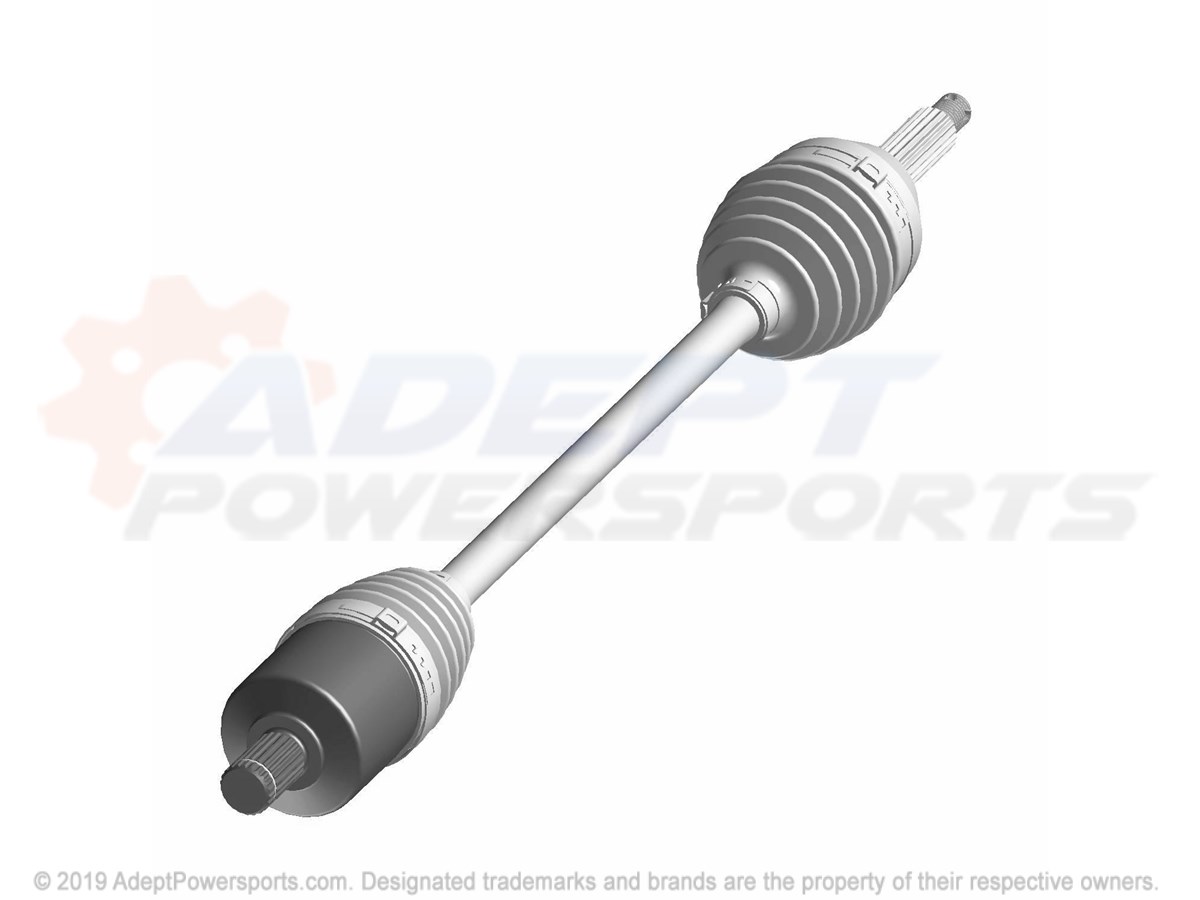

Front Drive Shaft - R16RCA57A1/A4/B1/B4 (49RGRSHAFTDRV104004X4) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-
Polaris 1333517 Asm-Driveshaft, Frt, 3P, Fs

ASM-DRIVESHAFT, FRT, 3P, FS

Part #: 1333517 Required per assembly: 2
Currently Not Available
1
Polaris 2204459 Kit-Boot Outboard (81-9452)

KIT-BOOT OUTBOARD (81-9452)

Part #: 2204459 Required per assembly: 1 Note: INCL. 2,7-9
Currently Not Available
3
Polaris 2204460 Kit-Boot Inboard (85-9453)

KIT-BOOT INBOARD (85-9453)

Part #: 2204460 Required per assembly: 1 Note: INCL. 2,8-10
Currently Not Available
4

JOINT-PLUNGING (3135565)

Part #: 2204360 Required per assembly: 1
Currently Not Available
5

SPRING-RING (93-8388)

Part #: 7710664 Required per assembly: 2
Currently Not Available
12
Polaris 7670092 Circlip, Driveshaft, Neapco

CIRCLIP, DRIVESHAFT, NEAPCO

Part #: 7670092 Required per assembly: 1 Note: Circlip
Currently Not Available
