OEM Parts Polaris 2016 Polaris Ranger 570, FULL SIZE (R02) Front Prop Shaft - R16rca57a1/A4/B1/B4 (49Rgrshaftprop14570)

2016 Polaris Ranger 570, FULL SIZE (R02) R16RCA57A1/A4/B1/B4 - Front Prop Shaft - R16rca57a1/A4/B1/B4 (49Rgrshaftprop14570)

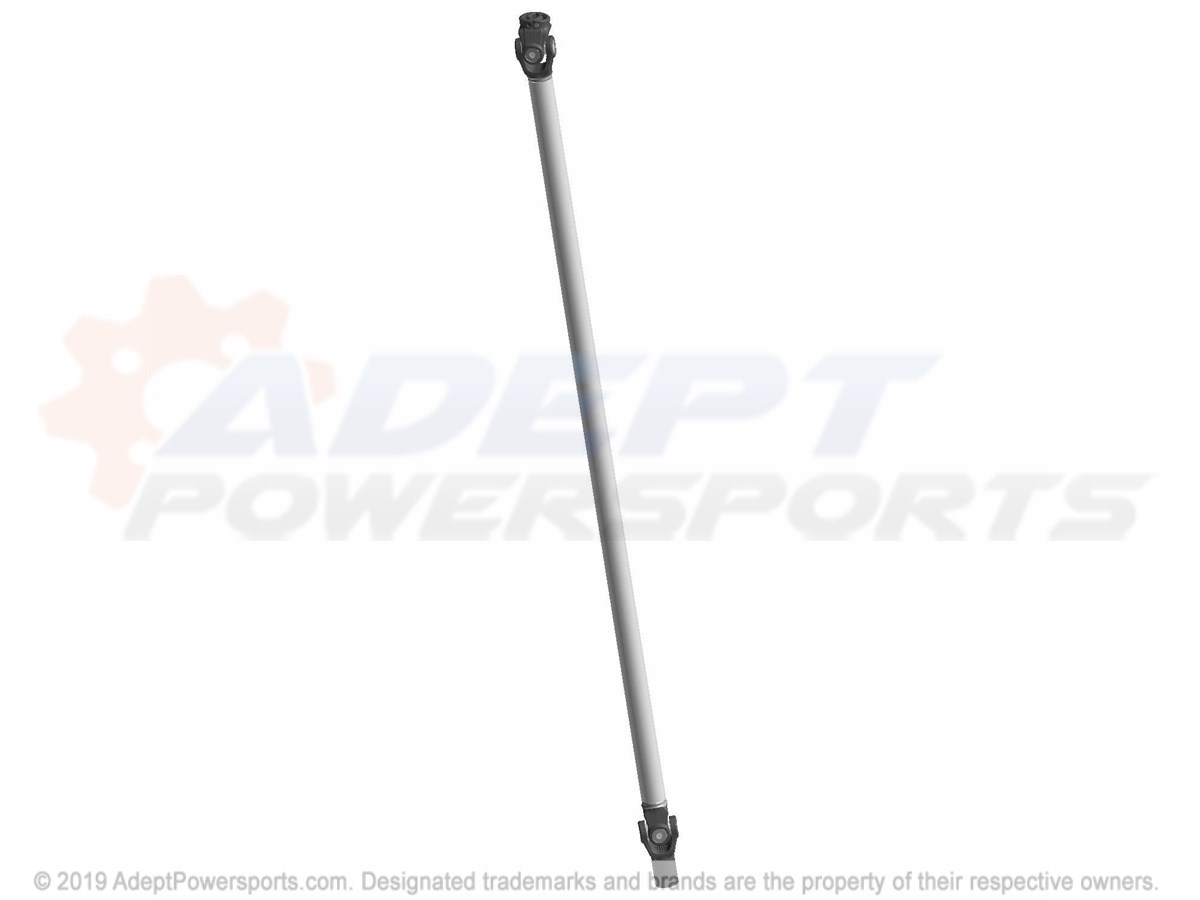

Front Prop Shaft - R16RCA57A1/A4/B1/B4 (49RGRSHAFTPROP14570) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-
Polaris 1333516 Asm-Propshaft

ASM-PROPSHAFT

Part #: 1333516 Required per assembly: 1 Note: INCL. 2-6
Currently Not Available
1
Polaris 7661913 Pin, Spring

PIN, SPRING

Part #: 7661913 Required per assembly: 1 Note: Sold in multiples of 10 only
Currently Not Available
2
Polaris 3260133 Yoke

YOKE

Part #: 3260133 Required per assembly: 1 Note: Yoke, Gear Case, Front
Currently Not Available
3
Polaris 2202015 Kit, Cross, And, Bearing

KIT, CROSS, AND, BEARING

Part #: 2202015 Required per assembly: 2
Currently Not Available
4
Polaris 1590507 Yoke, Slip, W/Fitting

YOKE, SLIP, W/FITTING

Part #: 1590507 Required per assembly: 1 Note: INCL. 6
Currently Not Available
6
Polaris 7080424 Fitting, Lube.

FITTING, LUBE.

Part #: 7080424 Required per assembly: 1 Note: Fitting, Lubrication
Currently Not Available
