OEM Parts Polaris 2017 Polaris 900 ACE EPS XC (R10) Bumper, Rear - A17dce87au (100832)

2017 Polaris 900 ACE EPS XC (R10) A17DCE87AU - Bumper, Rear - A17dce87au (100832)

BUMPER, REAR - A17DCE87AU (100832) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

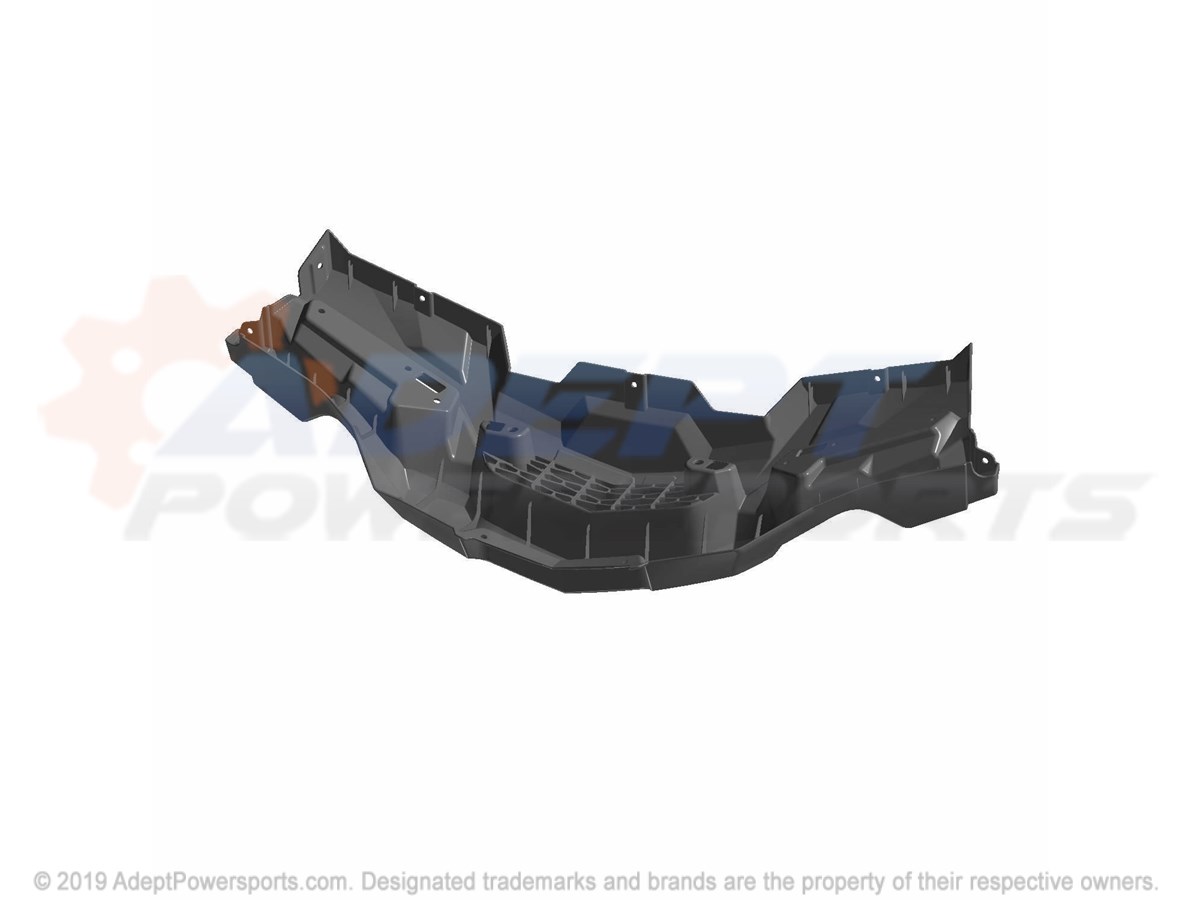

Polaris 5453189-070 Bumper-Rear, Blk

BUMPER-REAR, BLK

Part #: 5453189-070 Required per assembly: 1
Currently Not Available
2
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
3
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
3
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
4
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 3
Currently Not Available
4
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 3
Currently Not Available
5
Polaris 7547674 Nut, U-Type

NUT, U-TYPE

Part #: 7547674 Required per assembly: 5
$2.99
$1.73
-
+
Add to cart
6
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 6
$2.99
$1.73
-
+
Add to cart
7

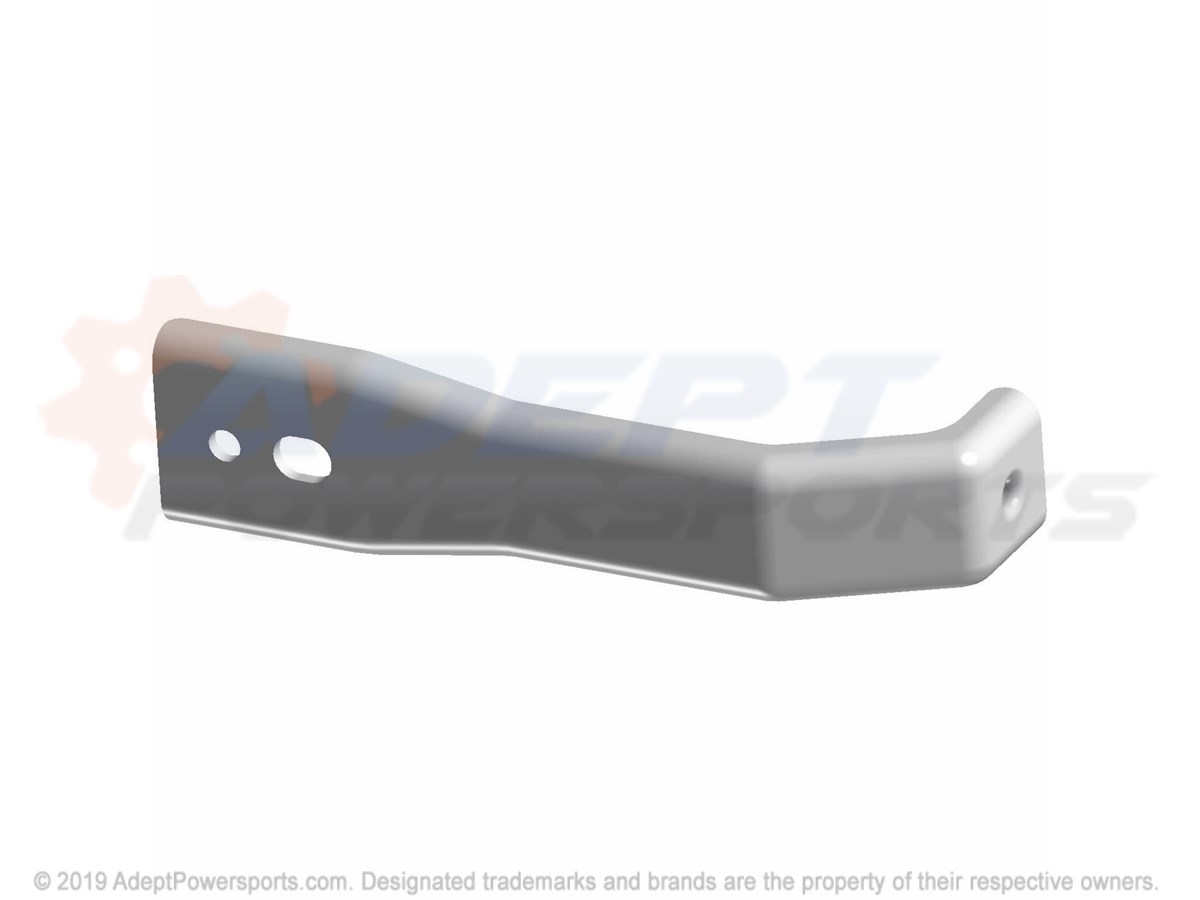

Polaris 5263583-329 Mnt-Bumper, Rear, Lower, E-Coat

MNT-BUMPER, REAR, LOWER, E-COAT

Part #: 5263583-329 Required per assembly: 2
Currently Not Available
8

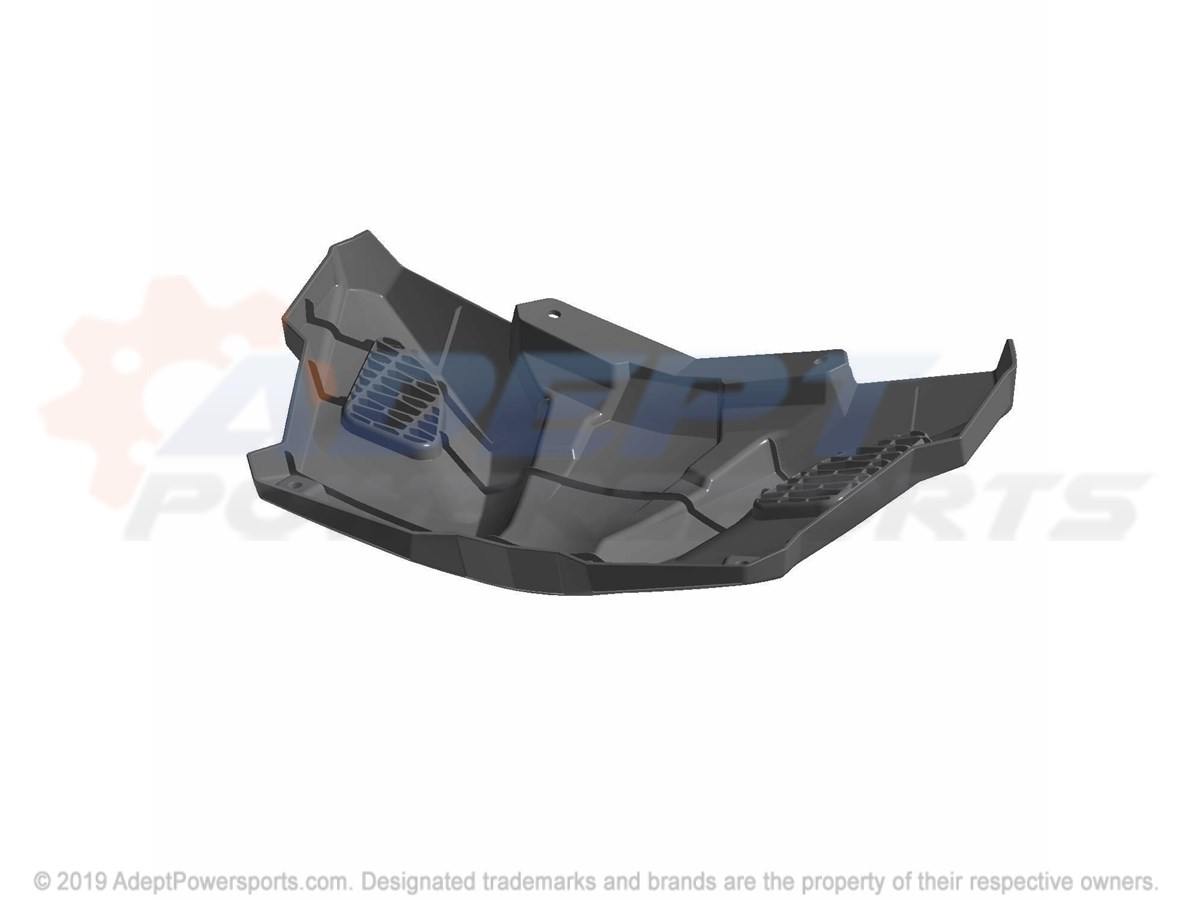

Polaris 5453546-070 Bumper, Lower, Rear, Blk

BUMPER, LOWER, REAR, BLK

Part #: 5453546-070 Required per assembly: 1
Currently Not Available
