Front Shock Mounting - A17dce87au (100651) replacement parts for 2017 Polaris 900 ACE EPS XC (R10)

OEM Parts Polaris 2017 Polaris 900 ACE EPS XC (R10) Front Shock Mounting - A17dce87au (100651)

FRONT SHOCK MOUNTING - A17DCE87AU (100651) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BUSHING-REDUCER .500X.398 ZYW Part #: 5137876 Required per assembly: 4 ~~$7.99~~ $4.60 - + Add to cart
1	BUSHING-REDUCER .500X.398 ZYW Part #: 5137876 Required per assembly: 4 ~~$7.99~~ $4.60 - + Add to cart
2	BUSHING-REDUCER 10MM WIDE ZYW Part #: 5137877 Required per assembly: 4 Currently Not Available
2	BUSHING-REDUCER 10MM WIDE ZYW Part #: 5137877 Required per assembly: 4 Currently Not Available
3	O-RING, 0.591IDX.171, BLK Part #: 5416057 Required per assembly: 8 Currently Not Available
3	O-RING, 0.591IDX.171, BLK Part #: 5416057 Required per assembly: 8 Currently Not Available
3	O-RING, 0.591IDX.171, BLK Part #: 5416057 Required per assembly: 8 Currently Not Available
4	SPACER, NYLON Part #: 5436643 Required per assembly: 4 Note: Spacer, Spring Currently Not Available
5	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
5	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
6	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
6	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
7	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
7	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
8	RETAINER, SPRING, SLOTTED Part #: 5020618 Required per assembly: 2 ~~$41.86~~ $27.16 - + Add to cart
9	SHOCK-FRONT, WE, 1.5" Part #: 7044677 Required per assembly: 2 Currently Not Available

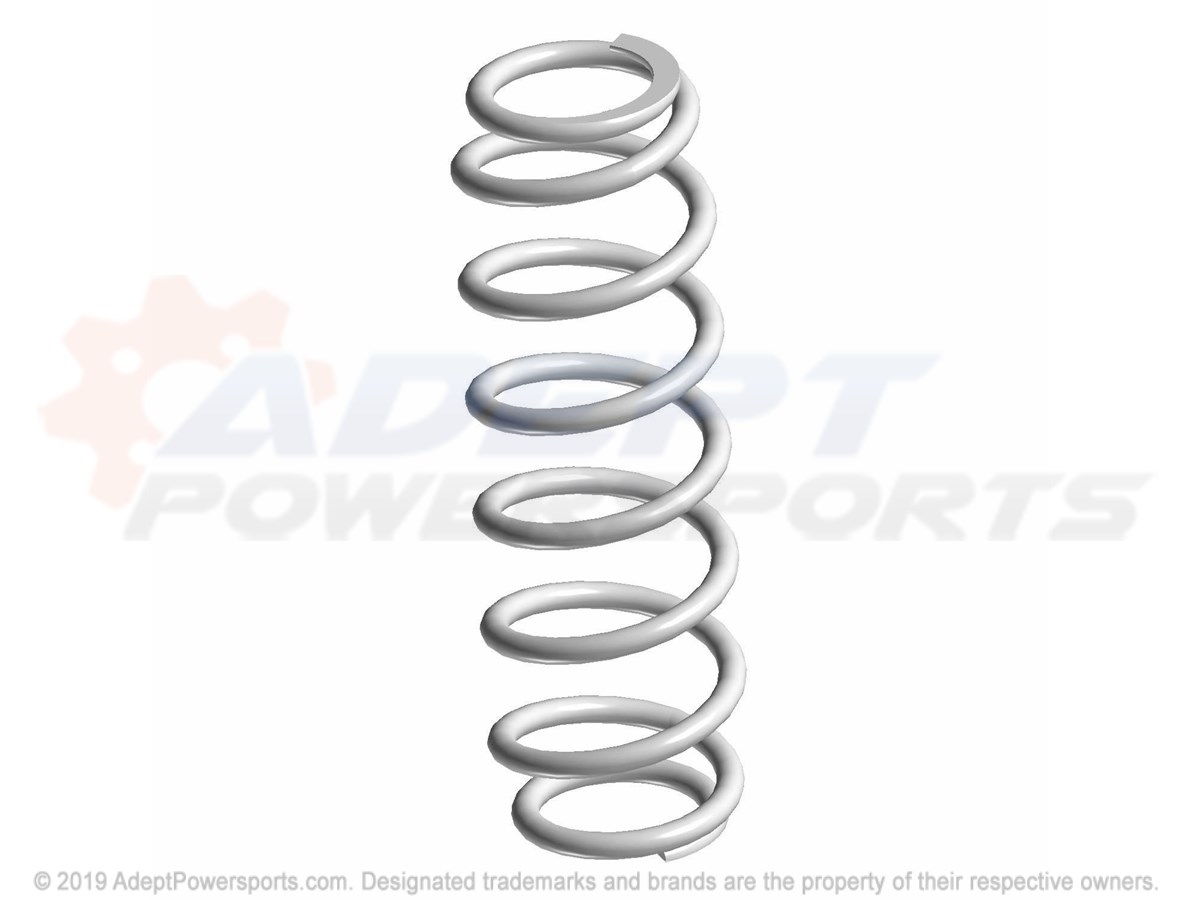

10	SPR-130#, 10.6FL, 1.88, LM, SQZ Part #: 7044679-630 Required per assembly: 2 Currently Not Available

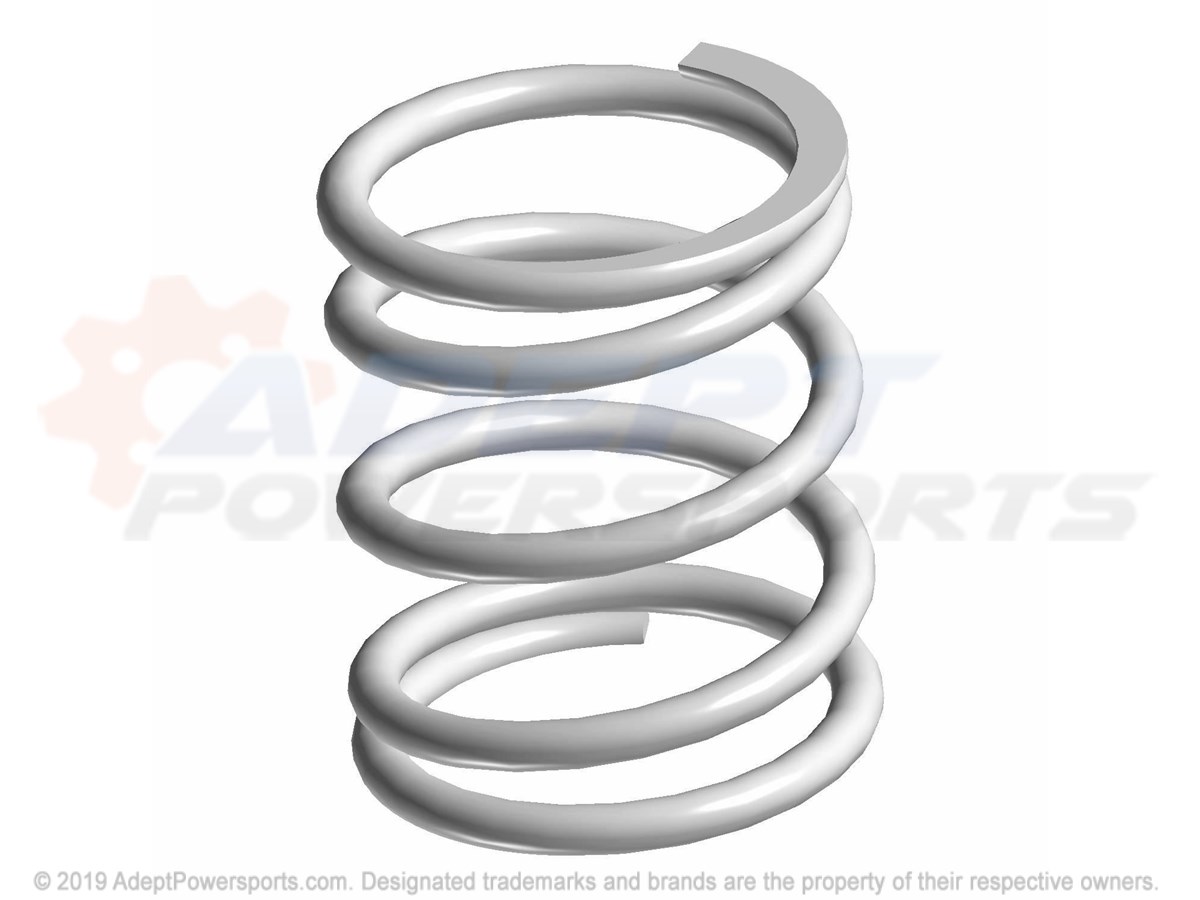

11	SPR-130#, 2.87FL, 1.88, LM, SQZ Part #: 7044694-630 Required per assembly: 2 Currently Not Available
