Wire Harness - A17dce87au (100670) replacement parts for 2017 Polaris 900 ACE EPS XC (R10)

OEM Parts Polaris 2017 Polaris 900 ACE EPS XC (R10) Wire Harness - A17dce87au (100670)

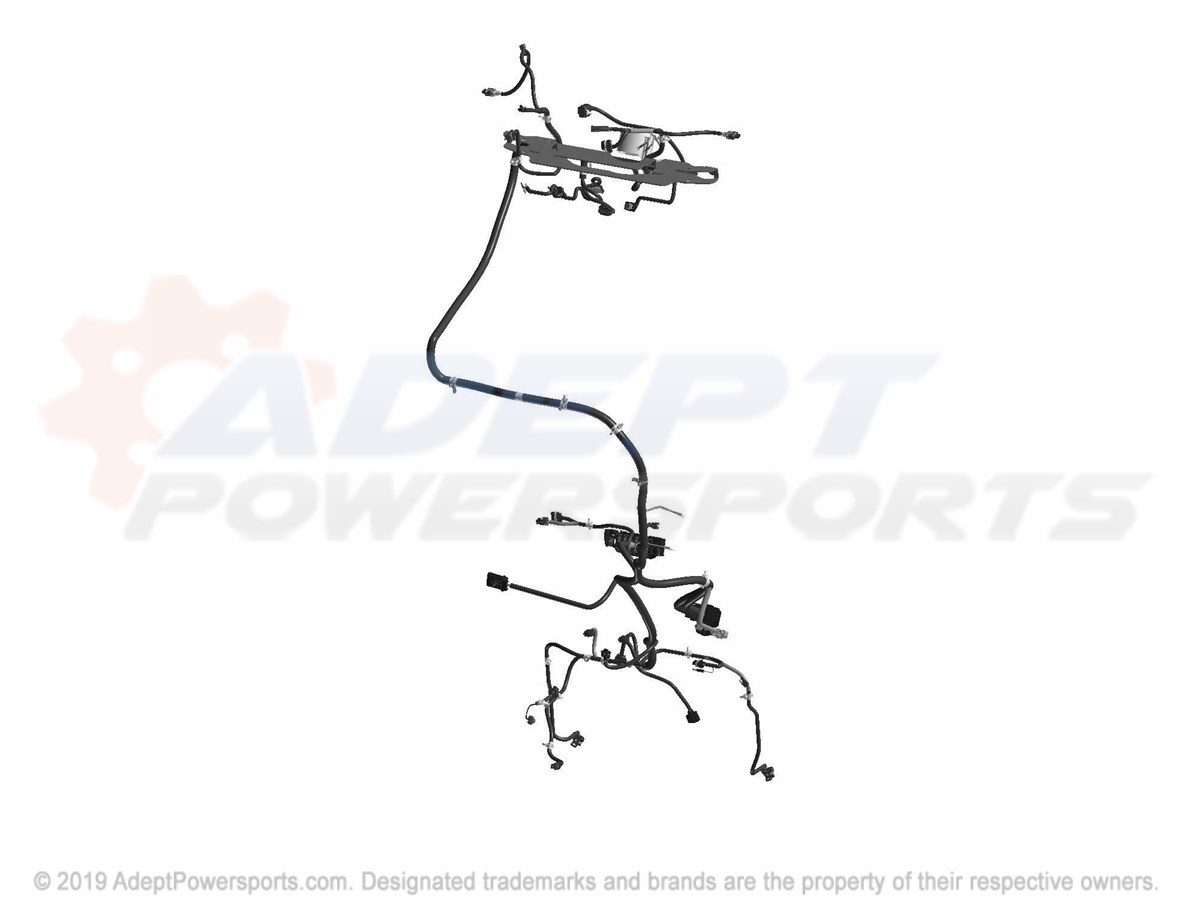

WIRE HARNESS - A17DCE87AU (100670) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, ACE, 900, ETC, PS Part #: 2413565 Required per assembly: 1 Currently Not Available
2	LABEL-FUSE, BOX, LIGHTS-START Part #: 7186509 Required per assembly: 1 Currently Not Available
3	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 3 Note: Cable Tie Currently Not Available
4	FUSE, MINI, BLADE, 5, AMP Part #: 4011652 Required per assembly: 2 Note: Fuse, Mini Blade, 5 Amp. Currently Not Available
5	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
6	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 4 Currently Not Available
7	FUSE, 10AMP Part #: 2434016 Required per assembly: 4 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
8	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 5 Currently Not Available
9	COVER-FUSEBOX, 48WAY Part #: 4015011 Required per assembly: 1 Currently Not Available
10	DIODE, 6, AMP Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP Currently Not Available
11	DIODE, 6, AMP Part #: 2411035 Required per assembly: 1 Currently Not Available
12	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 1 Currently Not Available
13	CLIP-ROUTING Part #: 7081496 Required per assembly: 2 Currently Not Available
14	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 2 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
15	CLIP-EDGE, SIDE, W/STRAP Part #: 7081876 Required per assembly: 1 Currently Not Available
