BRAKE LINES AND MASTER CYLINDER - A18DAE57B2 (100678) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
2	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available
3	SWITCH Part #: 4014225 Required per assembly: 1 Currently Not Available
4	ASM-M/CYL, TANDEM, 5/8, SHORT, FLG Part #: 1912656 Required per assembly: 1 Currently Not Available

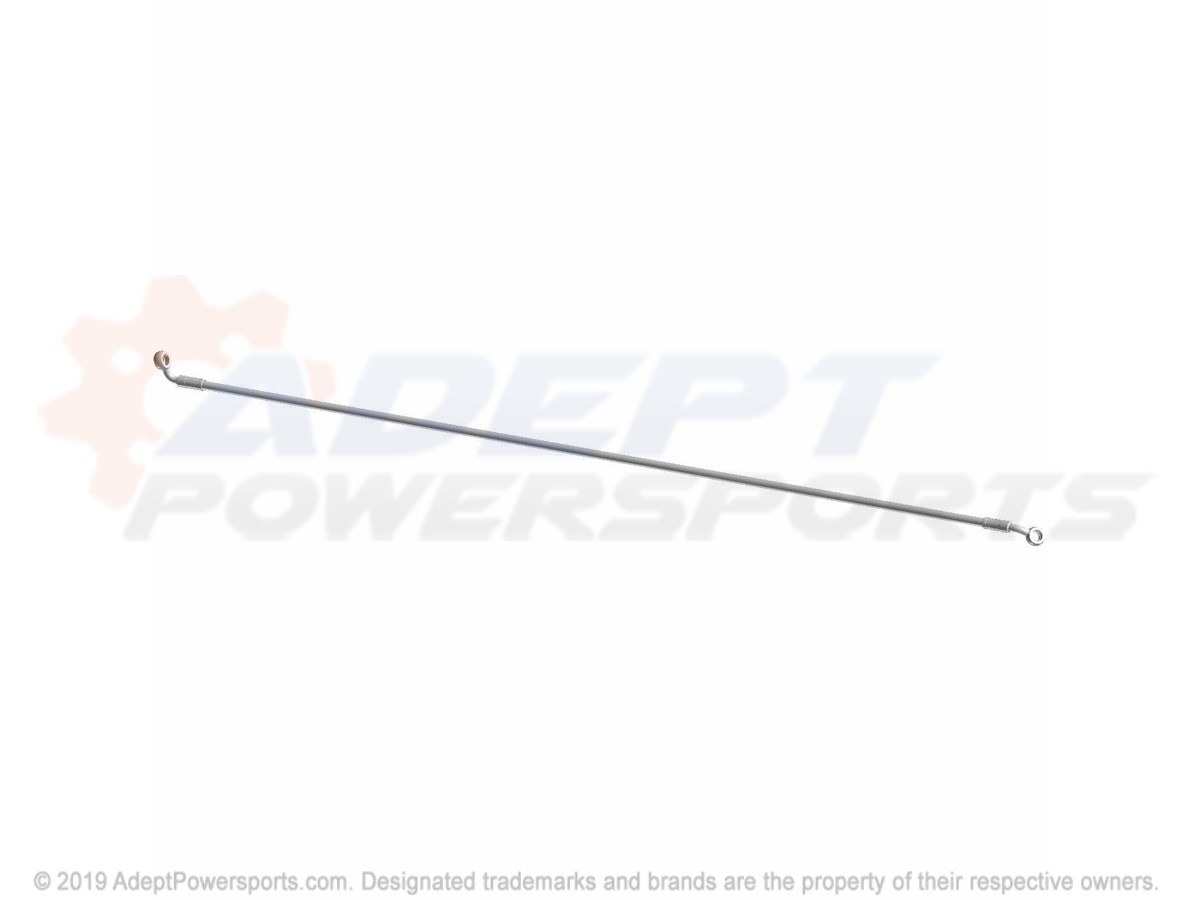

5	LINE-BRK, RL, 36, 20F, 70B, 225, JF Part #: 1912679 Required per assembly: 1 Currently Not Available

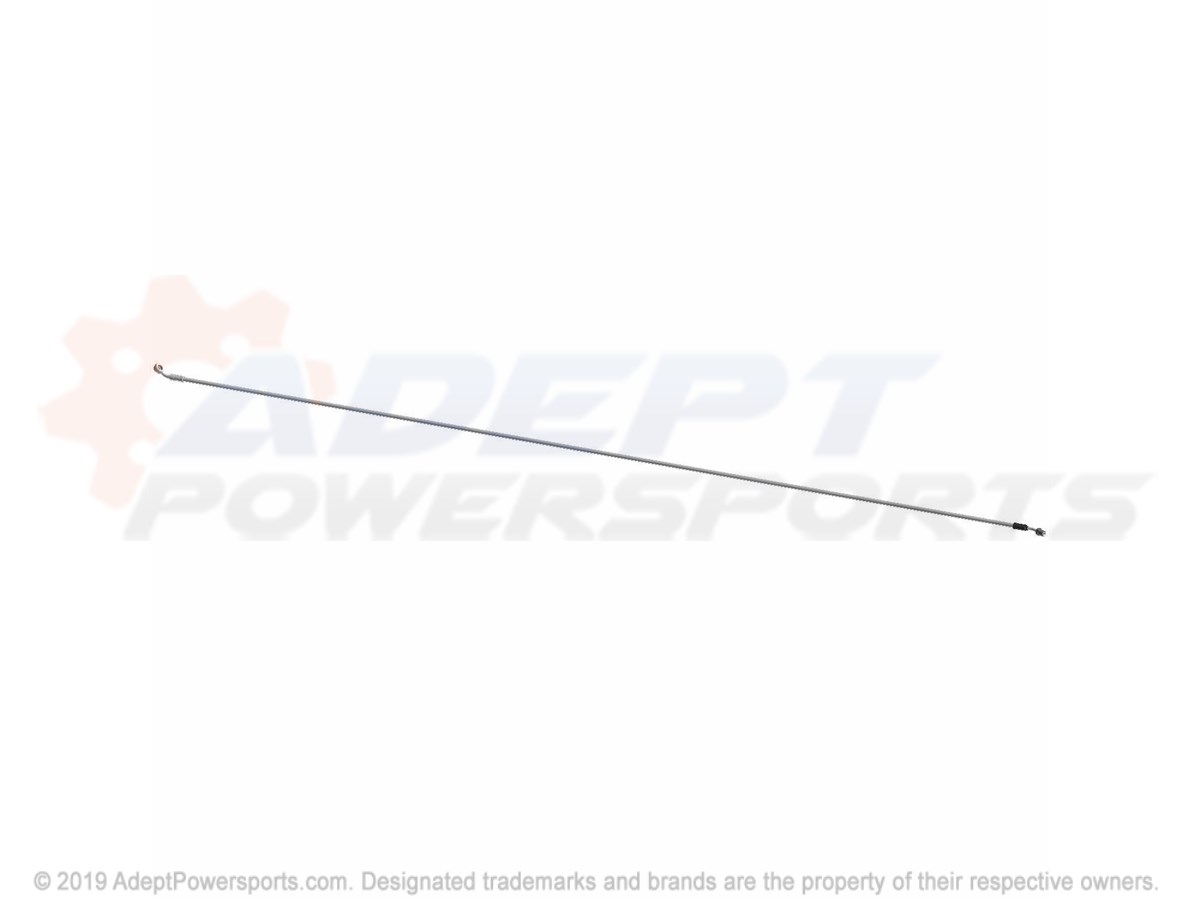

6	LINE-BRK, RR, 43, 90F, 70B, 45, JF Part #: 1912680 Required per assembly: 1 Currently Not Available

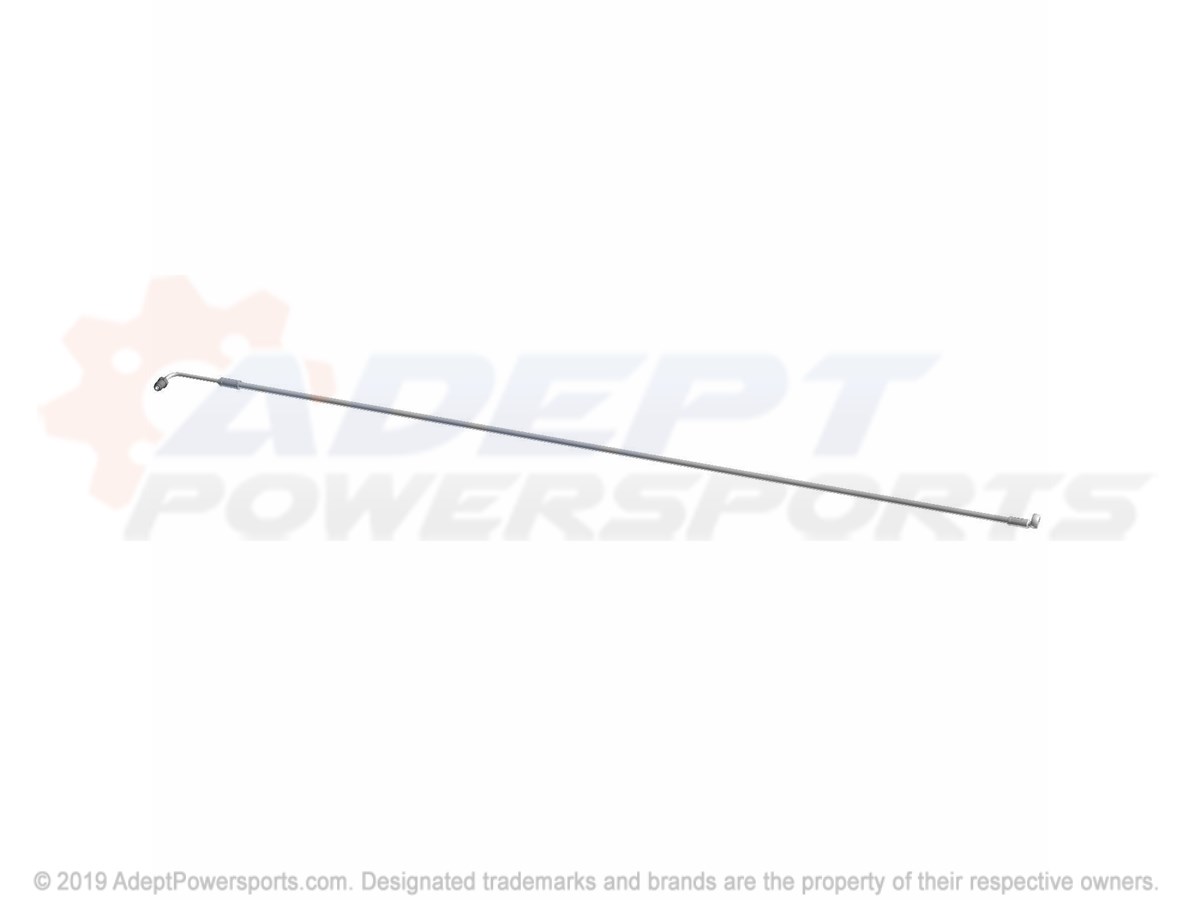

7	LINE-BRK, MCT, 64, 45B, 20F, 270, JF Part #: 1912681 Required per assembly: 1 Currently Not Available

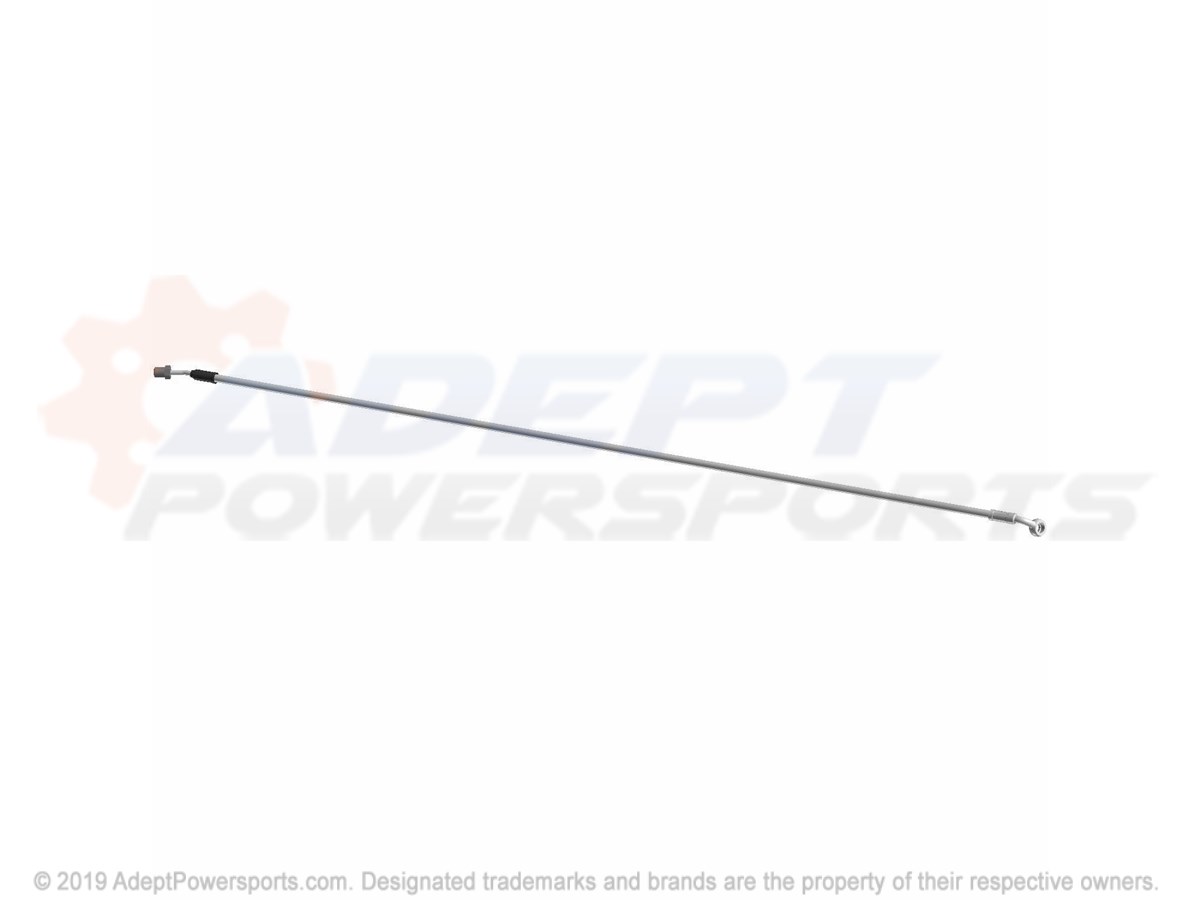

8	LINE-BRK, FL, 34, 70B, 45B, 140, JF Part #: 1912712 Required per assembly: 1 Currently Not Available

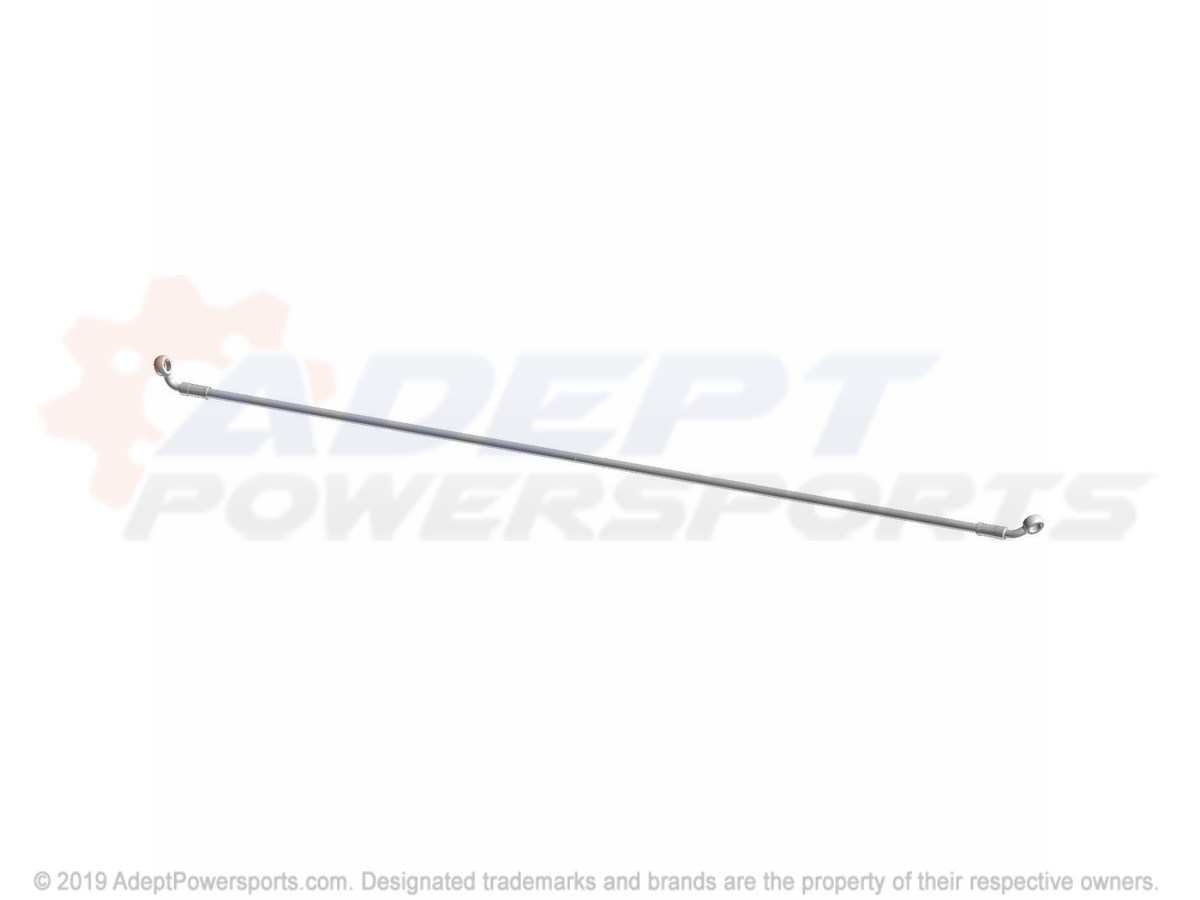

9	LINE-BRK, FR, 31, 70B, 45B, 50, JF Part #: 1912713 Required per assembly: 1 Currently Not Available
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
11	TEE, FITTING, BRAKE Part #: 7052293 Required per assembly: 1 Note: Fitting, Tee, Brake Currently Not Available
12	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 4 Currently Not Available
13	CLAMP, CABLE Part #: 7080499 Required per assembly: 2 Currently Not Available
14	CLAMP, WIRE/TUBE Part #: 7081246 Required per assembly: 2 Currently Not Available
15	CLIP-RETAINING, DUAL, .250", LINE Part #: 7670126 Required per assembly: 1 Currently Not Available
