Front - A18dae57b2 (100685) replacement parts for 2018 Polaris ACE 570 (R04)

OEM Parts Polaris 2018 Polaris ACE 570 (R04) Front - A18dae57b2 (100685)

FRONT - A18DAE57B2 (100685) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

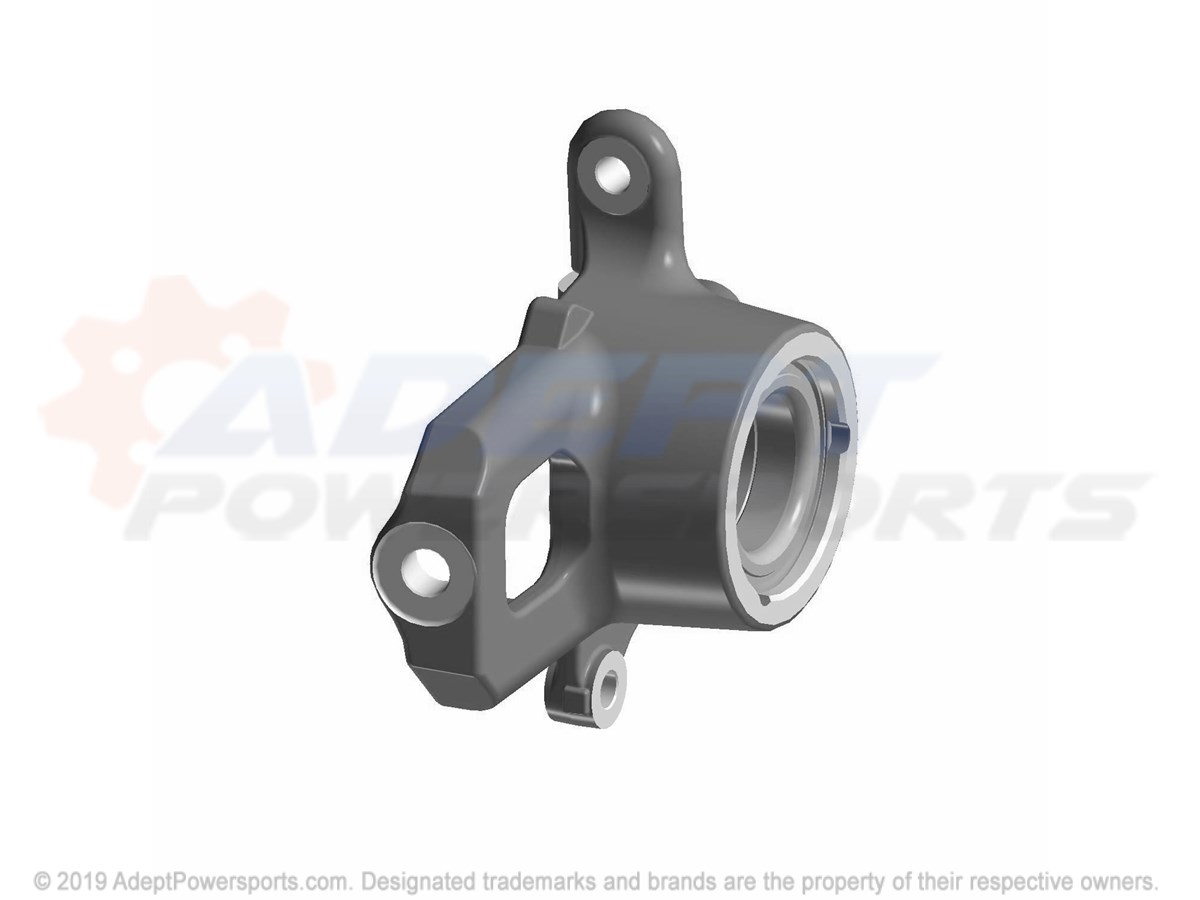

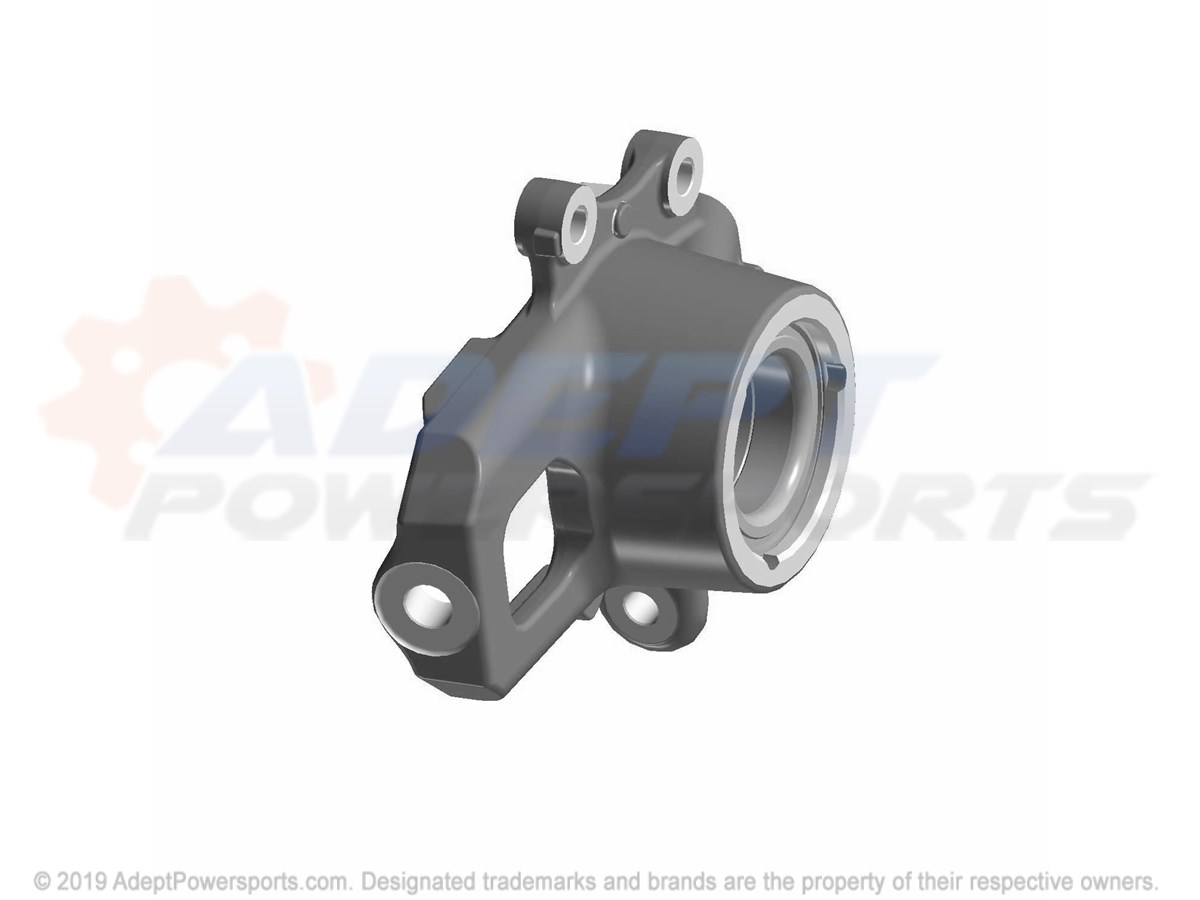

1	ASM-STEERING, KNUCKLE, LH Part #: 1824523 Required per assembly: 1 Note: INCL. BEARING/SNAP RING,3,4 Currently Not Available
1	ASM-STEERING, KNUCKLE, LH Part #: 1824523 Required per assembly: 1 Currently Not Available
2	ASM-STEERING, KNUCKLE, RH Part #: 1824524 Required per assembly: 1 Note: INCL. BEARING/SNAP RING,3,4 Currently Not Available
2	ASM-STEERING, KNUCKLE, RH Part #: 1824524 Required per assembly: 1 Currently Not Available

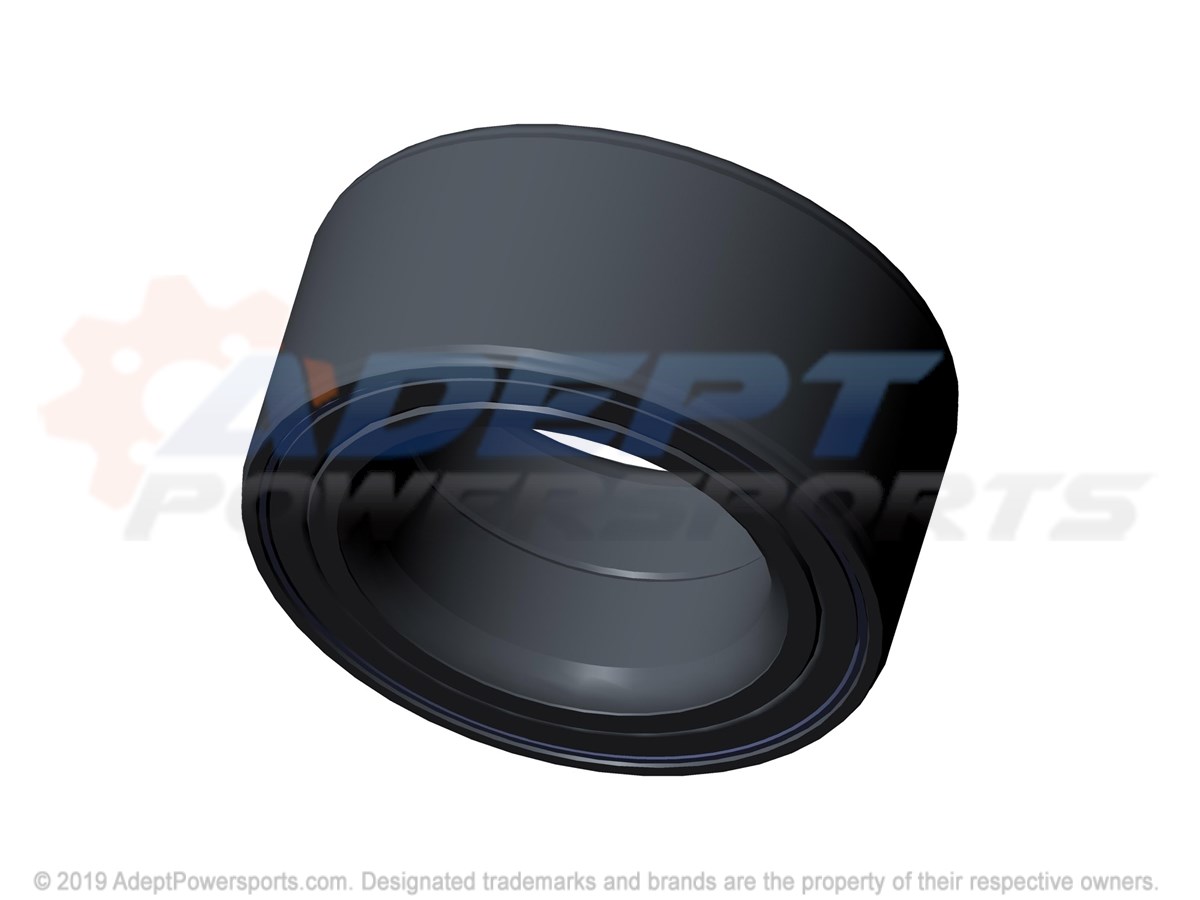

3	BEARING-BALL, SEALED, 44X72X33.1 Part #: 3514924 Required per assembly: 2 Currently Not Available
3	BEARING-BALL, SEALED, 44X72X33.1 Part #: 3514924 Required per assembly: 2 Currently Not Available

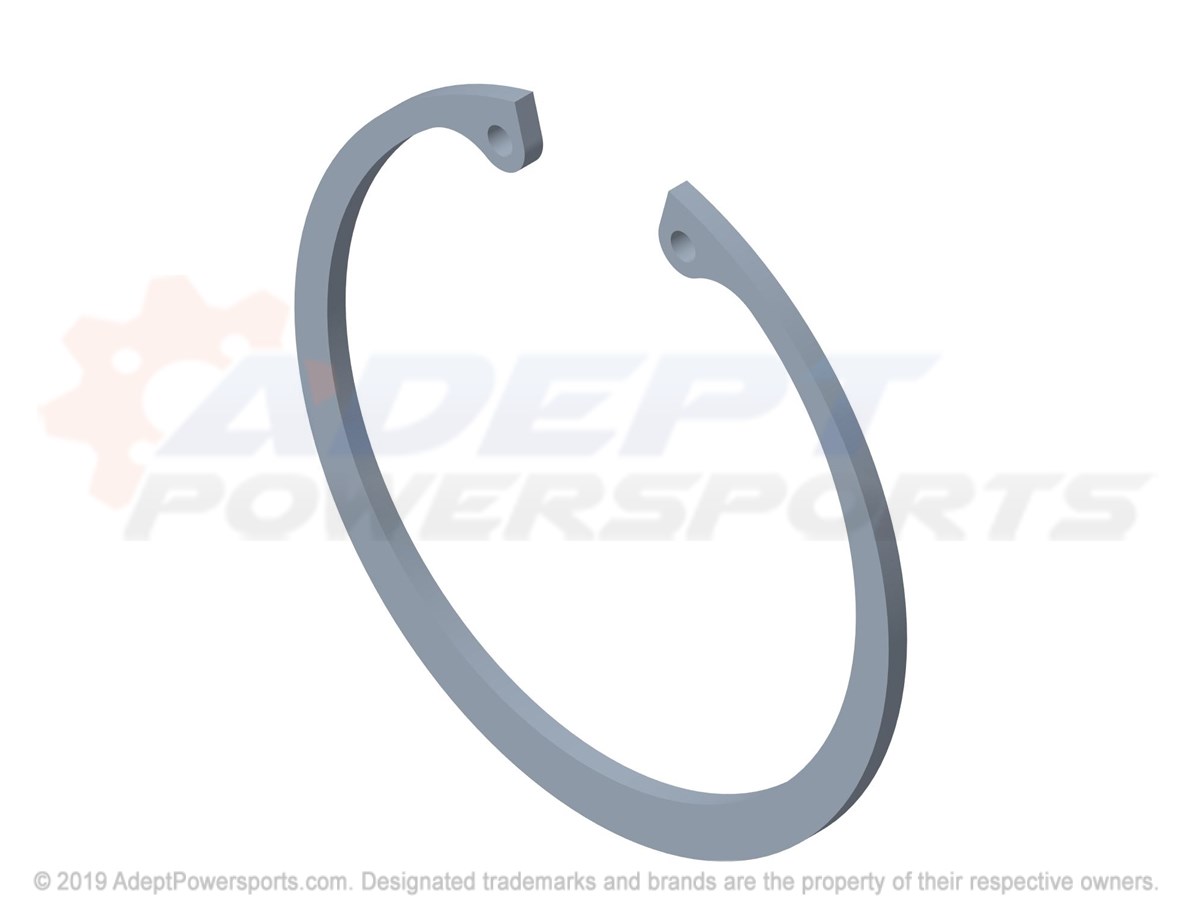

4	RING-RETAINING, 2.835, INTERNAL Part #: 7710780 Required per assembly: 2 Currently Not Available
4	RING-RETAINING, 2.835, INTERNAL Part #: 7710780 Required per assembly: 2 Currently Not Available
5	NUT, CASTLE Part #: 7547336 Required per assembly: 2 Currently Not Available
5	NUT, CASTLE Part #: 7547336 Required per assembly: 2 Currently Not Available
6	WASHER Part #: 7556212 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
7	PIN COTTER Part #: 7661203 Required per assembly: 2 $1.99 $1.15 - + Add to cart
8	NUT, FLANGE Part #: 7547333 Required per assembly: 6 Note: M10 x 1.25 $3.74 $2.23 - + Add to cart
8	NUT, FLANGE Part #: 7547333 Required per assembly: 6 Note: M10 x 1.25 $3.74 $2.23 - + Add to cart

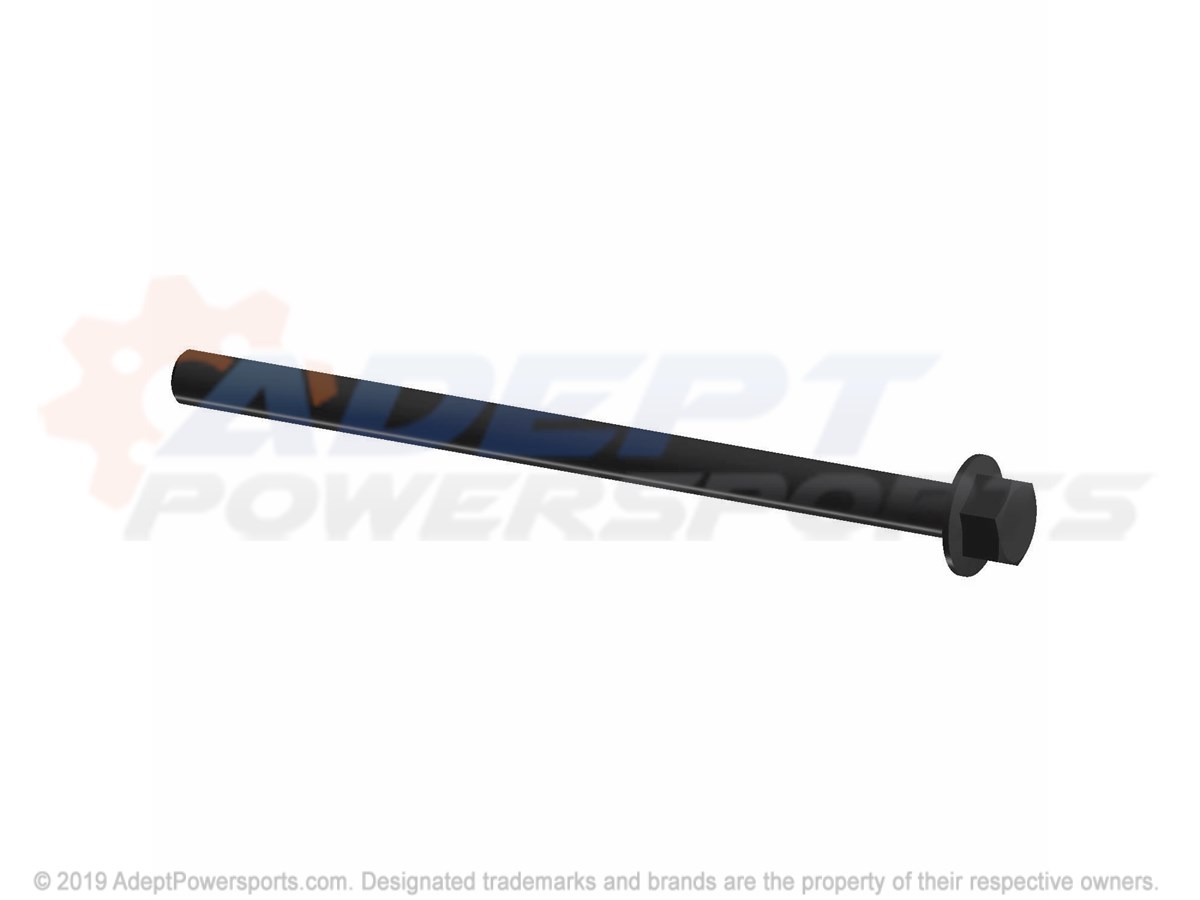

9	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 2 Currently Not Available

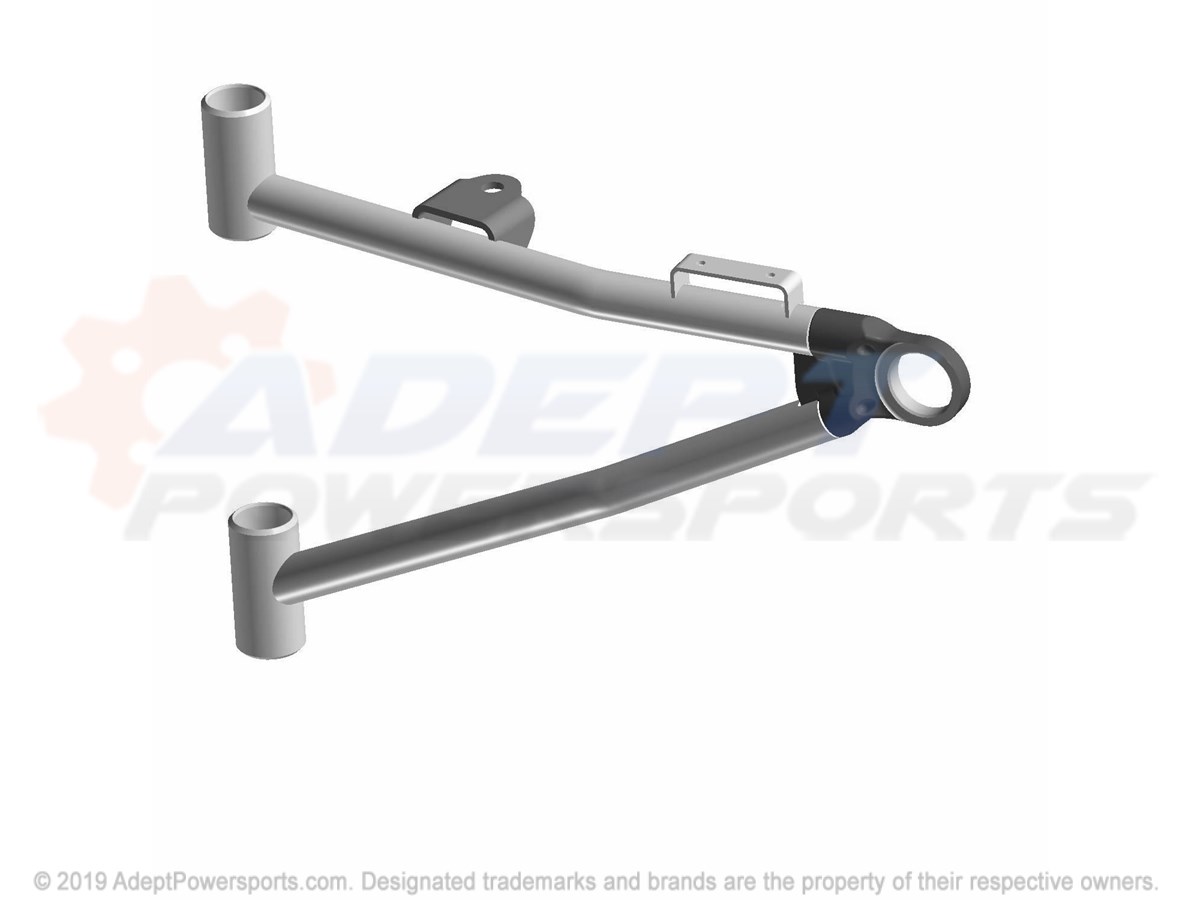

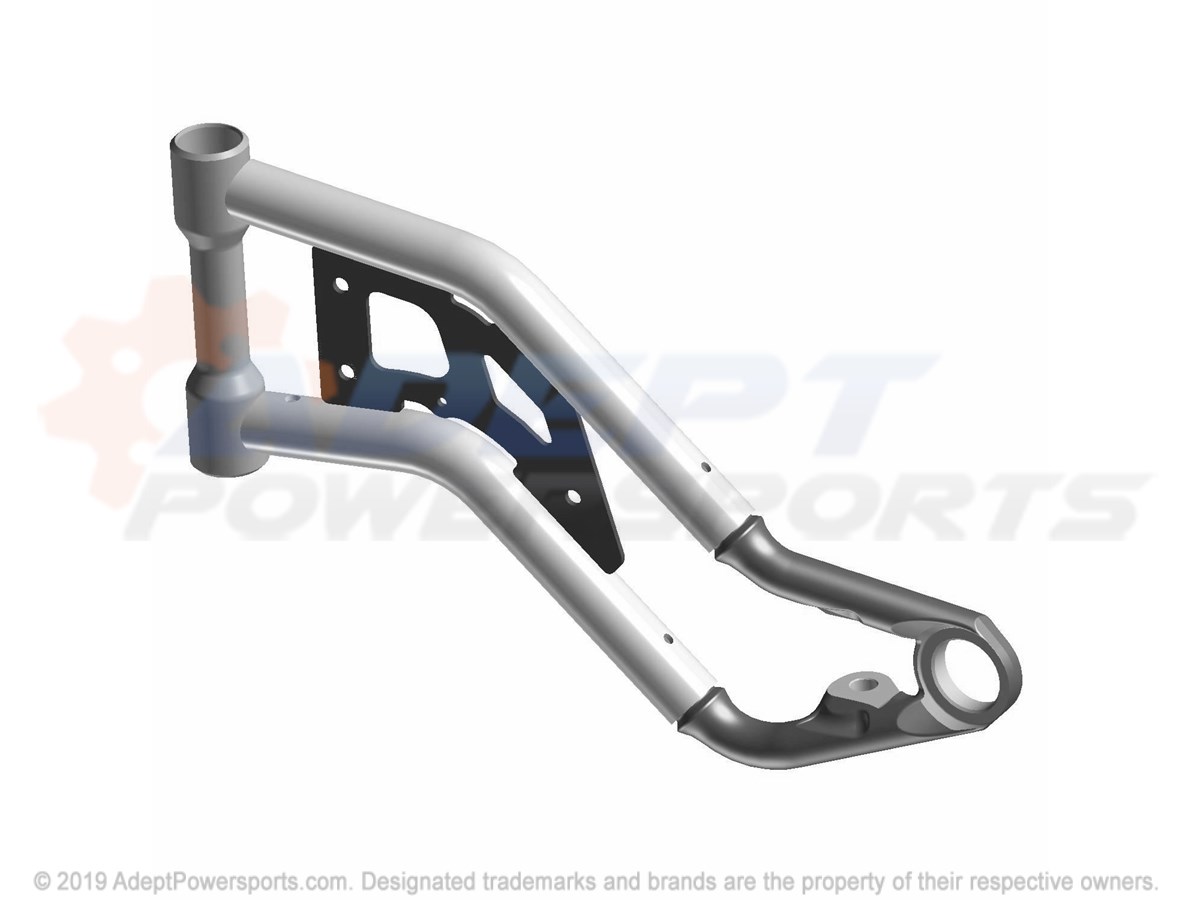

10	WELD-UCA, FRONT, LH, M.BLK Part #: 1022952-458 Required per assembly: 1 Currently Not Available
11	WELD-UCA, FRONT, RH, M.BLK Part #: 1022953-458 Required per assembly: 1 Currently Not Available

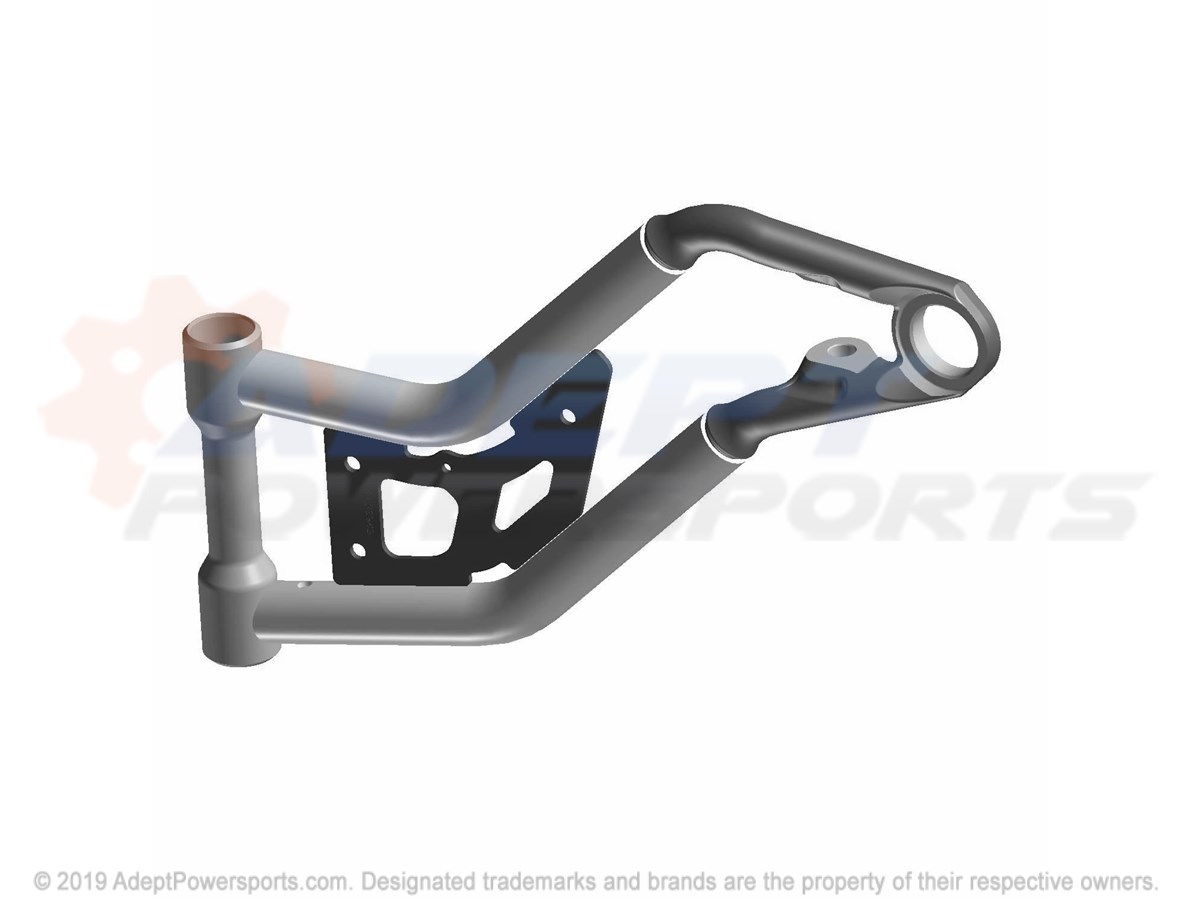

12	WELD-A-FRAME, FLARED, LH, M.BLK Part #: 1543757-458 Required per assembly: 1 Currently Not Available
13	WELD-A-FRAME, FLARED, RH, M.BLK Part #: 1543758-458 Required per assembly: 1 Currently Not Available
14	SCR-HXFL, M12X1.5X190, 10.9, ZOD Part #: 7519927 Required per assembly: 2 Currently Not Available
15	NUT, CASTLE Part #: 7547336 Required per assembly: 2 Currently Not Available
16	SCREW Part #: 7519043 Required per assembly: 4 Note: Bolt $9.99 $5.75 - + Add to cart
17	ASM-PIVOT, CAP, SEALED, M12 Part #: 1543790 Required per assembly: 4 Currently Not Available
17	ASM-PIVOT, CAP, SEALED, M12 Part #: 1543790 Required per assembly: 4 Currently Not Available
18	CAP-PIVOT, SEAL, M12 Part #: 5140783 Required per assembly: 4 Currently Not Available
18	CAP-PIVOT, SEAL, M12 Part #: 5140783 Required per assembly: 4 Currently Not Available

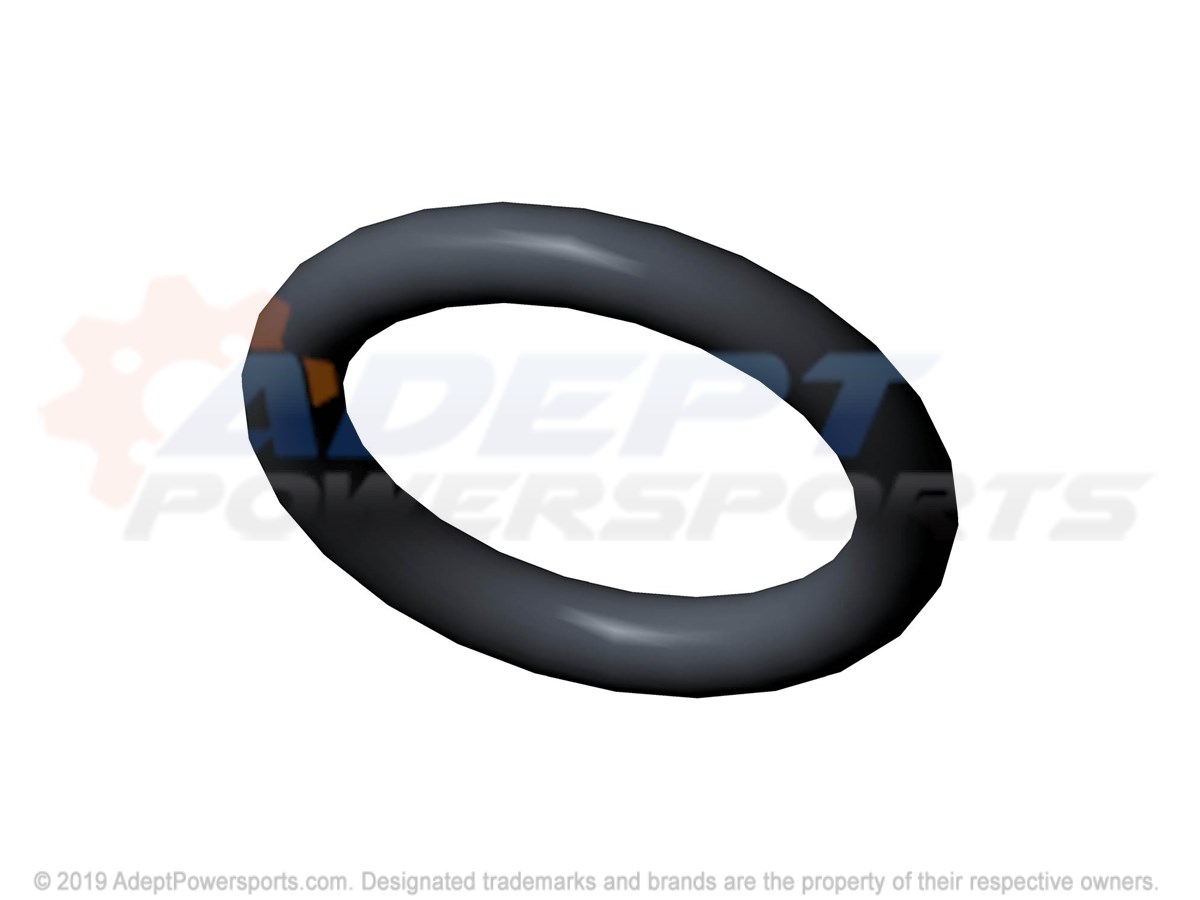

19	O-RING, 2-210 Part #: 5415653 Required per assembly: 12 Currently Not Available
19	O-RING, 2-210 Part #: 5415653 Required per assembly: 12 Currently Not Available
19	O-RING, 2-210 Part #: 5415653 Required per assembly: 12 Currently Not Available

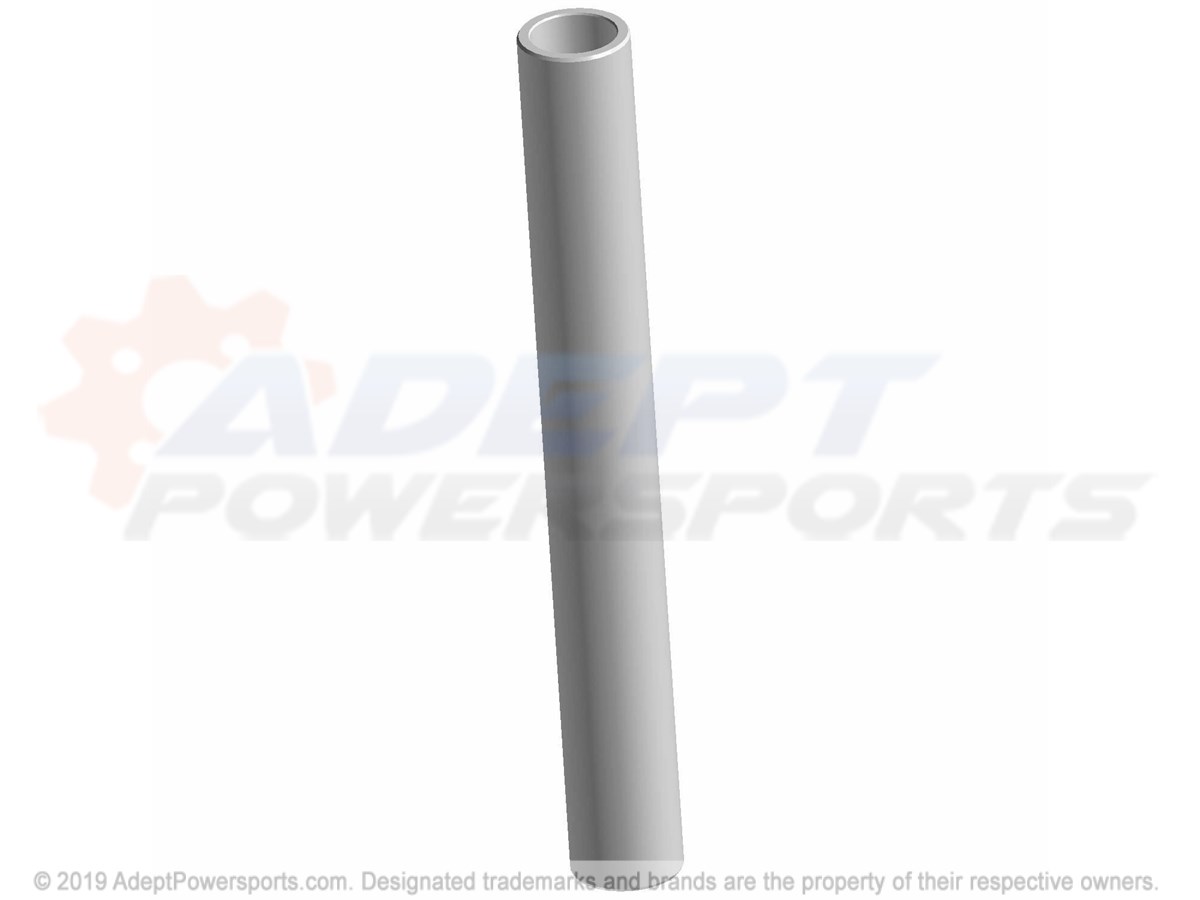

20	SHAFT-PIVOT, LONG, M12 Part #: 5339826 Required per assembly: 2 Currently Not Available

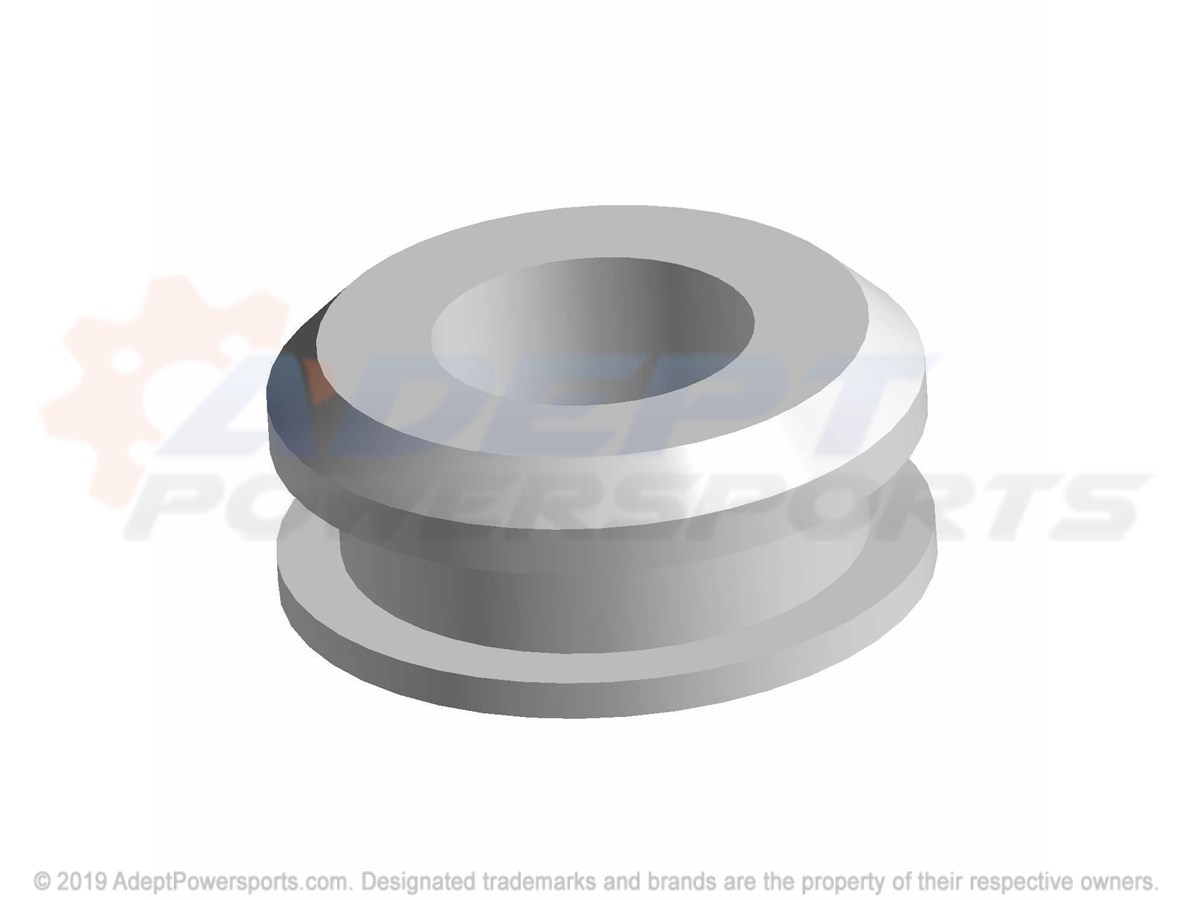

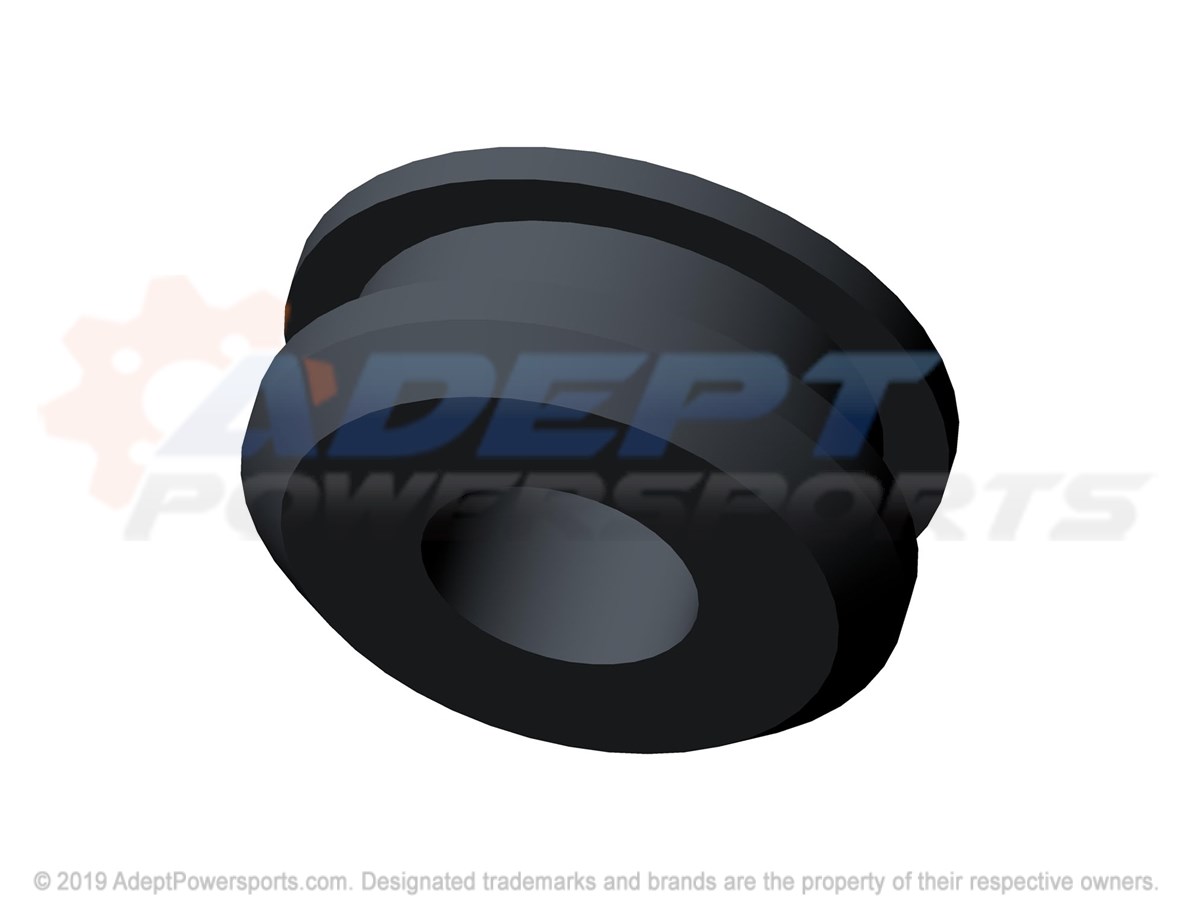

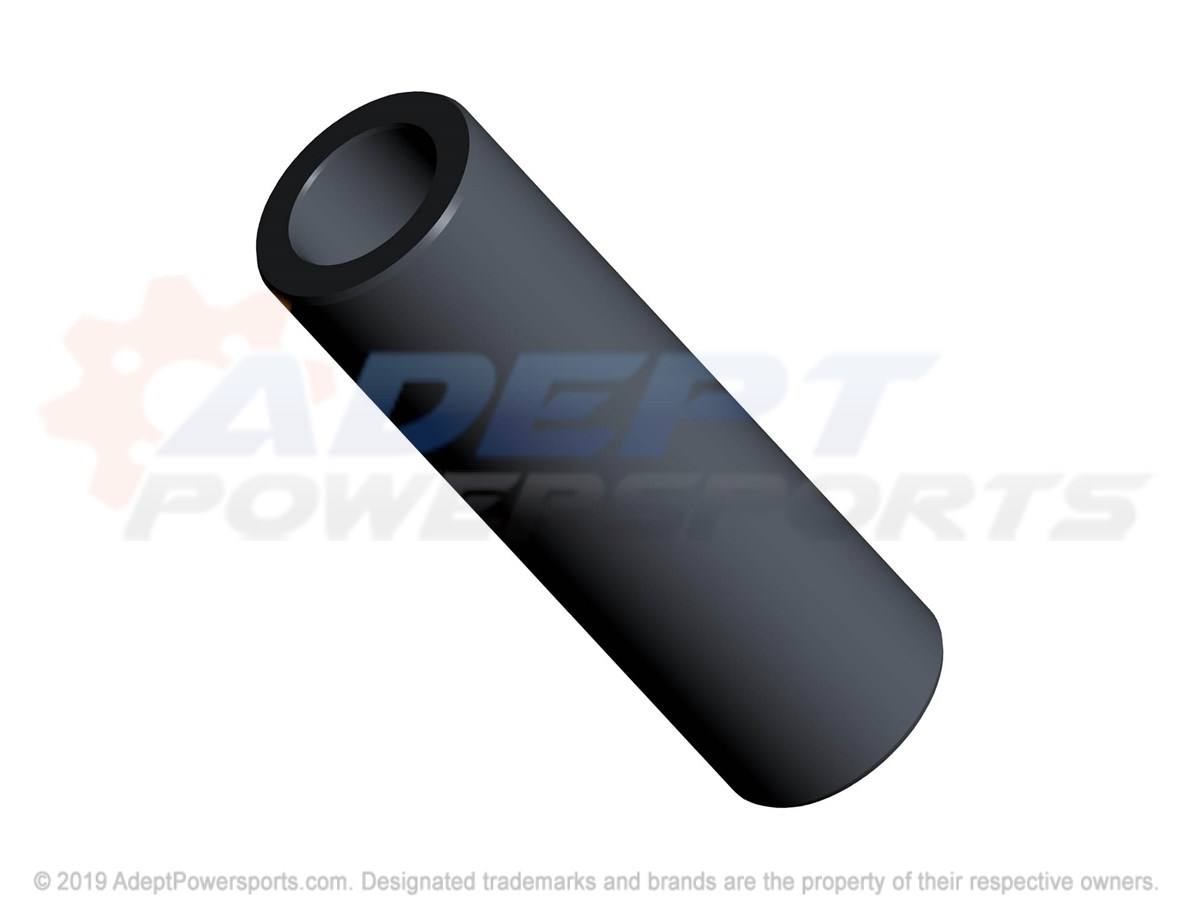

21	BUSHING-STANDARD, SUSP, M10 Part #: 5452233 Required per assembly: 12 Currently Not Available
21	BUSHING-STANDARD, SUSP, M10 Part #: 5452233 Required per assembly: 12 Currently Not Available
21	BUSHING-STANDARD, SUSP, M10 Part #: 5452233 Required per assembly: 12 Currently Not Available
21	BUSHING-STANDARD, SUSP, M10 Part #: 5452233 Required per assembly: 12 Currently Not Available

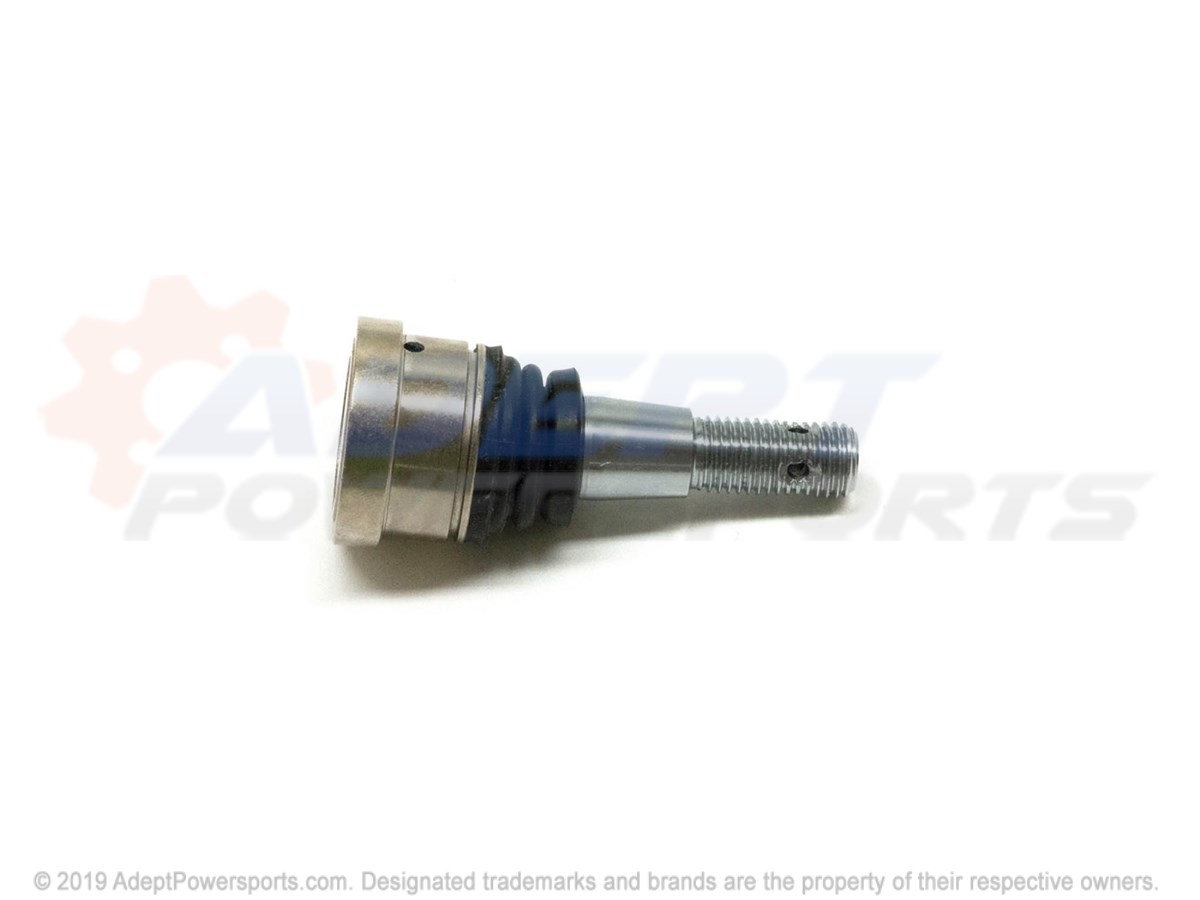

22	BALL-JOINT, 10MM, STUD Part #: 7082507 Required per assembly: 2 Currently Not Available

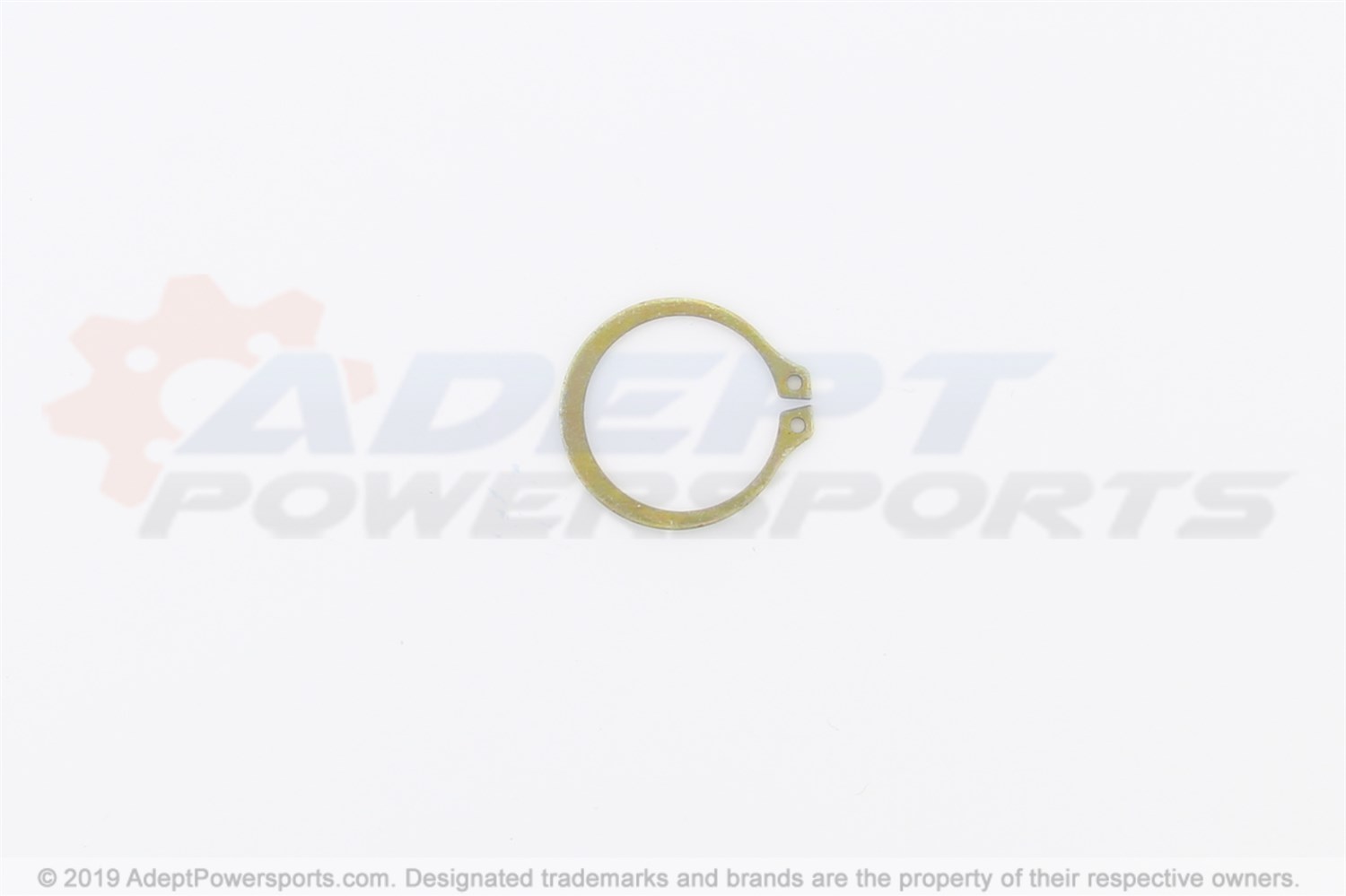

23	RING, RETAINER Part #: 7710533 Required per assembly: 4 Currently Not Available
23	RING, RETAINER Part #: 7710533 Required per assembly: 4 Currently Not Available

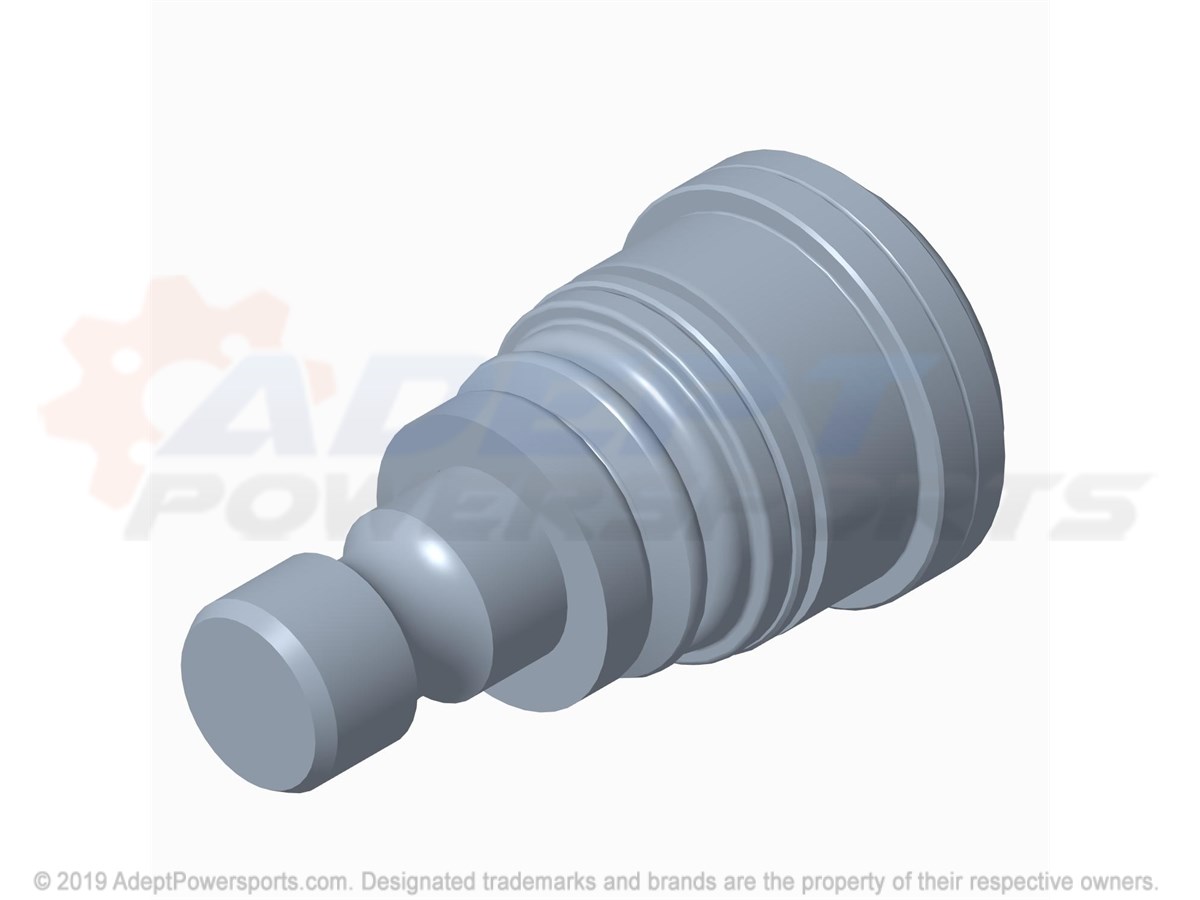

24	ASM-PIVOT, CAP, SEALED, M10 Part #: 1543611 Required per assembly: 8 Currently Not Available
24	ASM-PIVOT, CAP, SEALED, M10 Part #: 1543611 Required per assembly: 8 Currently Not Available
25	CAP-PIVOT, SEAL, M10 Part #: 5139968 Required per assembly: 8 Currently Not Available
26	BALL-JOINT, M12X1.50, TAPERED Part #: 7061230 Required per assembly: 2 Currently Not Available
27	SHAFT-PIVOT, SHORT, M10 Part #: 5139966 Required per assembly: 4 Currently Not Available
28	SHIELD-CV FRONT BLK Part #: 5438641-070 Required per assembly: 2 Currently Not Available
29	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw $2.99 $1.73 - + Add to cart
