HOOD AND FRONT BODY WORK - A18DAE57B2 (101282) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-CAB, FR, SVC, HDPE, WHT, LTNG Part #: 2636419-599 Required per assembly: 1 Note: INCL. WARNING DECAL Currently Not Available
2	BIN-STORAGE, FRONT, BLK Part #: 5454119-070 Required per assembly: 1 Currently Not Available

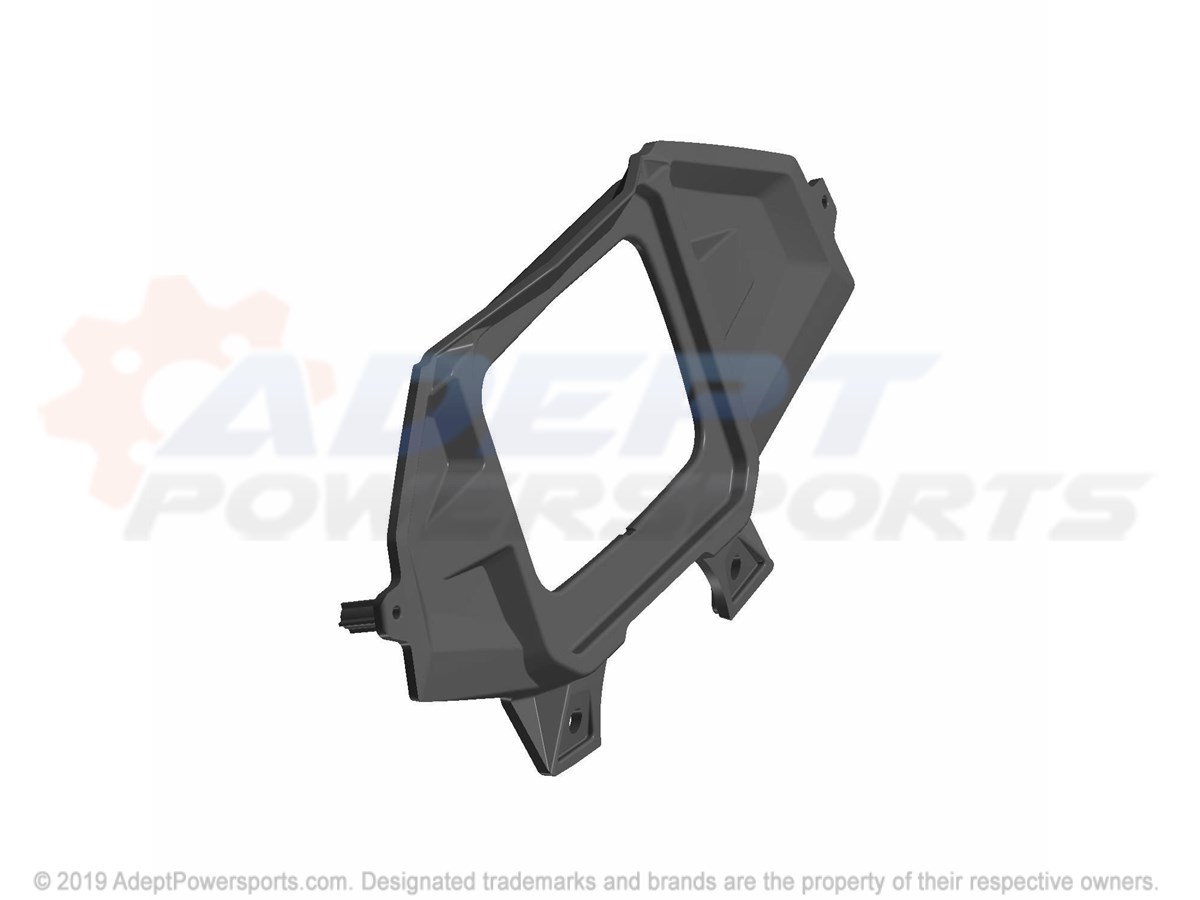

3	PANEL-CAB, UPPER, BLK Part #: 5450064-070 Required per assembly: 1 Currently Not Available
4	COVER-BOX, FRONT, BLK Part #: 5450073-070 Required per assembly: 1 Currently Not Available
5	PANEL-DASH, KYSTN, ACE Part #: 5451949 Required per assembly: 1 Currently Not Available
6	LATCH-1/4 TURN Part #: 5451143 Required per assembly: 2 Currently Not Available
7	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
7	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart

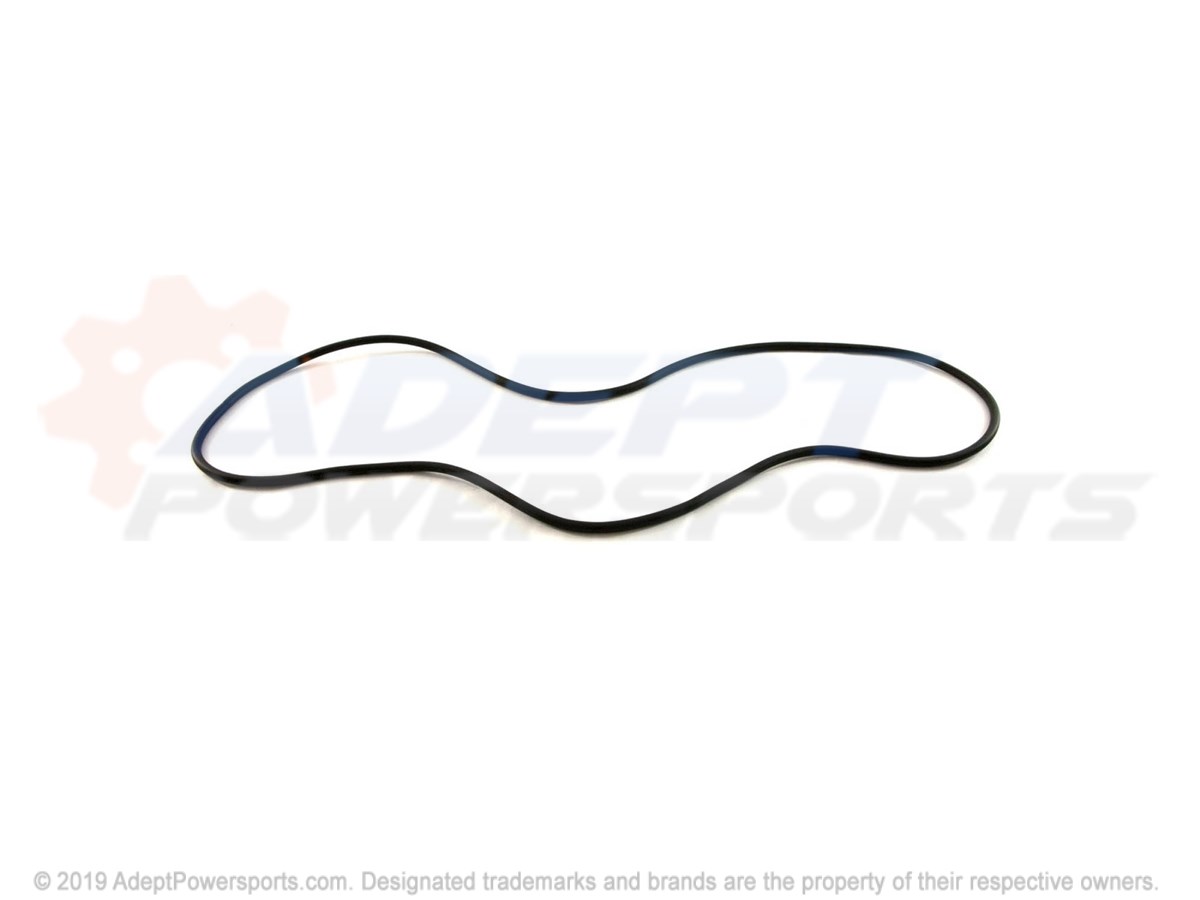

8	SEAL-BOX, FRONT Part #: 5522023 Required per assembly: 1 Currently Not Available
9	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
9	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
9	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
10	PIN, HINGE, FRONT Part #: 5134576 Required per assembly: 2 Currently Not Available
11	SCREW Part #: 7519045 Required per assembly: 2 Currently Not Available

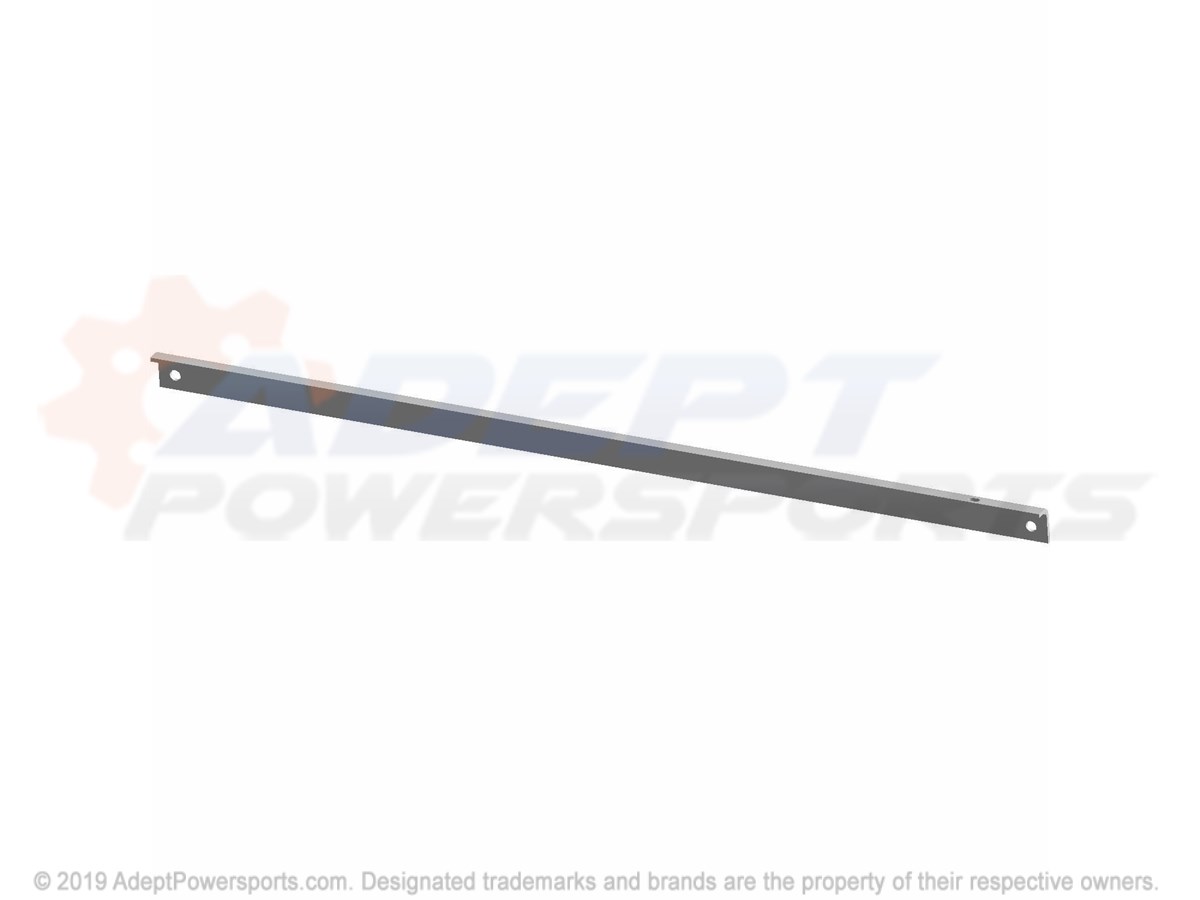

12	BRACE-ANGLE, 625MM, ECOAT Part #: 5263628-329 Required per assembly: 1 Currently Not Available
13	NUT, FLANGE Part #: 7547339 Required per assembly: 2 Currently Not Available
14	PLUG Part #: 5412981 Required per assembly: 2 Currently Not Available

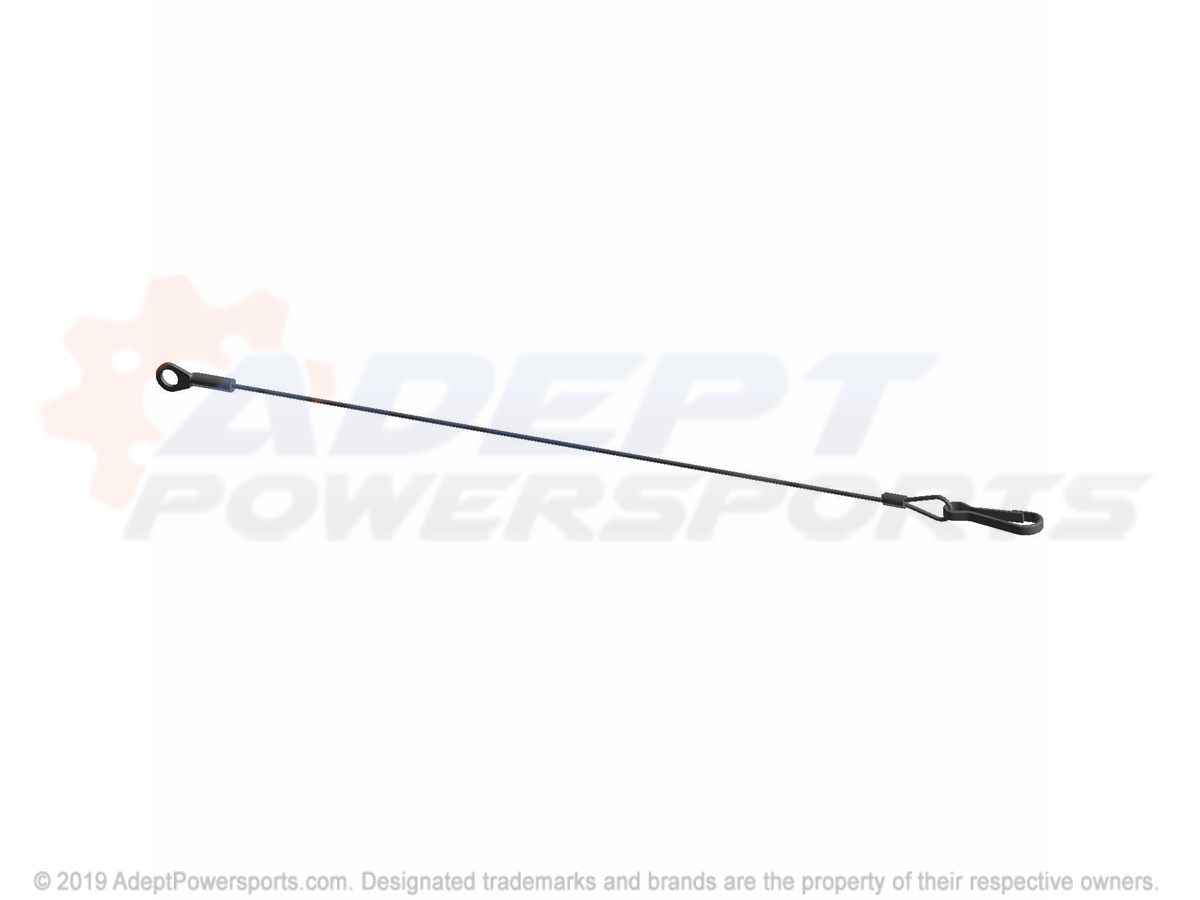

15	CABLE-LID, FRONT, HOOK Part #: 7082262 Required per assembly: 1 Currently Not Available
16	RIVET Part #: 7621334 Required per assembly: 1 ~~$2.68~~ $1.93 - + Add to cart
17	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
18	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
