Brushguard - A18shd57b9 (100448) replacement parts for 2018 Polaris Sportsman 570 SP (R05)

OEM Parts Polaris 2018 Polaris Sportsman 570 SP (R05) Brushguard - A18shd57b9 (100448)

BRUSHGUARD - A18SHD57B9 (100448) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

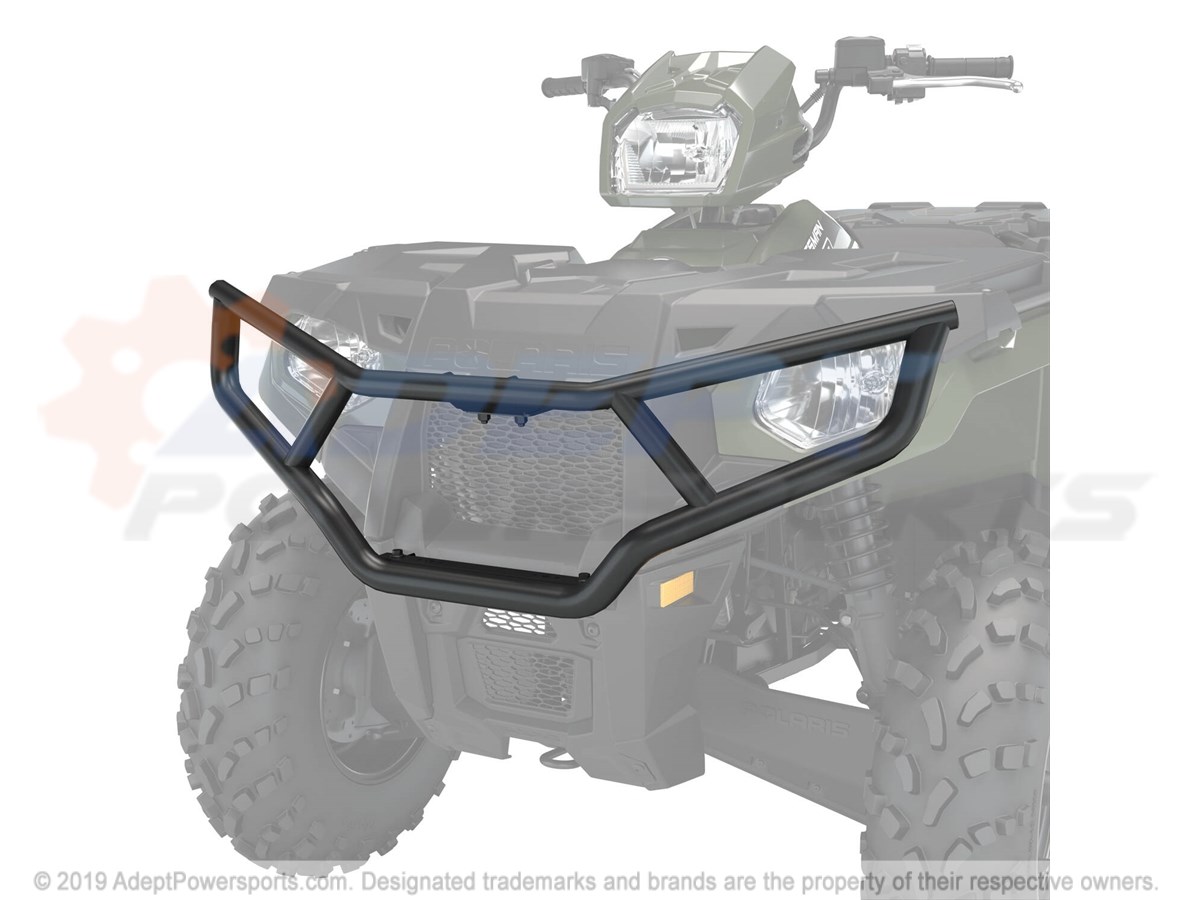

1	SPORTSMAN 570 FRONT BRUSHGUARD Part #: 2879714 Required per assembly: 1 Note: INCL. 2 Currently Not Available

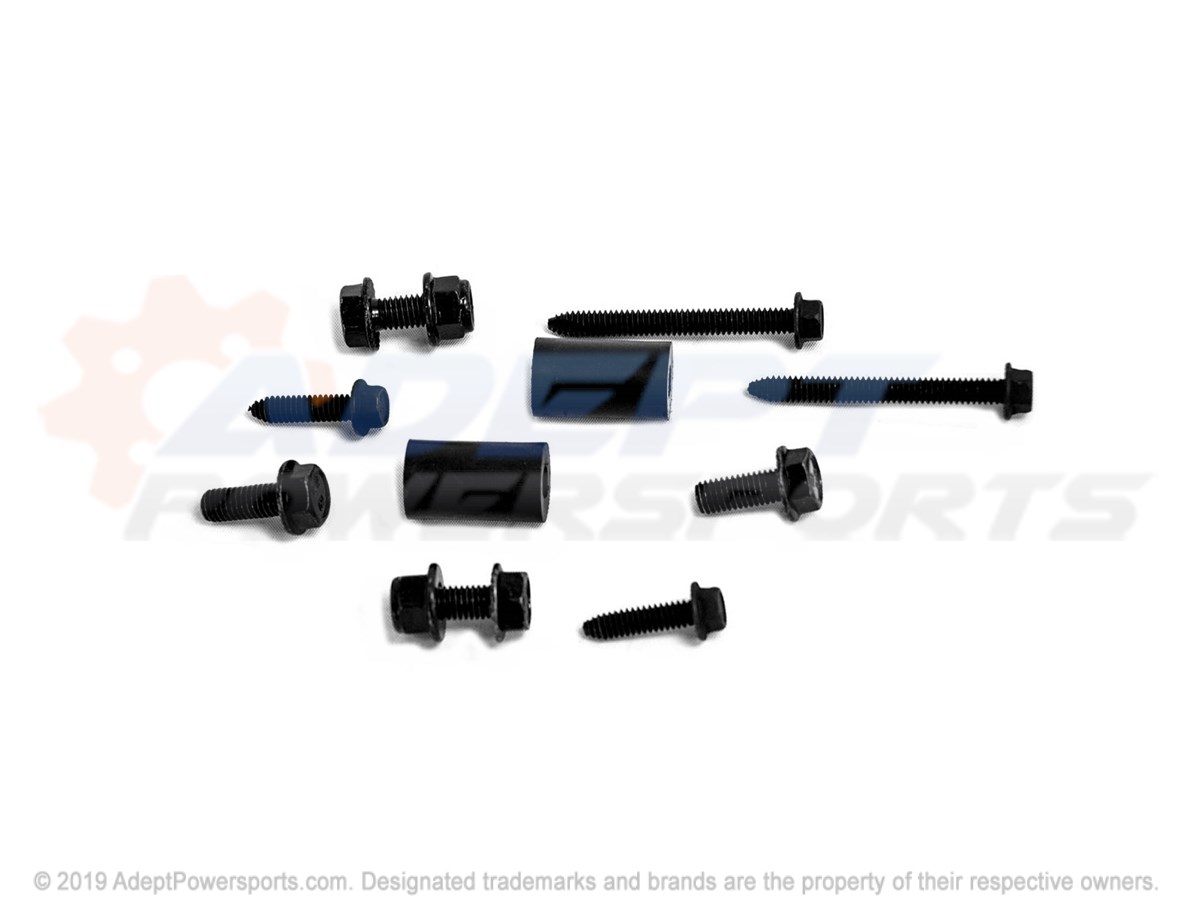

2	K-HDWR, BG, FRT, EAGLE Part #: 2205225 Required per assembly: 1 Currently Not Available
3	K-HDWR, BG, RR, EAGLE Part #: 2205226 Required per assembly: 1 Currently Not Available

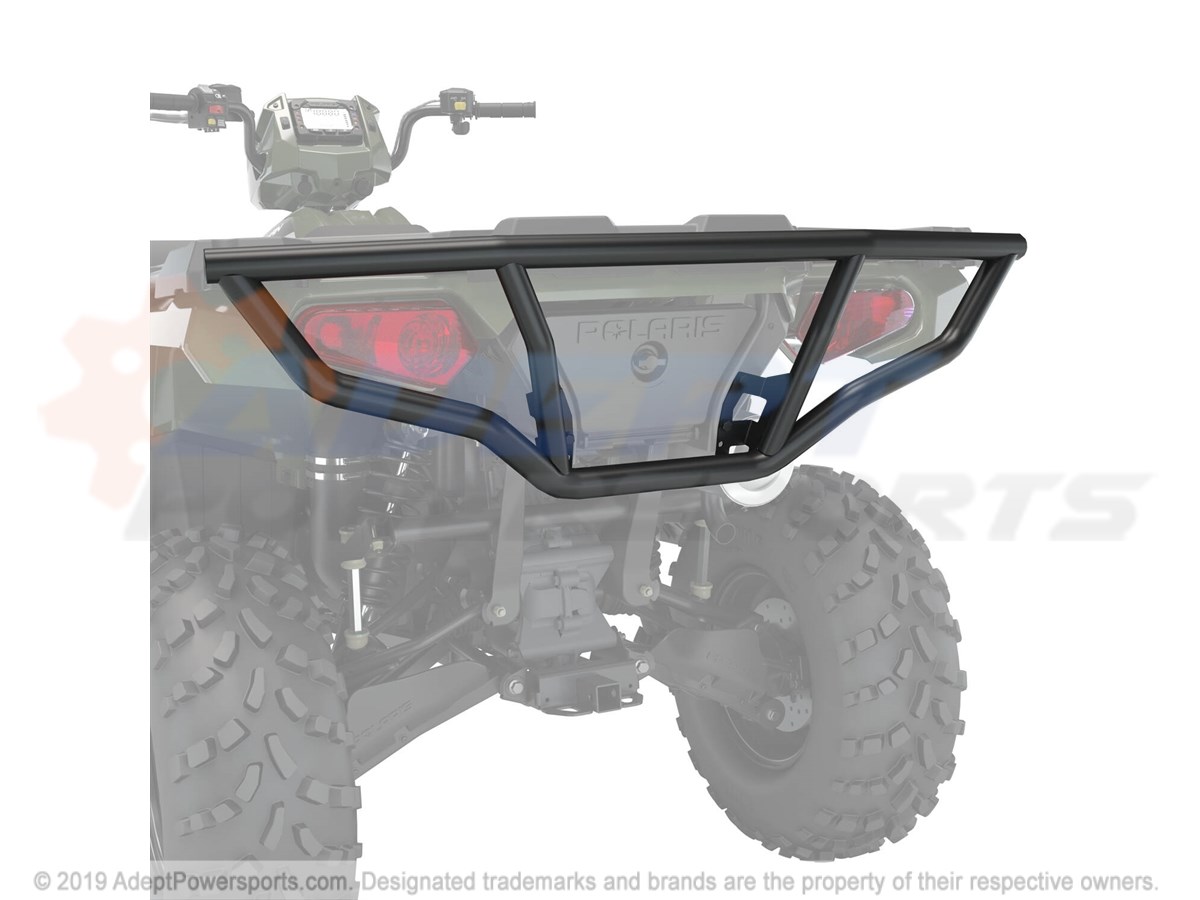

3	SPORTSMAN 570 REAR BRUSHGUARD Part #: 2879715 Required per assembly: 1 Note: INCL. HARDWARE KIT Currently Not Available
