OEM Parts Polaris 2018 Polaris Sportsman 570 SP (R05) Front Cab And Side Panels - A18shd57b9/E57bb/E57bs (100893)

2018 Polaris Sportsman 570 SP (R05) A18SHD57B9/E57BB/E57BS - Front Cab And Side Panels - A18shd57b9/E57bb/E57bs (100893)

FRONT CAB and SIDE PANELS - A18SHD57B9/E57BB/E57BS (100893) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

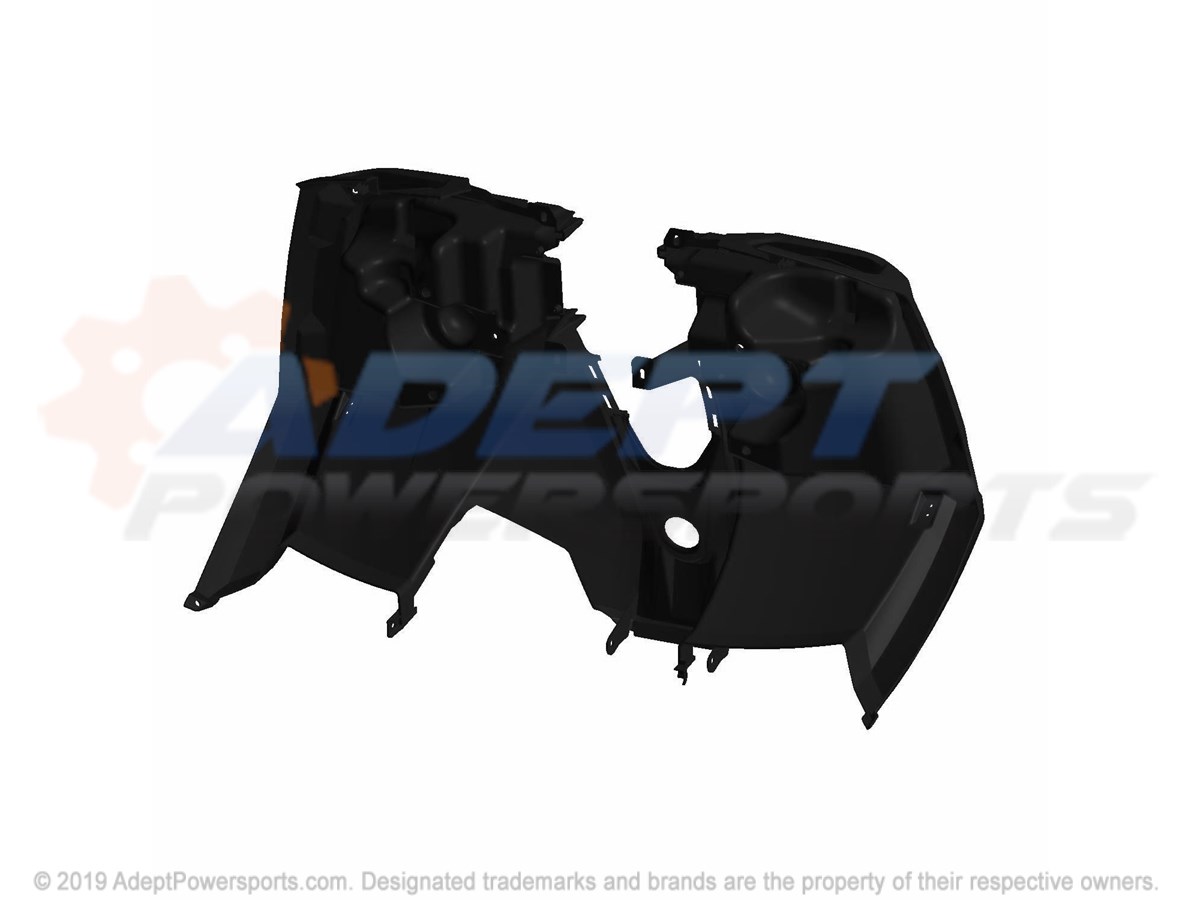

Polaris 2636422-520 Asm-Cab, Fr, Svc, Pnt, Sunset, Red

ASM-CAB, FR, SVC, PNT, SUNSET, RED

Part #: 2636422-520 Required per assembly: 1 Note: BS
Currently Not Available
1

ASM-CAB, FR, SVC, DIP, PPC

Part #: 2636510-587 Required per assembly: 1 Note: B9
Currently Not Available
1
Polaris 2636422-724 Asm-Cab, Fr, Svc, Pnt, Radar, Blue

ASM-CAB, FR, SVC, PNT, RADAR, BLUE

Part #: 2636422-724 Required per assembly: 1 Note: BB
Currently Not Available
2

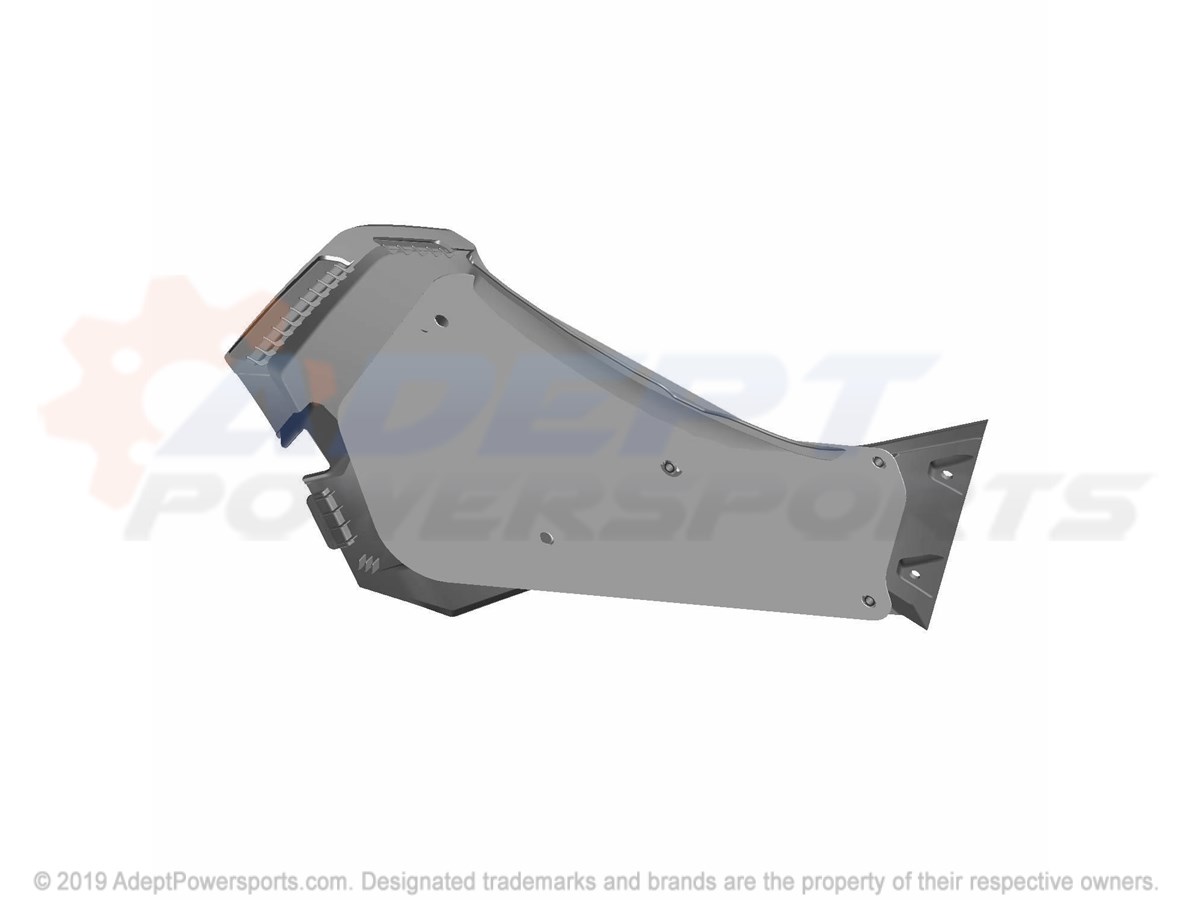

PANEL-SIDE, UPR, LH, PNTD, RAD, BLU

Part #: 5451308-724 Required per assembly: 1 Note: BB
Currently Not Available
2

PANEL-SIDE, UPR, LH, PNTD, SUN, RED

Part #: 5451308-520 Required per assembly: 1 Note: BS
Currently Not Available
2
Polaris 5450628-587 Panel, Side, Lh, Polaris, Pursuit, Camo

PANEL, SIDE, LH, POLARIS, PURSUIT, CAMO

Part #: 5450628-587 Required per assembly: 1 Note: B9
Currently Not Available
3
Polaris 5439050-587 Cover, Front, Polaris, Pursuit, Camo

COVER, FRONT, POLARIS, PURSUIT, CAMO

Part #: 5439050-587 Required per assembly: 1 Note: B9
Currently Not Available
3
Polaris 5451307-520 Cover-Fr, Pntd, Sunset, Red

COVER-FR, PNTD, SUNSET, RED

Part #: 5451307-520 Required per assembly: 1 Note: BS
Currently Not Available
3
Polaris 5451307-724 Cover-Fr, Pntd, Radar, Blue

COVER-FR, PNTD, RADAR, BLUE

Part #: 5451307-724 Required per assembly: 1 Note: BB
Currently Not Available
4

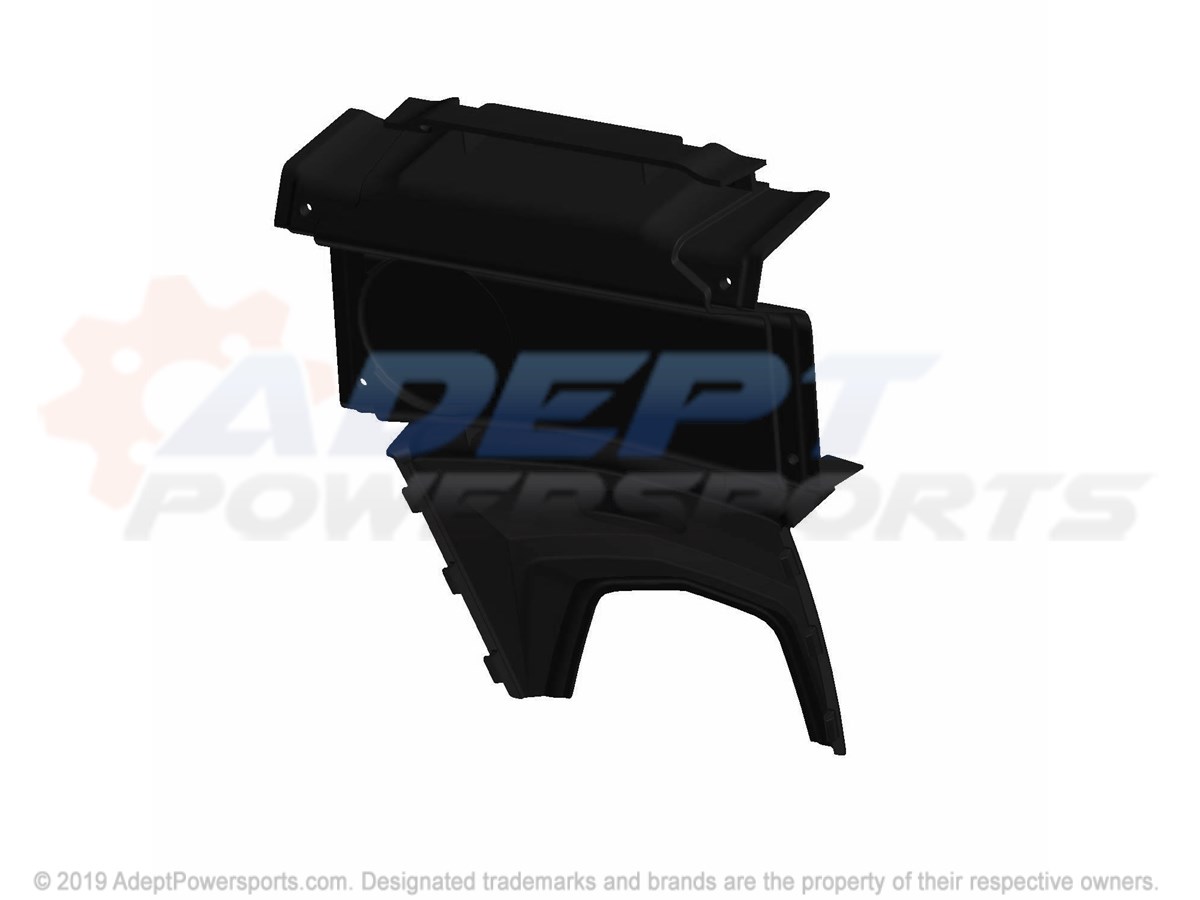

Polaris 2636443-724 Asm-Panel/Shield, Rh, Rad, Blu

ASM-PANEL/SHIELD, RH, RAD, BLU

Part #: 2636443-724 Required per assembly: 1 Note: BB
Currently Not Available
4
Polaris 2636443-520 Asm-Panel/Shield, Rh, Sunset, Red

ASM-PANEL/SHIELD, RH, SUNSET, RED

Part #: 2636443-520 Required per assembly: 1 Note: BS
Currently Not Available
4

ASM-PANEL/SHIELD, RH, PPC

Part #: 2636618-587 Required per assembly: 1 Note: B9
Currently Not Available
5
Polaris 5412981 Plug

PLUG

Part #: 5412981 Required per assembly: 4
Currently Not Available
6
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 4
Currently Not Available
7
Polaris 7555859 Washer, Flat

WASHER, FLAT

Part #: 7555859 Required per assembly: 1 Note: Washer, Flat
$2.99
$1.73
-
+
Add to cart
8
Polaris 5258497 Bracket, Plug, Mount

BRACKET, PLUG, MOUNT

Part #: 5258497 Required per assembly: 1
Currently Not Available
9
Polaris 7512193 Bolt

BOLT

Part #: 7512193 Required per assembly: 2
Currently Not Available
10
Polaris 7080356 Tie, Cable

TIE, CABLE

Part #: 7080356 Required per assembly: 2 Note: Cable Tie
Currently Not Available
11
Polaris 7542153 Nut

NUT

Part #: 7542153 Required per assembly: 2 Note: Nut, Flanged, Nylok
$3.47
$2.30
-
+
Add to cart
12
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 8
$2.99
$1.73
-
+
Add to cart
12
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 8
$2.99
$1.73
-
+
Add to cart
13
Polaris 7512232 Bolt

BOLT

Part #: 7512232 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
13
Polaris 7512232 Bolt

BOLT

Part #: 7512232 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
14
Polaris 5521697-350 Seal-Bulb .375 350Cm

SEAL-BULB .375 350CM

Part #: 5521697-350 Required per assembly: 2
Currently Not Available
