Front Drive Shaft - A18shd57b9/E57bb/E57bs (101258) replacement parts for 2018 Polaris Sportsman 570 SP (R05)

OEM Parts Polaris 2018 Polaris Sportsman 570 SP (R05) Front Drive Shaft - A18shd57b9/E57bb/E57bs (101258)

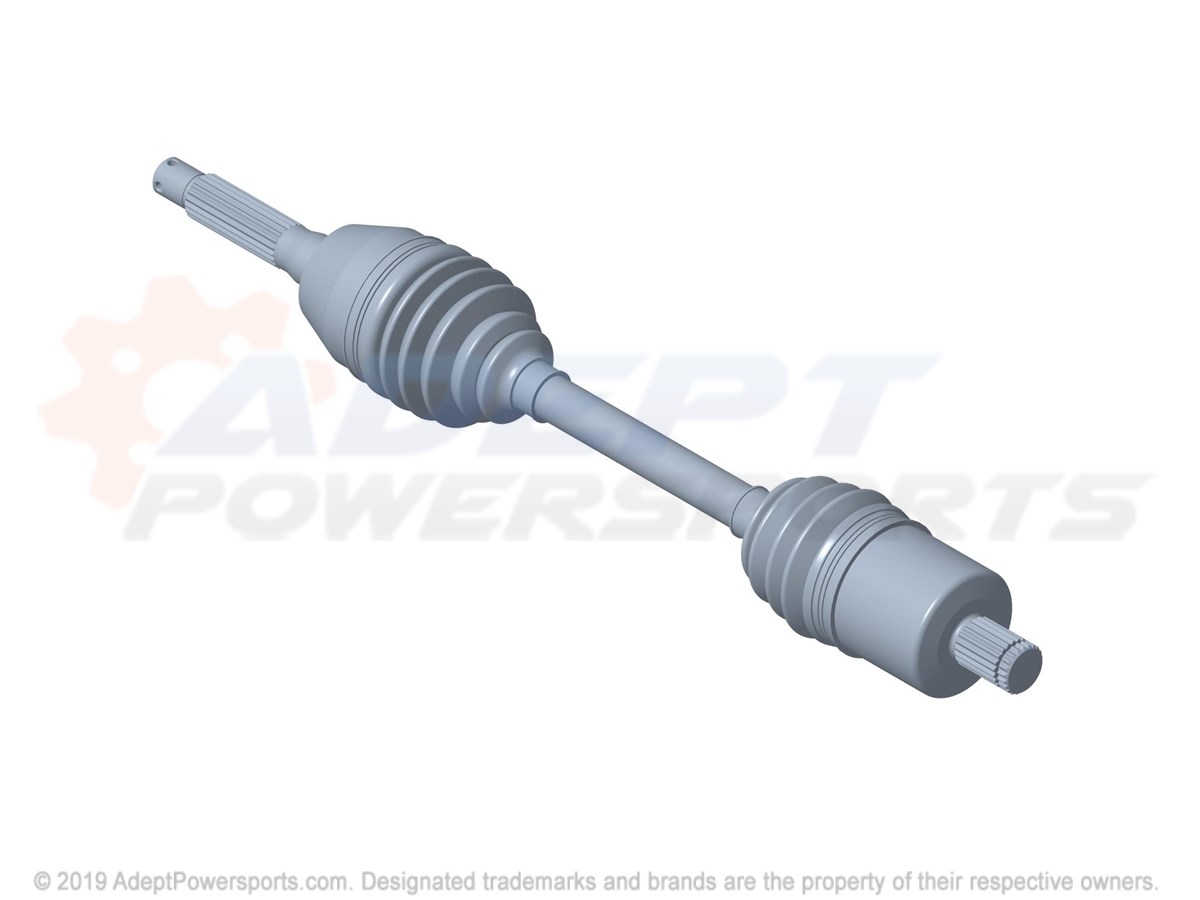

FRONT DRIVE SHAFT - A18SHD57B9/E57BB/E57BS (101258) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-DRIVE, SHAFT, SPMN, FRONT Part #: 1333752 Required per assembly: 2 Note: INCL. ALL Currently Not Available
2	JOINT-OUTER Part #: 3236089 Required per assembly: 1 Note: INCL. JOINT COMPLETE Currently Not Available
3	K-BOOT Part #: 3236090 Required per assembly: 1 Note: INCL. CLAMPS, BOOT, GREASE Currently Not Available
4	BAR Part #: 3236091 Required per assembly: 1 Note: INCL. BAR, CLIPS Currently Not Available
5	K-BOOT Part #: 3236092 Required per assembly: 1 Note: INCL. CLAMPS, BOOT, GREASE Currently Not Available
6	JOINT-INNER Part #: 3236093 Required per assembly: 1 Note: INCL. JOINT COMPLETE Currently Not Available
7	CIRCLIP Part #: 2205956 Required per assembly: 2 Currently Not Available
7	CIRCLIP Part #: 2205956 Required per assembly: 2 Currently Not Available
8	CIRCLIP Part #: 2203445 Required per assembly: 1 Currently Not Available
9	GREASE Part #: 2203464 Required per assembly: 1 Note: (K575/VW738) Currently Not Available
9	GREASE Part #: 2203464 Required per assembly: 1 Note: (K575/VW738) Currently Not Available
