OEM Parts Polaris 2019 Polaris Ranger 150 EFI (R05) Cargo Box

2019 Polaris Ranger 150 EFI (R05) A19HZA15A1/A7/B1/B7 - Cargo Box

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

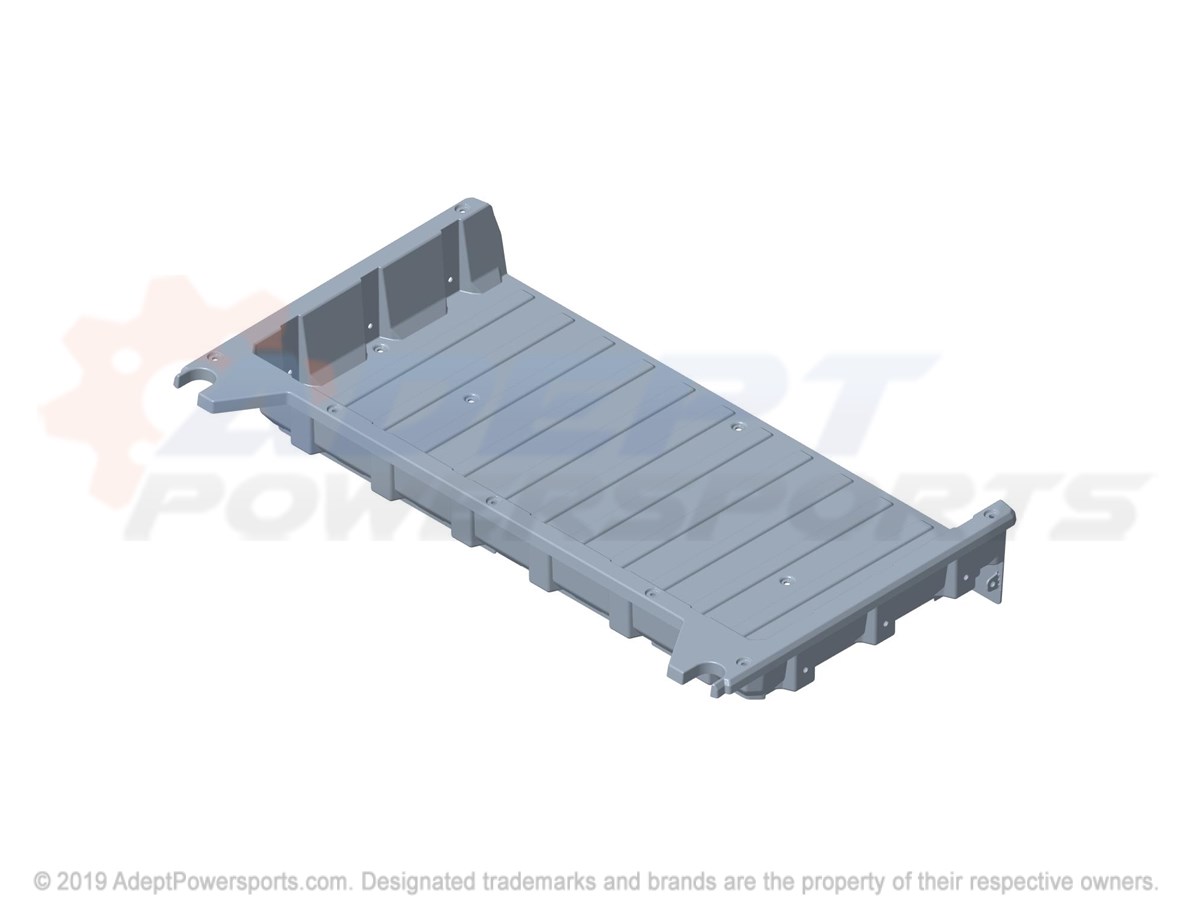

Polaris 5454500-070 Box-Cargo, Mz, Blk

BOX-CARGO, MZ, BLK

Part #: 5454500-070 Required per assembly: 1
Currently Not Available
2

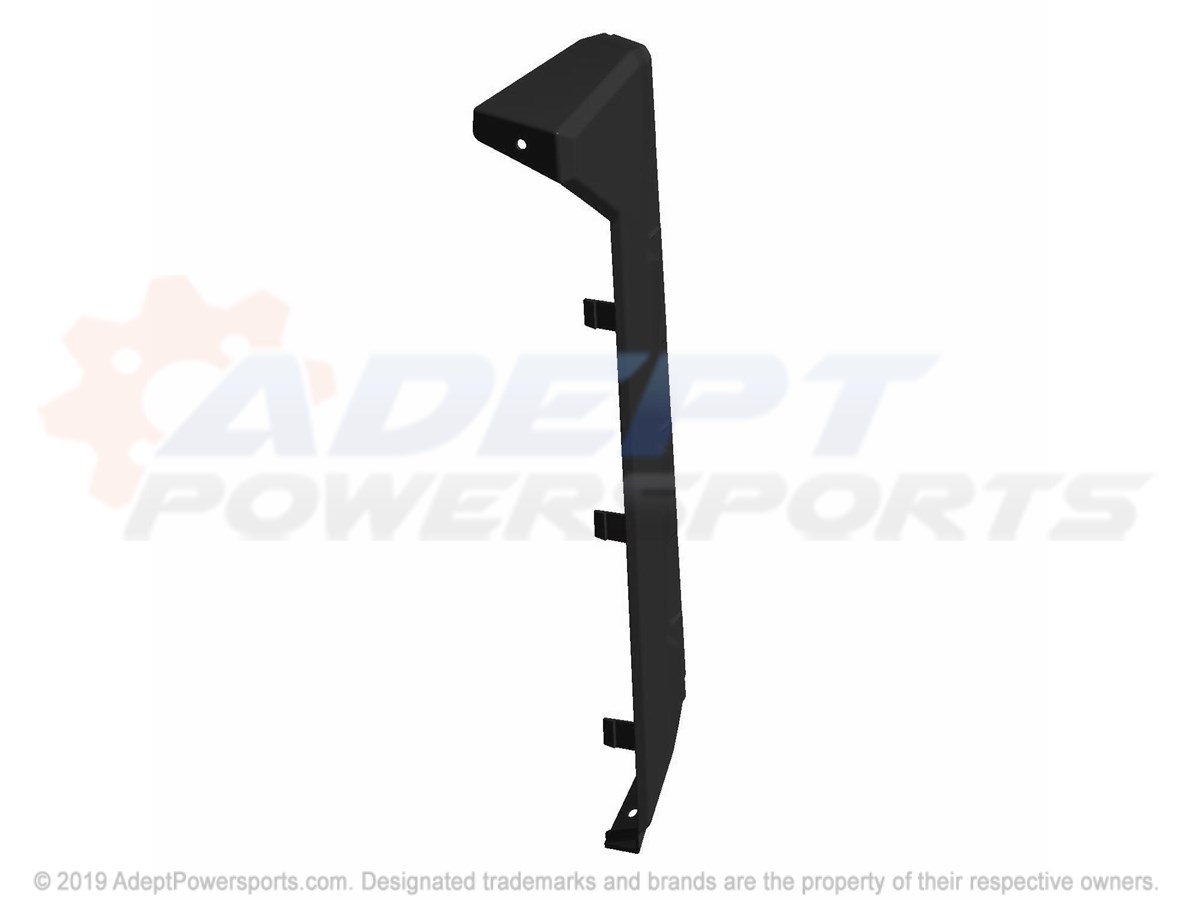

Polaris 5454501-293 Panel-Trim, Box, Lh, Indy, Red

PANEL-TRIM, BOX, LH, INDY, RED

Part #: 5454501-293 Required per assembly: 1 Note: A15A7,B7
Currently Not Available
2
Polaris 5454501-560 Panel-Trim, Box, Lh, S.B.Green

PANEL-TRIM, BOX, LH, S.B.GREEN

Part #: 5454501-560 Required per assembly: 1 Note: A15A1,B1
Currently Not Available
3

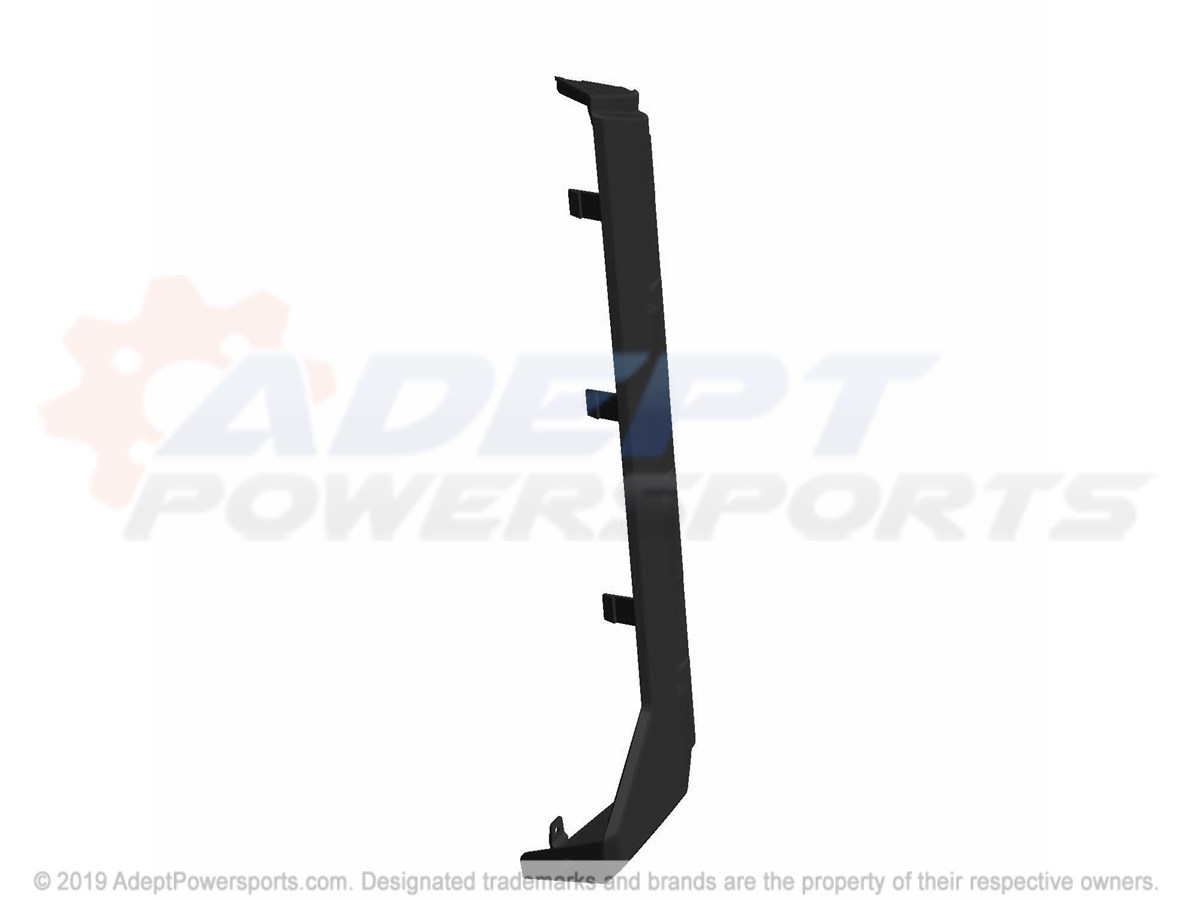

Polaris 5454502-560 Panel-Trim, Box, Rh, S.B.Green

PANEL-TRIM, BOX, RH, S.B.GREEN

Part #: 5454502-560 Required per assembly: 1 Note: A15A1,B1
Currently Not Available
3
Polaris 5454502-293 Panel-Trim, Box, Rh, Indy, Red

PANEL-TRIM, BOX, RH, INDY, RED

Part #: 5454502-293 Required per assembly: 1 Note: A15A7,B7
Currently Not Available
4
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 16
$2.99
$1.73
-
+
Add to cart
5
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 3
Currently Not Available
6

SCR-TXTH-M6X1.0X50 8.8 ZPB

Part #: 7519220 Required per assembly: 5
Currently Not Available
7
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 4 Note: Nut, Flange
Currently Not Available
8

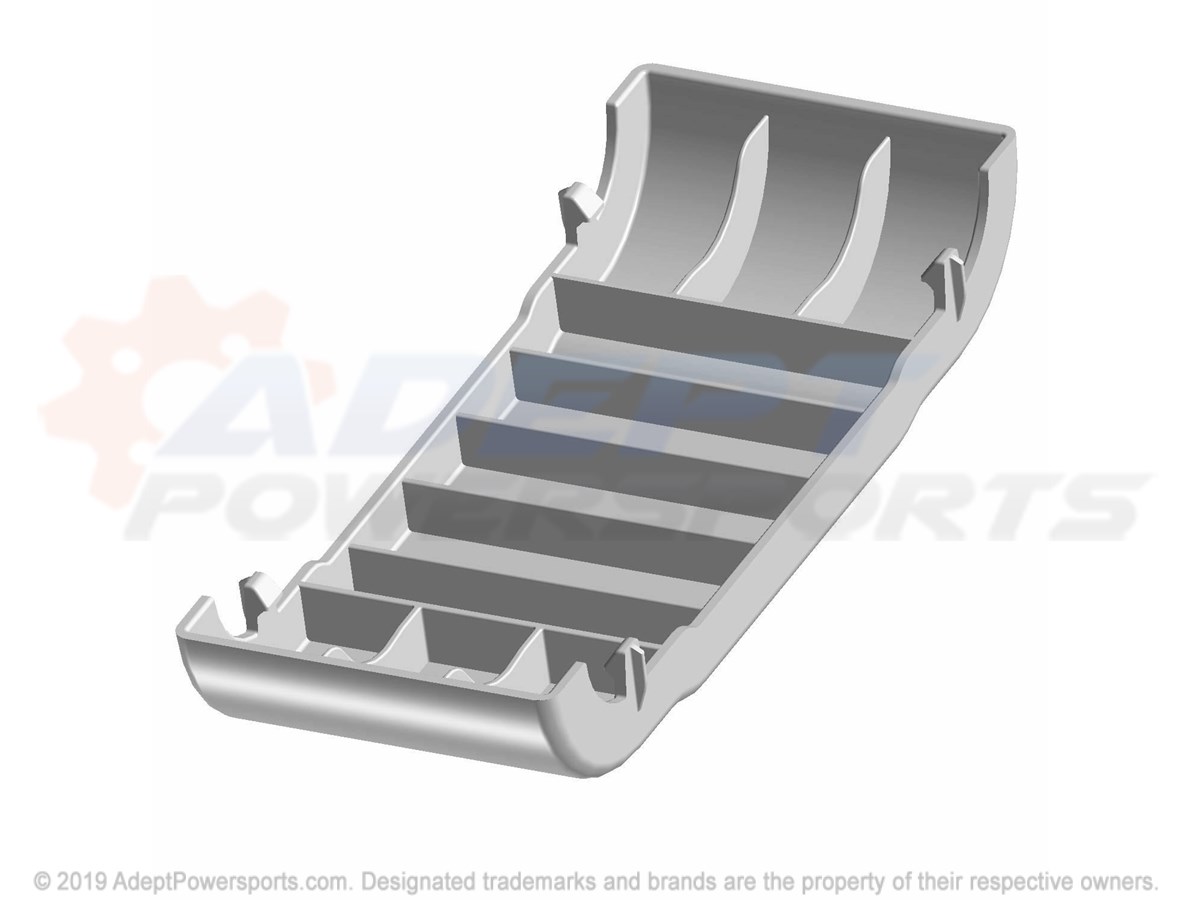

Polaris 5455265-070 Cover-Transmission, 150, Blk

COVER-TRANSMISSION, 150, BLK

Part #: 5455265-070 Required per assembly: 1
Currently Not Available
