2019 Polaris Ranger 150 EFI (R05) A19HZA15A1/A7/B1/B7 - Main Frame

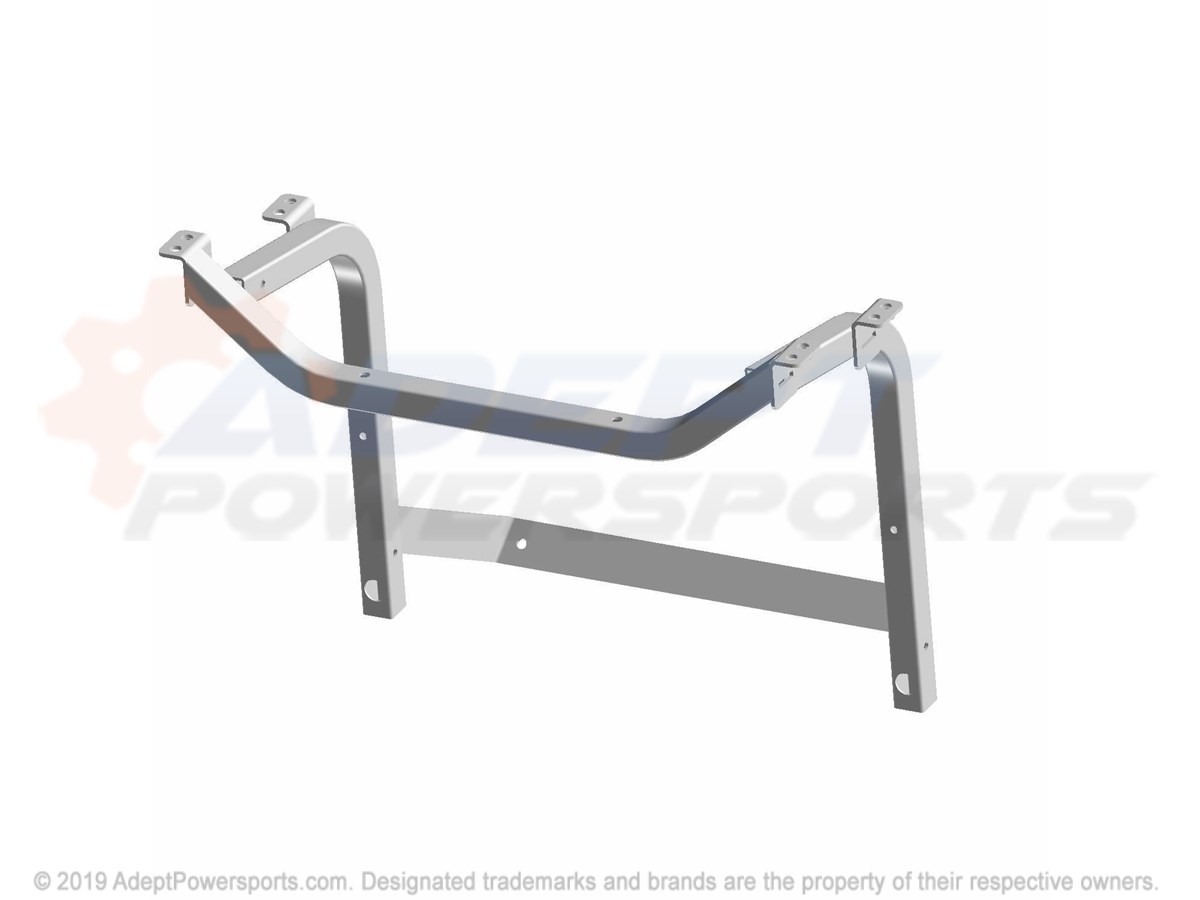

MAIN FRAME Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1023720-458 Weld-Front, Chassis, Mz, Blk

WELD-FRONT, CHASSIS, MZ, BLK

Part #: 1023720-458 Required per assembly: 1
Currently Not Available
2

WELD-MAINFRAME, MZ, BLK

Part #: 1024161-458 Required per assembly: 1 Note: A15B1,B7
Currently Not Available
2

WELD-MAIN, FRAME, MBLK

Part #: 1023472-458 Required per assembly: 1 Note: A15A1,A7
Currently Not Available
3
Polaris 7516818 Screw

SCREW

Part #: 7516818 Required per assembly: 4 Note: A15B1,B7
Currently Not Available
3
Polaris 7517610 Screw

SCREW

Part #: 7517610 Required per assembly: 4 Note: A15A1,A7
$2.99
$1.73
-
+
Add to cart
4
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 4 Note: Nut, Flange
Currently Not Available
