OEM Parts Polaris 2019 Polaris Ranger 150 EFI (R05) Hood And Front Fascia

2019 Polaris Ranger 150 EFI (R05) A19HZA15A1/A7/B1/B7 - Hood And Front Fascia

HOOD AND FRONT FASCIA Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

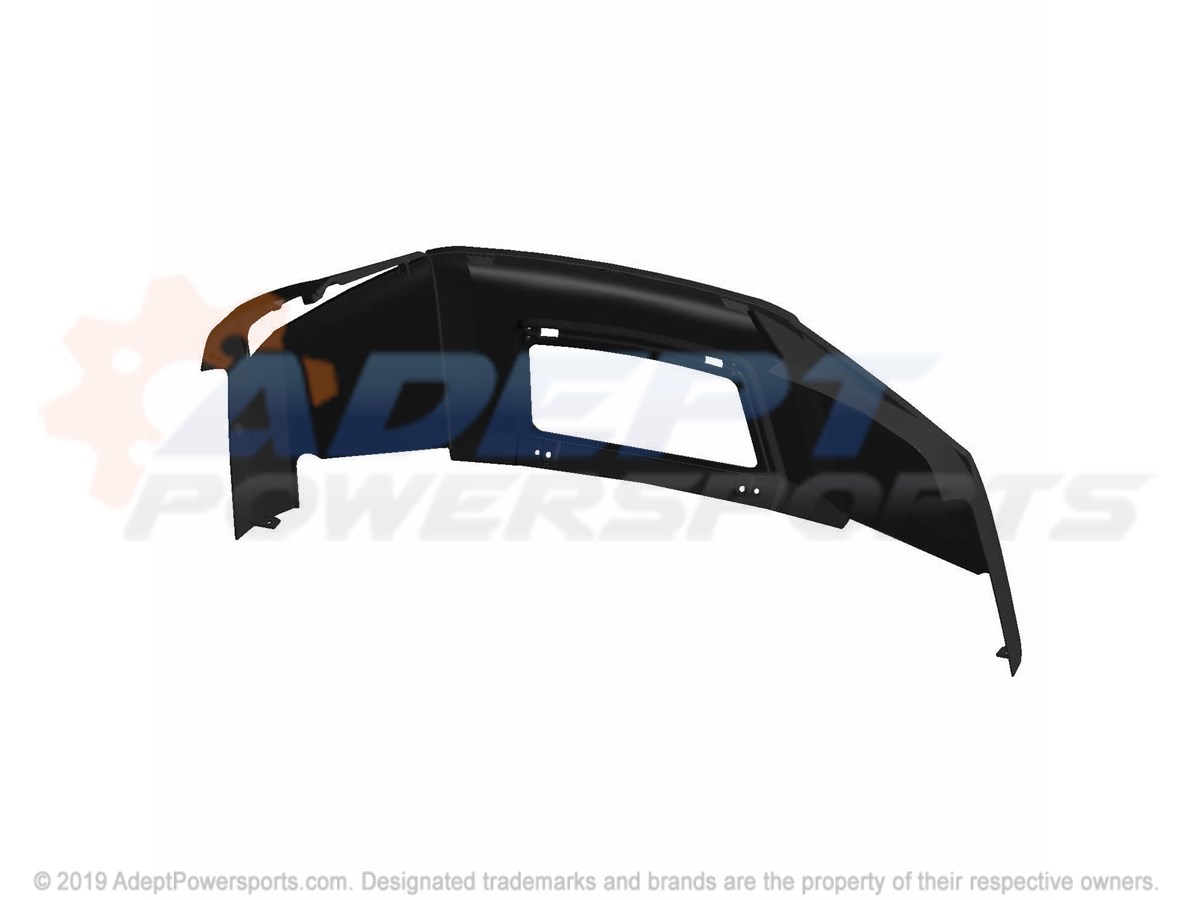

Polaris 5454491-293 Hood-Mz, Indy, Red

HOOD-MZ, INDY, RED

Part #: 5454491-293 Required per assembly: 1 Note: A15A7,B7
Currently Not Available
1
Polaris 5454491-560 Hood-Mz, Sagebrush, Green

HOOD-MZ, SAGEBRUSH, GREEN

Part #: 5454491-560 Required per assembly: 1 Note: A15A1,B1
Currently Not Available
2
Polaris 5454492-070 Hood-Center, Mz, Blk

HOOD-CENTER, MZ, BLK

Part #: 5454492-070 Required per assembly: 1
Currently Not Available
3

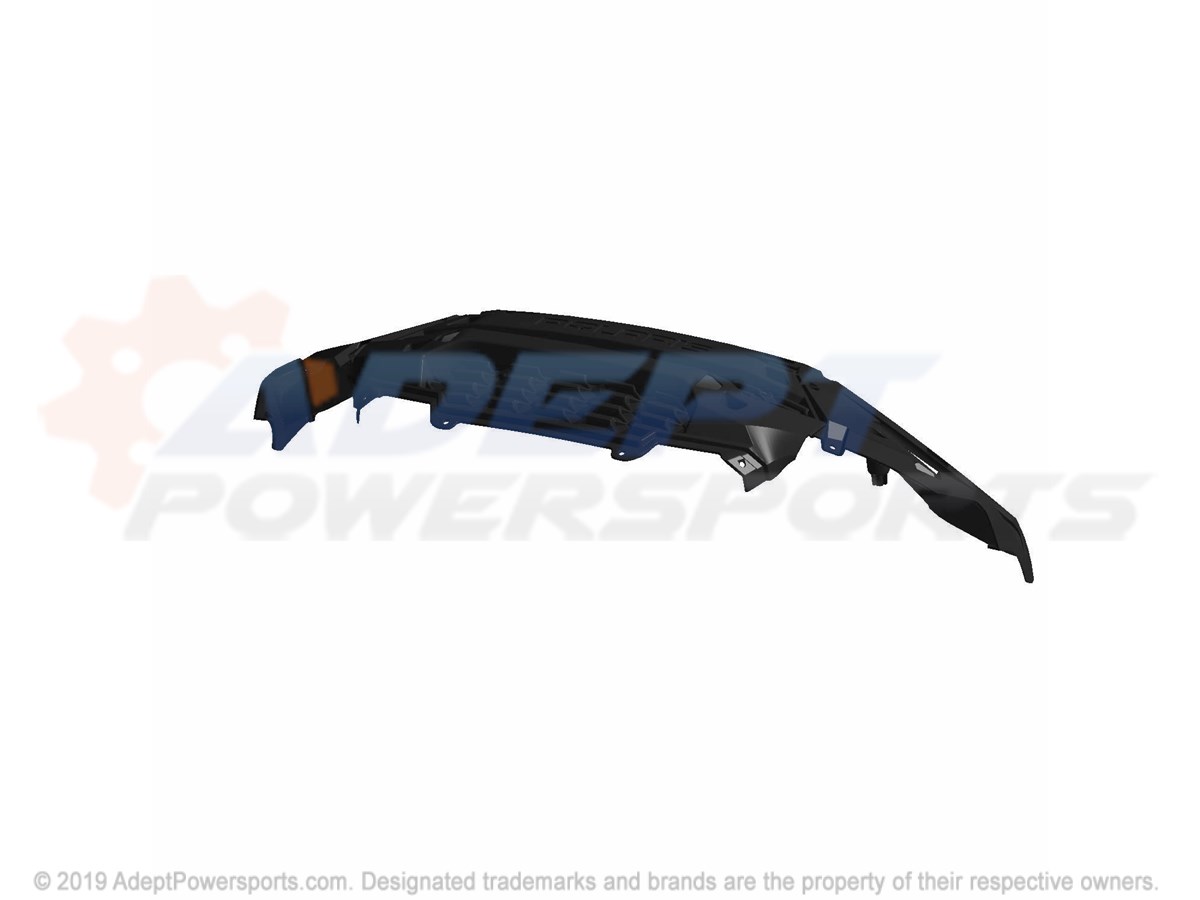

Polaris 5454490-070 Fascia-Front, Mz, Blk

FASCIA-FRONT, MZ, BLK

Part #: 5454490-070 Required per assembly: 1
Currently Not Available
4

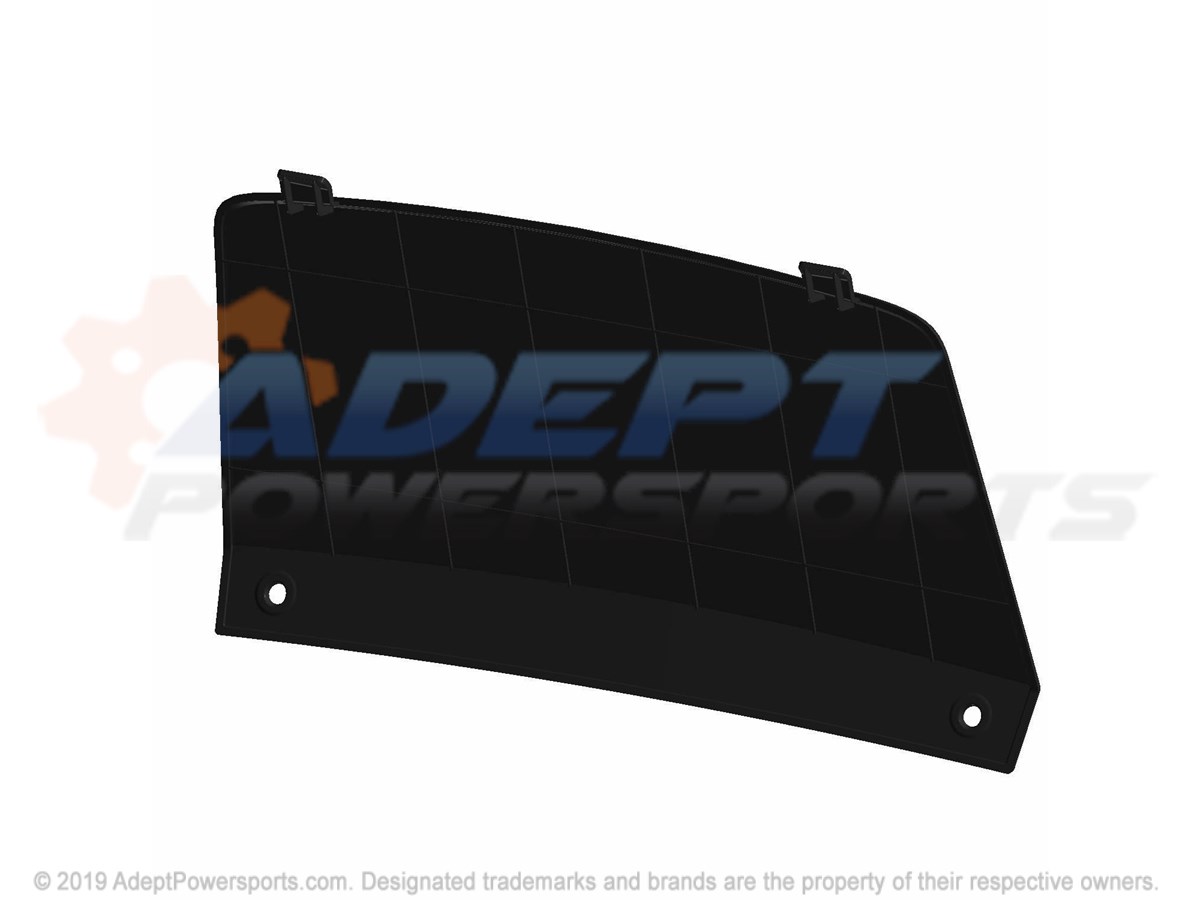

Polaris 5454488-070 Plate-Bash, Mz, Blk

PLATE-BASH, MZ, BLK

Part #: 5454488-070 Required per assembly: 1
Currently Not Available
5
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 6
Currently Not Available
6
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 26
$2.99
$1.73
-
+
Add to cart
