Brake Lines And Master Cylinder replacement parts for 2019 Polaris RZR XP Turbo S Velocity (R02)

OEM Parts Polaris 2019 Polaris RZR XP Turbo S Velocity (R02) Brake Lines And Master Cylinder

BRAKE LINES AND MASTER CYLINDER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
2	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available
3	ASSEMBLY, TANDEM, MASTER, CYLINDER Part #: 1911982 Required per assembly: 1 Note: INCL. 29-31 Currently Not Available

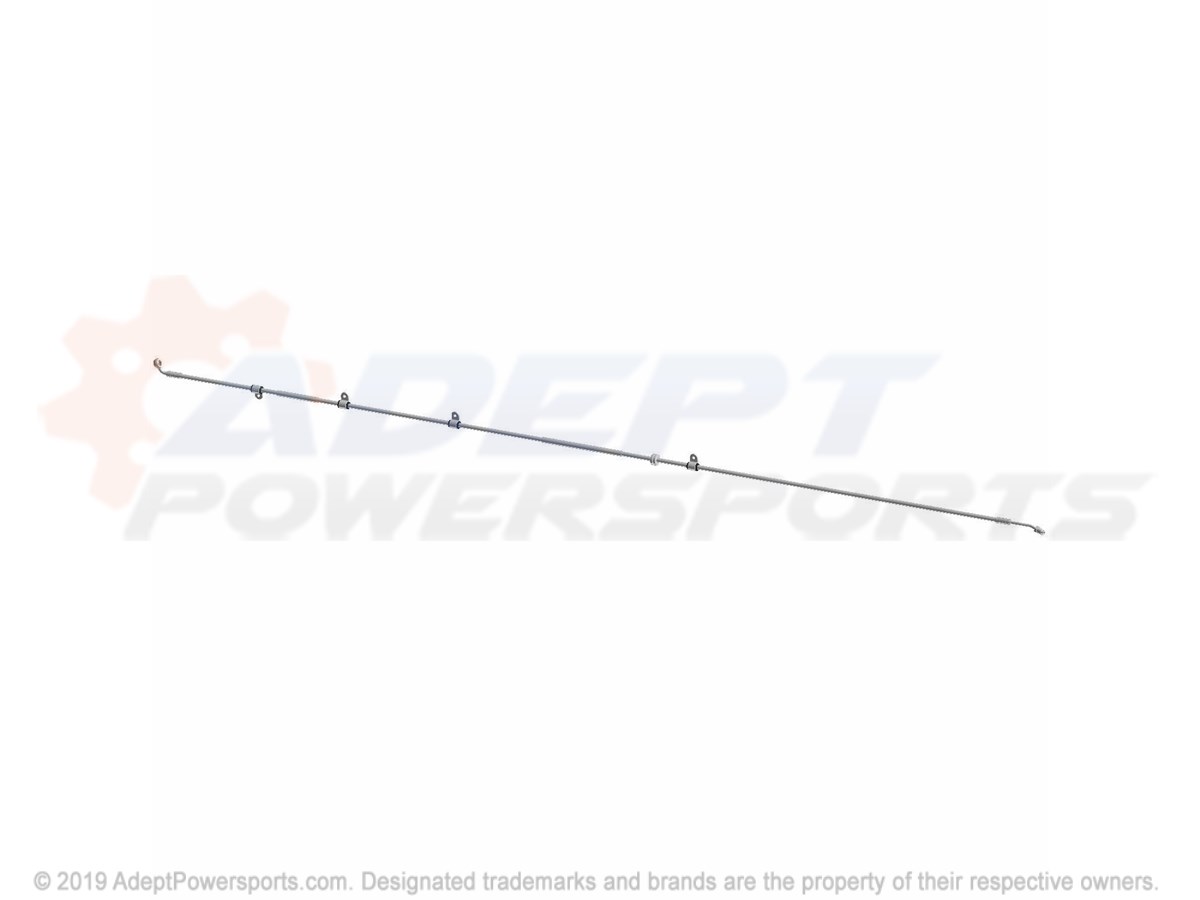

4	LINE-BRK, RL, 67", 20F, 20B, 150?, J Part #: 1913310 Required per assembly: 1 Currently Not Available
5	LINE-BRK, RR, 79.1, 90F, 20B, 100?J Part #: 1913311 Required per assembly: 1 Currently Not Available
6	LINE-BRK, MCT, 66.4, 70B, 20F, 250? Part #: 1912999 Required per assembly: 1 Currently Not Available
7	LINE-BRK, FL, 40, 20B, 90SB165, 235 Part #: 1913312 Required per assembly: 1 Currently Not Available
8	LINE-BRK, FR, 51.1, 70B, 90SB, 105? Part #: 1913313 Required per assembly: 1 Currently Not Available
9	SWITCH-BRK, M10X1.25, DBL Part #: 4081117 Required per assembly: 1 Currently Not Available
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
11	TEE, FITTING, BRAKE Part #: 7052293 Required per assembly: 1 Note: Fitting, Tee, Brake Currently Not Available
12	SHIELD-MASTER, CYL, APEX Part #: 5259049 Required per assembly: 1 Currently Not Available
13	GUIDE, RZR, 72, RL Part #: 5455263 Required per assembly: 1 Currently Not Available
14	GUIDE, RZR, 72, RR Part #: 5455264 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 7518530 Required per assembly: 4 Currently Not Available
16	SCREW Part #: 7519036 Required per assembly: 4 Currently Not Available
17	SCREW Part #: 7512025 Required per assembly: 2 Currently Not Available
18	SCREW Part #: 7518176 Required per assembly: 2 Note: Screw Currently Not Available
19	CLIP-NYLON, C, FIR-TREE Part #: 7662310 Required per assembly: 1 ~~$3.99~~ $2.30 - + Add to cart
20	SCREW, FLANGE Part #: 7519298 Required per assembly: 2 Currently Not Available
21	SCREW, FLANGE Part #: 7518559 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
22	BOLT Part #: 7518760 Required per assembly: 4 Note: Bolt Currently Not Available
23	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
24	RIVET Part #: 7621323 Required per assembly: 16 ~~$1.99~~ $1.35 - + Add to cart
25	SCRAPER, RZR, T, FRONT, LH Part #: 5633829 Required per assembly: 1 Currently Not Available
26	SCRAPER, RZR, T, FRONT, RH Part #: 5633830 Required per assembly: 1 Currently Not Available
27	WASHER Part #: 7555954 Required per assembly: 2 Note: Washer Currently Not Available
28	NUT, FLANGE Part #: 7547453 Required per assembly: 4 Currently Not Available
29	KIT, SERVICE., CAP, ASM. Part #: 2204993 Required per assembly: 1 Currently Not Available
30	KIT, NUT Part #: 2203457 Required per assembly: 1 Note: INCL 2 NUTS Currently Not Available
31	KIT, CLEVIS Part #: 2203456 Required per assembly: 1 Currently Not Available
