Front Shock Internals replacement parts for 2019 Polaris RZR XP Turbo S Velocity (R02)

OEM Parts Polaris 2019 Polaris RZR XP Turbo S Velocity (R02) Front Shock Internals

FRONT SHOCK INTERNALS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

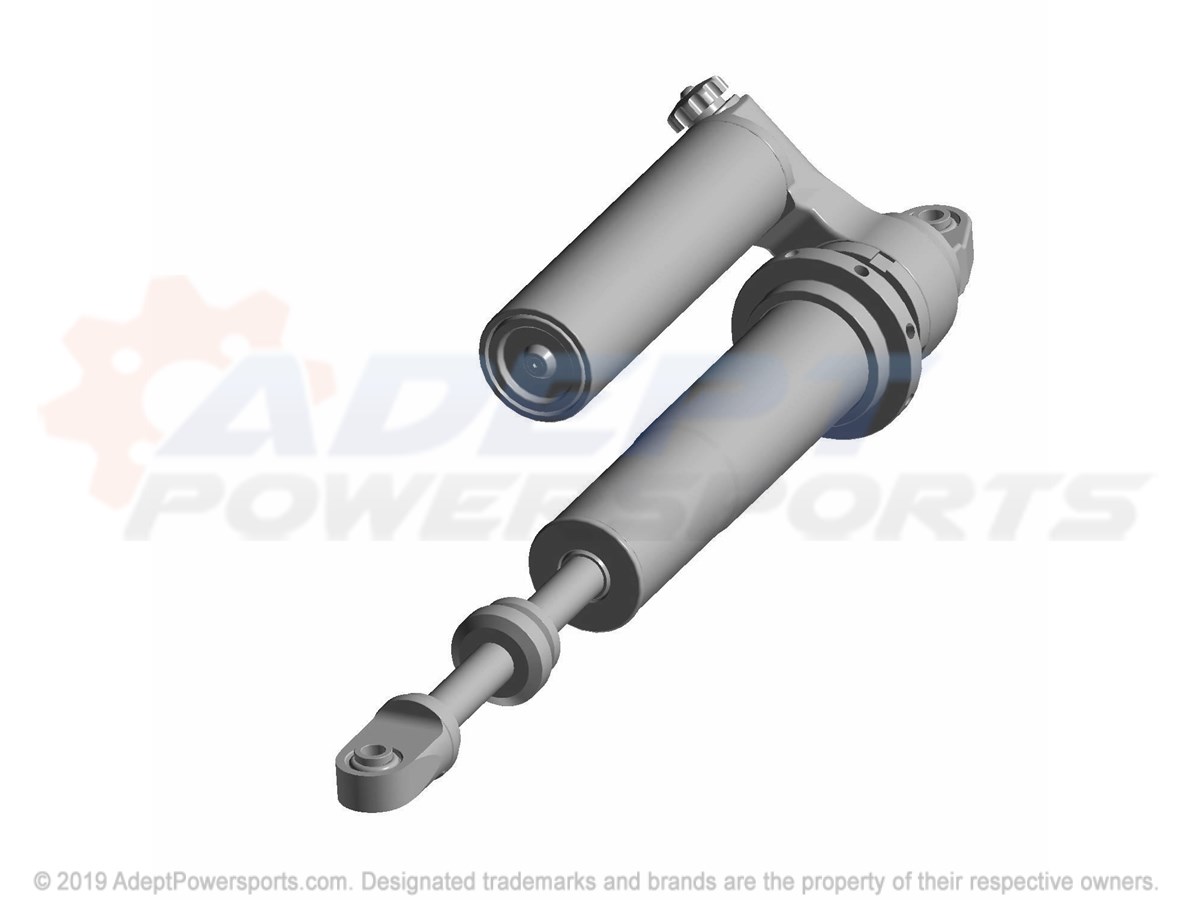

1	SHOCK-FRONT, LH Part #: 7045239 Required per assembly: 1 Note: INCL ALL Currently Not Available

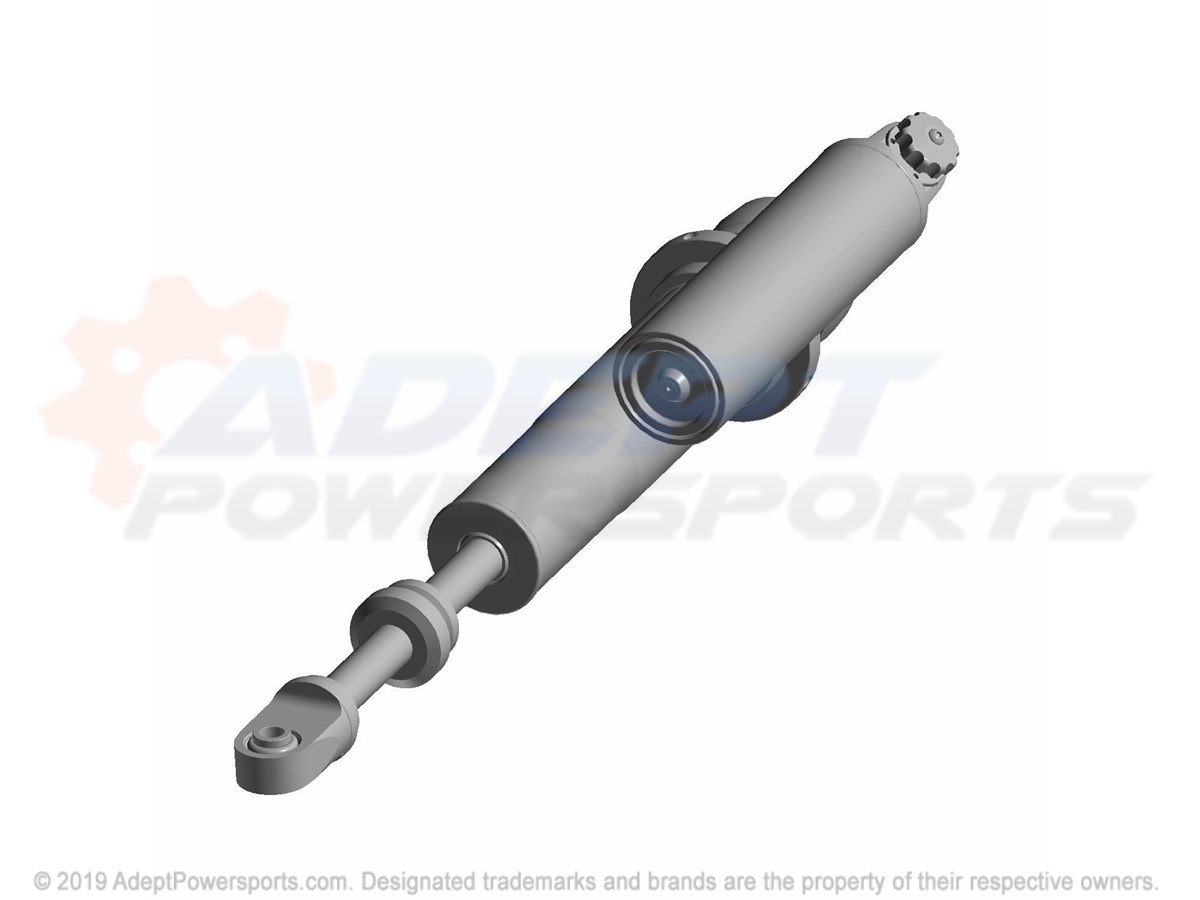

1	SHOCK-FRONT, RH Part #: 7045240 Required per assembly: 1 Note: INCL ALL Currently Not Available
2	BRIDGE, -, 2.5", ADJ, 1725034-AU Part #: 1800958 Required per assembly: 1 Currently Not Available
3	RES-2.5X8.5L CLR 1625035-HC Part #: 1800837 Required per assembly: 1 Currently Not Available
4	SHAFT, NEEDLE, .75, THD, .625, PIN Part #: 1800959 Required per assembly: 1 Currently Not Available
5	RES, PISTON, 2.5IN, ASM Part #: 1800752 Required per assembly: 1 Currently Not Available
6	NUT-SPRING, 2.5"CLR, 1425124-AC Part #: 1800836 Required per assembly: 1 Currently Not Available
7	ASM-SS, RET., NUT, GLD, 1125697-AG Part #: 1800857 Required per assembly: 1 Currently Not Available
8	2.5" JAM NUT Part #: 1801032 Required per assembly: 1 Currently Not Available
9	END, CAP-2.5", 1825001 Part #: 1800960 Required per assembly: 1 Currently Not Available
10	ASM-CHECK VALVE 1145712-4 Part #: 1800848 Required per assembly: 1 Currently Not Available
11	O-RING Part #: 1800497 Required per assembly: 2 Currently Not Available
12	O-RING(10) Part #: 1800095 Required per assembly: 1 Currently Not Available
13	O-RING Part #: 1800613 Required per assembly: 1 Currently Not Available
14	BUMPER Part #: 1800593 Required per assembly: 1 Currently Not Available
15	O-RING Part #: 1800508 Required per assembly: 1 Currently Not Available
16	O-RING Part #: 1800500 Required per assembly: 1 Currently Not Available
17	SHAFT, LOOP, 1.0935, BORE, BRNG, STEP, 2.930L Part #: 1800961 Required per assembly: 1 Currently Not Available
18	CAP-WIPER, 2.5", 1625025-AU Part #: 1800962 Required per assembly: 1 Currently Not Available
19	ASM-SEAL, HEAD, 2.5", 1825024 Part #: 1800963 Required per assembly: 1 Currently Not Available
20	RING-RETAINING, 2.5', 1625029 Part #: 1800847 Required per assembly: 3 Currently Not Available
21	WIRE RING 2.48X.062 1525023 Part #: 1800846 Required per assembly: 1 Currently Not Available
22	RETAINER-SPRING, CAST Part #: 5634606 Required per assembly: 1 Currently Not Available
23	O-RING, 2-202, 1600078 Part #: 1800964 Required per assembly: 1 Currently Not Available
24	SCREW-#8 LOW HD 1600025 Part #: 1800843 Required per assembly: 1 Currently Not Available
25	O-RING Part #: 1800503 Required per assembly: 1 Currently Not Available
26	O-RING, 2-122, 1525061 Part #: 1800965 Required per assembly: 1 Currently Not Available
28	BEARING HCOM9T-12MM Part #: 1800880 Required per assembly: 2 Currently Not Available
29	RING-RETAINING, 1200207 Part #: 1800966 Required per assembly: 2 Currently Not Available
30	O-RING Part #: 1800810 Required per assembly: 4 Currently Not Available
31	PISTON ASSEMBLY Part #: 1800969 Required per assembly: 1 Currently Not Available
32	NUT, FLEXLOC, THIN, 5/8-18 Part #: 1800970 Required per assembly: 1 Currently Not Available
33	CHECK, VALVE, 2, PIECE, .875, SHAFT, X, .625L, .052, BLEED Part #: 1800996 Required per assembly: 1 Currently Not Available
34	BODY, 2.5, CO, IMP, EXT Part #: 1800957 Required per assembly: 1 Currently Not Available
