Cab Frame replacement parts for 2019 Polaris RZR XP Turbo S Velocity (R02)

OEM Parts Polaris 2019 Polaris RZR XP Turbo S Velocity (R02) Cab Frame

CAB FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-BOLSTER, LH, BLK Part #: 1022468-458 Required per assembly: 1 Currently Not Available
2	WELD-BOLSTER, RH, BLK Part #: 1022469-458 Required per assembly: 1 Currently Not Available
3	WELD-ROPS, MNT, SEATBELT, BLK Part #: 1023678-458 Required per assembly: 1 Currently Not Available

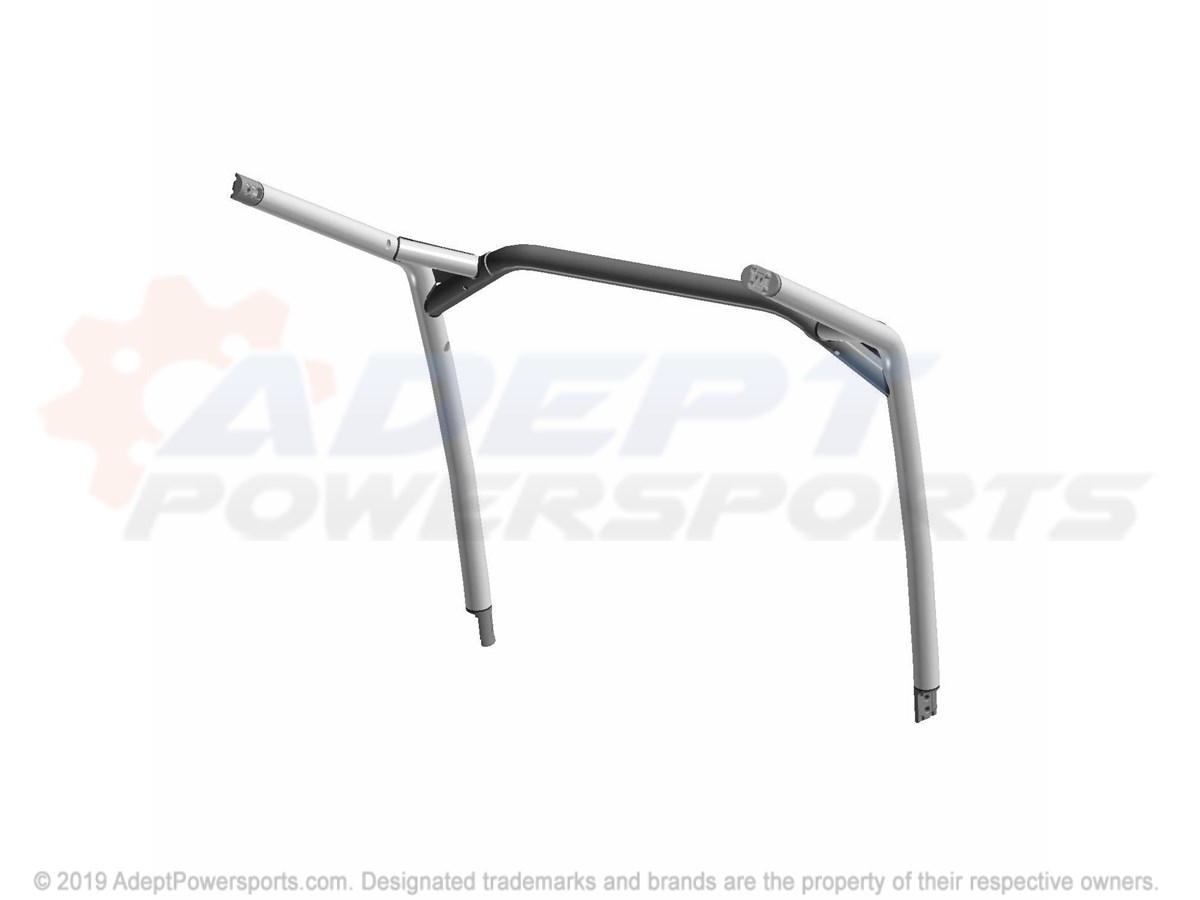

4	WELD-ROPS, FRONT, BLK Part #: 1025087-458 Required per assembly: 1 Currently Not Available

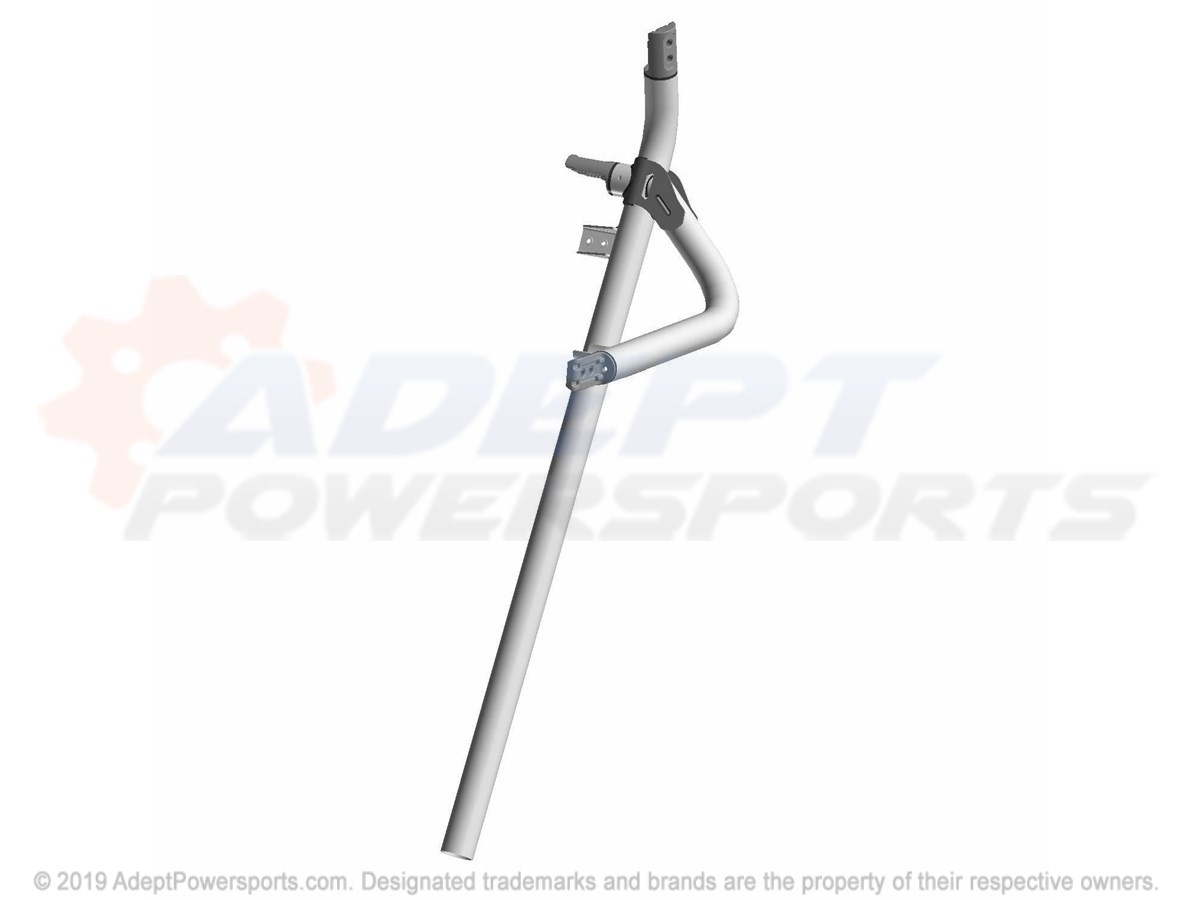

5	WELD-ROPS, REAR, LH, BLK Part #: 1024890-458 Required per assembly: 1 Currently Not Available

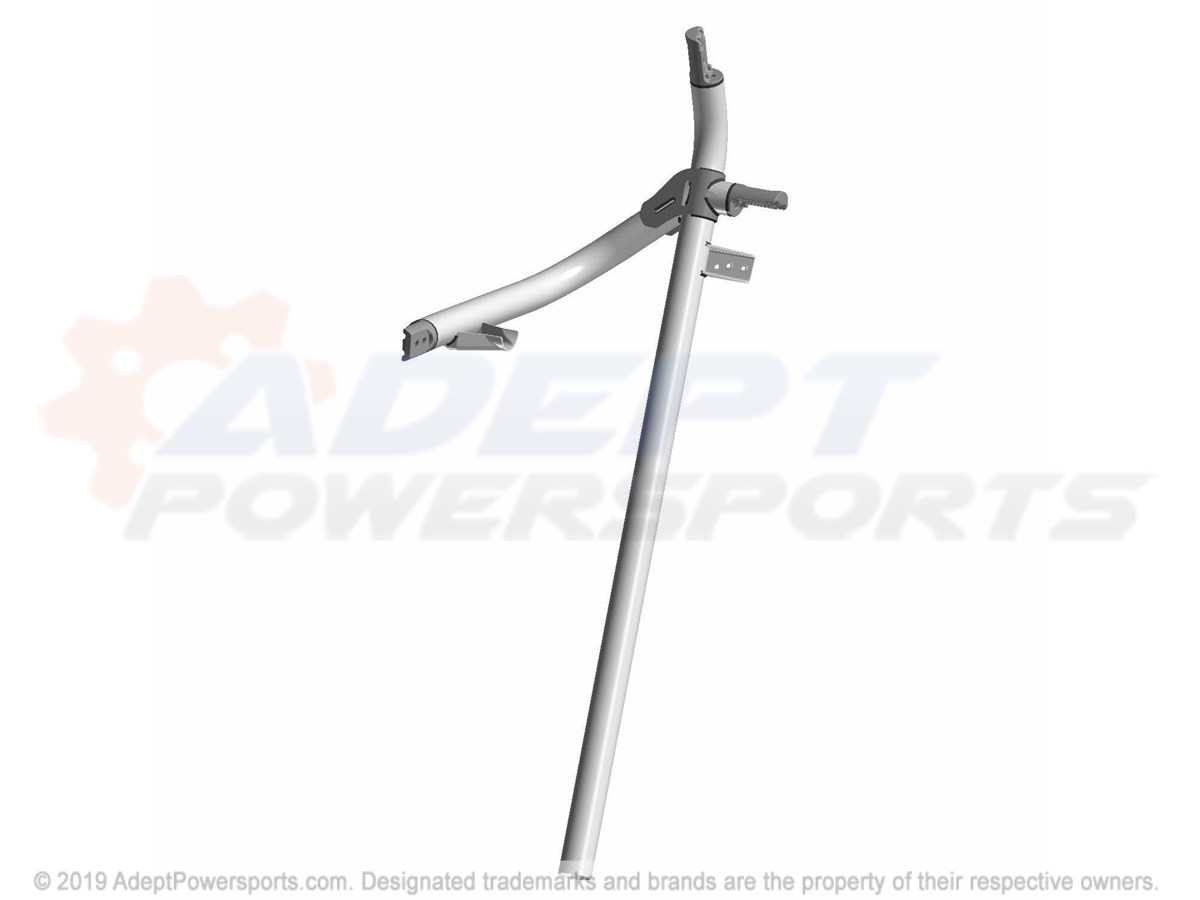

6	WELD-ROPS, REAR, RH, BLK Part #: 1024891-458 Required per assembly: 1 Currently Not Available
7	WELD-ROPS, REAR, C, BLK Part #: 1024892-458 Required per assembly: 1 Currently Not Available
8	O-RING Part #: 5412220 Required per assembly: 2 Currently Not Available
9	BRKT-MOUNT, ROPS, LH, BLK Part #: 5634097-458 Required per assembly: 1 Currently Not Available
10	BRKT-MOUNT, ROPS, RH, BLK Part #: 5634098-458 Required per assembly: 1 Currently Not Available
11	SCREW, FLANGE Part #: 7518450 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7519906 Required per assembly: 10 Currently Not Available
13	SCREW Part #: 7519956 Required per assembly: 4 Currently Not Available
14	NUT-HXFL-M10X1.5 8 ZB3 NYL Part #: 7520117 Required per assembly: 10 Currently Not Available
15	SCR-HXFL-M10X1.5X55 10.0 ZPB Part #: 7520212 Required per assembly: 8 Currently Not Available
16	SCR-HXFL-M10X1.5X75 10.9 ZPB Part #: 7520488 Required per assembly: 2 Currently Not Available
17	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
18	NUT-HEX-M10X1.5 10 ZB3 NYL Part #: 7547746 Required per assembly: 8 Currently Not Available
