Front Fascia replacement parts for 2019 Polaris RZR RS1 (R03)

OEM Parts Polaris 2019 Polaris RZR RS1 (R03) Front Fascia

FRONT FASCIA Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

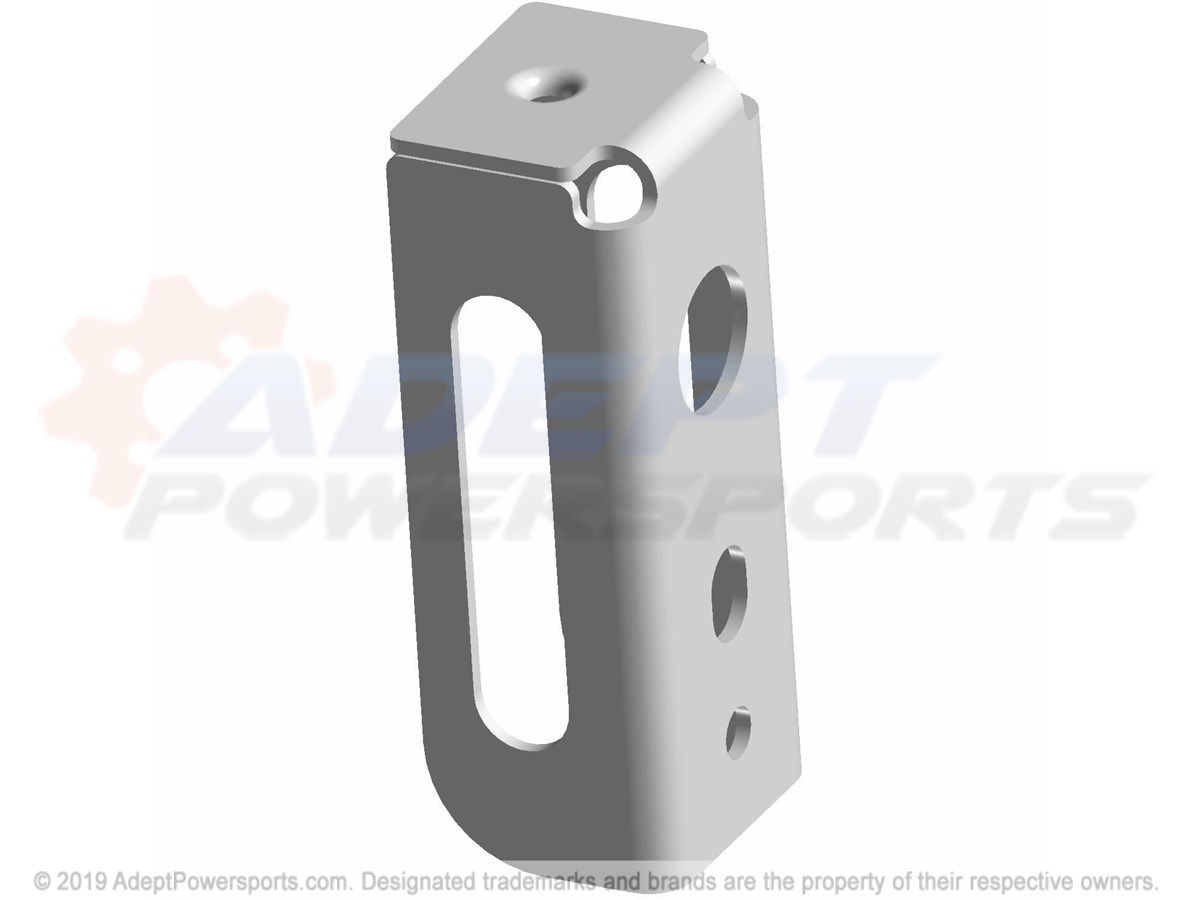

1	BRKT-FRONT, FASCIA, MNT, BLK Part #: 5264118-458 Required per assembly: 2 Currently Not Available

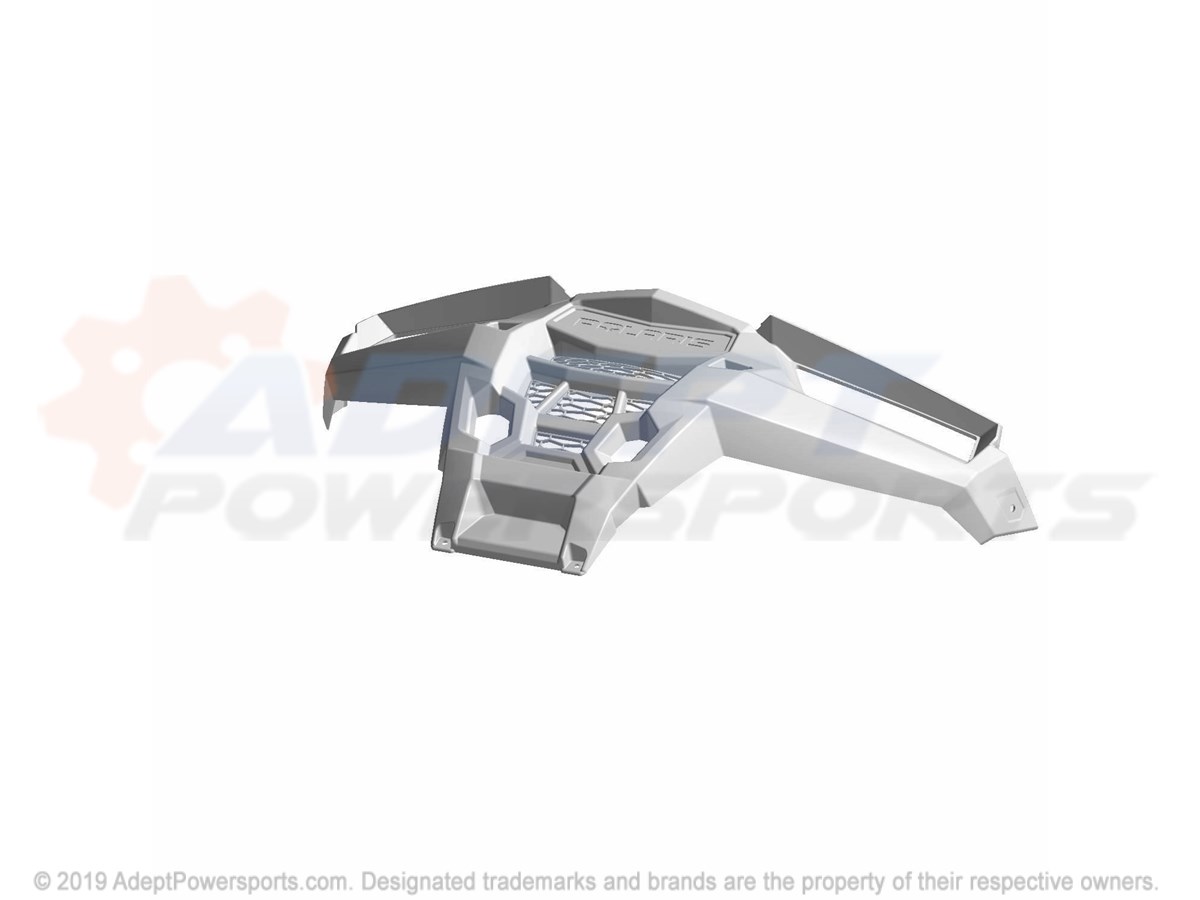

2	FASCIA-FRONT, BLK Part #: 5453951-070 Required per assembly: 1 Currently Not Available

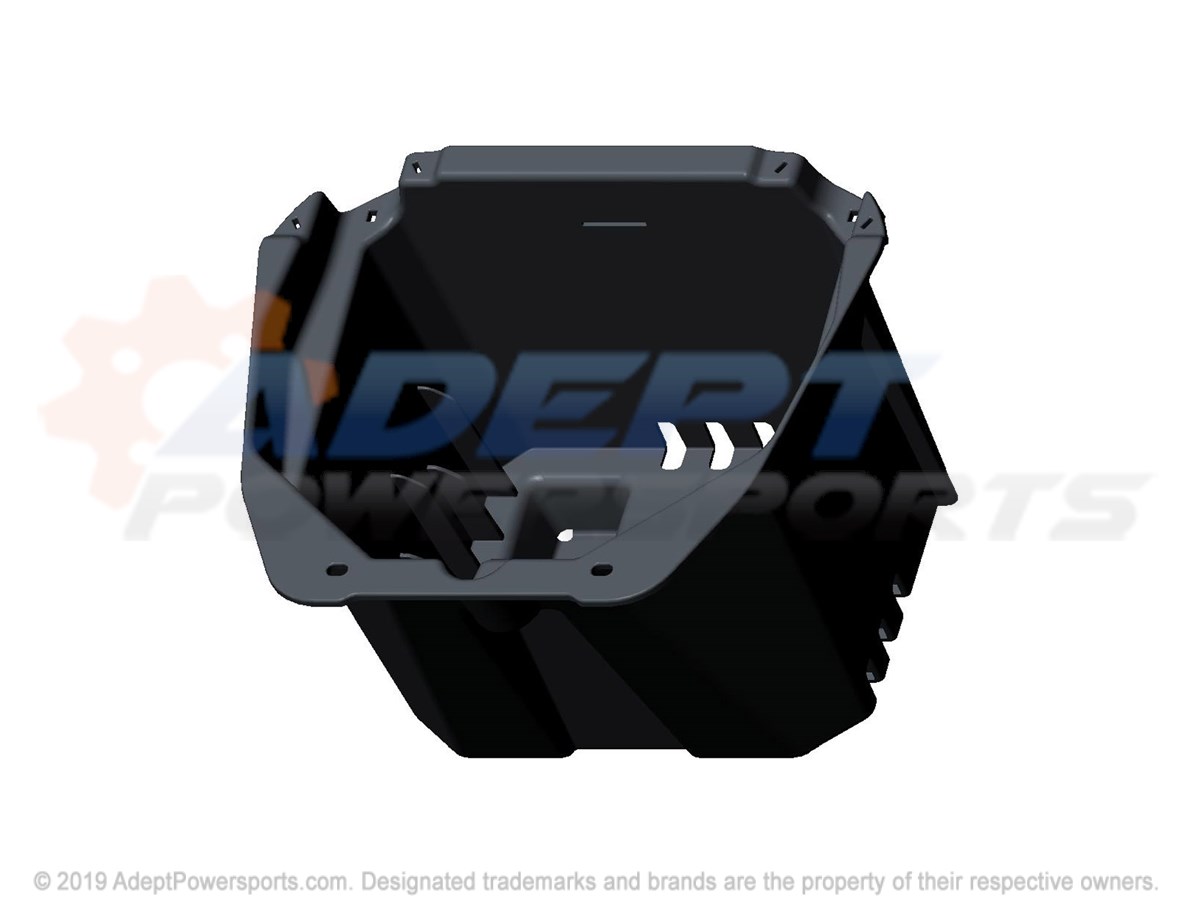

3	BOX-BATTERY, BLK Part #: 5453977-070 Required per assembly: 1 Currently Not Available
4	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
5	SCREW Part #: 7519650 Currently Not Available
6	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart

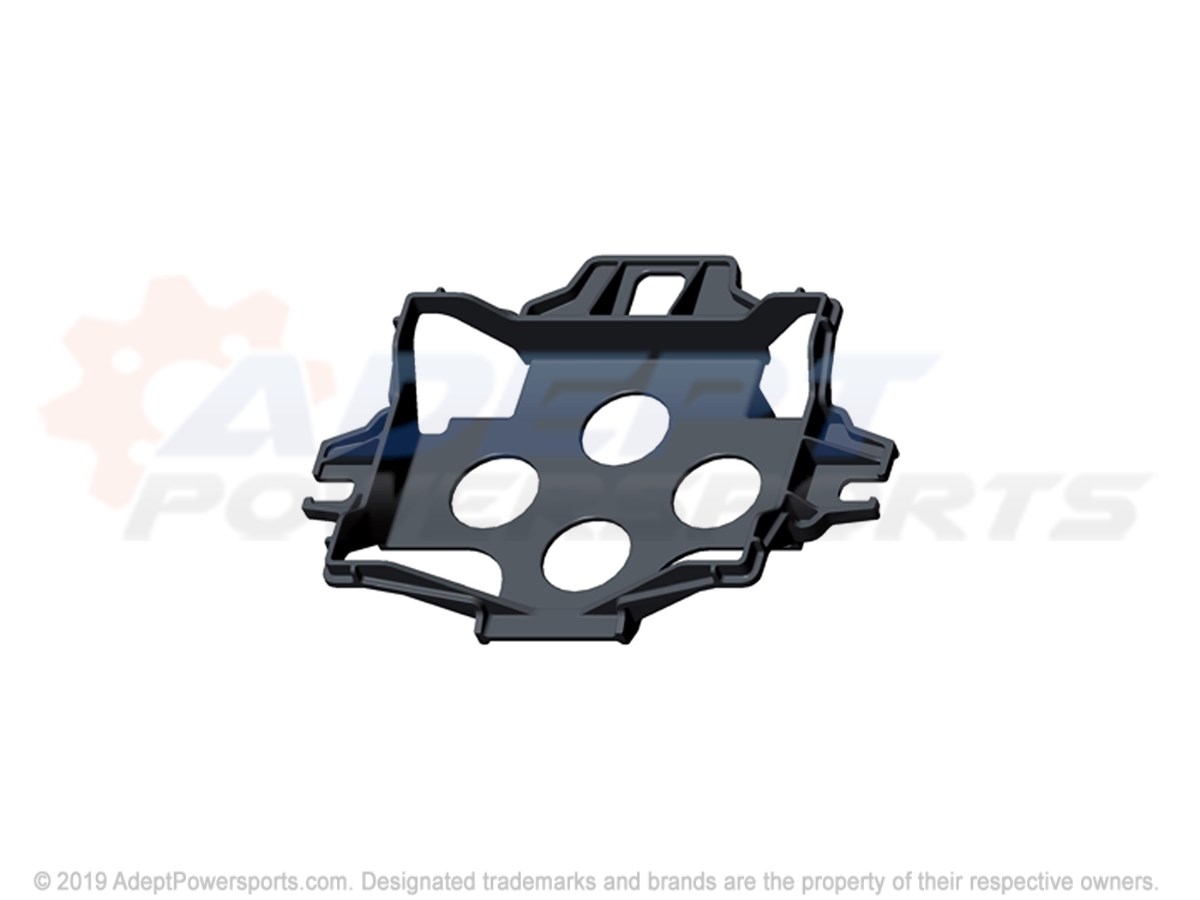

7	TRAY-BATTERY, BLK Part #: 5455328-070 Required per assembly: 1 Currently Not Available
