Power Steering Asm. replacement parts for 2019 Polaris RZR RS1 (R03)

OEM Parts Polaris 2019 Polaris RZR RS1 (R03) Power Steering Asm.

POWER STEERING ASM. Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-GEAR, BOX, STEERING, 1.5T Part #: 1824709 Required per assembly: 1 Note: INCL. 2-8 Currently Not Available
2	BOOT-DRIVER, SIDE, RACK Part #: 5416438 Required per assembly: 1 Currently Not Available
3	BOOT, PASSENGER, SIDE, RACK Part #: 5412013 Required per assembly: 1 Currently Not Available
4	ROD-END, TAPERED, RH Part #: 7061216 Required per assembly: 1 Currently Not Available
5	ROD-END, TAPERED, LH Part #: 7061215 Required per assembly: 1 Currently Not Available
6	CLAMP-BOOT, SMALL Part #: 7082150 Required per assembly: 2 Currently Not Available
7	CLAMP, BOOT, LARGE Part #: 7080979 Required per assembly: 2 Currently Not Available
8	NUT, JAM Part #: 2205058 Required per assembly: 2 Currently Not Available
9	NUT-M10X1.25-HX-LOCK-Y Part #: 7547177 Required per assembly: 4 Note: Nut Currently Not Available

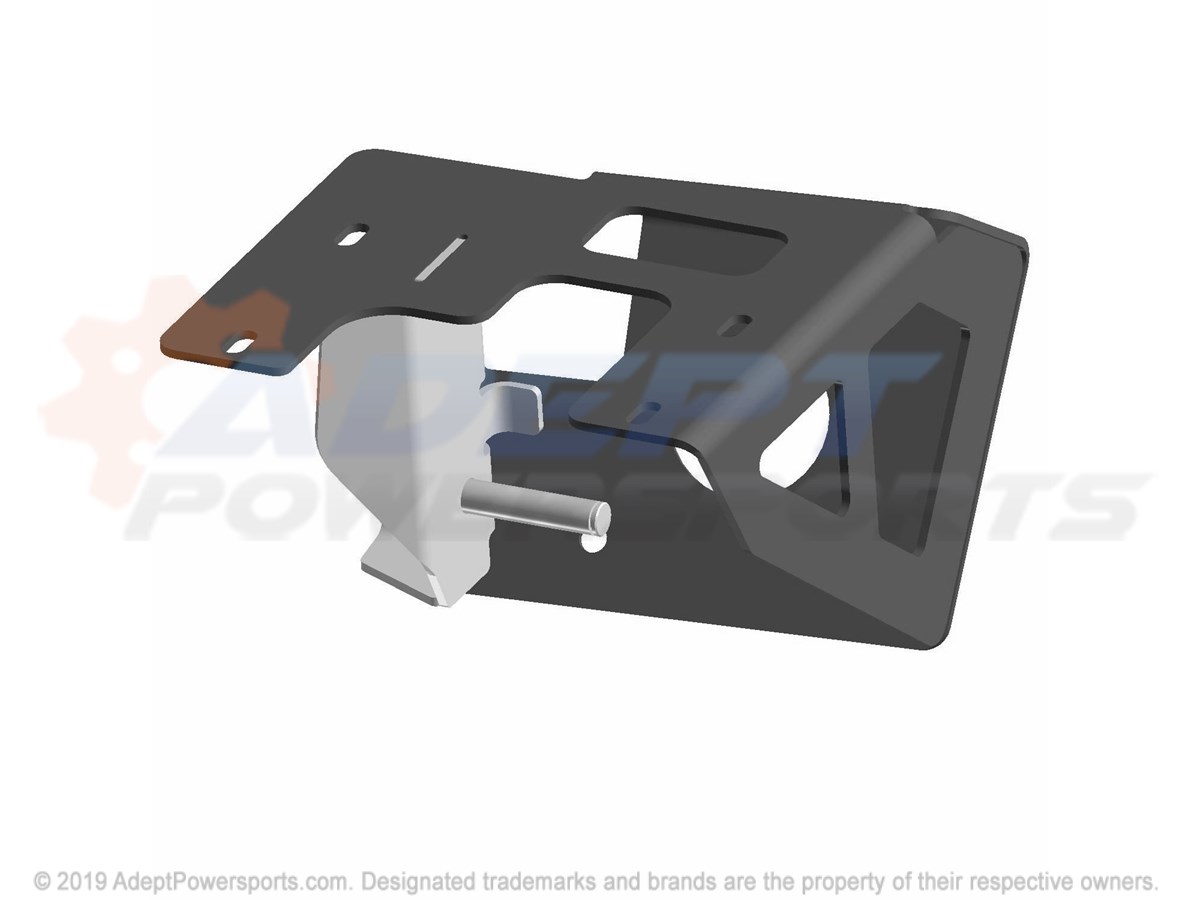

10	WELD-PEDAL, EPS, MNT, ECOAT Part #: 1024181-329 Required per assembly: 1 Currently Not Available
11	WHEEL-STEERING, 14" Part #: 1824212 Required per assembly: 1 Currently Not Available

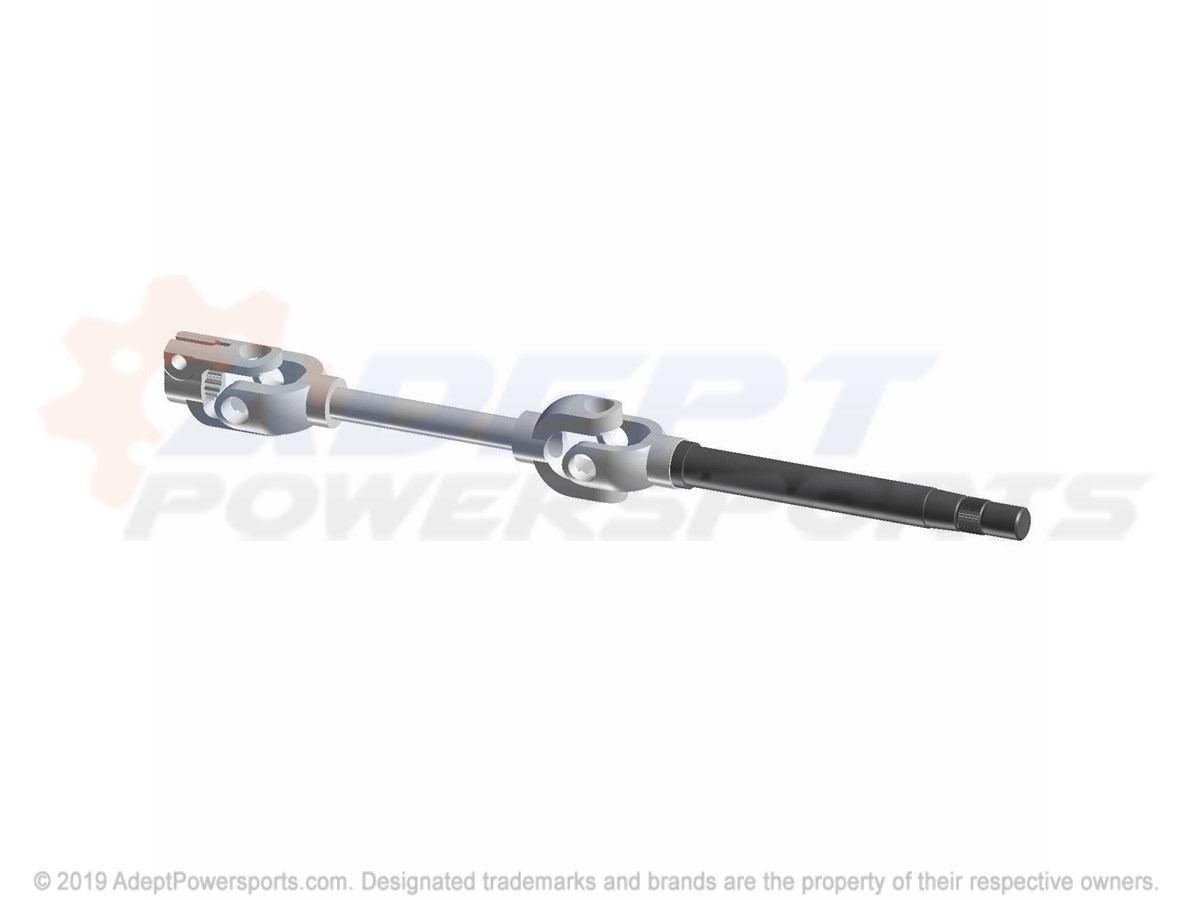

12	SHAFT-STEERING, UPPER Part #: 1824503 Required per assembly: 1 Currently Not Available
13	SHAFT-STEERING, LWR, EPS Part #: 1824504 Required per assembly: 1 Currently Not Available

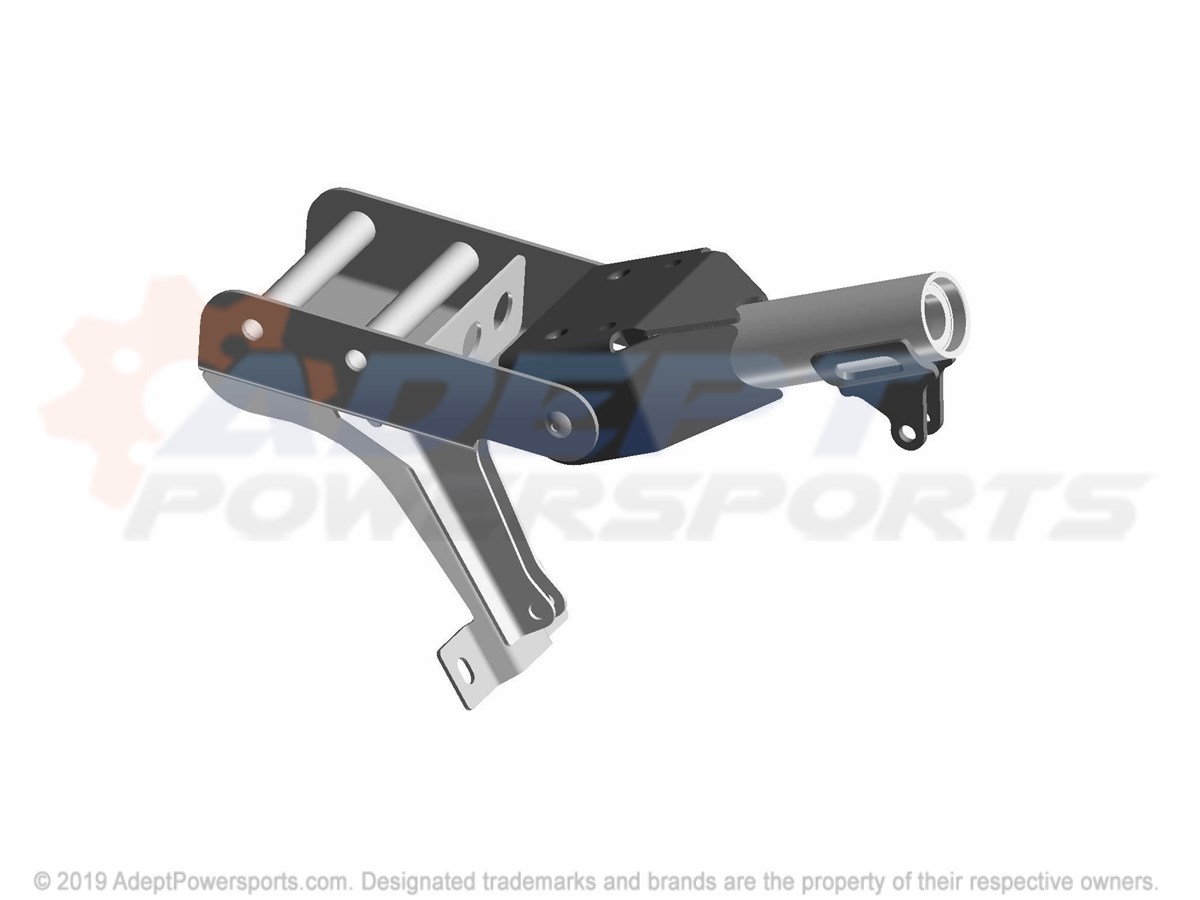

14	ASM-TILT, STEERING, RVTD, M10, BLK Part #: 1824617-458 Required per assembly: 1 Note: INCL 15 Currently Not Available
15	BEARING-STEERING Part #: 3514686 Required per assembly: 2 Currently Not Available
16	NUT, NYLOK Part #: 7547334 Required per assembly: 2 Currently Not Available
17	ASM-POWER, STEERING, RZR, XP, 1.5T Part #: 2413630 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
19	SCREW Part #: 7518558 Required per assembly: 3 Note: Bolt, Flange Currently Not Available
20	SCREW Part #: 7518644 Required per assembly: 1 Currently Not Available
21	SCREW Part #: 7519052 Required per assembly: 2 Currently Not Available
22	NUT, FLANGE Part #: 7547332 Required per assembly: 6 Note: Nut, Nylok Currently Not Available
23	NUT, NYLOK Part #: 7547385 Required per assembly: 1 Currently Not Available
24	BUSHING, STEERING Part #: 7556675 Required per assembly: 2 Currently Not Available
25	SCREW Part #: 7518665 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
26	NUT, FLANGE Part #: 7547333 Required per assembly: 2 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
27	NUT-HEX-M16X2 8 ZC NYL Part #: 7547506 Required per assembly: 1 Currently Not Available
28	ASSEMBLY, SHOCK, OIL, LOCKING Part #: 7044098 Required per assembly: 1 Currently Not Available
29	BOLT-SHOULDER, M8-15, M6X1.0-BLK Part #: 7519980 Required per assembly: 2 Currently Not Available
30	NUT, METRIC Part #: 7546703 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
31	CAP-STEERING WHEEL Part #: 5451356 Required per assembly: 1 ~~$30.99~~ $18.17 - + Add to cart
