Headlights And Taillights replacement parts for 2019 Polaris RZR RS1 (R03)

OEM Parts Polaris 2019 Polaris RZR RS1 (R03) Headlights And Taillights

HEADLIGHTS AND TAILLIGHTS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

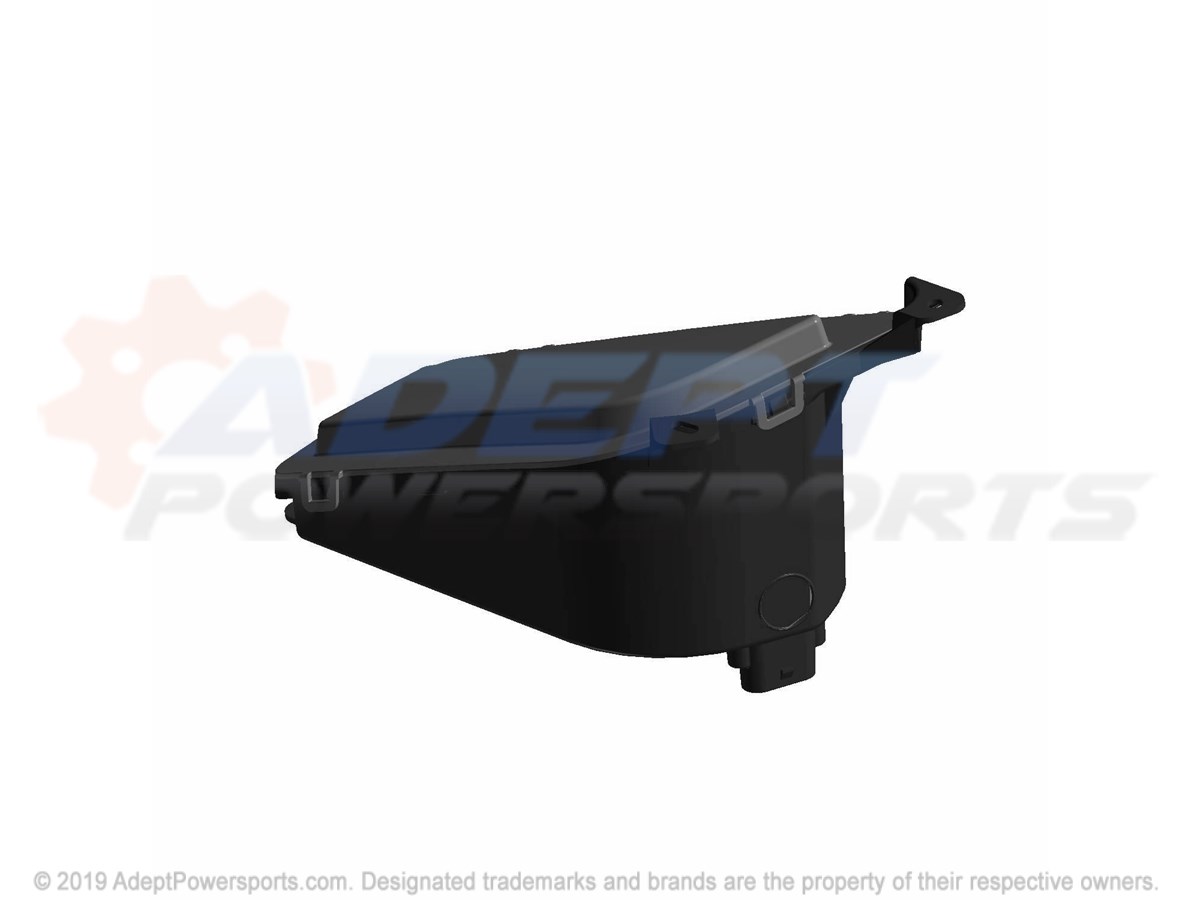

1	ASM-HEADLIGHT, BUMPER, LED, LH, B Part #: 2413949 Required per assembly: 1 Currently Not Available

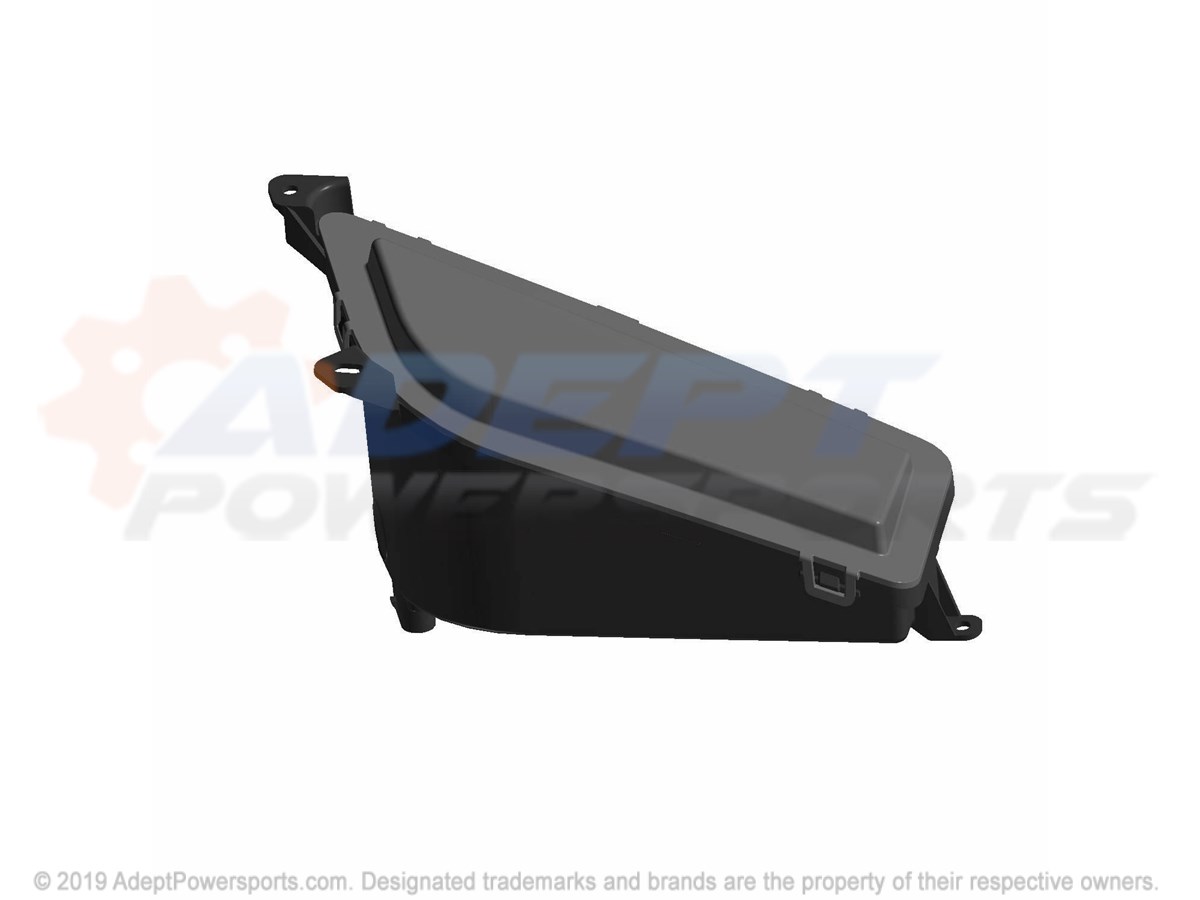

2	ASM-HEADLIGHT, BUMPER, LED, RH, B Part #: 2413950 Required per assembly: 1 Currently Not Available
3	SPRING-HEADLIGHT Part #: 7043816 Required per assembly: 6 Currently Not Available
4	SCREW Part #: 7512078 Required per assembly: 6 ~~$1.99~~ $1.15 - + Add to cart
5	ASM-TAILLIGHT, CENTER Part #: 2413431 Required per assembly: 1 Currently Not Available
6	NUT, PUSH-ON Part #: 7670054 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
