Center Console, Front replacement parts for 2020 Polaris General 1000 XP 4P (R05)

OEM Parts Polaris 2020 Polaris General 1000 XP 4P (R05) Center Console, Front

CENTER CONSOLE, FRONT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-CONSOLE, CNTR, TOP, CLIP, BLK Part #: 2636202-070 Required per assembly: 1 Currently Not Available
2	NUT, U-TYPE Part #: 7547674 $2.99 $1.73 - + Add to cart
3	HOLDER, CUP Part #: 5436836 Required per assembly: 2 Currently Not Available

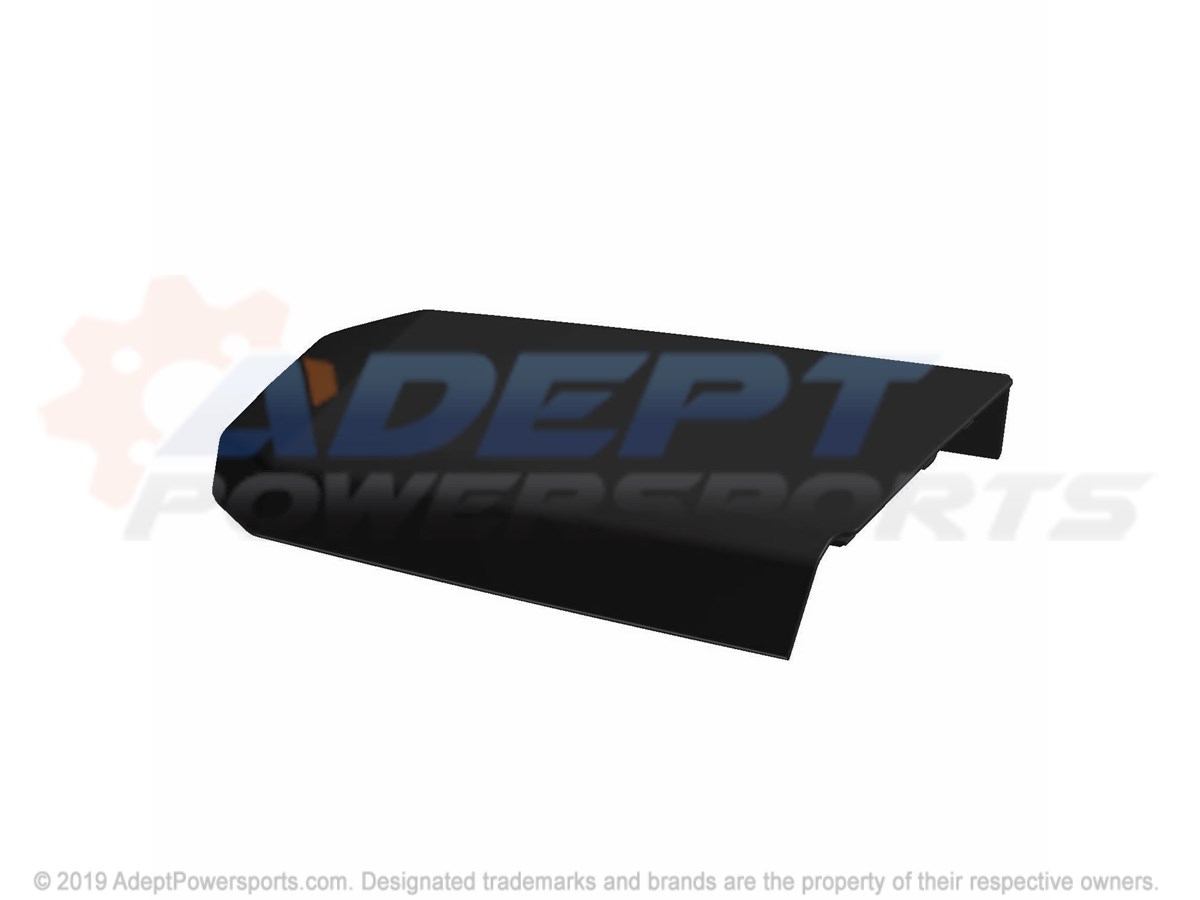

4	CONSOLE-CENTER, COVER, BLK Part #: 5452204-070 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7519650 Currently Not Available
6	K-CONSOLE, CNTR, TOP, GEN, 4 Part #: 2207938 Required per assembly: 1 Note: INCL WARNING DECALS Currently Not Available
7	SCREW Part #: 7512026 Required per assembly: 2 Note: Screw Currently Not Available
8	GROMMET Part #: 5412504 Required per assembly: 1 Currently Not Available

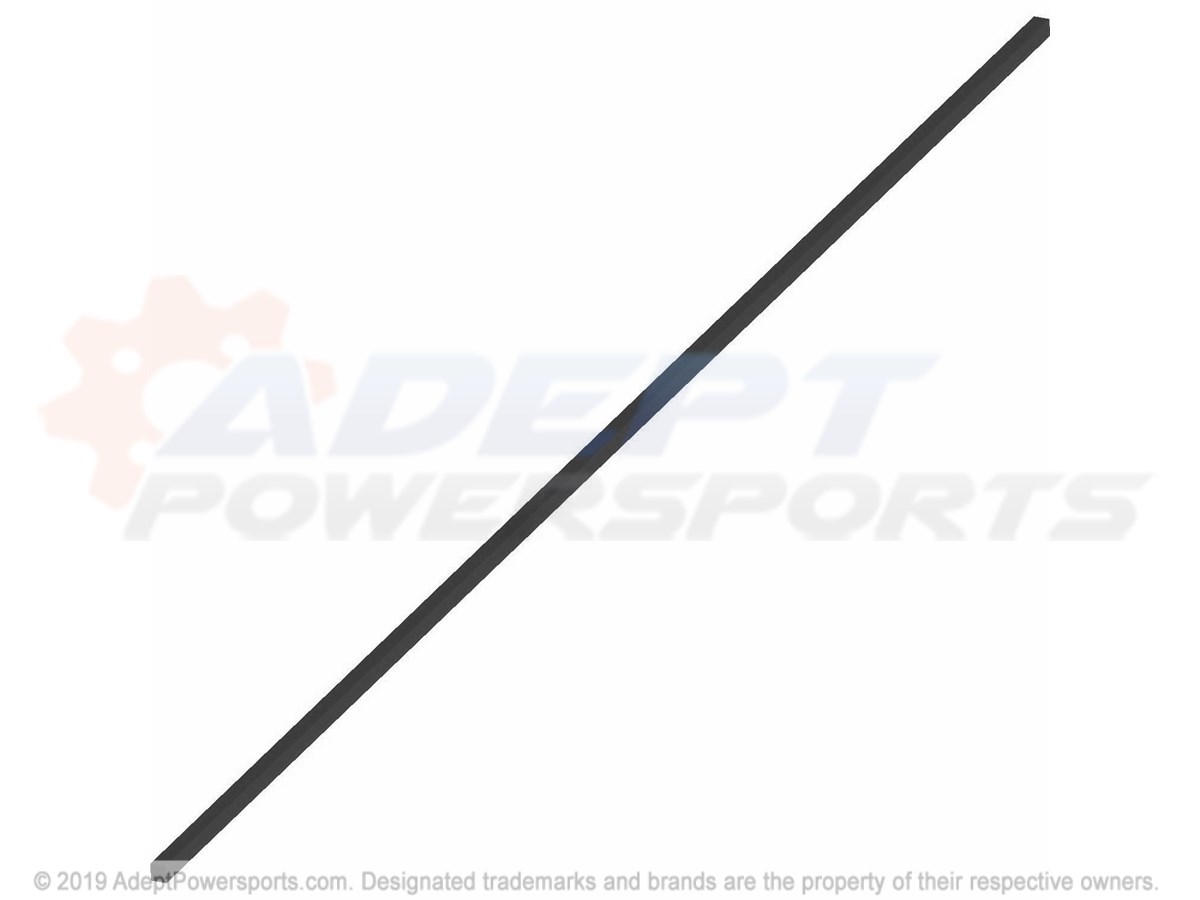

9	SEAL-CONSOLE, CENTER Part #: 5522051 Required per assembly: 1 Currently Not Available
10	PLUG Part #: 5412981 Required per assembly: 1 Currently Not Available

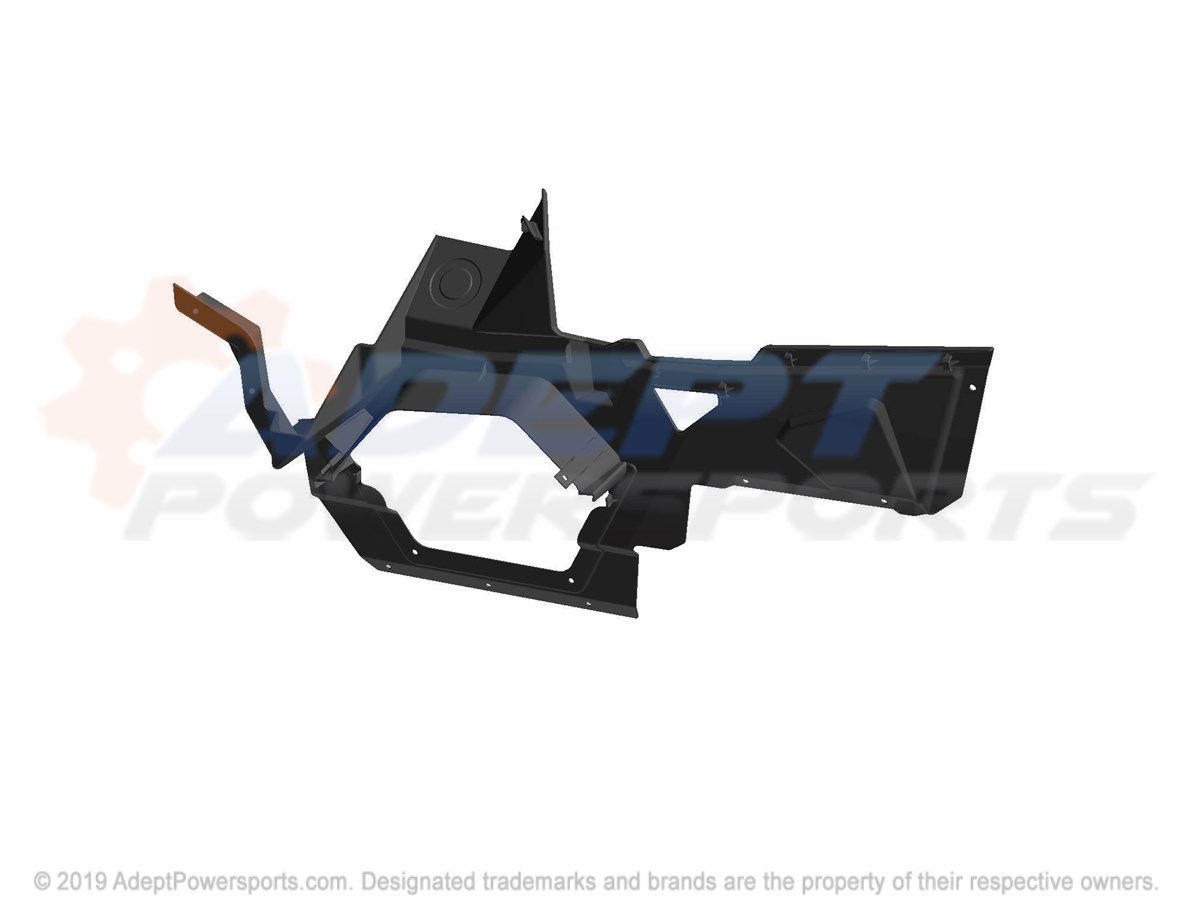

11	CONSOLE-CENTER, RH, BLK Part #: 5452203-070 Required per assembly: 1 Note: TO 4/20/2020 Currently Not Available
11	CONSOLE-CENTER, RH, BLK Part #: 5452203-070 Required per assembly: 1 Note: FROM 4/20/2020 Currently Not Available

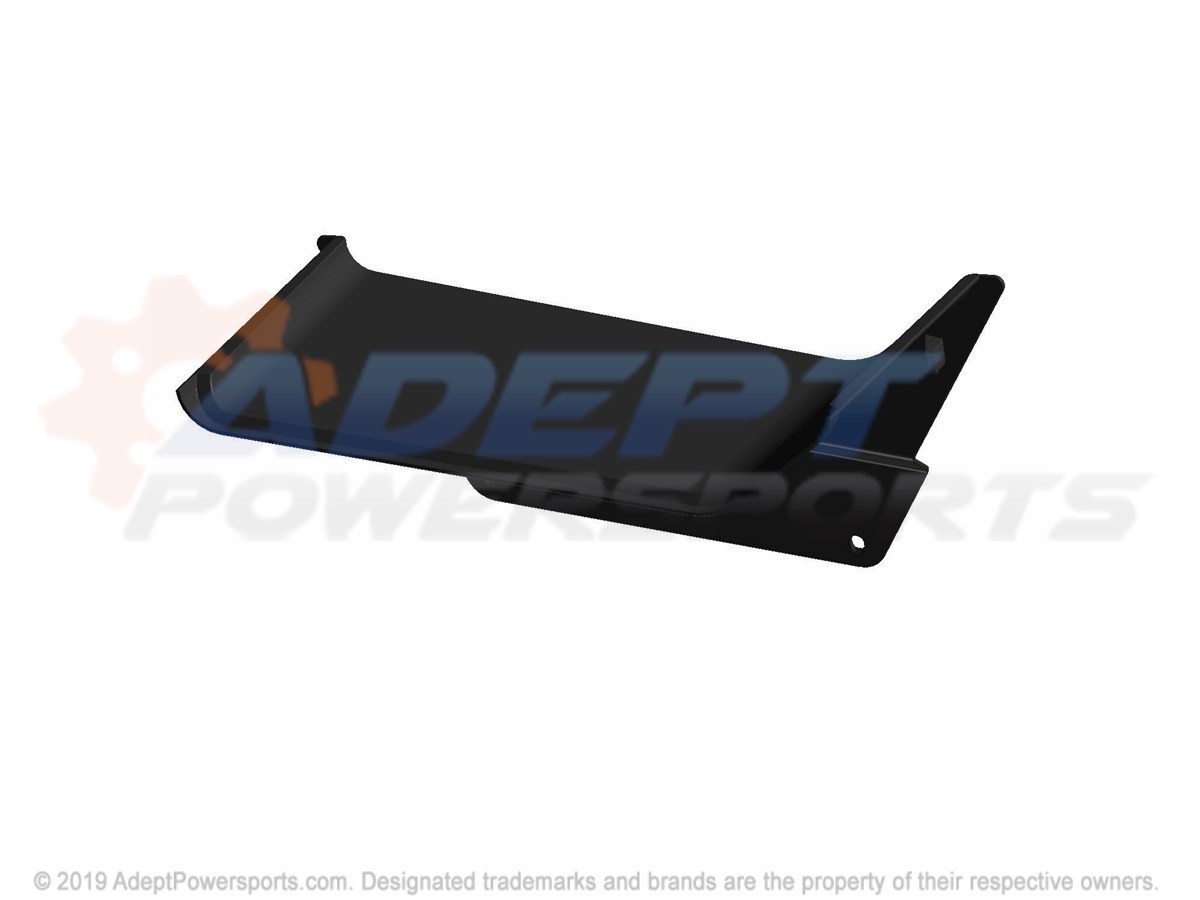

12	PANEL-CONSOLE, SERVICE, BLK Part #: 5451796-070 Required per assembly: 1 Currently Not Available
13	RIVET Part #: 7661855 $2.99 $1.73 - + Add to cart

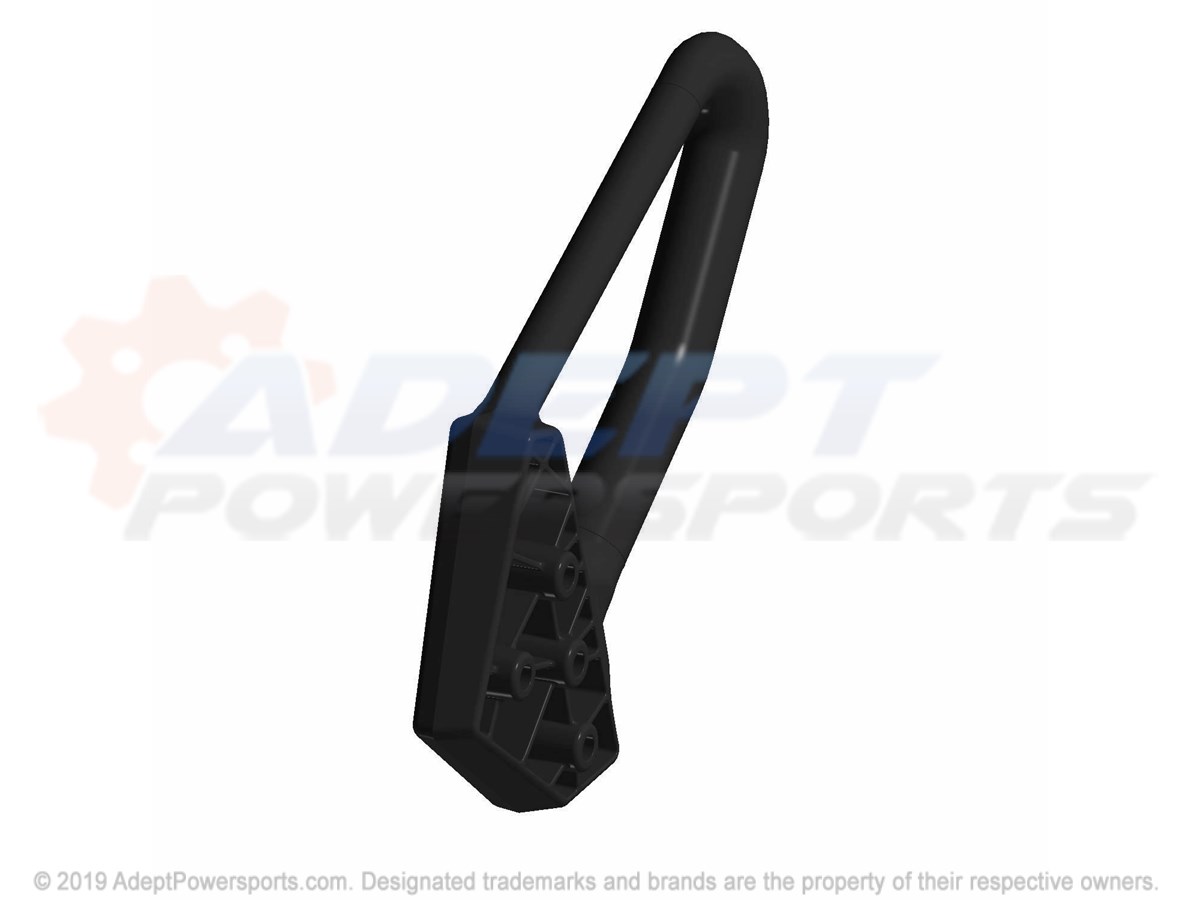

14	HANDLE-GRAB, PASSENGER, BLK Part #: 5452903-070 Required per assembly: 1 Currently Not Available

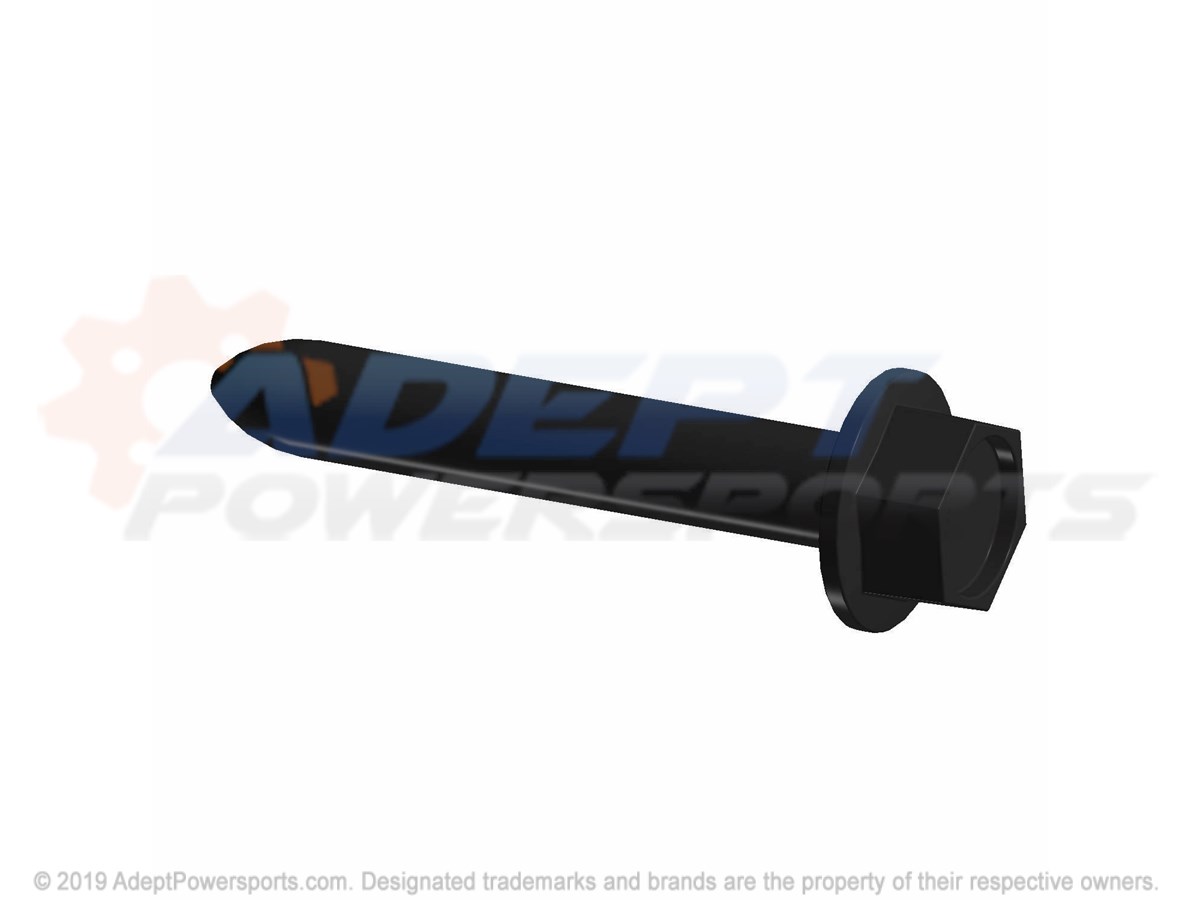

15	SCR-HXFL-M8X1.25X50 RIE Part #: 7520439 Required per assembly: 4 Currently Not Available

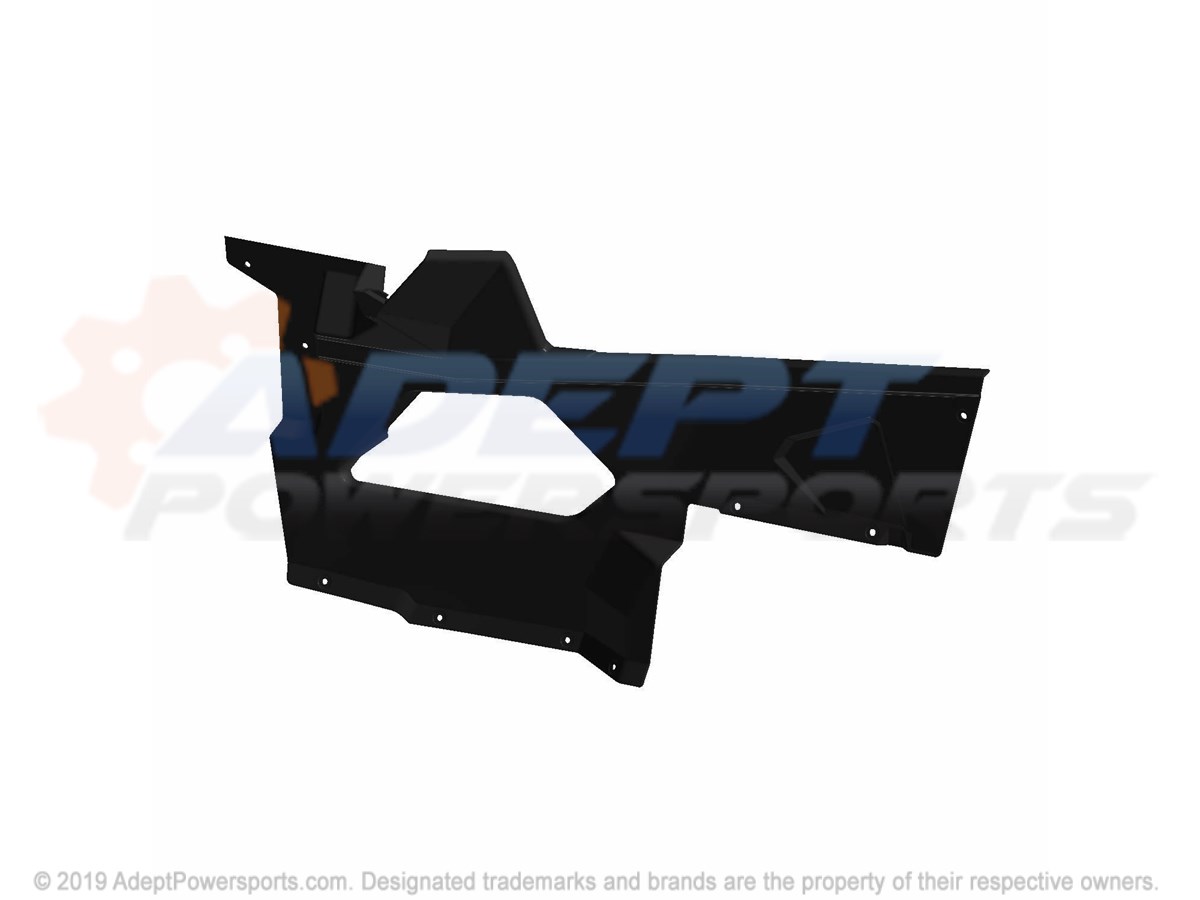

16	CONSOLE-CENTER, LH, BLK Part #: 5452202-070 Required per assembly: 1 Note: TO 4/20/2020 Currently Not Available
16	CONSOLE-CENTER, LH, BLK Part #: 5452202-070 Required per assembly: 1 Note: FROM 4/20/2020 Currently Not Available
